CAN bus - High speed - Comfort systems

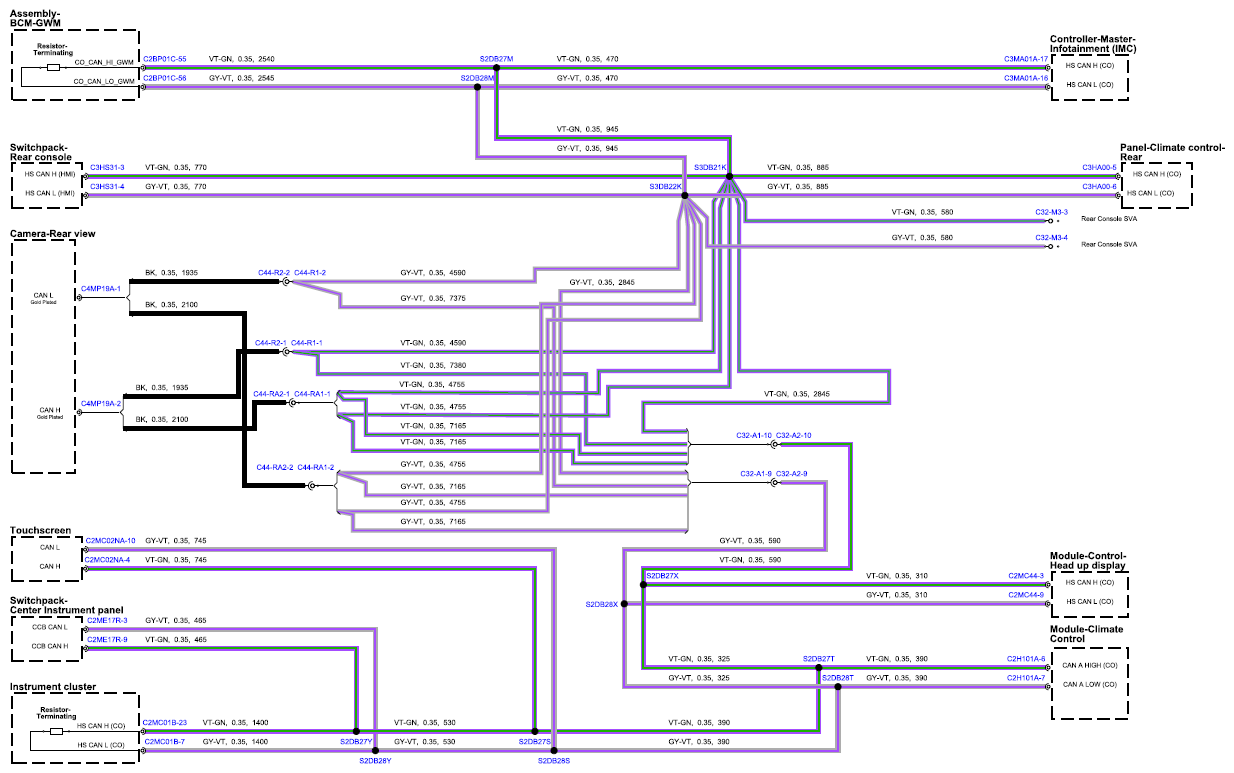

Fig 1: CAN Bus - High Speed - Comfort Systems Circuit Diagram

G15556701
