CAN bus - High speed - Chassis systems

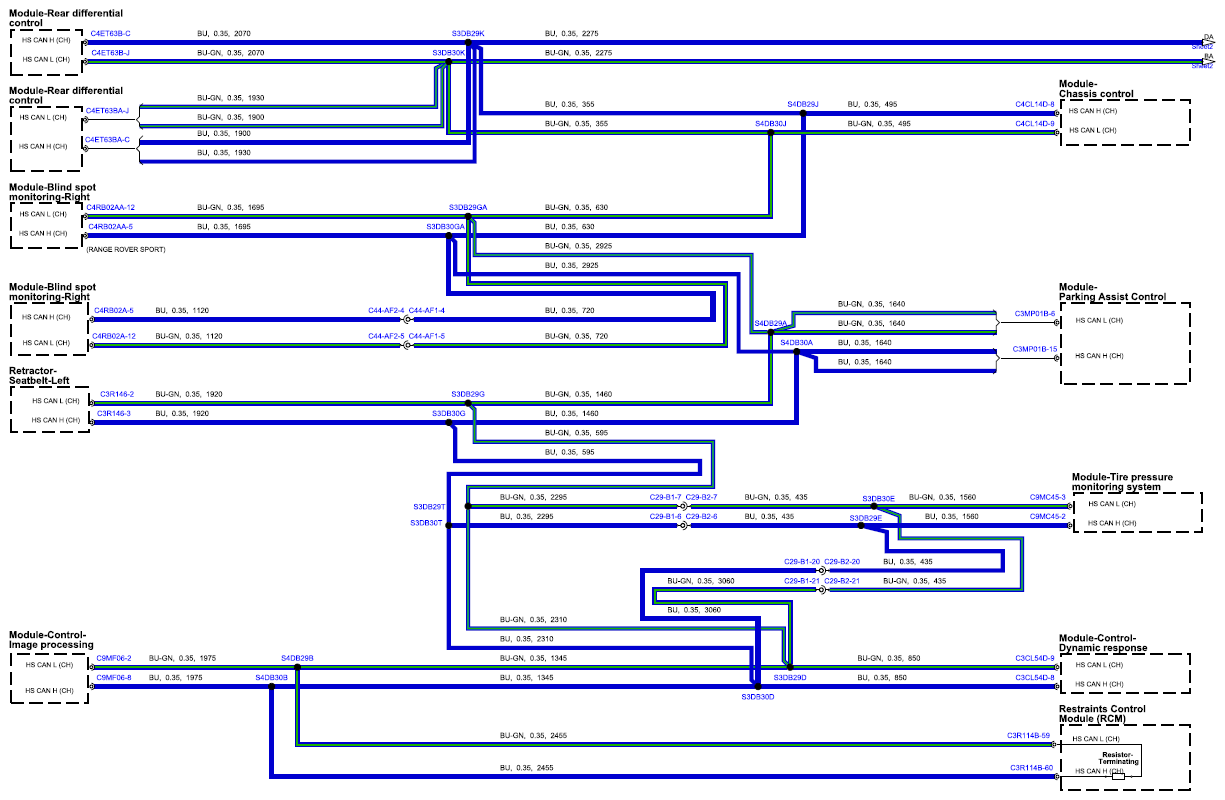

Fig 1: CAN Bus - High Speed - Chassis Systems Circuit Diagram (Sheet 1)

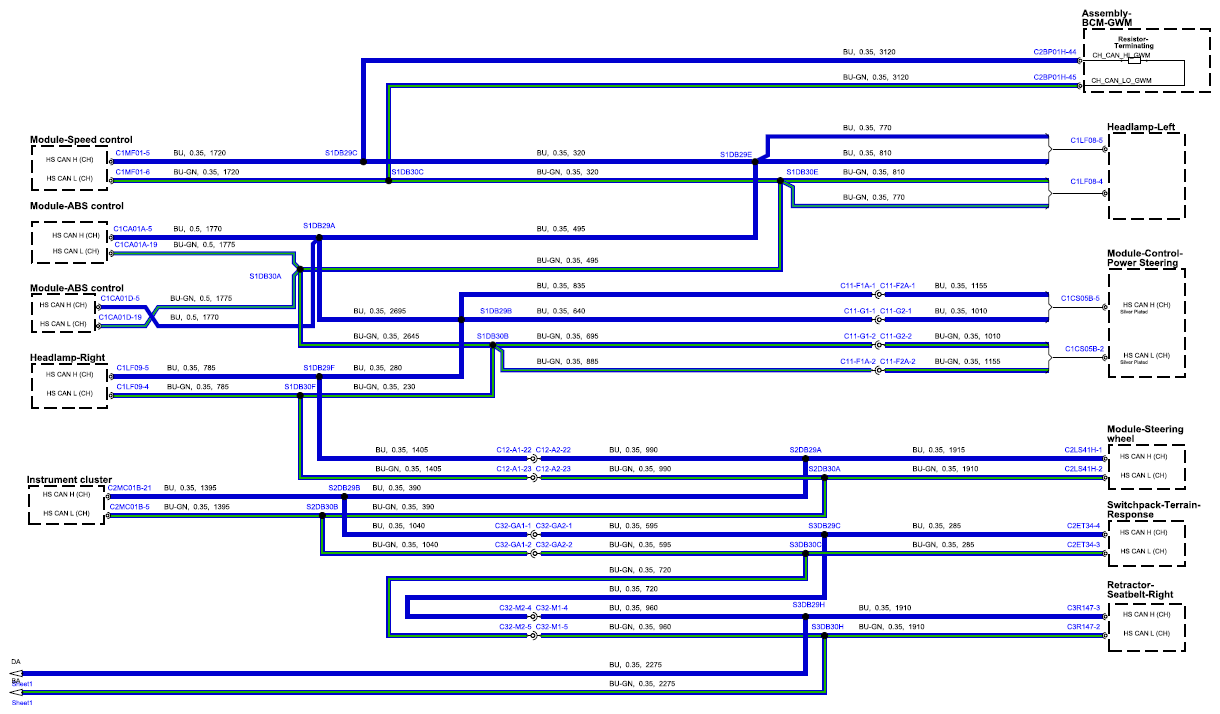

Fig 2: CAN Bus - High Speed - Chassis Systems Circuit Diagram (Sheet 2)
