OEM Wiring Diagrams -- Range Rover Sport L494
>>
418-00 Module Communications Network Wiring Diagrams
>>
CAN bus - High speed - Body systems
CAN bus - High speed - Body systems

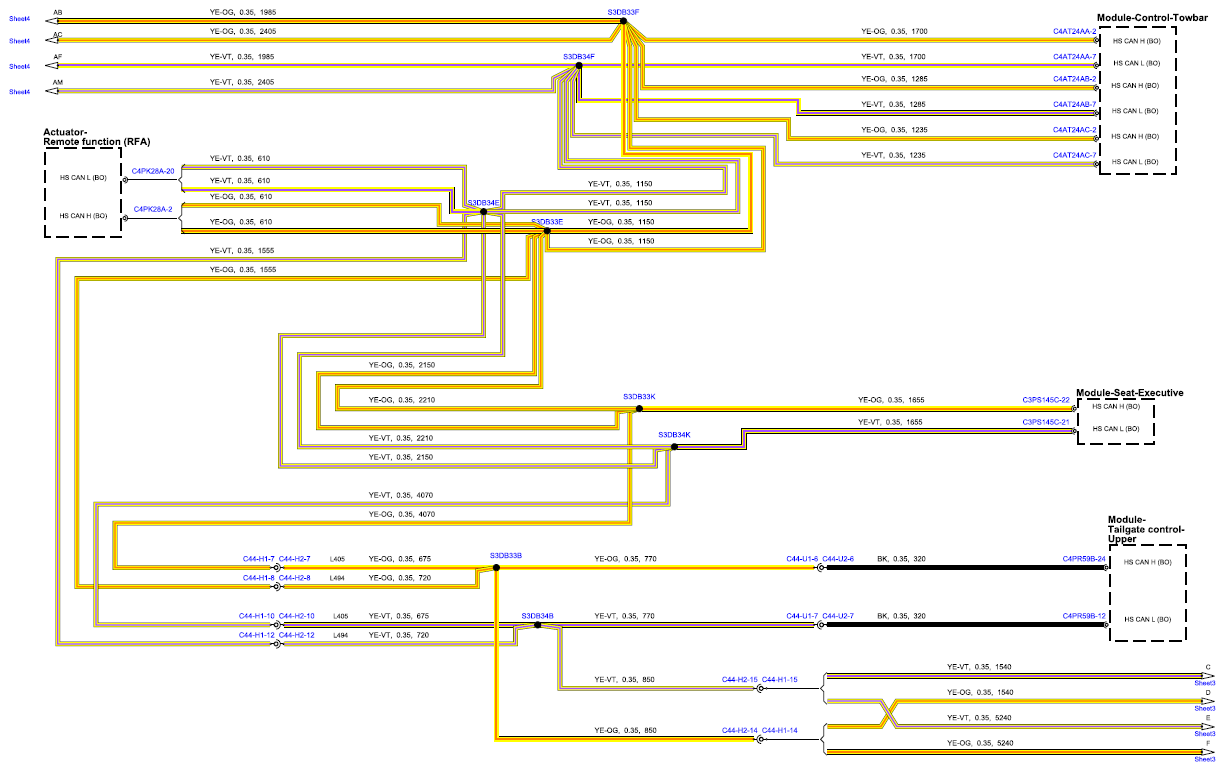

Fig 1: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 1)

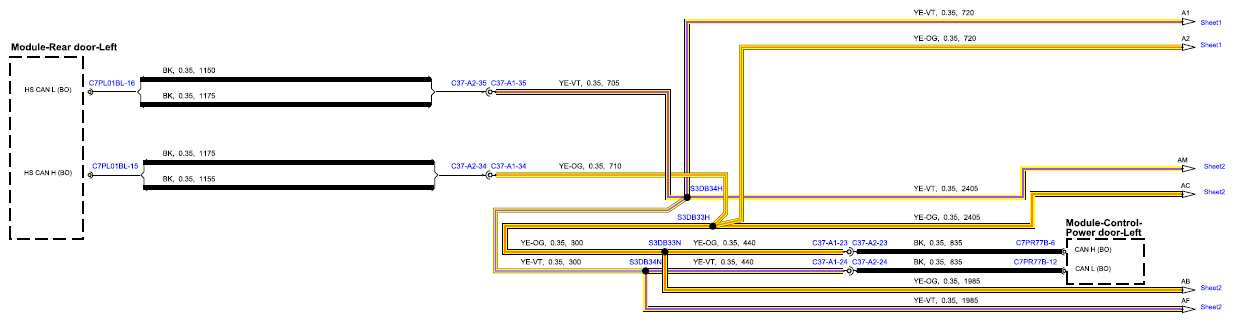

Fig 2: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 2)

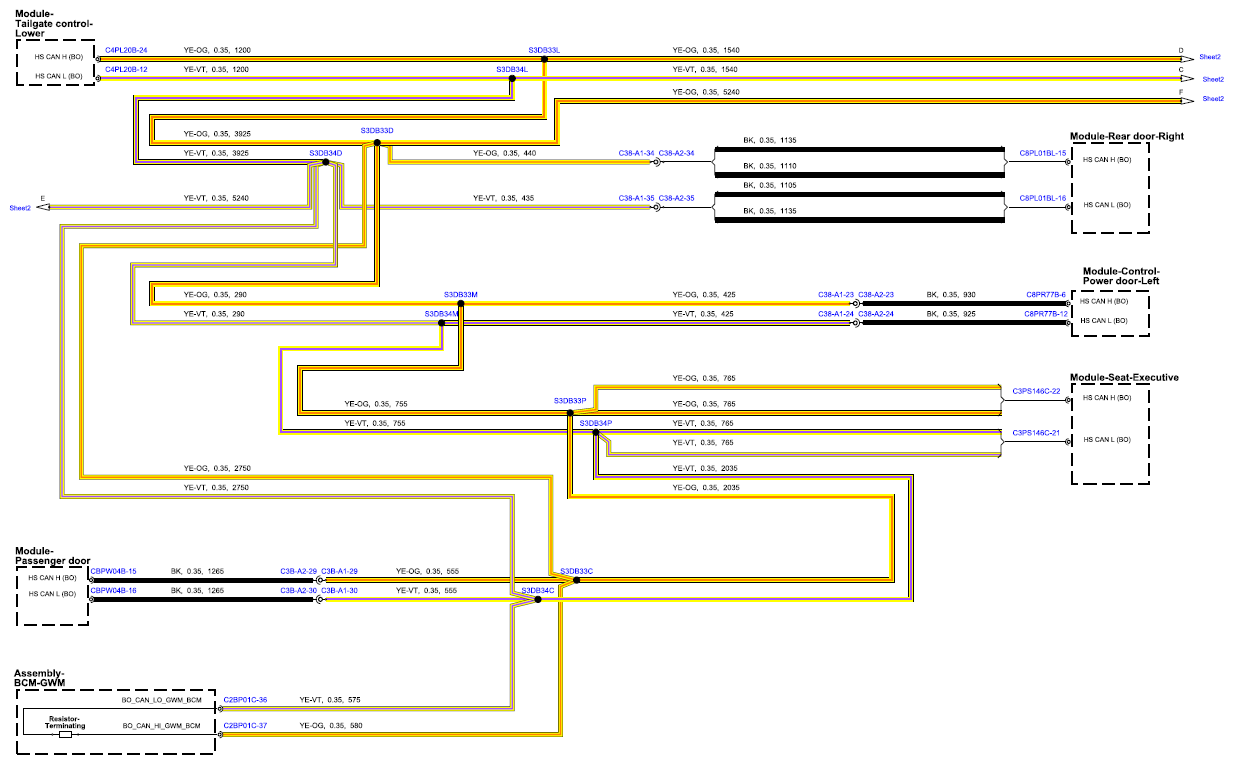

Fig 3: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 3)

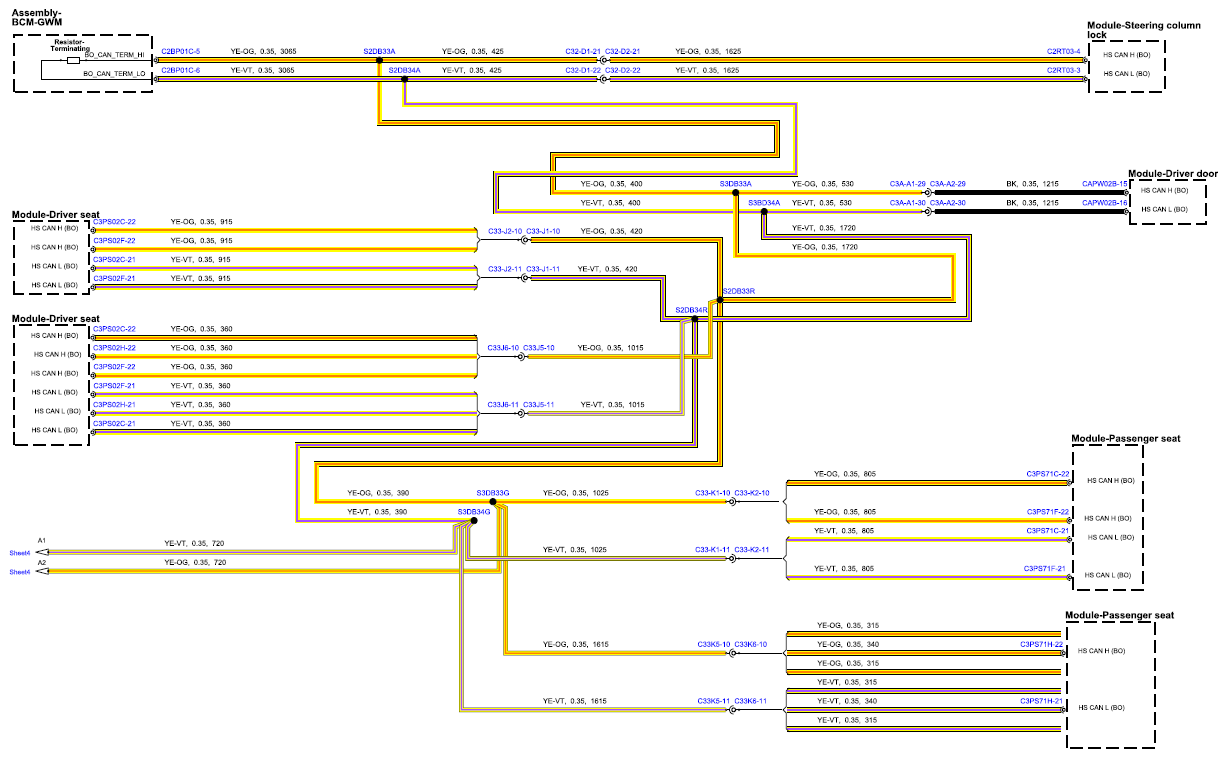

Fig 4: CAN Bus - High Speed - Body Systems Circuit Diagram (Sheet 4)
