Map and Courtesy

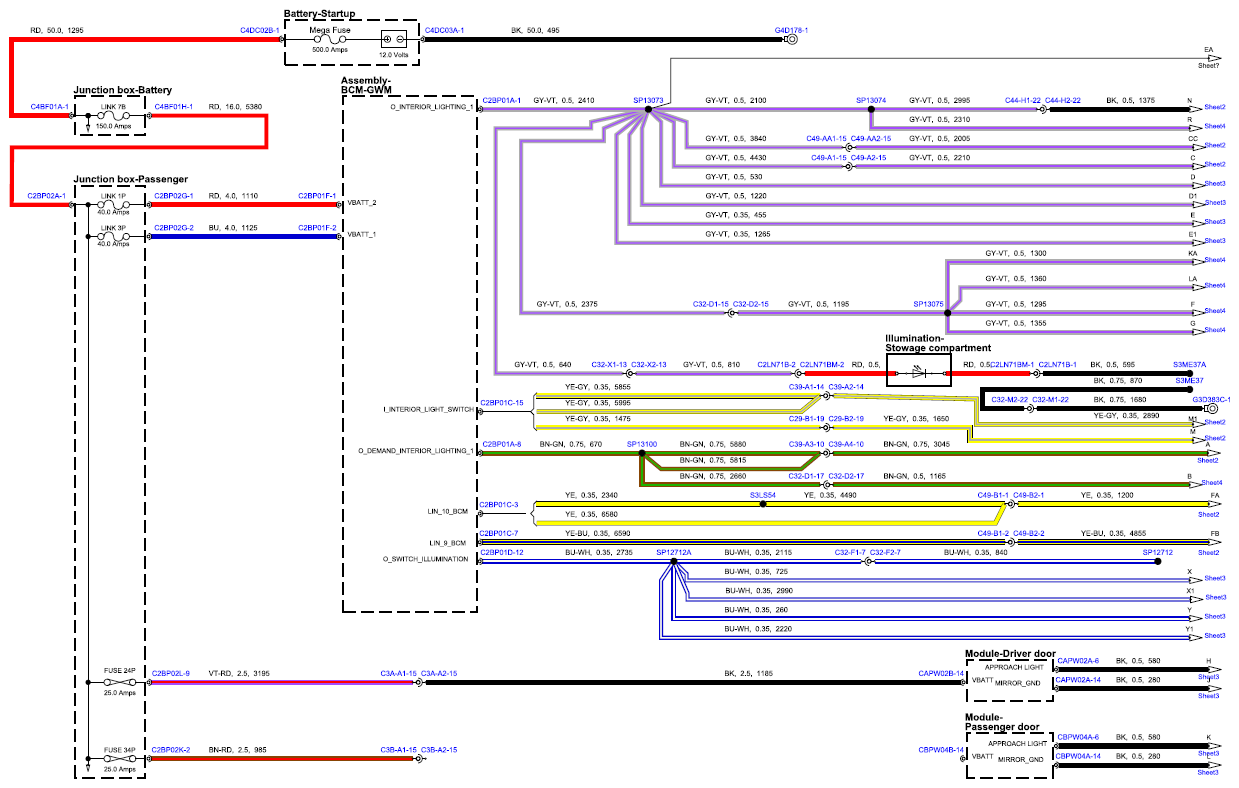

Fig 1: Map And Courtesy Circuit Diagram (Sheet 1)
G15556691

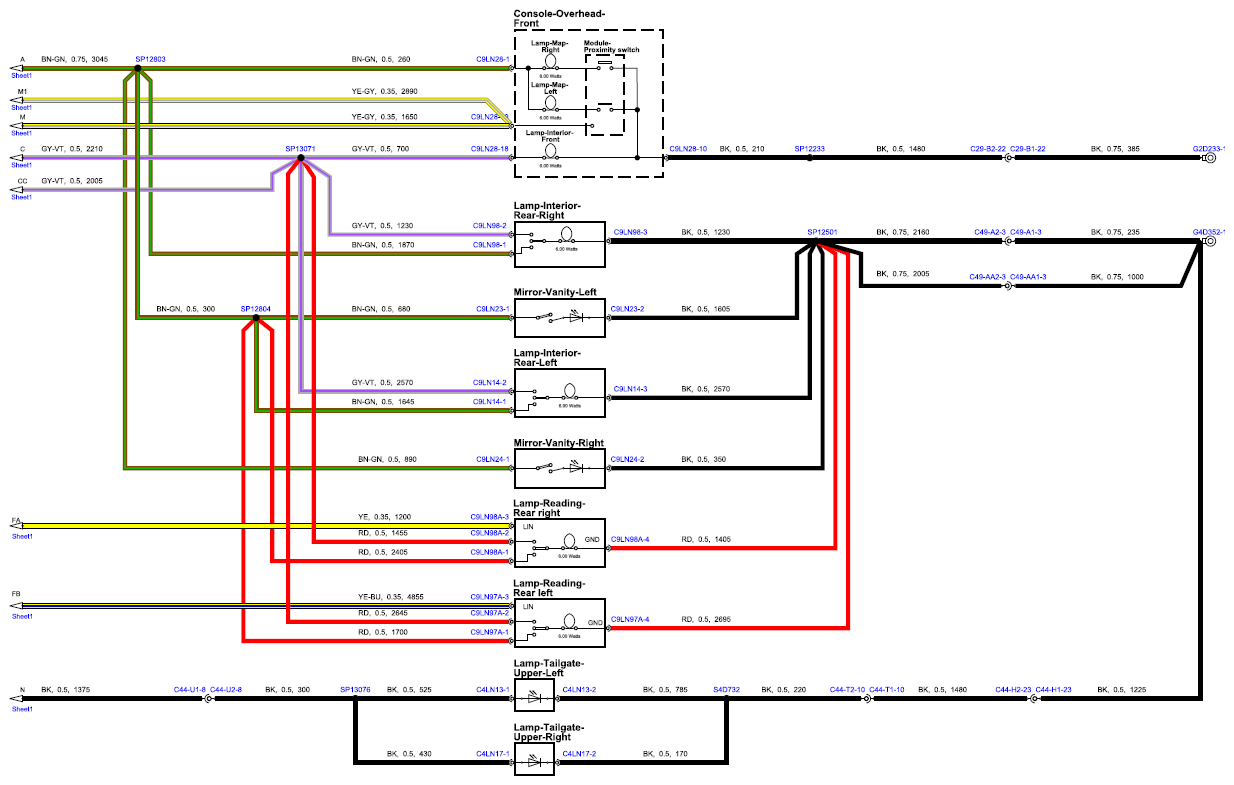

Fig 2: Map And Courtesy Circuit Diagram (Sheet 2)
G15556692

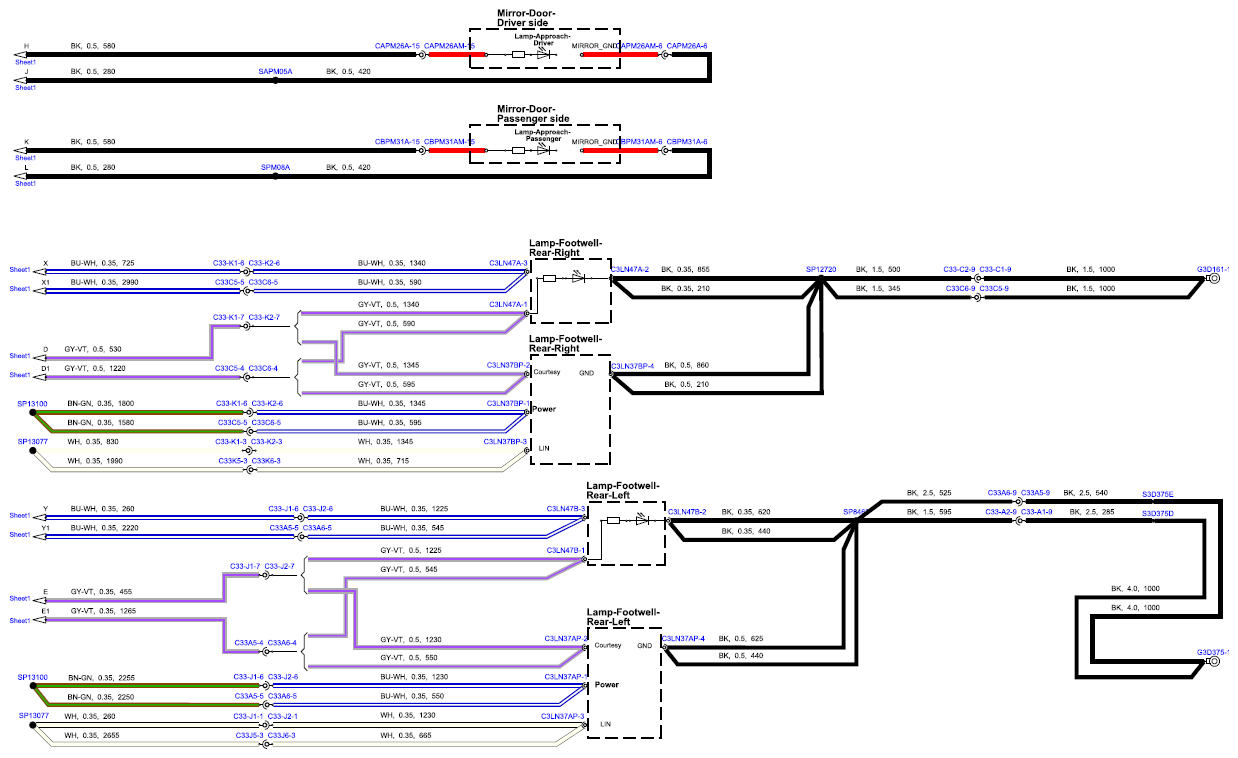

Fig 3: Map And Courtesy Circuit Diagram (Sheet 3)
G15556693

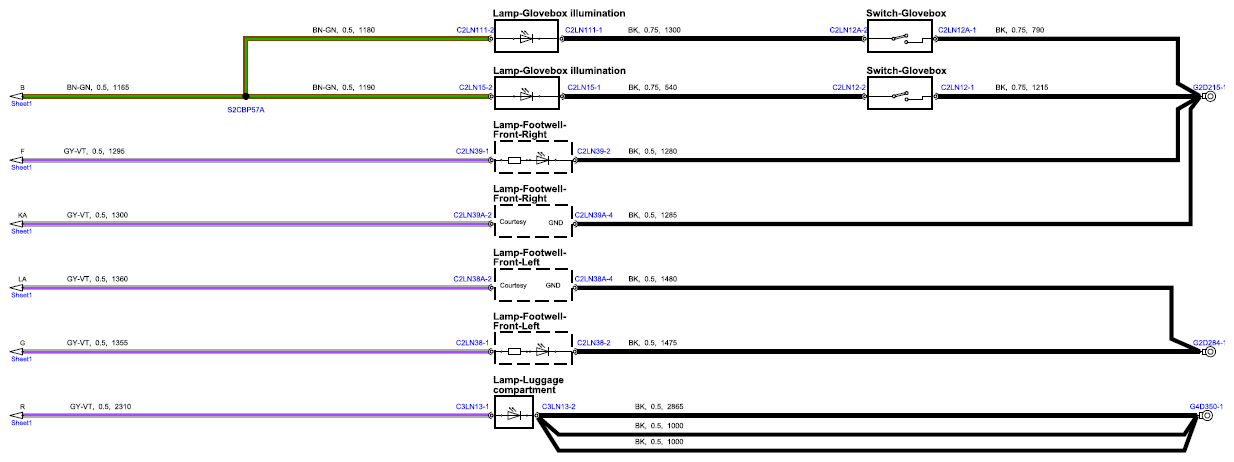

Fig 4: Map And Courtesy Circuit Diagram (Sheet 4)
G15556694
