Entry illumination

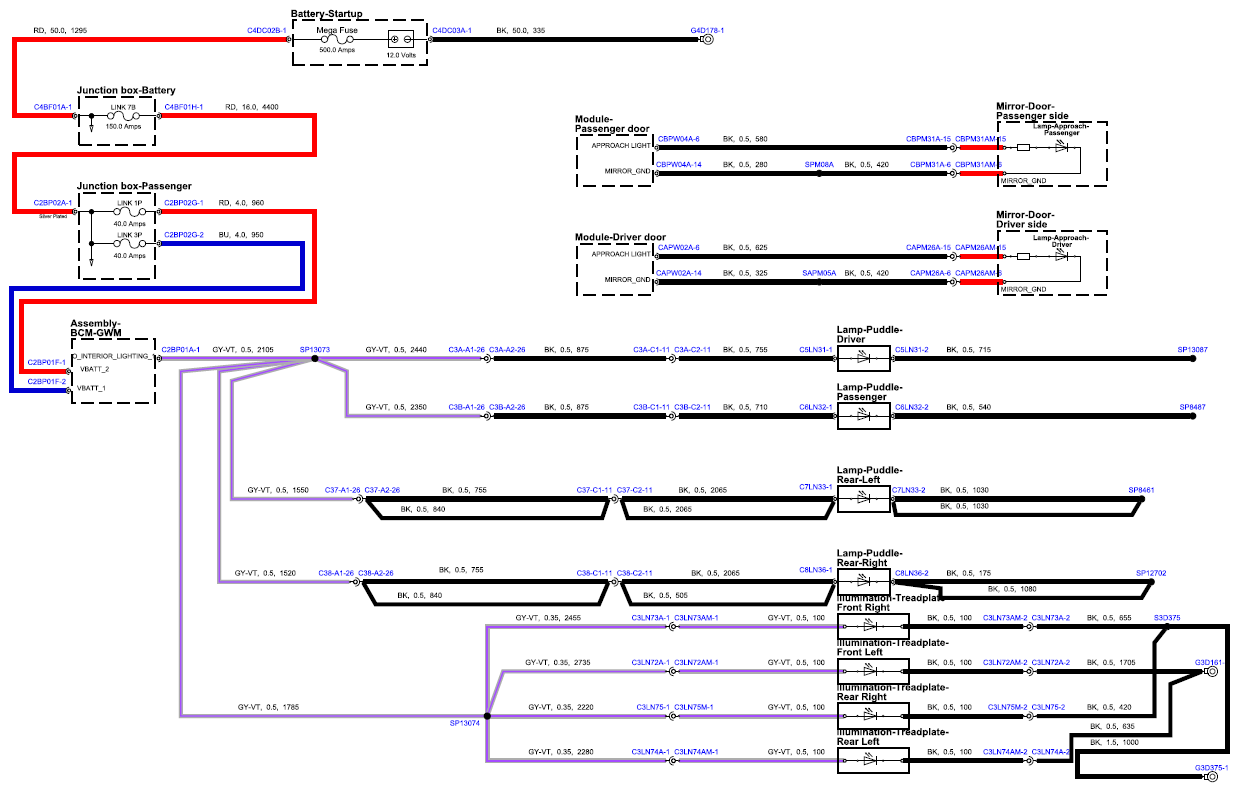

Fig 1: Entry Illumination Circuit Diagram (Sheet 1)

G15556695

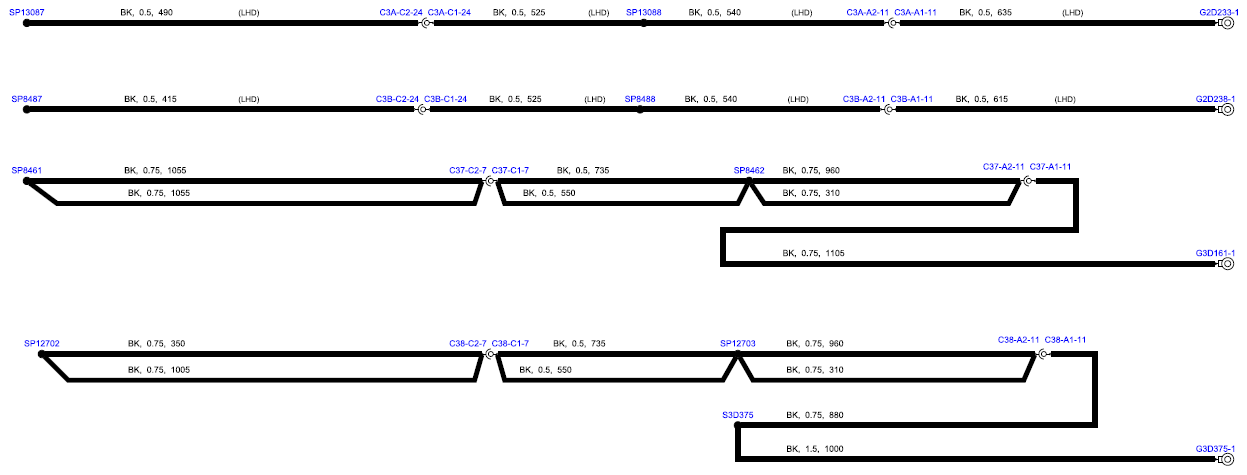

Fig 2: Entry Illumination Circuit Diagram (Sheet 2)

G15556696
