Configurable ambience lighting

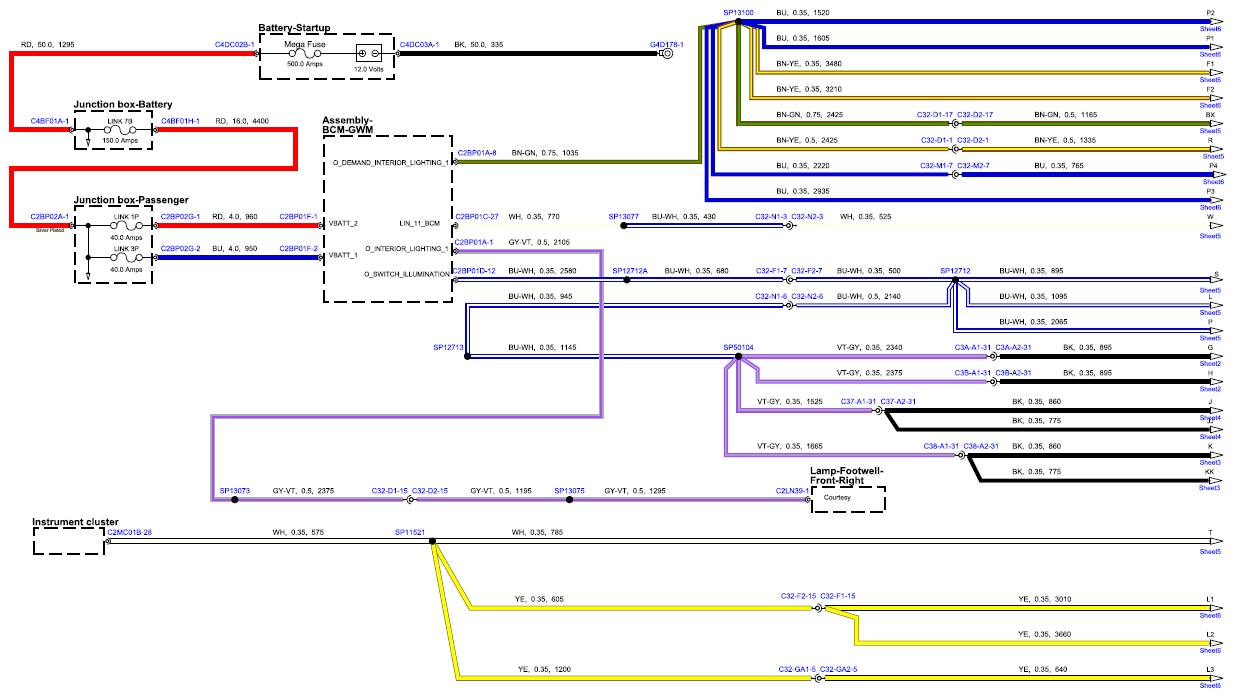

Fig 1: Configurable Ambience Lighting Circuit Diagram (Sheet 1)
G15556683

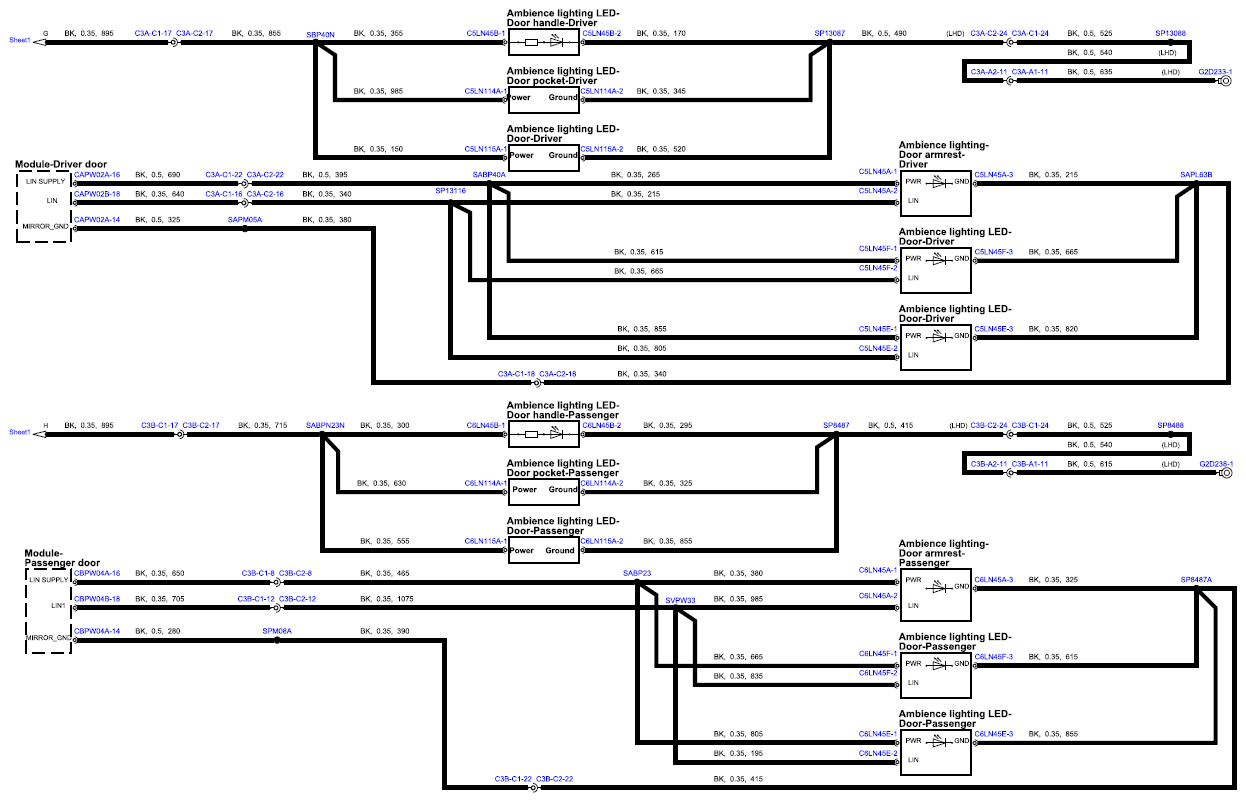

Fig 2: Configurable Ambience Lighting Circuit Diagram (Sheet 2)
G15556684

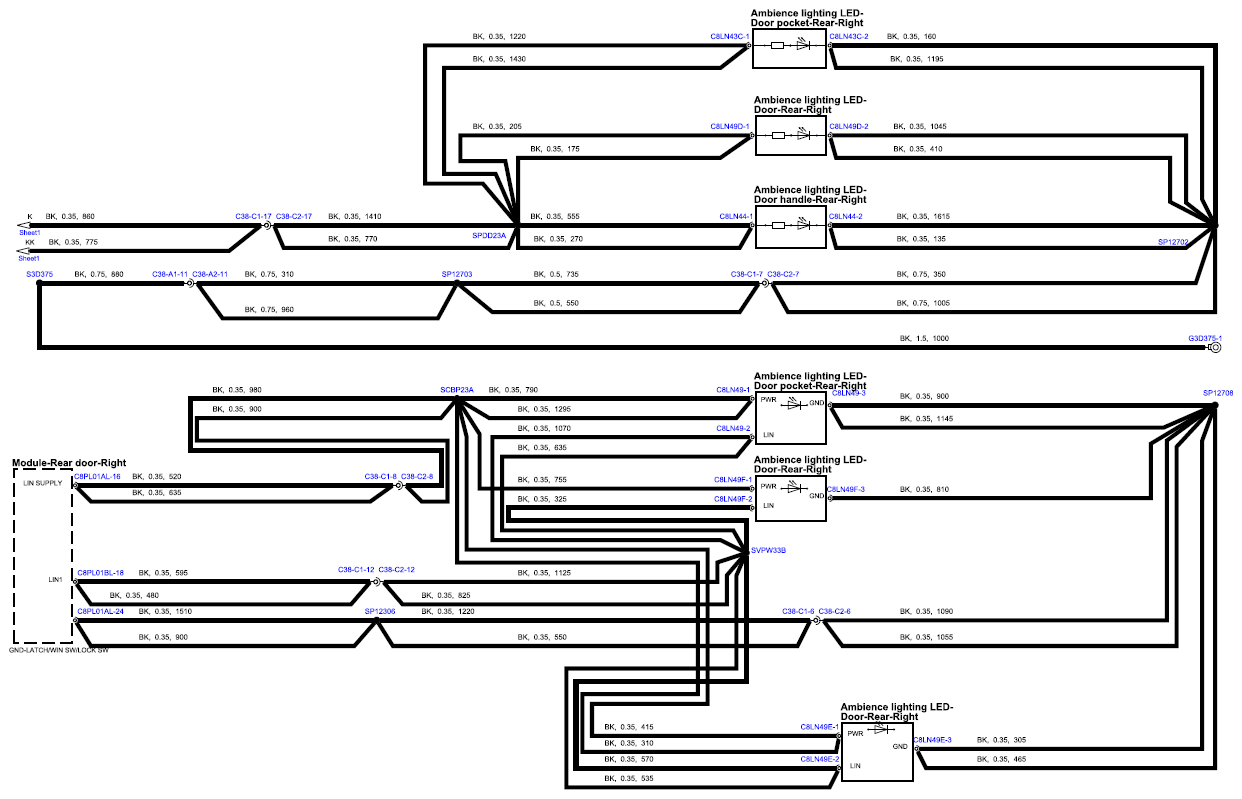

Fig 3: Configurable Ambience Lighting Circuit Diagram (Sheet 3)
G15556685

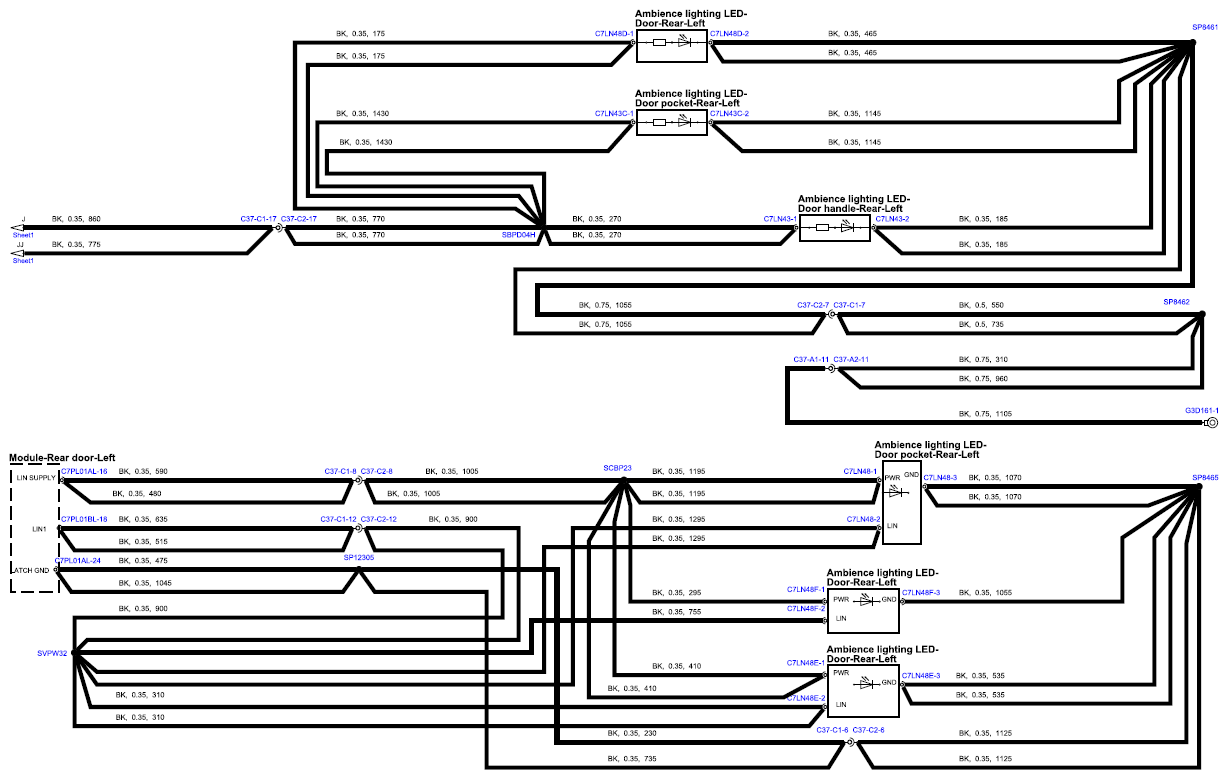

Fig 4: Configurable Ambience Lighting Circuit Diagram (Sheet 4)
G15556686

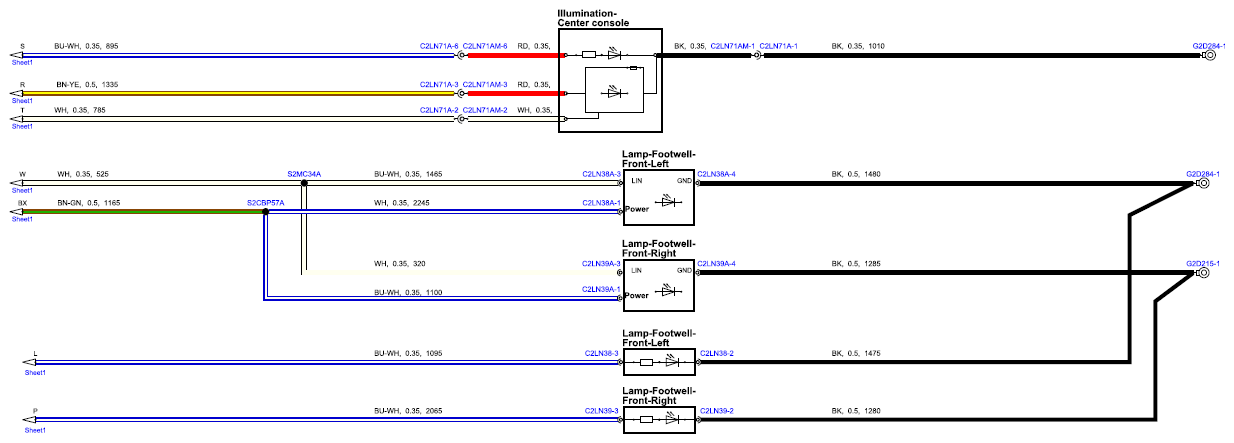

Fig 5: Configurable Ambience Lighting Circuit Diagram (Sheet 5)
G15556687

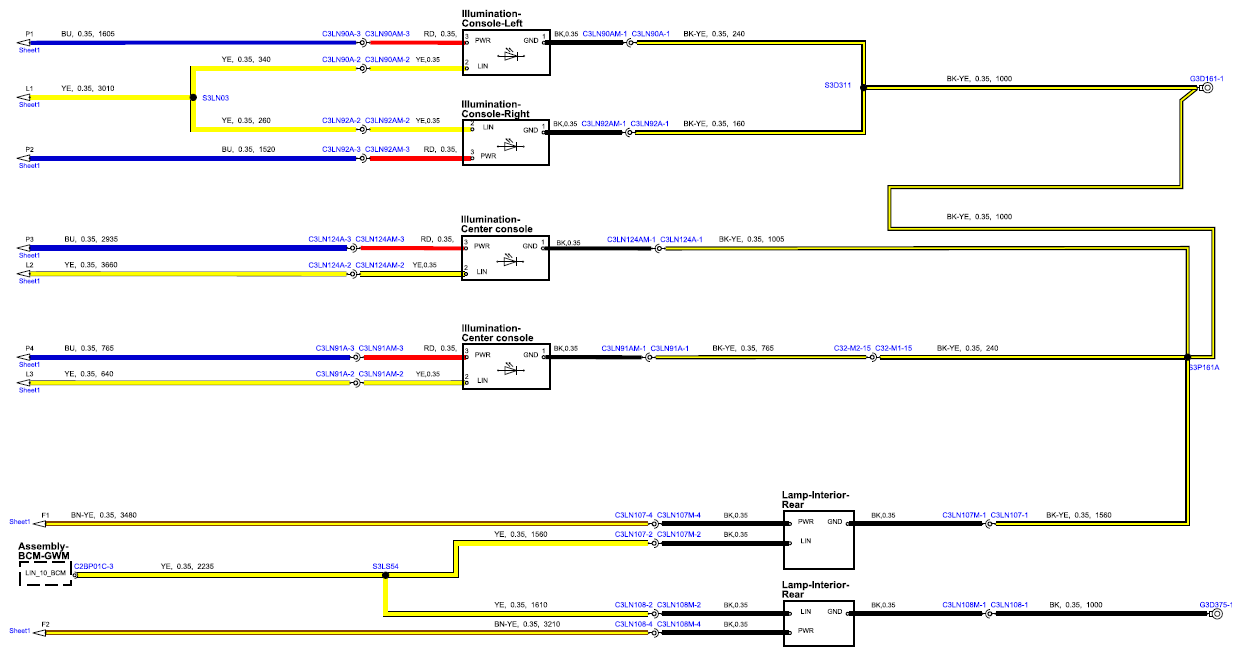

Fig 6: Configurable Ambience Lighting Circuit Diagram (Sheet 6)
G15556688
