Ambience lighting

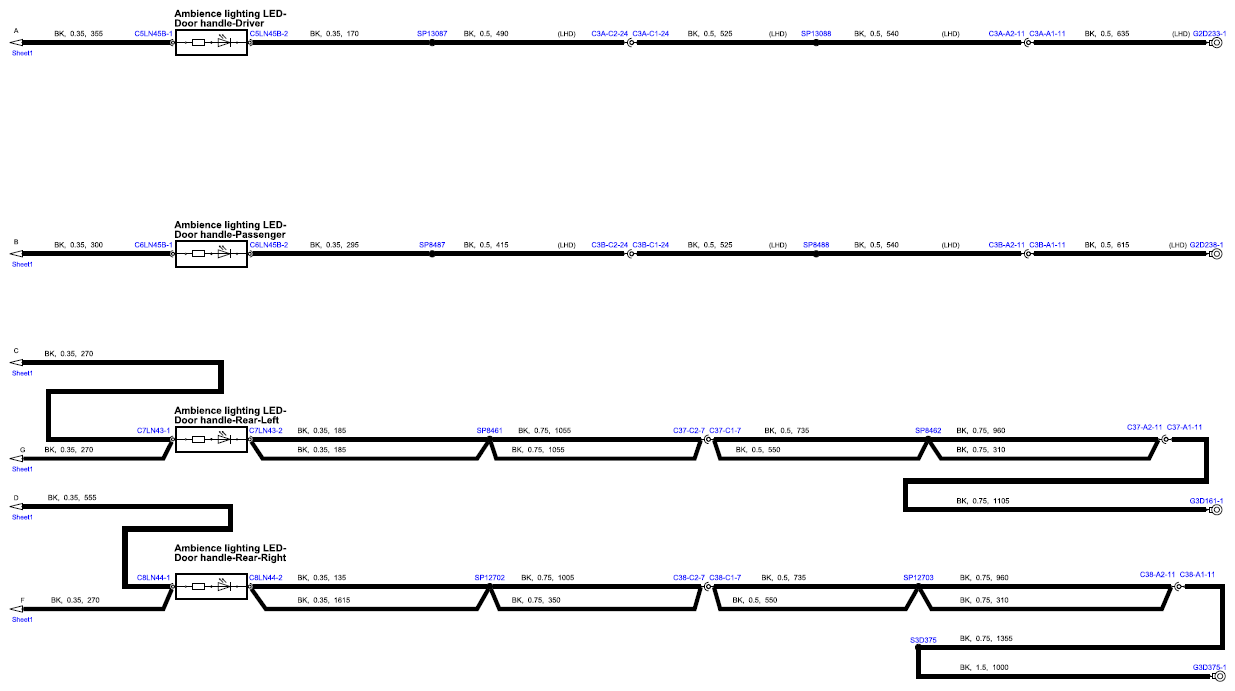

Fig 1: Ambience Lighting Circuit Diagram (Sheet 1)

G15556689

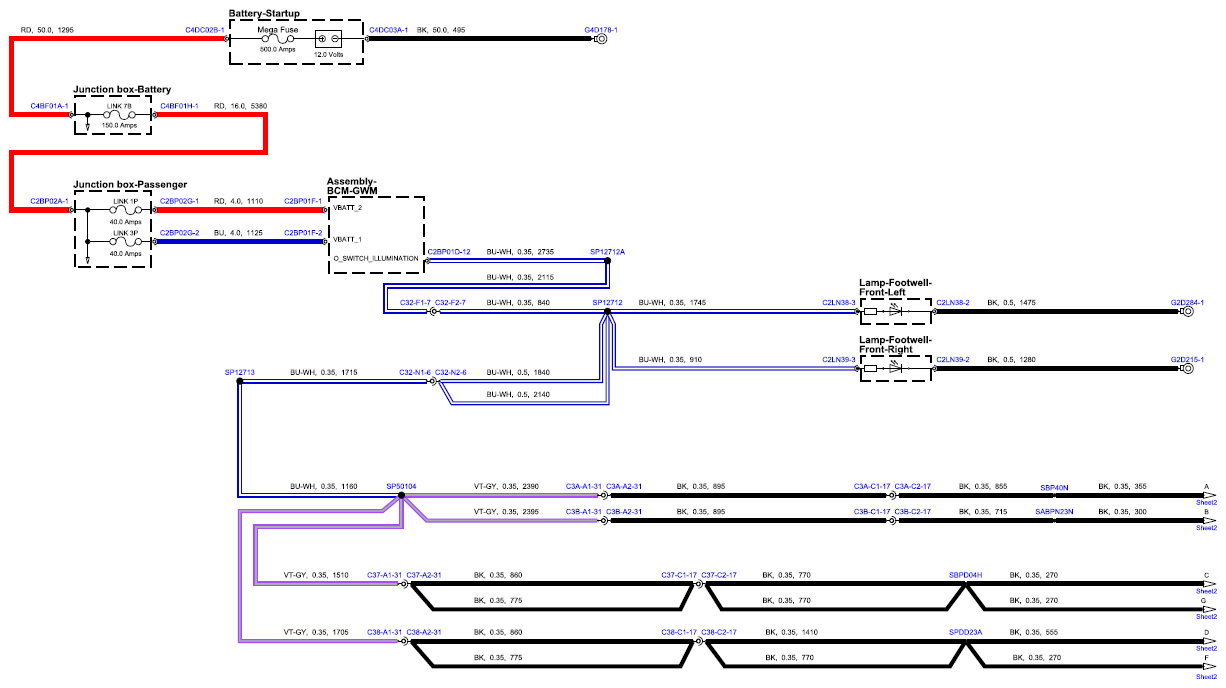

Fig 2: Ambience Lighting Circuit Diagram (Sheet 2)

G15556690
