5-seat vehicles

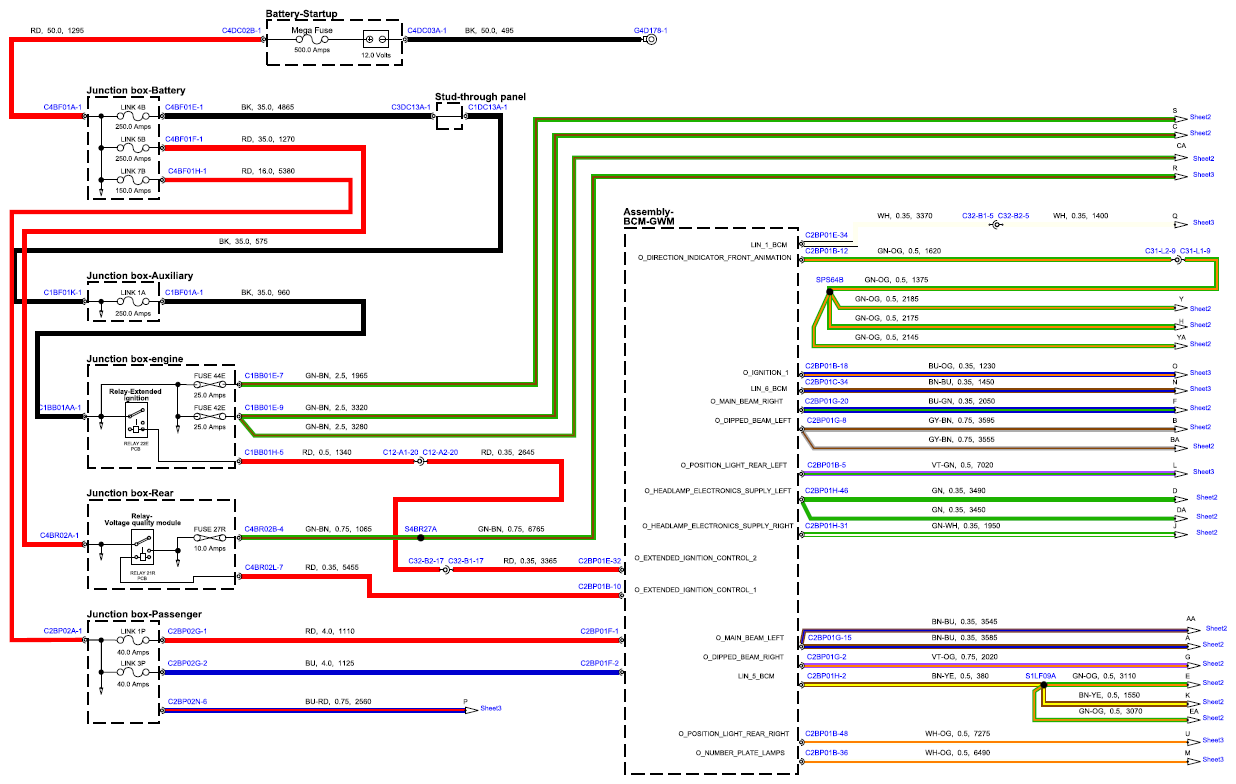

Fig 1: 5-Seat Vehicles Circuit Diagram (Sheet 1)

G15556669

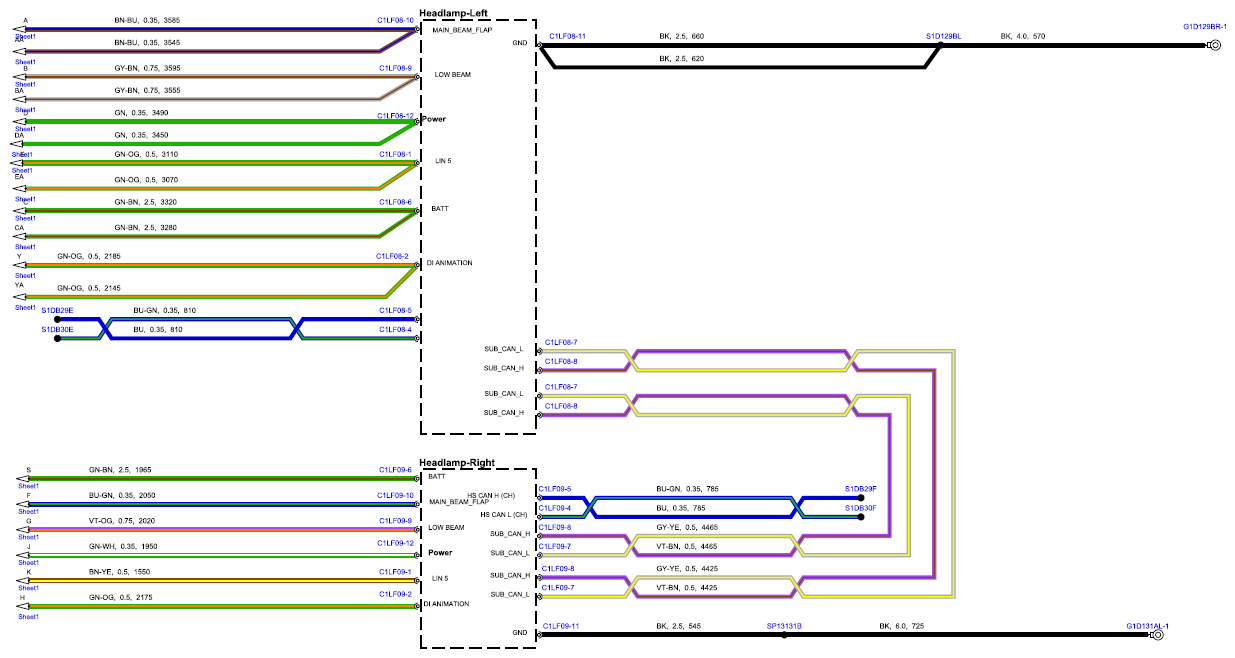

Fig 2: 5-Seat Vehicles Circuit Diagram (Sheet 2)

G15556670

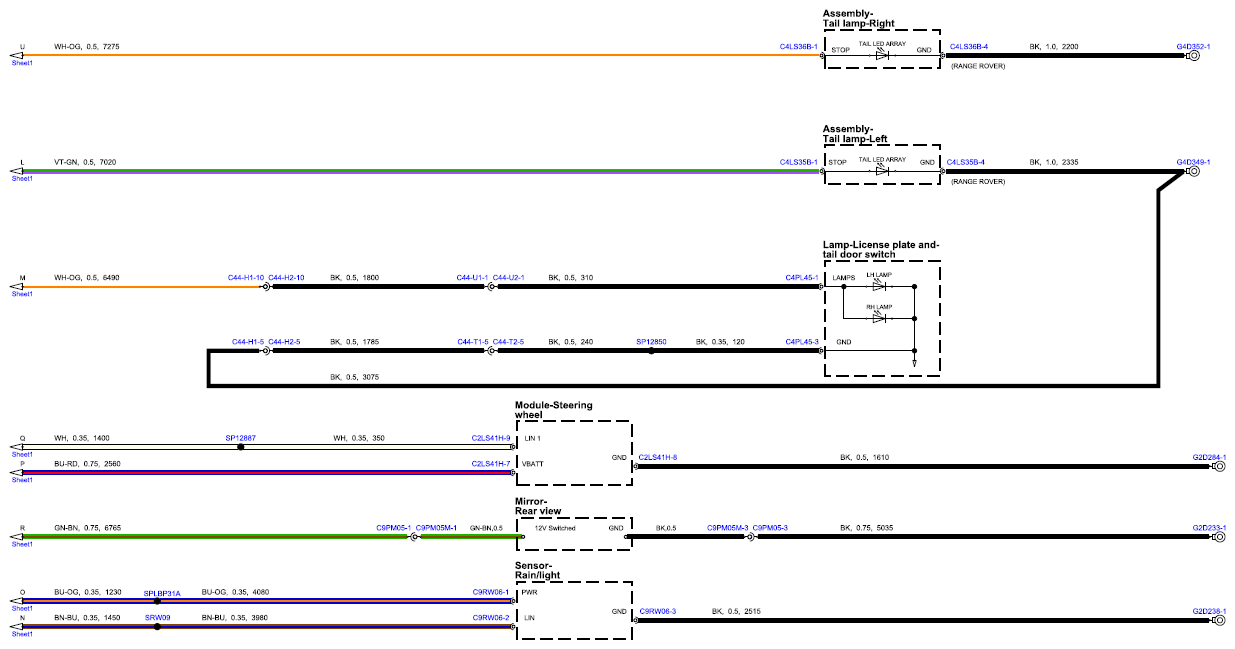

Fig 3: 5-Seat Vehicles Circuit Diagram (Sheet 3)

G15556671
