Telematics system

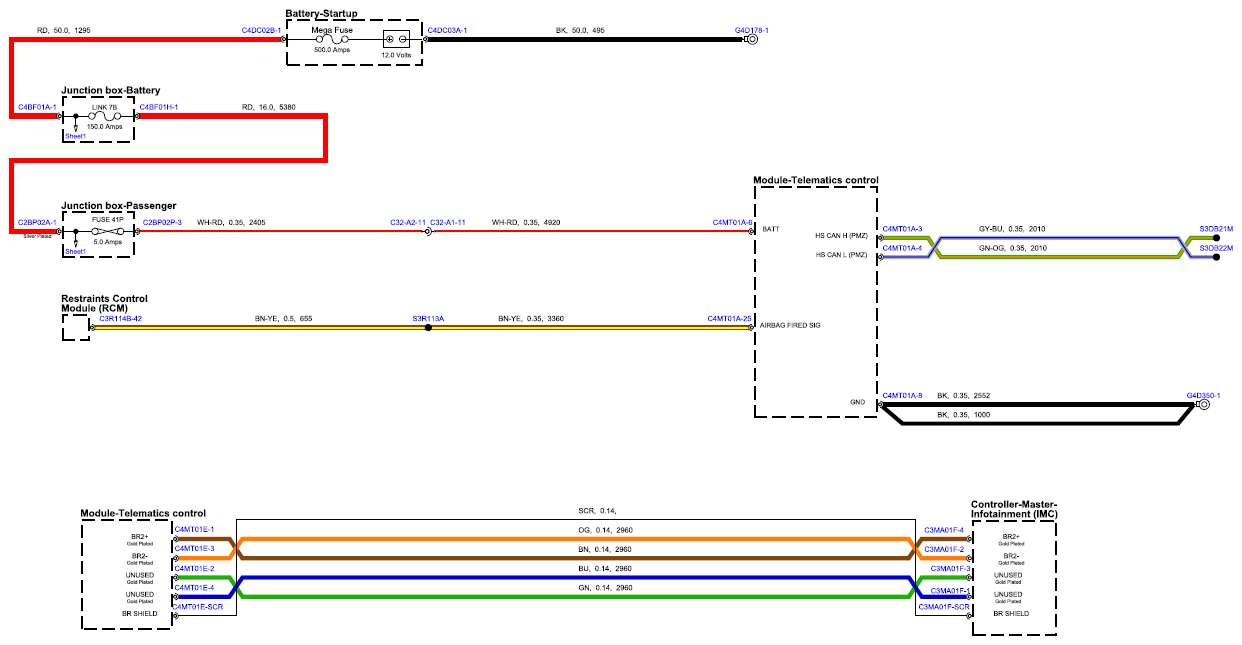

Fig 1: Telematics System Circuit Diagram (Sheet 1)
G15556664

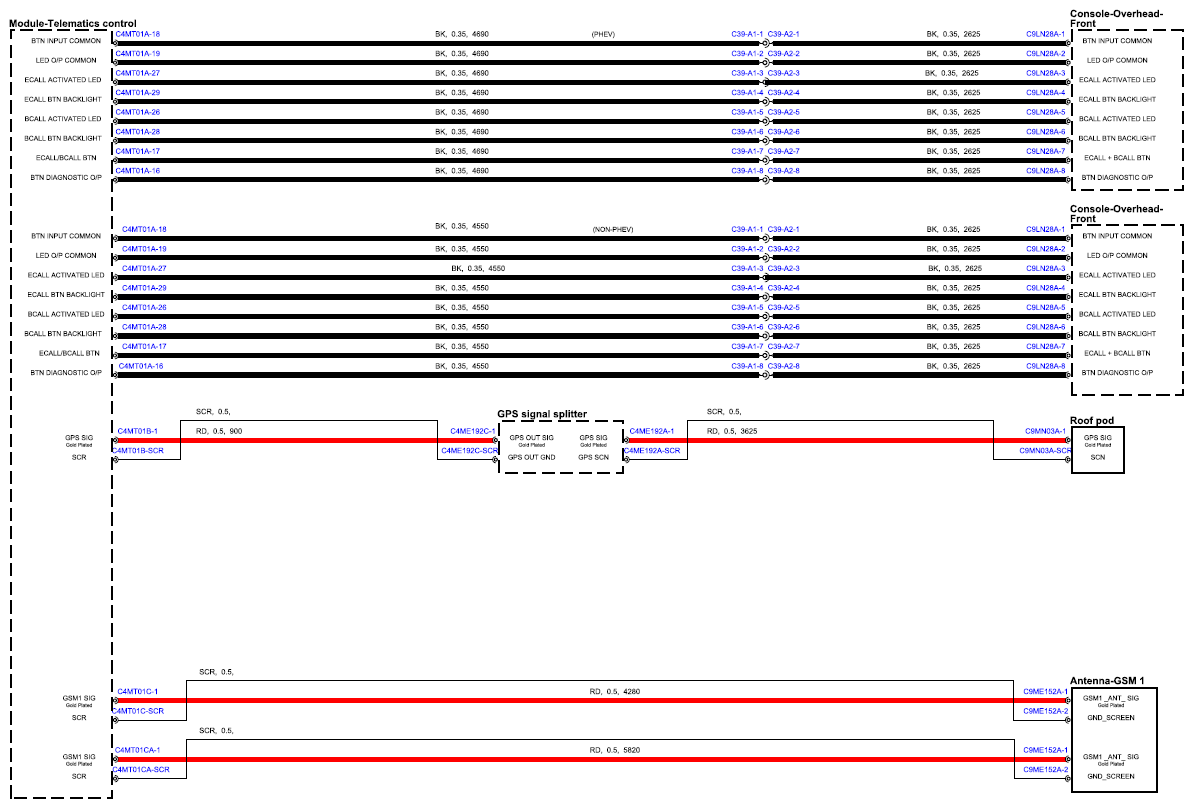

Fig 2: Telematics System Circuit Diagram (Sheet 2)
G15556665

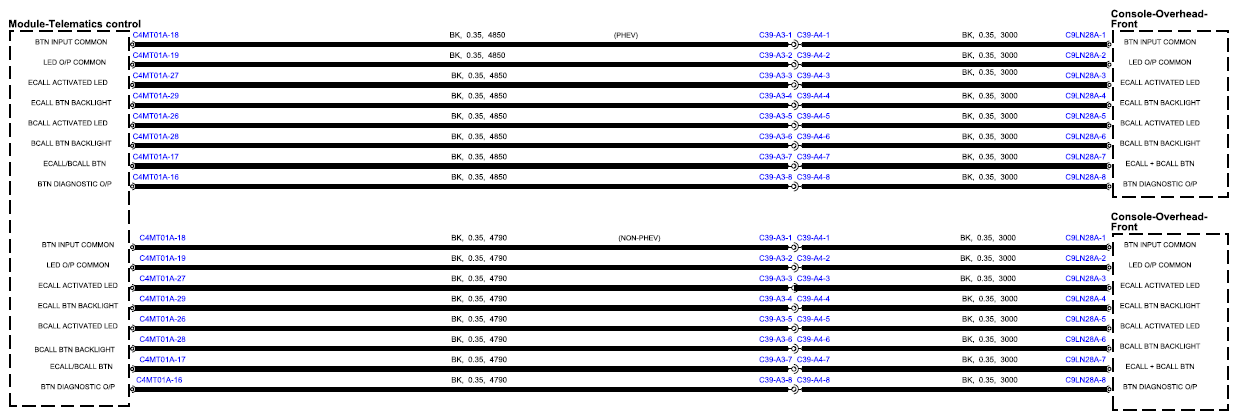

Fig 3: Telematics System Circuit Diagram (Sheet 3)
G15556666

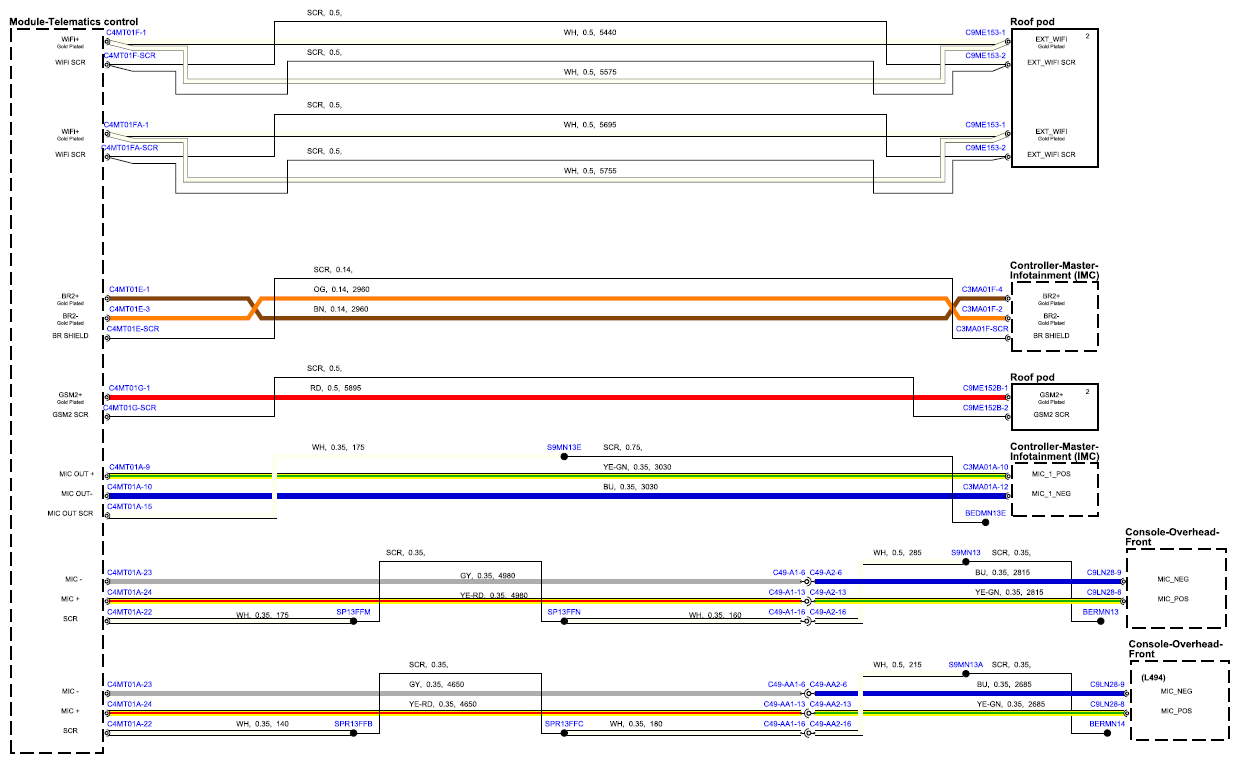

Fig 4: Telematics System Circuit Diagram (Sheet 4)
G15556667

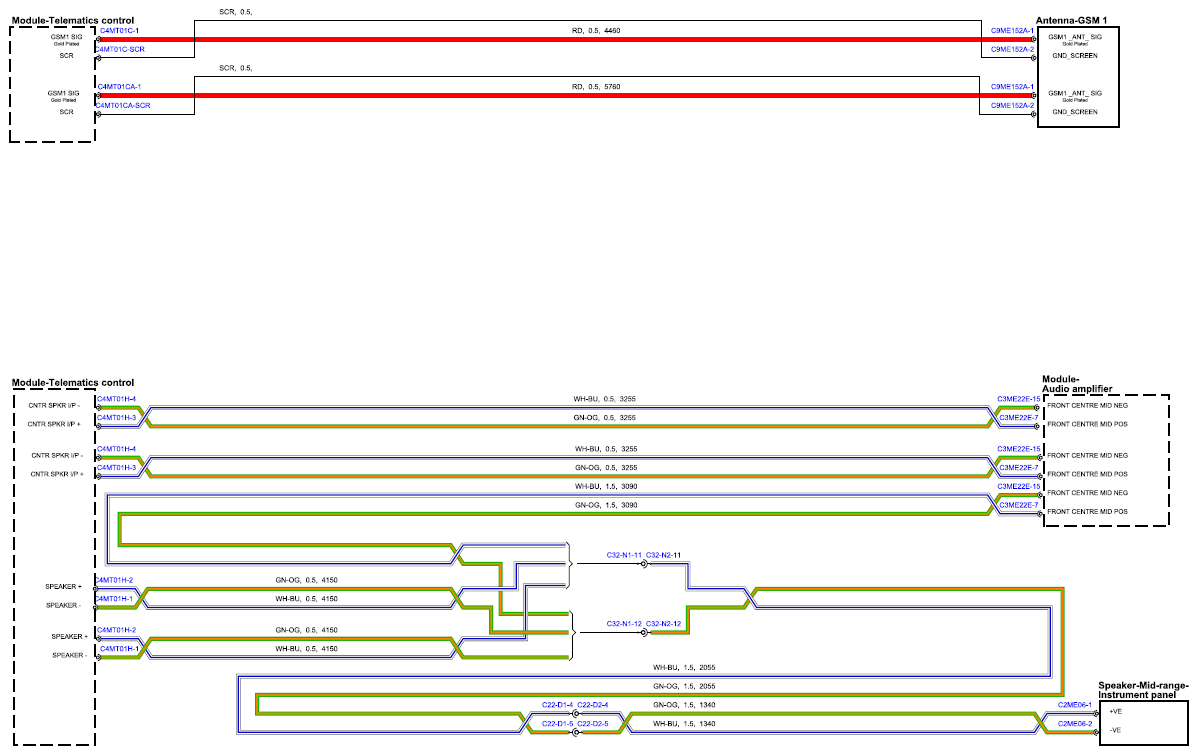

Fig 5: Telematics System Circuit Diagram (Sheet 5)
G15556668
