Audio system

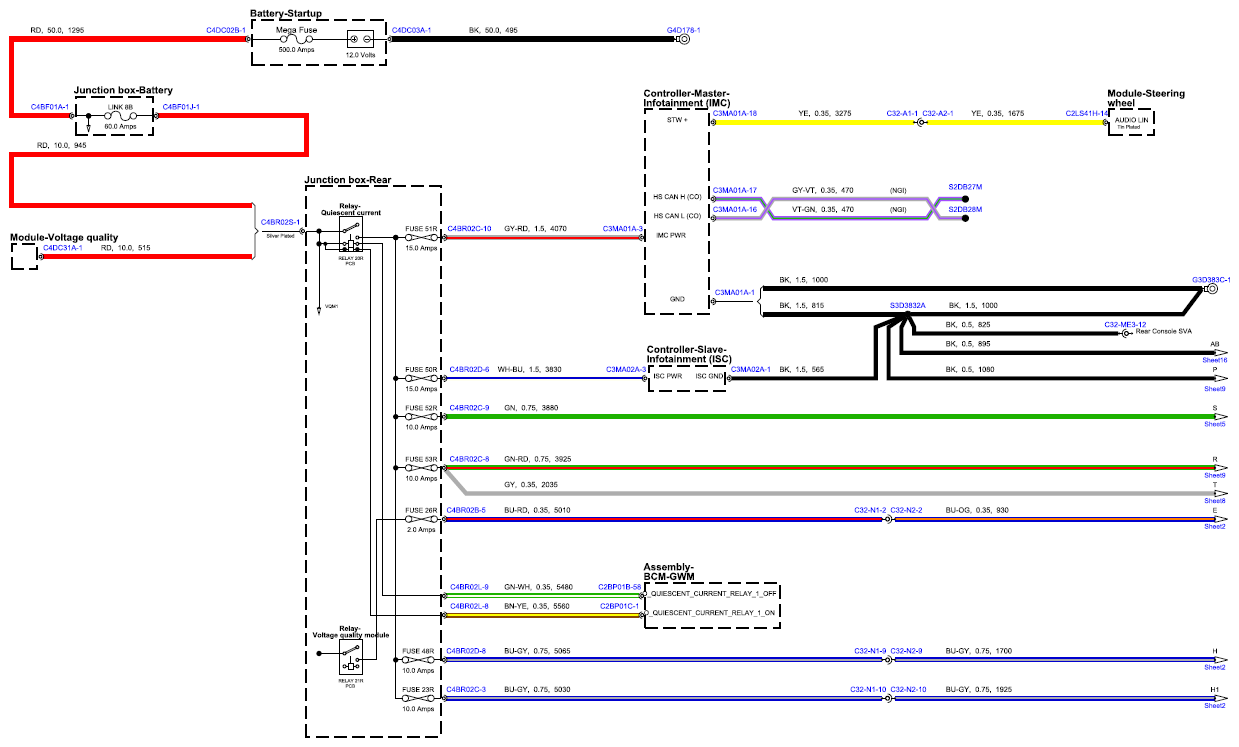

Fig 1: Audio System Circuit Diagram (Sheet 1)

G15556635

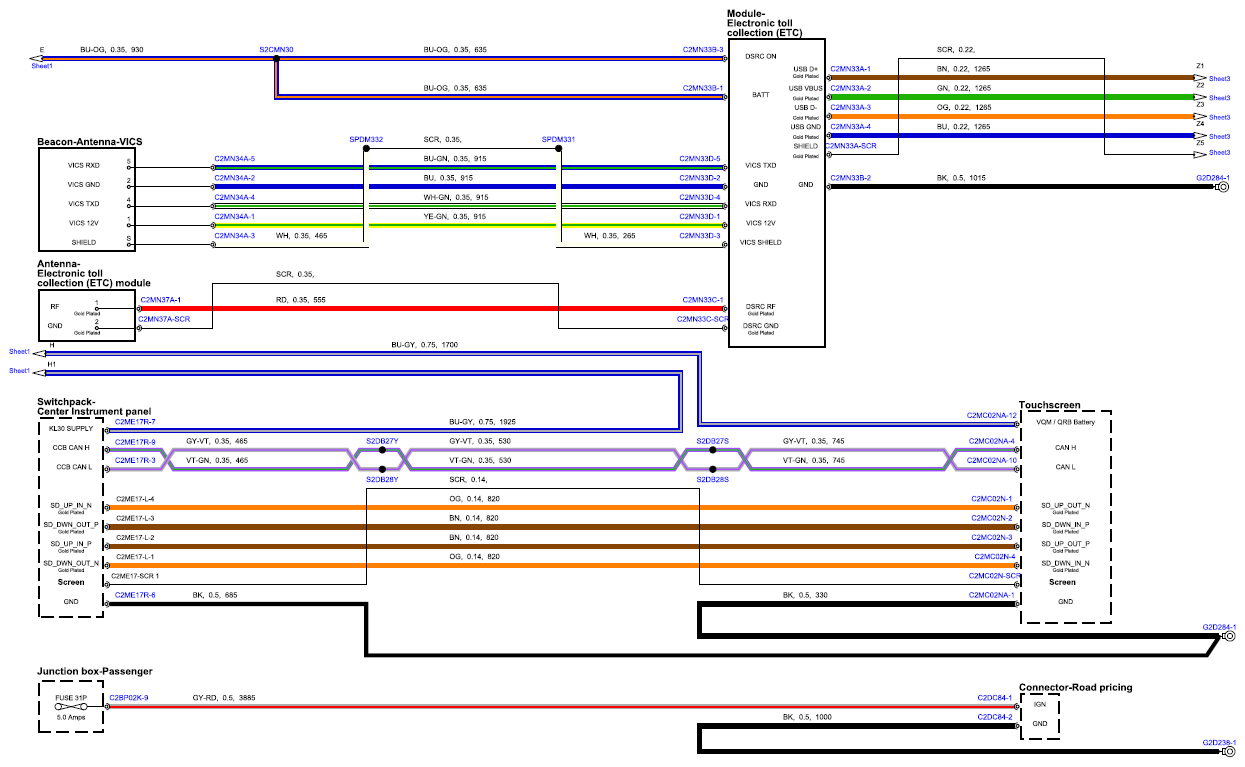

Fig 2: Audio System Circuit Diagram (Sheet 2)

G15556636

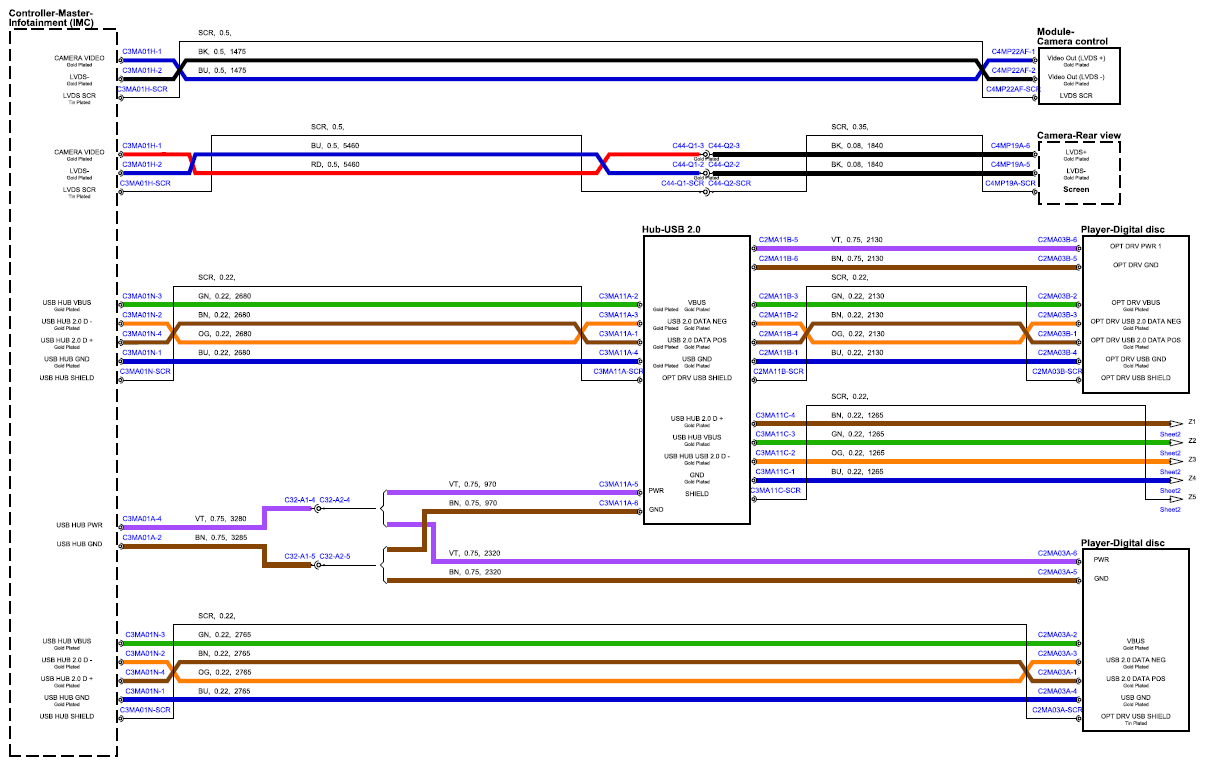

Fig 3: Audio System Circuit Diagram (Sheet 3)

G15556637

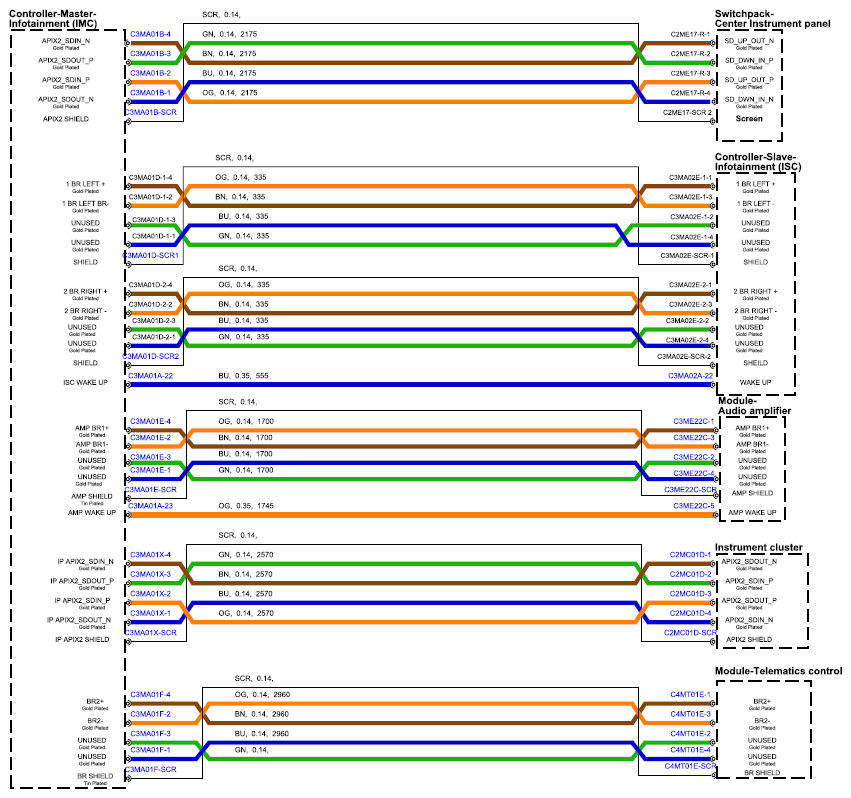

Fig 4: Audio System Circuit Diagram (Sheet 4)

G15556638

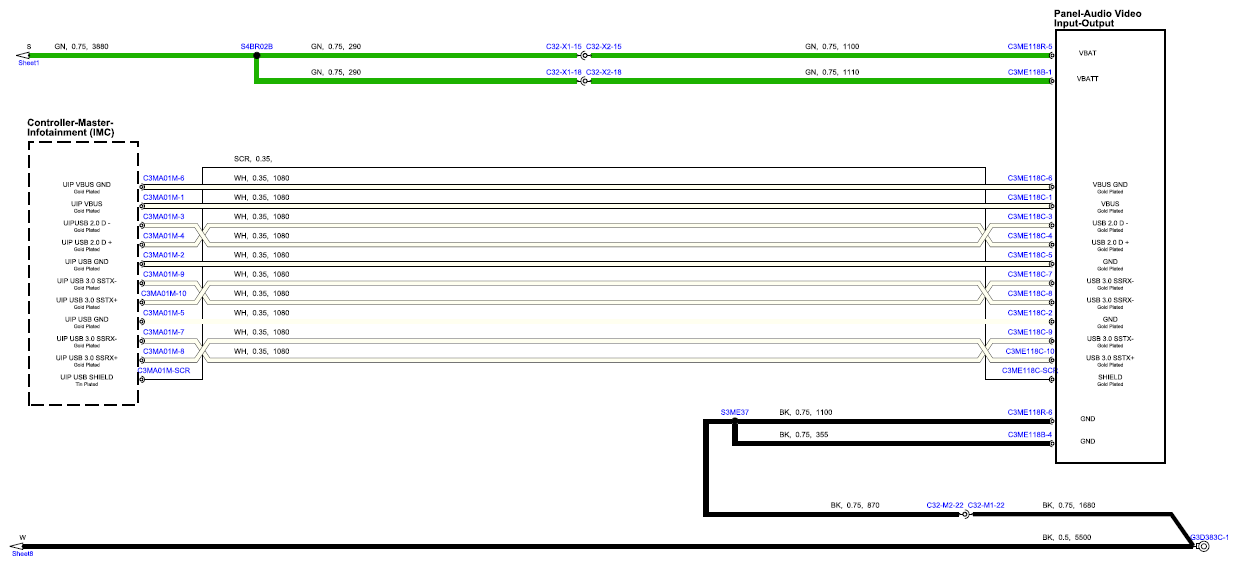

Fig 5: Audio System Circuit Diagram (Sheet 5)

G15556639

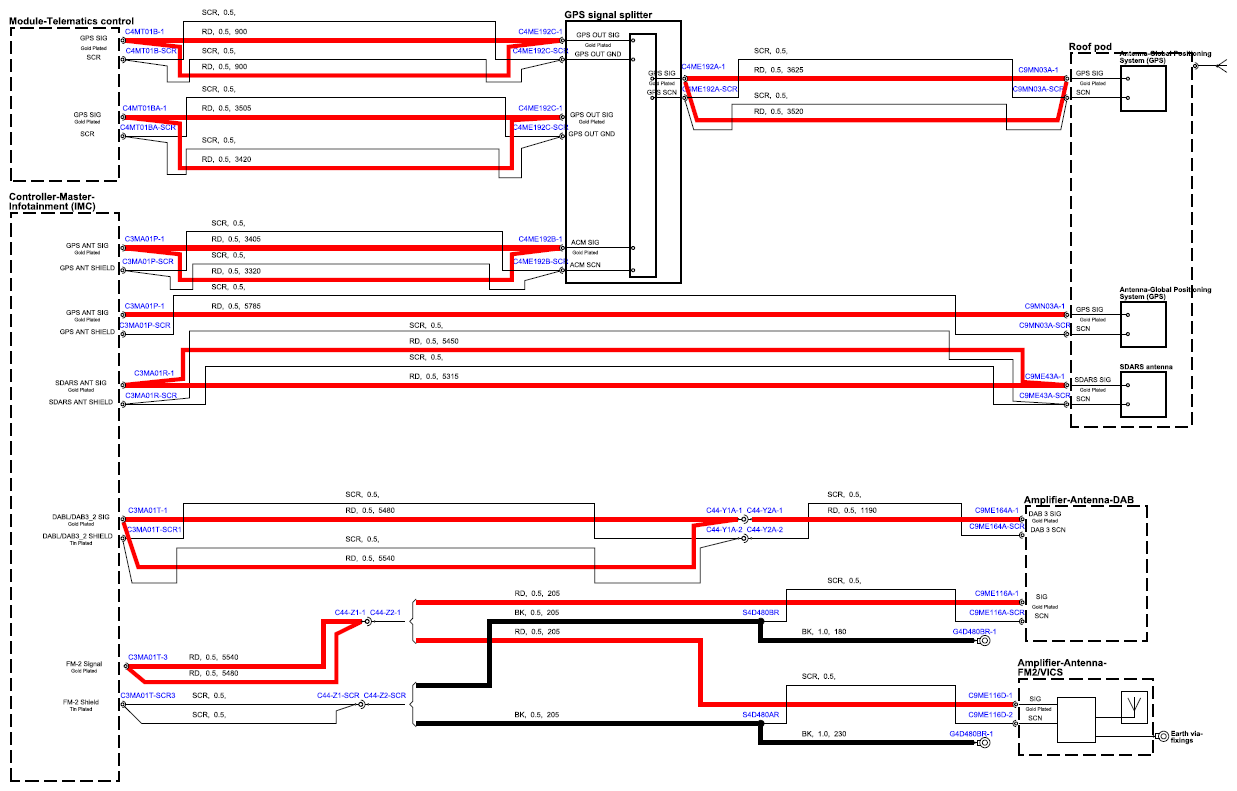

Fig 6: Audio System Circuit Diagram (Sheet 6)

G15556640

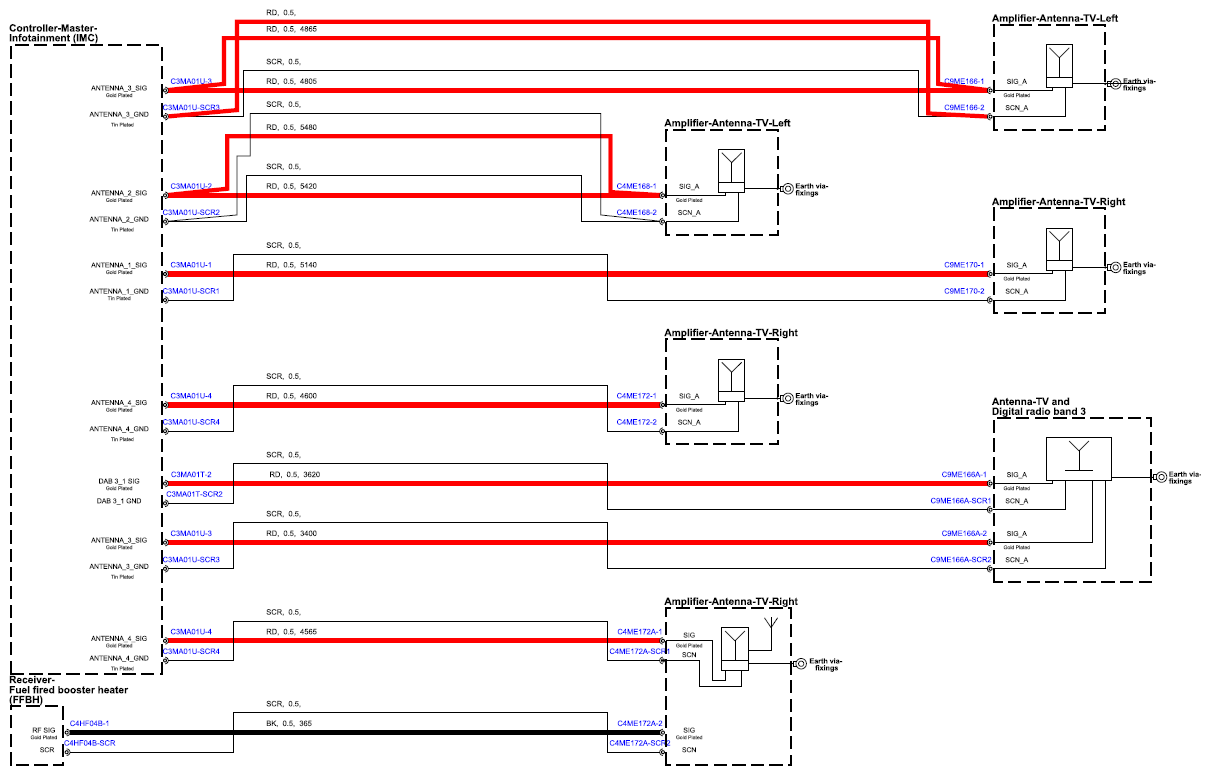

Fig 7: Audio System Circuit Diagram (Sheet 7)

G15556641

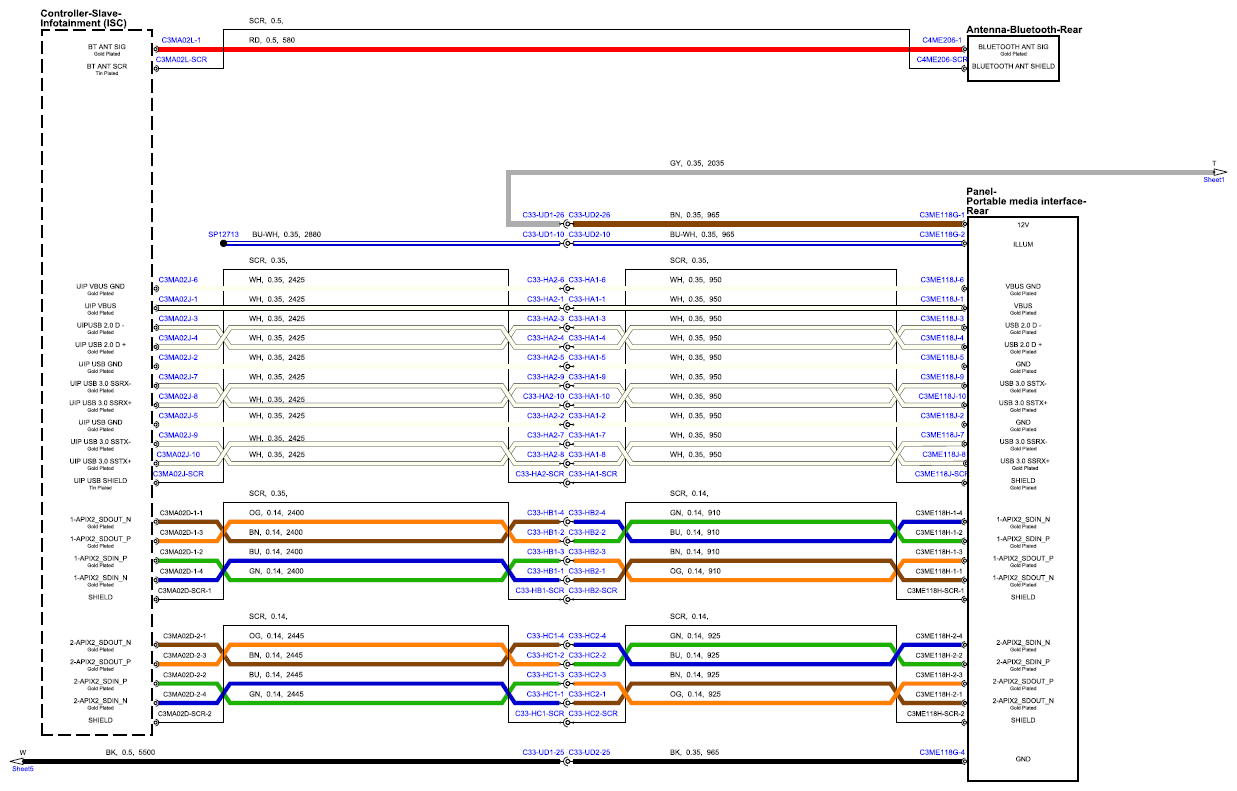

Fig 8: Audio System Circuit Diagram (Sheet 8)

G15556642

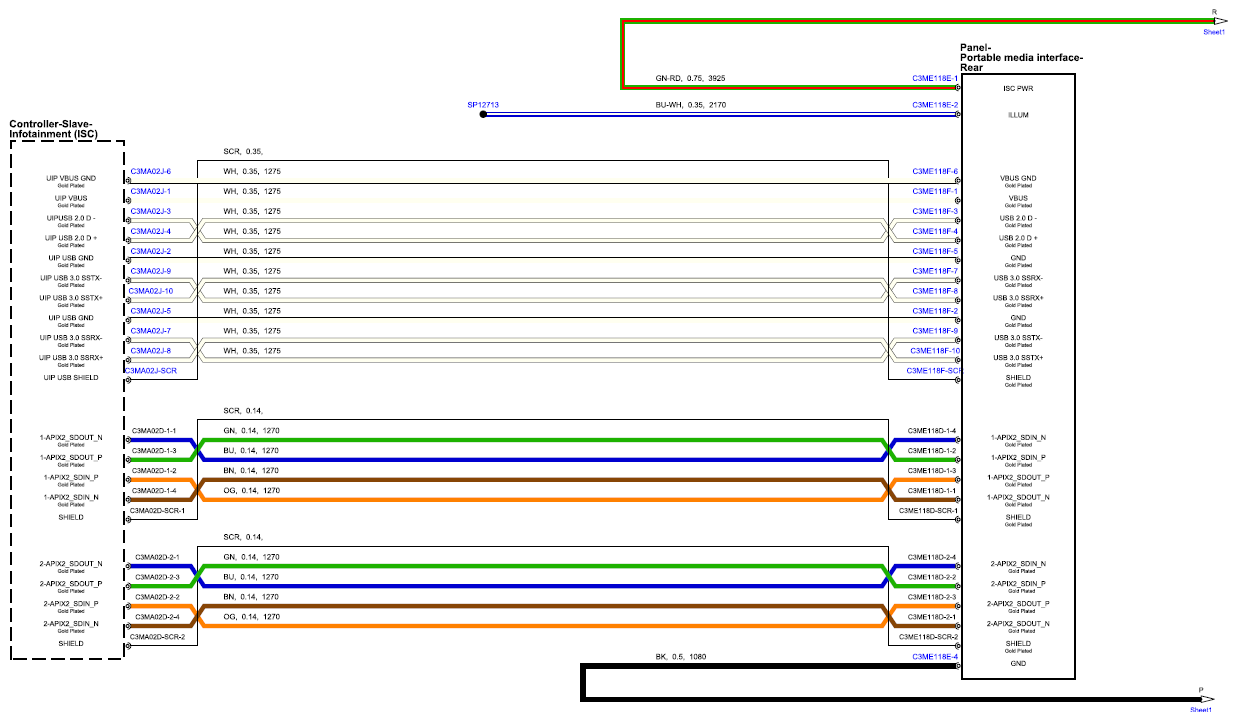

Fig 9: Audio System Circuit Diagram (Sheet 9)

G15556643

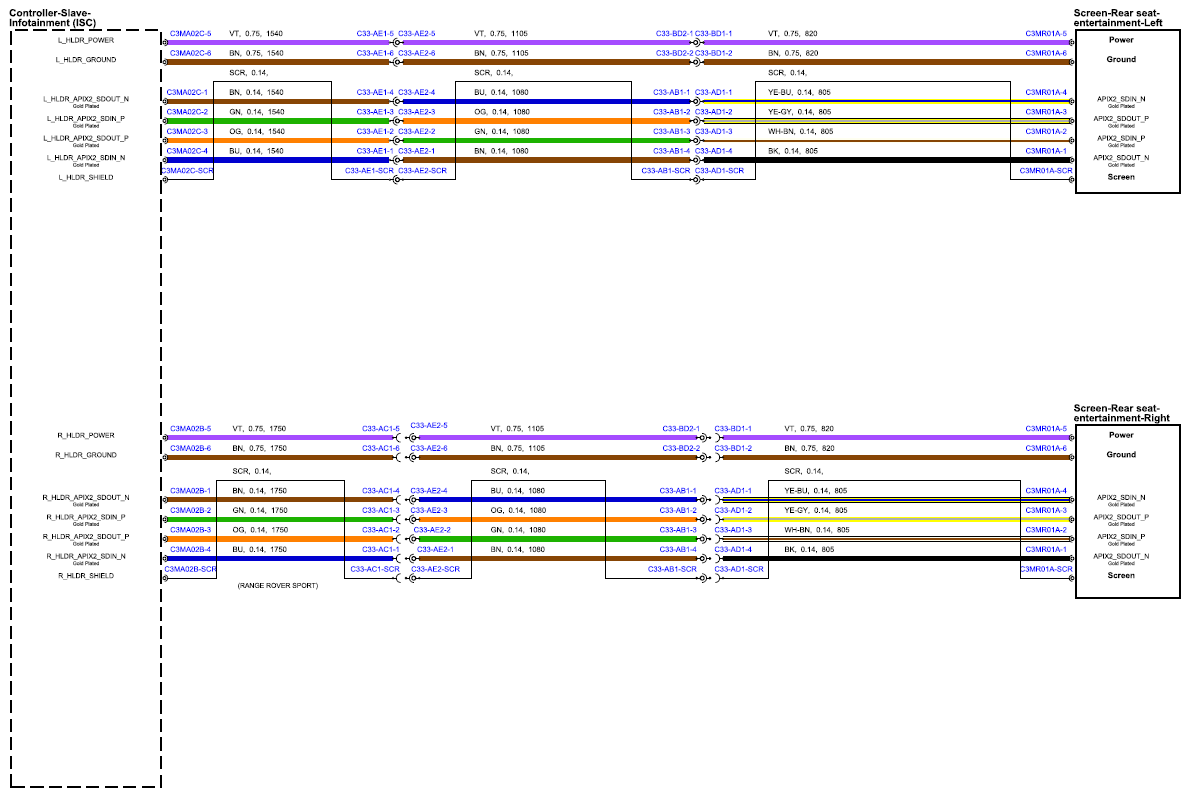

Fig 10: Audio System Circuit Diagram (Sheet 10)

G15556644

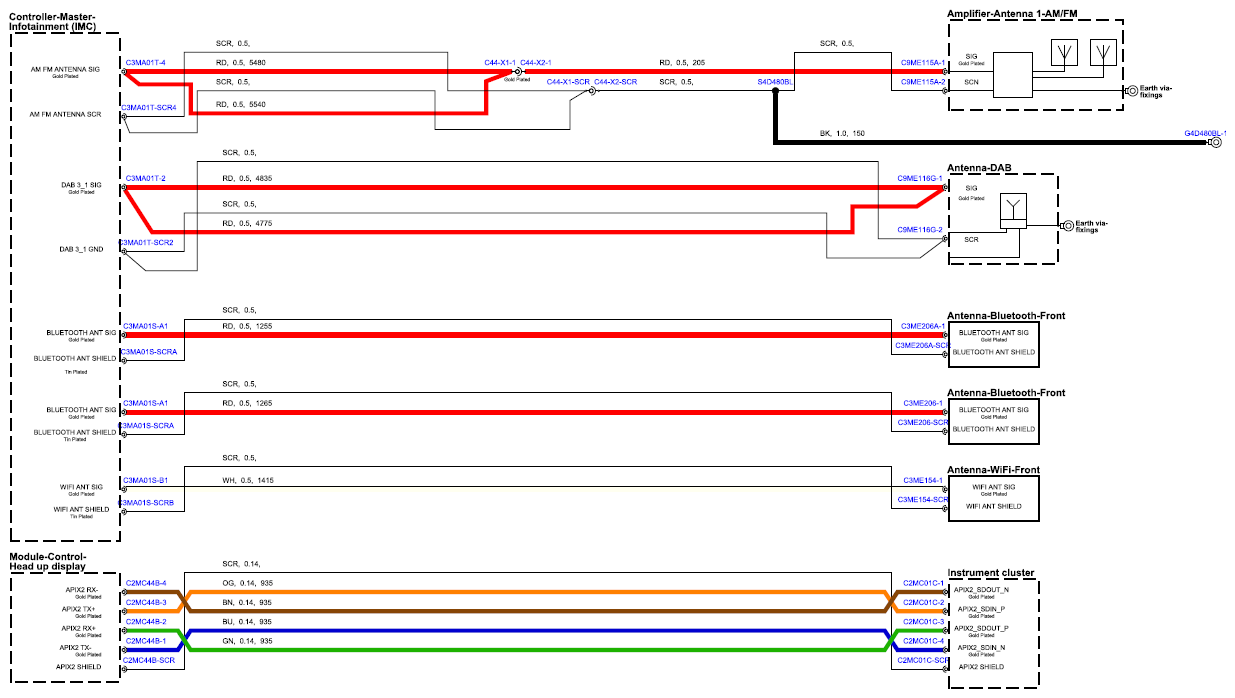

Fig 11: Audio System Circuit Diagram (Sheet 11)

G15556645

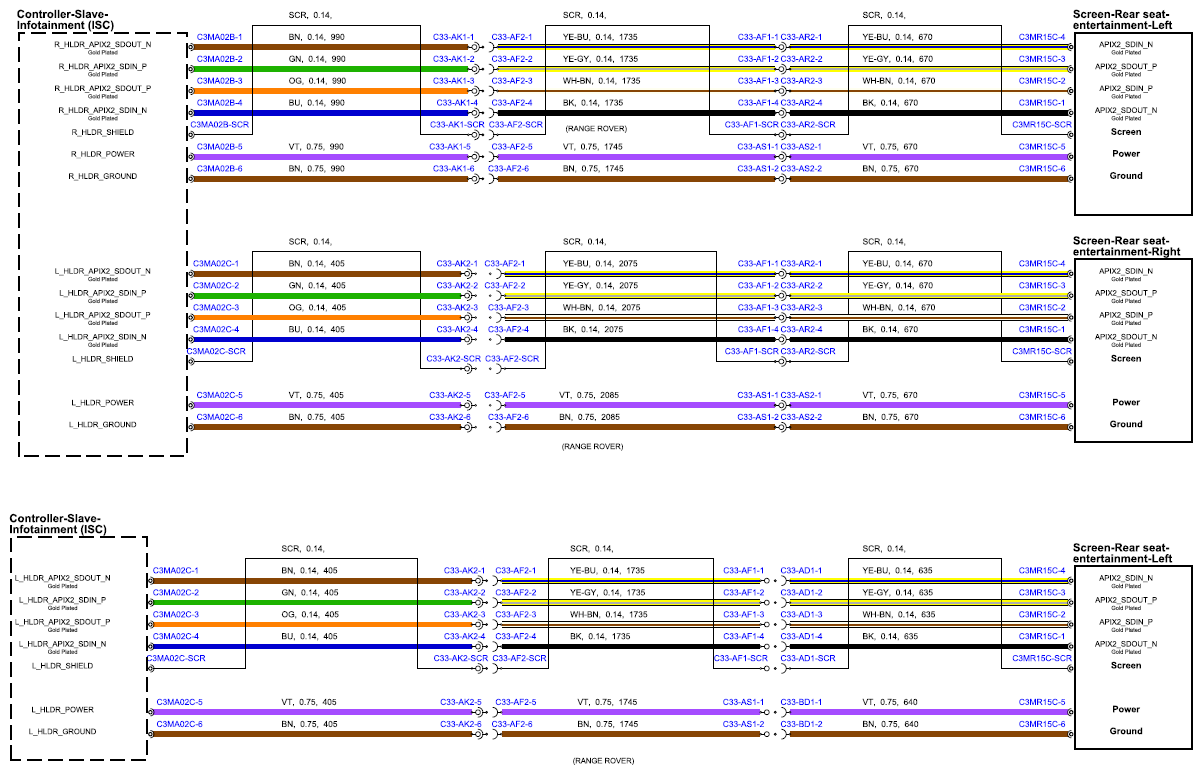

Fig 12: Audio System Circuit Diagram (Sheet 12)

G15556646

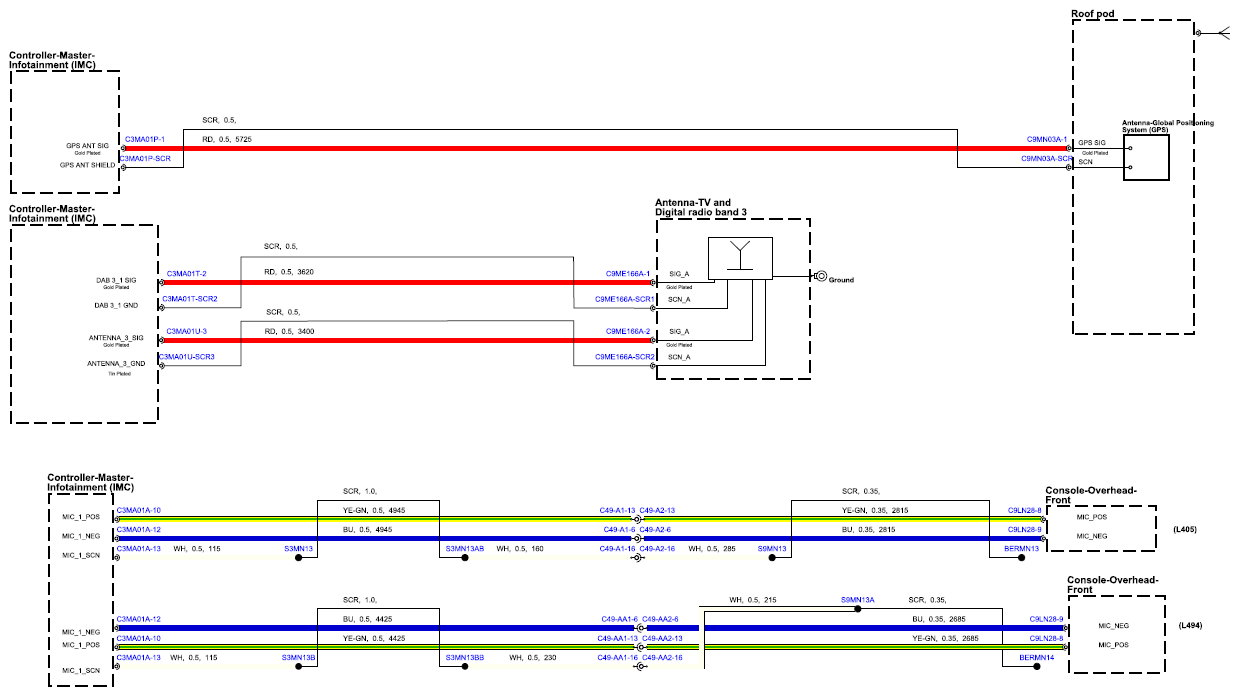

Fig 13: Audio System Circuit Diagram (Sheet 13)

G15556647

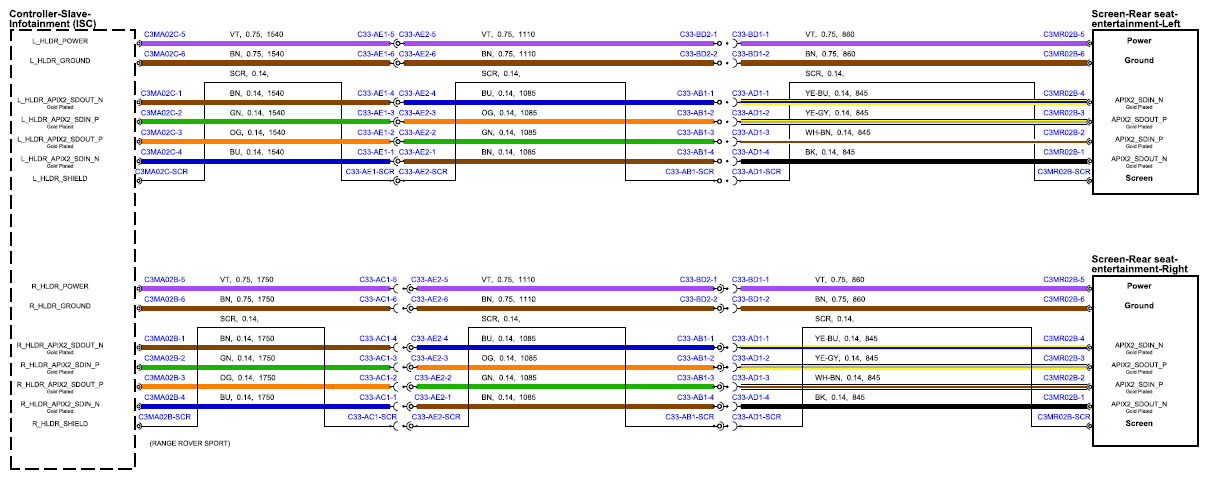

Fig 14: Audio System Circuit Diagram (Sheet 14)

G15556648

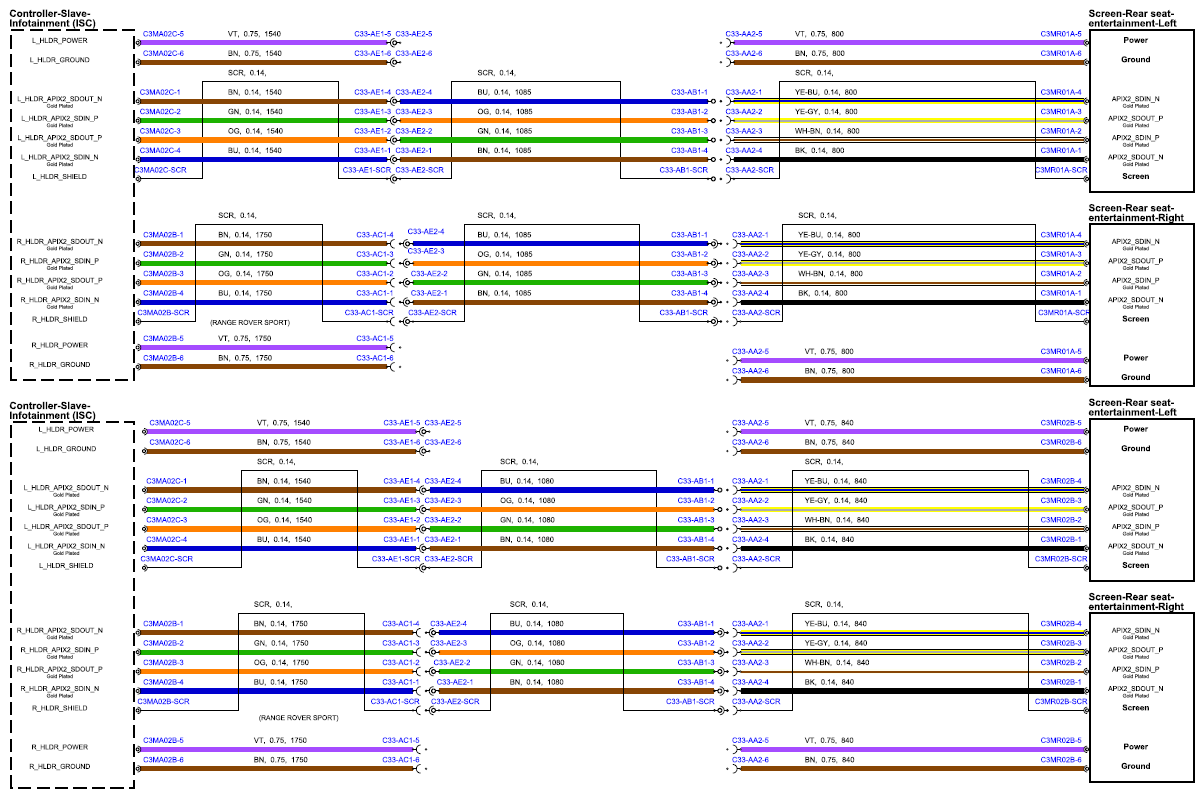

Fig 15: Audio System Circuit Diagram (Sheet 15)

G15556649

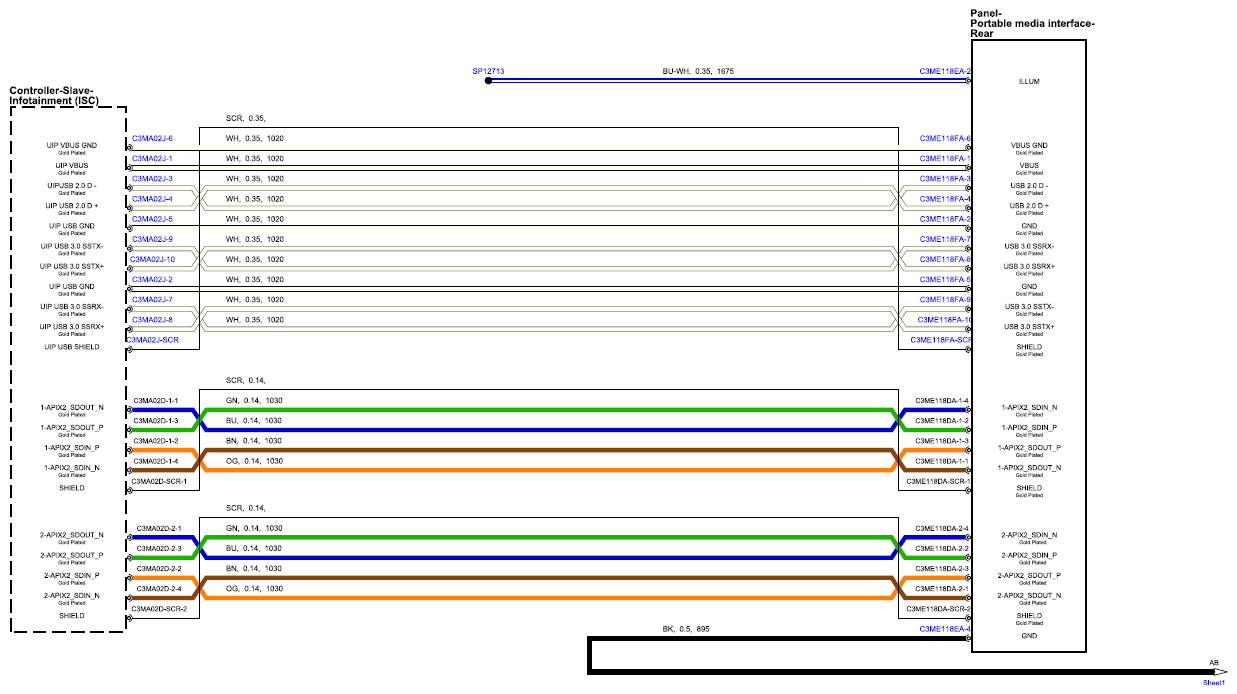

Fig 16: Audio System Circuit Diagram (Sheet 16)

G15556650
