23-Speaker system

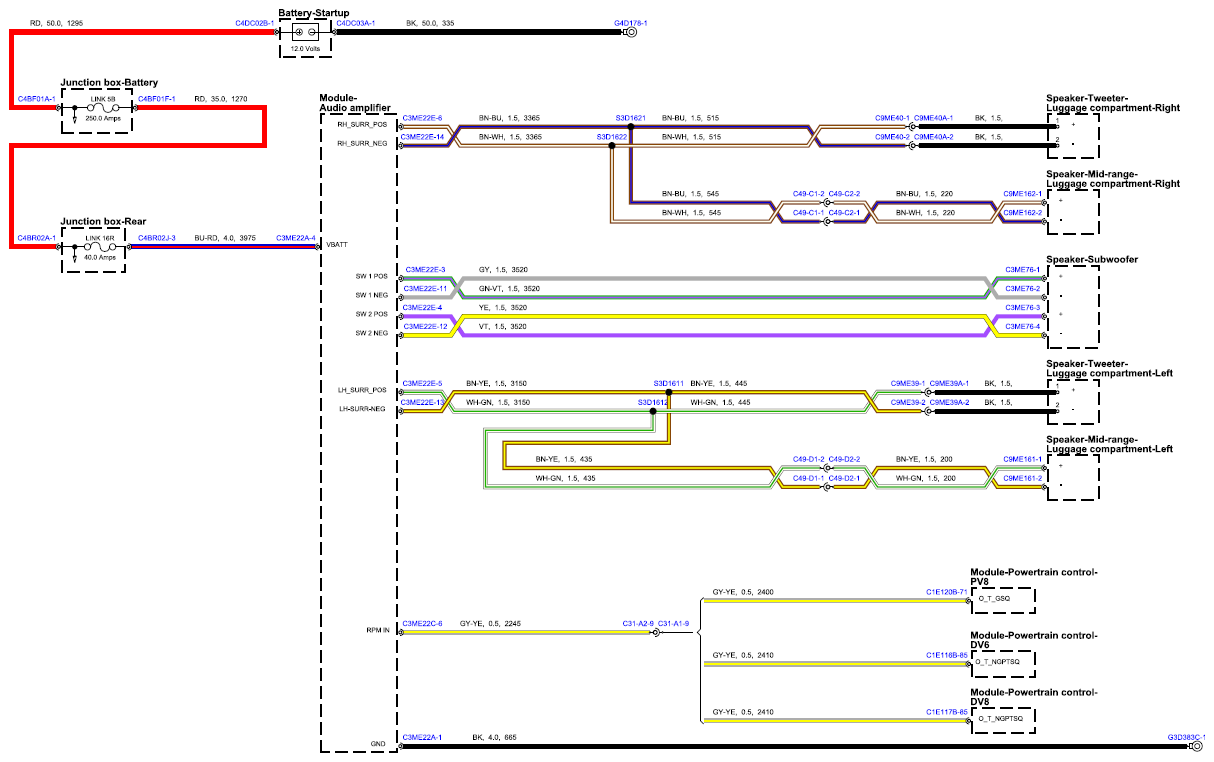

Fig 1: 23-Speaker System Circuit Diagram (Sheet 1)
G15556656

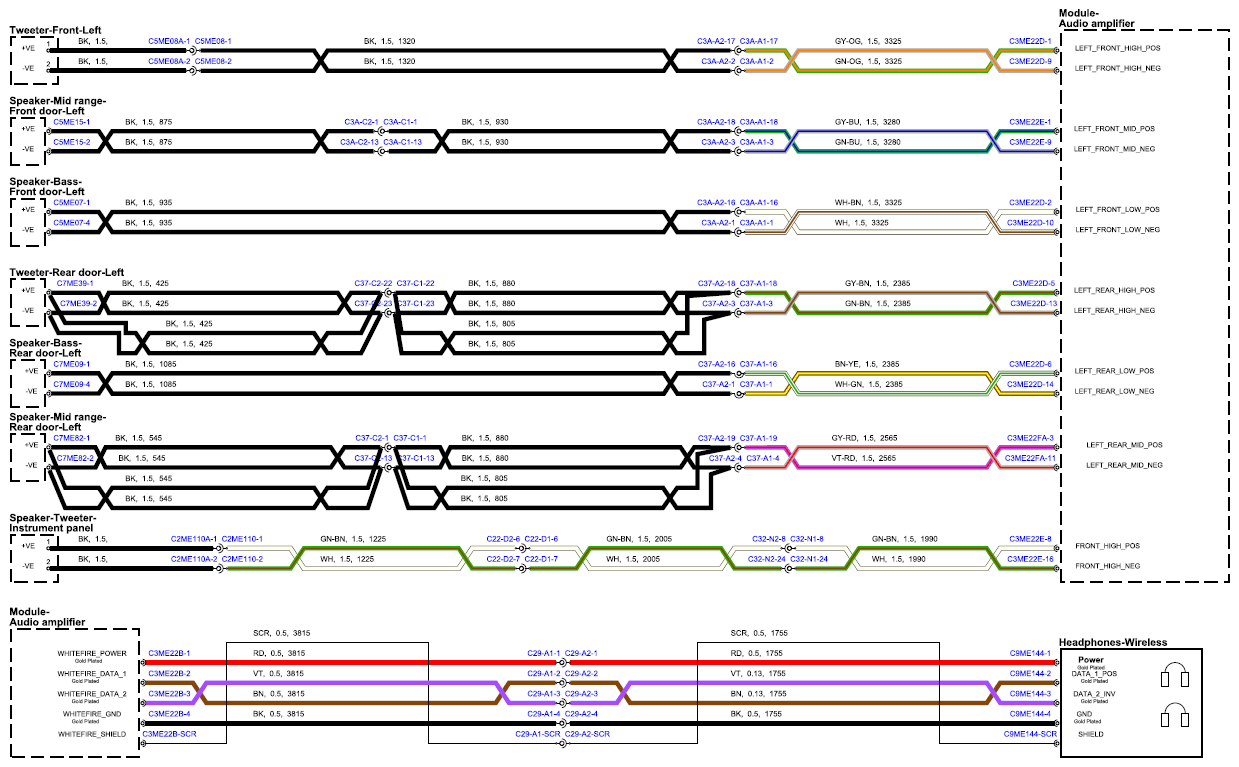

Fig 2: 23-Speaker System Circuit Diagram (Sheet 2)
G15556657

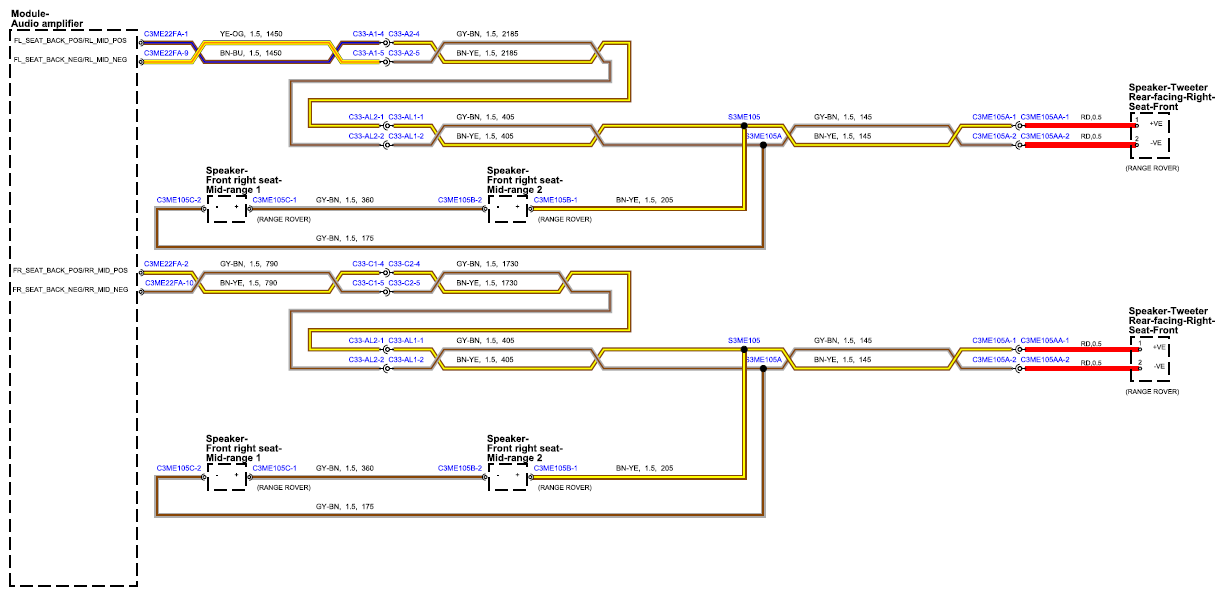

Fig 3: 23-Speaker System Circuit Diagram (Sheet 3)
G15556658

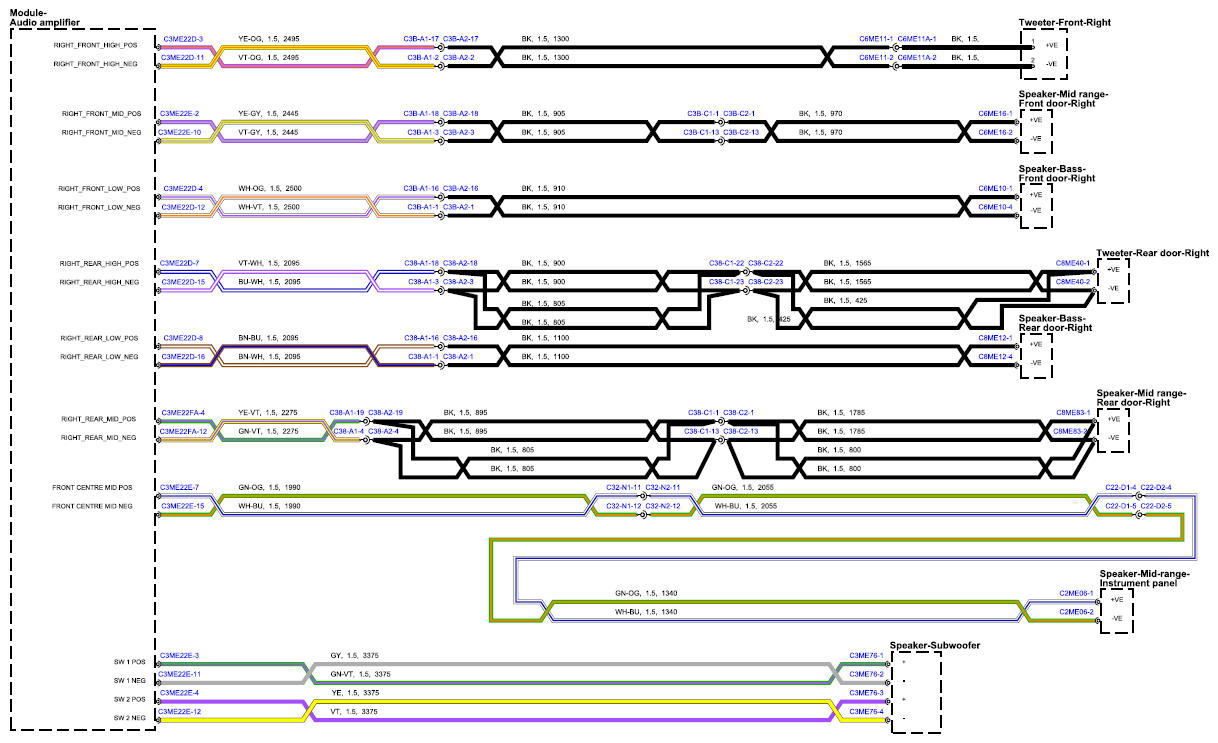

Fig 4: 23-Speaker System Circuit Diagram (Sheet 4)
G15556659

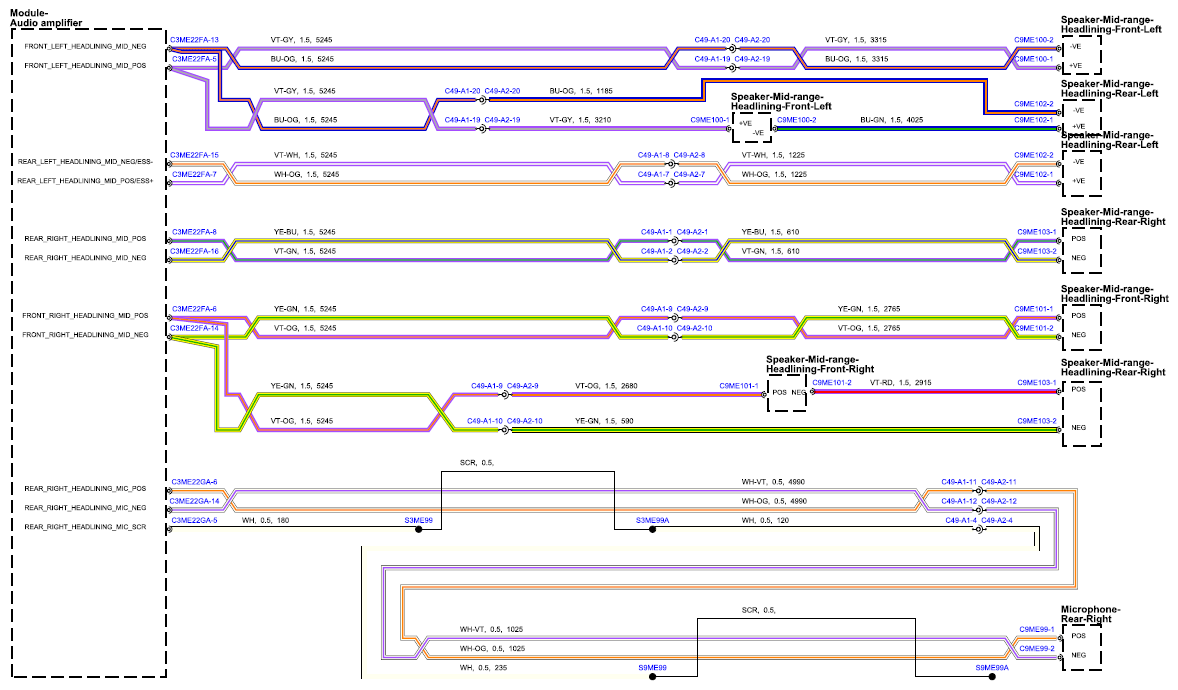

Fig 5: 23-Speaker System Circuit Diagram (Sheet 5)
G15556660

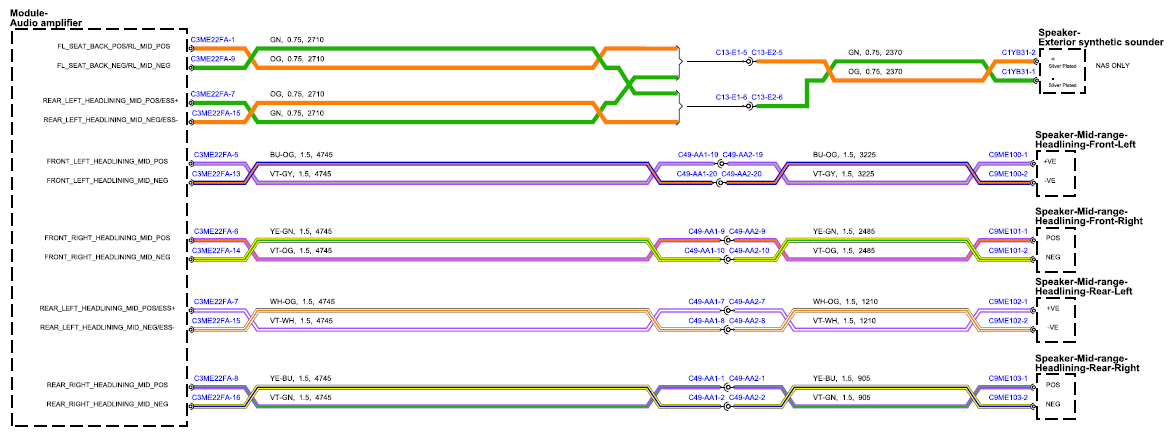

Fig 6: 23-Speaker System Circuit Diagram (Sheet 6)
G15556661

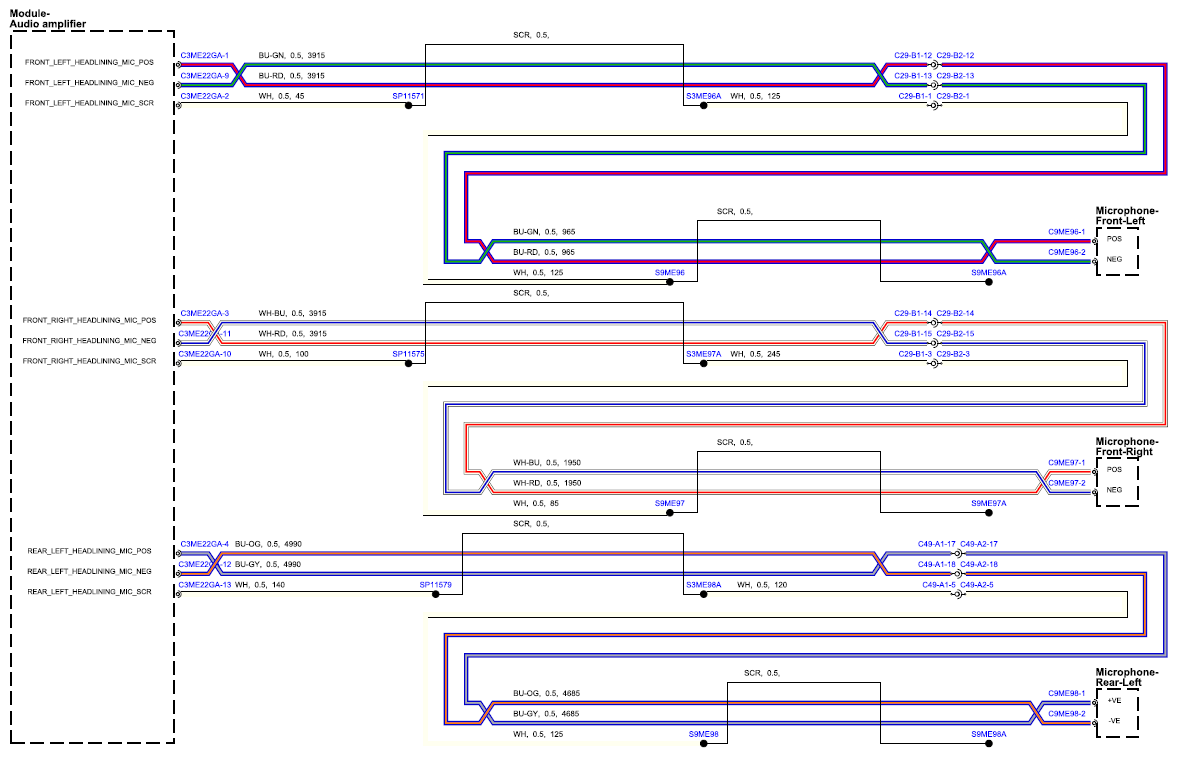

Fig 7: 23-Speaker System Circuit Diagram (Sheet 7)
G15556662

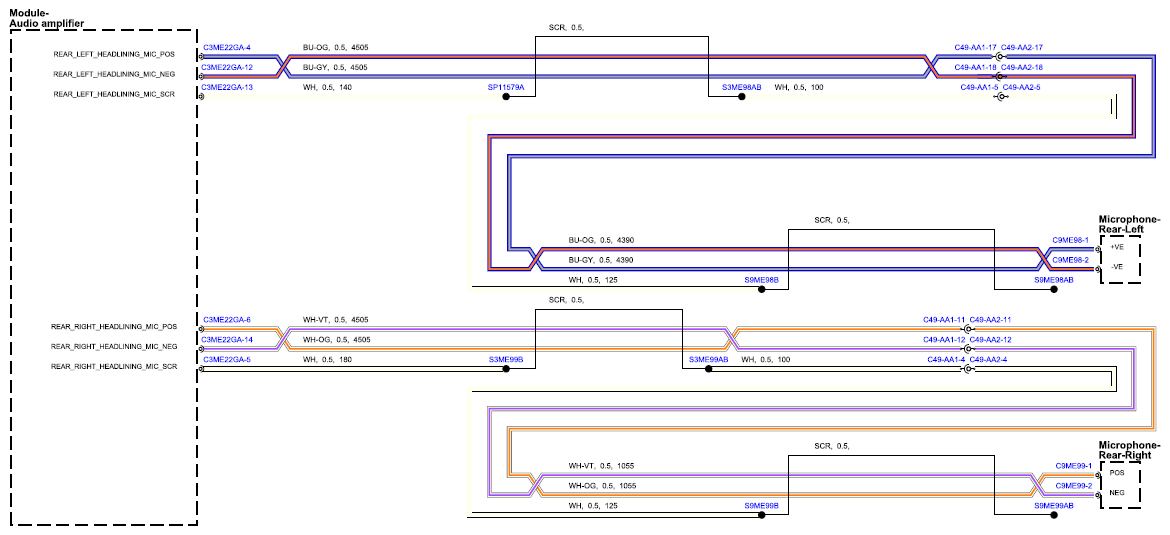

Fig 8: 23-Speaker System Circuit Diagram (Sheet 8)
G15556663
