13 and 19 Speaker systems

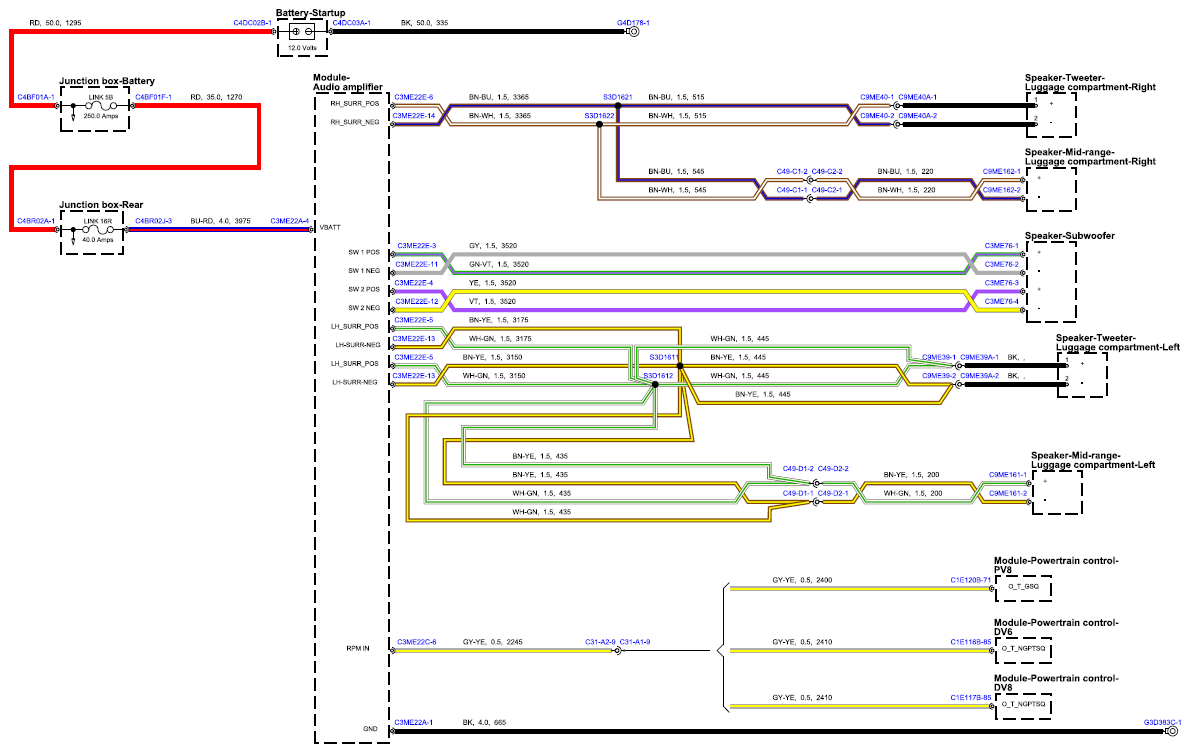

Fig 1: 13 And 19 Speaker Systems Circuit Diagram (Sheet 1)

G15556653

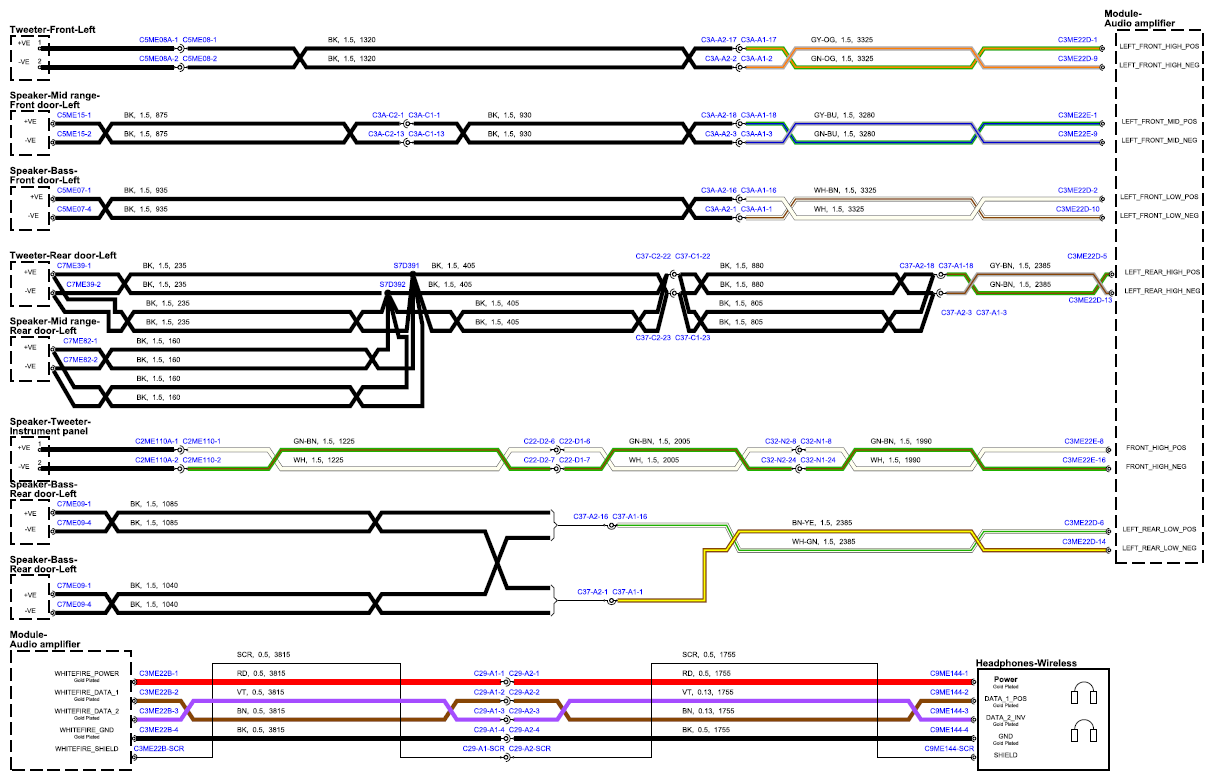

Fig 2: 13 And 19 Speaker Systems Circuit Diagram (Sheet 2)

G15556654

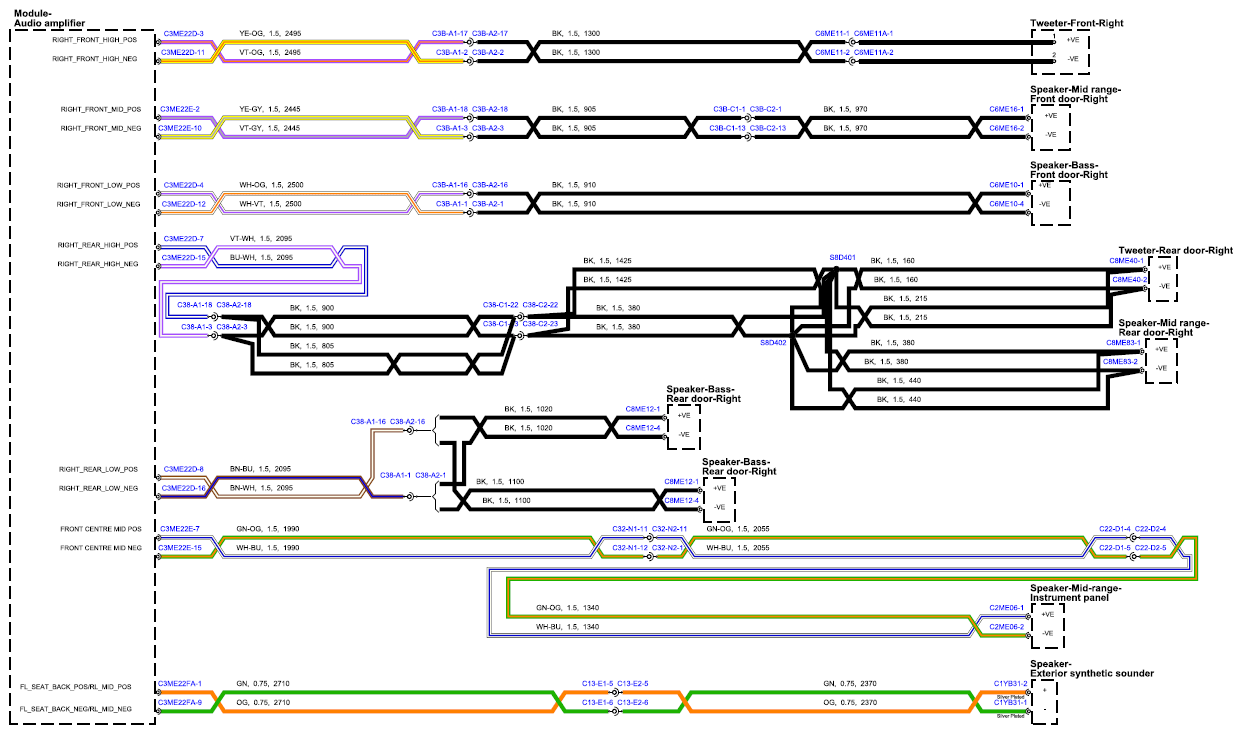

Fig 3: 13 And 19 Speaker Systems Circuit Diagram (Sheet 3)

G15556655
