OEM Wiring Diagrams -- Range Rover Sport L494
>>
414-02B Generator And Regulator (MHEV) Wiring Diagrams
414-02B Generator And Regulator (MHEV) Wiring Diagrams

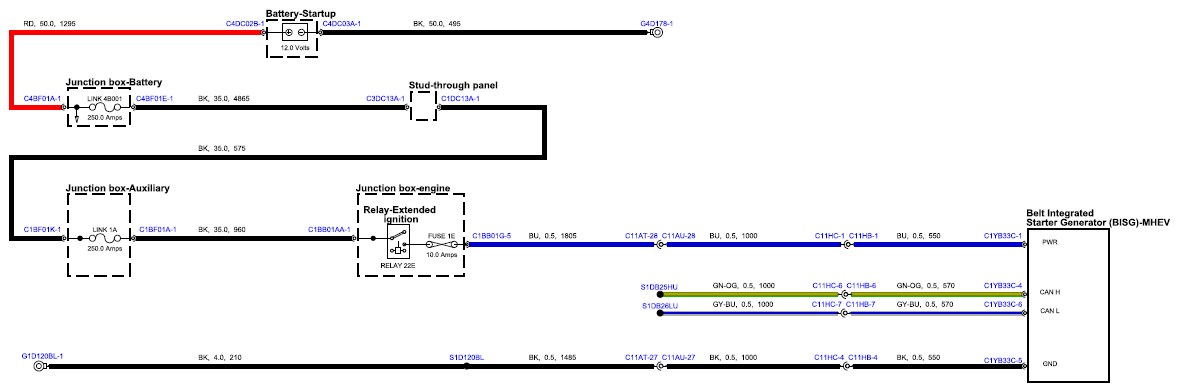

Fig 1: Generator And Regulator (MHEV) Circuit Diagram (Sheet 1)

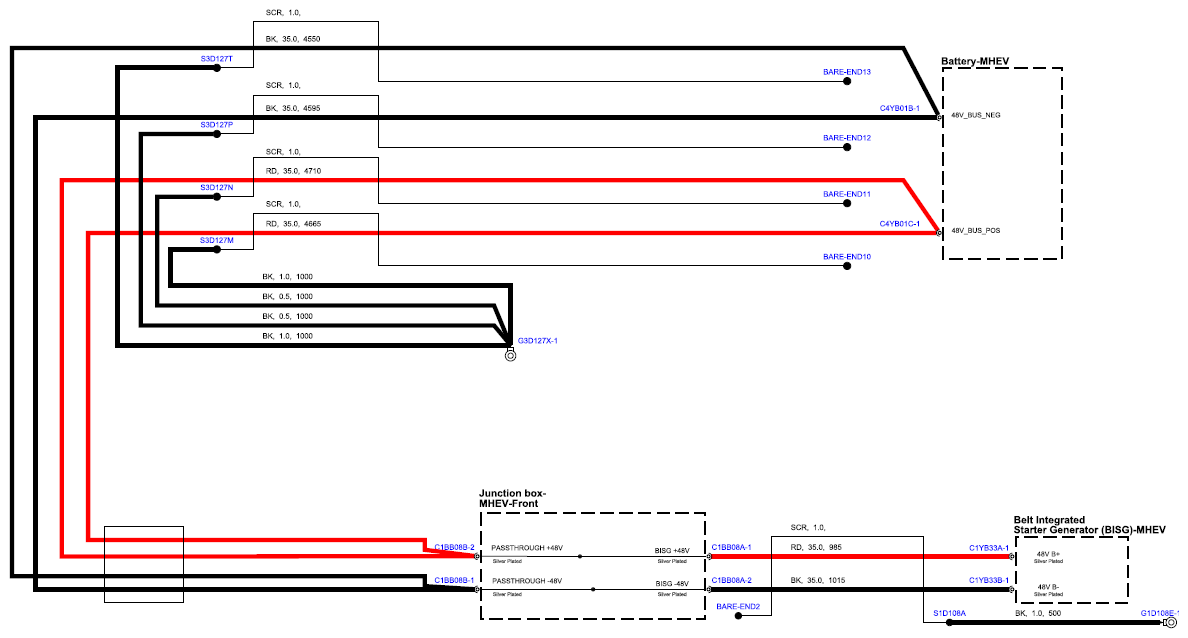

Fig 2: Generator And Regulator (MHEV) Circuit Diagram (Sheet 2)
