414-02 Generator And Regulator Wiring Diagrams: Pi4

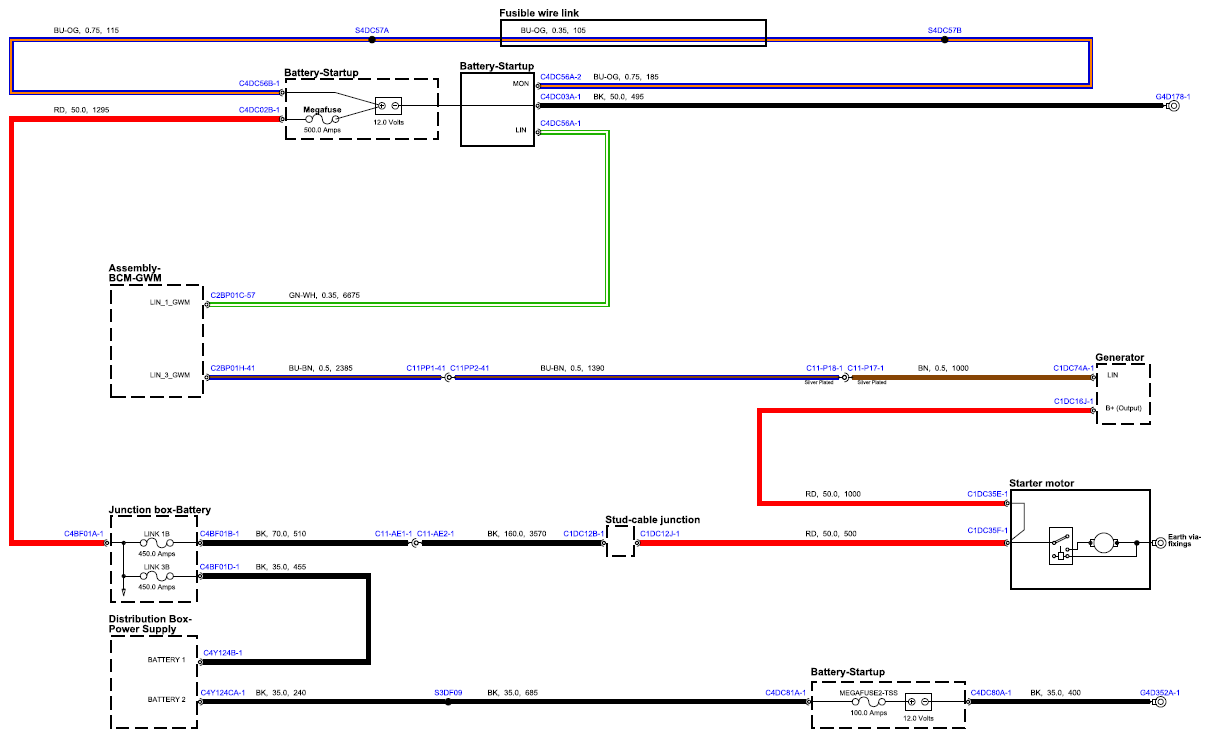

Fig 1: Generator And Regulator Circuit Diagram (PI4)

G15556631
