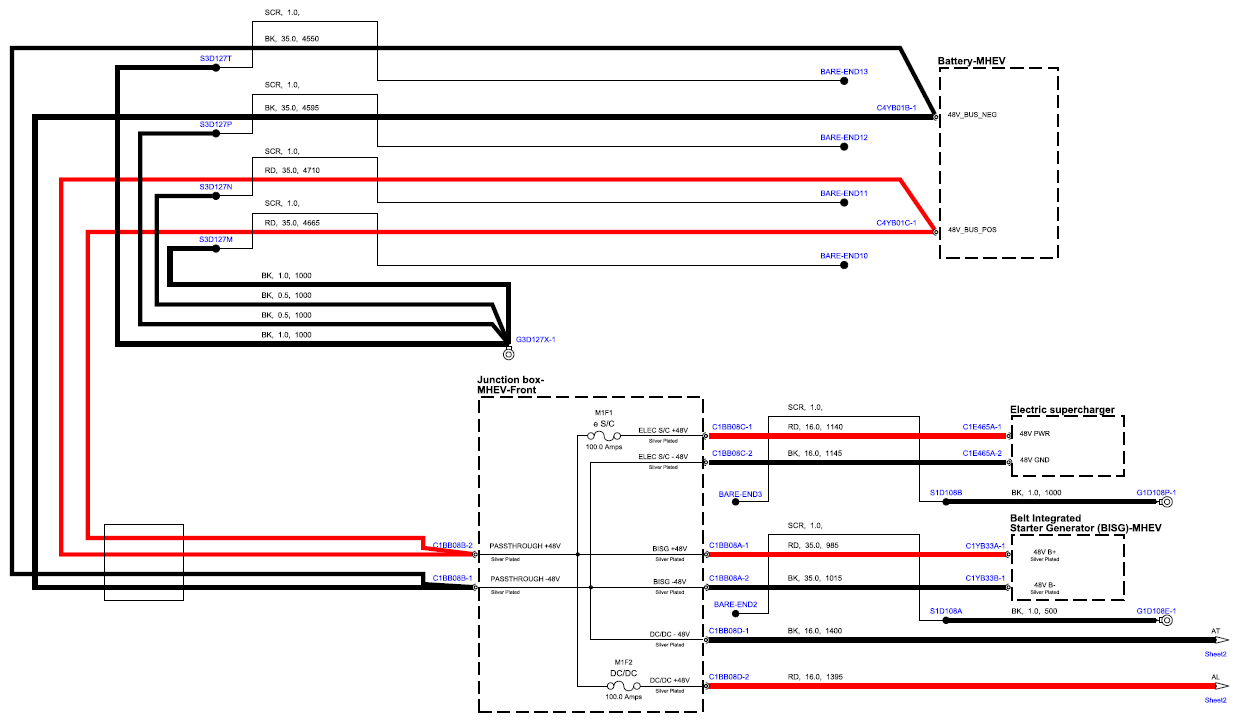

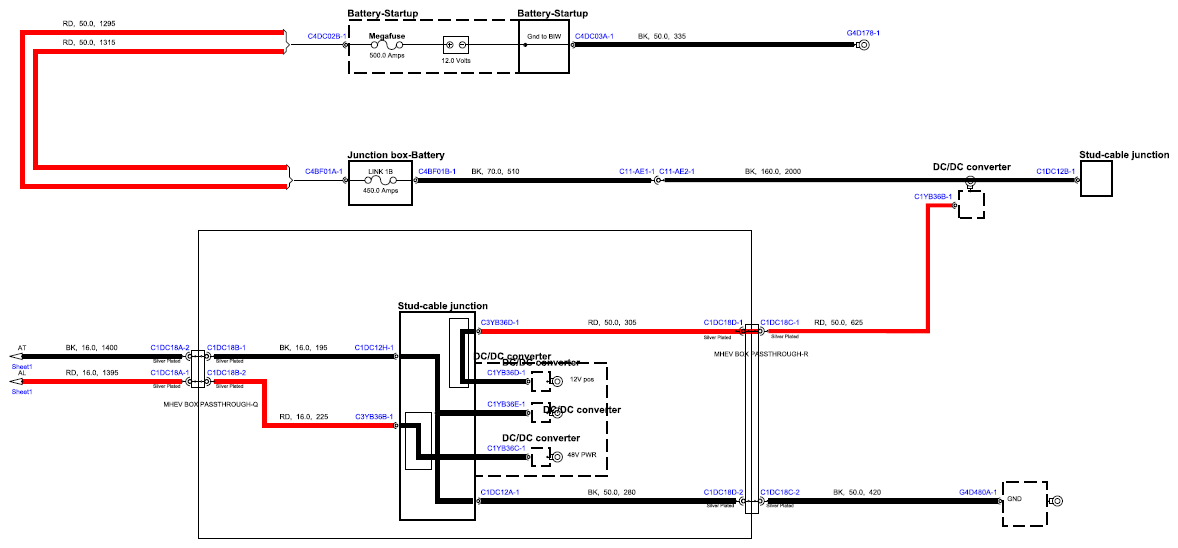

Home >> Land Rover >> 2022 >> Range Rover Sport HST >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover Sport L494 >> 414-01B Battery, Mounting And Cables (MHEV) Wiring Diagrams >> Battery junction box
