48V Power distribution

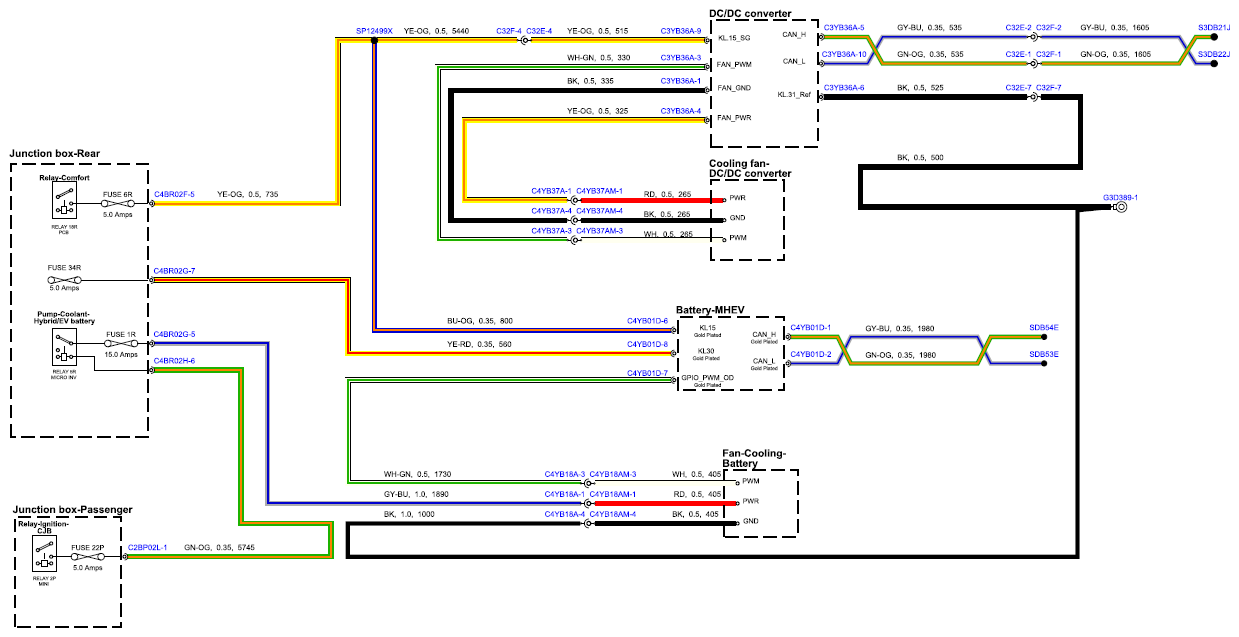

Fig 1: 48V Power Distribution Circuit Diagram (Sheet 1)

G15556615

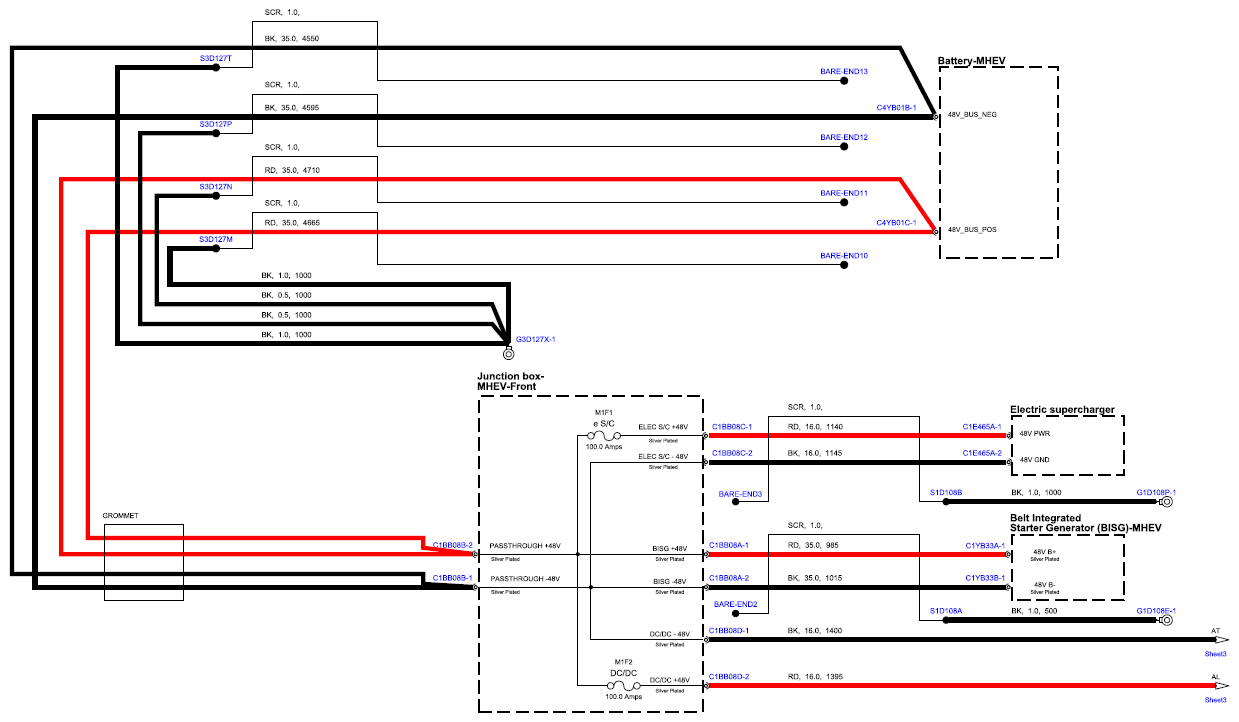

Fig 2: 48V Power Distribution Circuit Diagram (Sheet 2)

G15556616

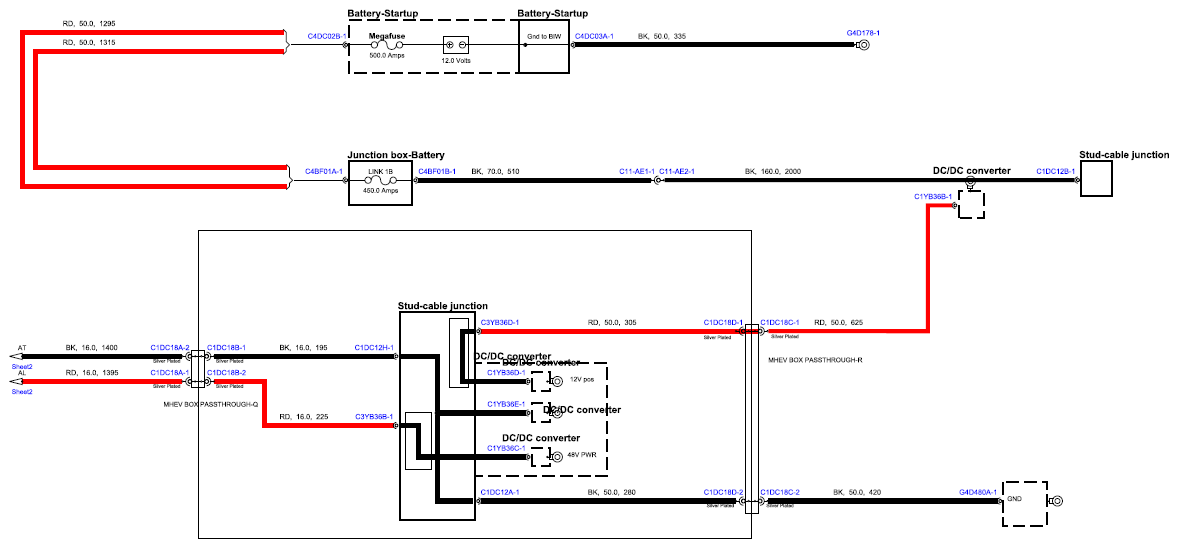

Fig 3: 48V Power Distribution Circuit Diagram (Sheet 3)

G15556617
