Rear junction box

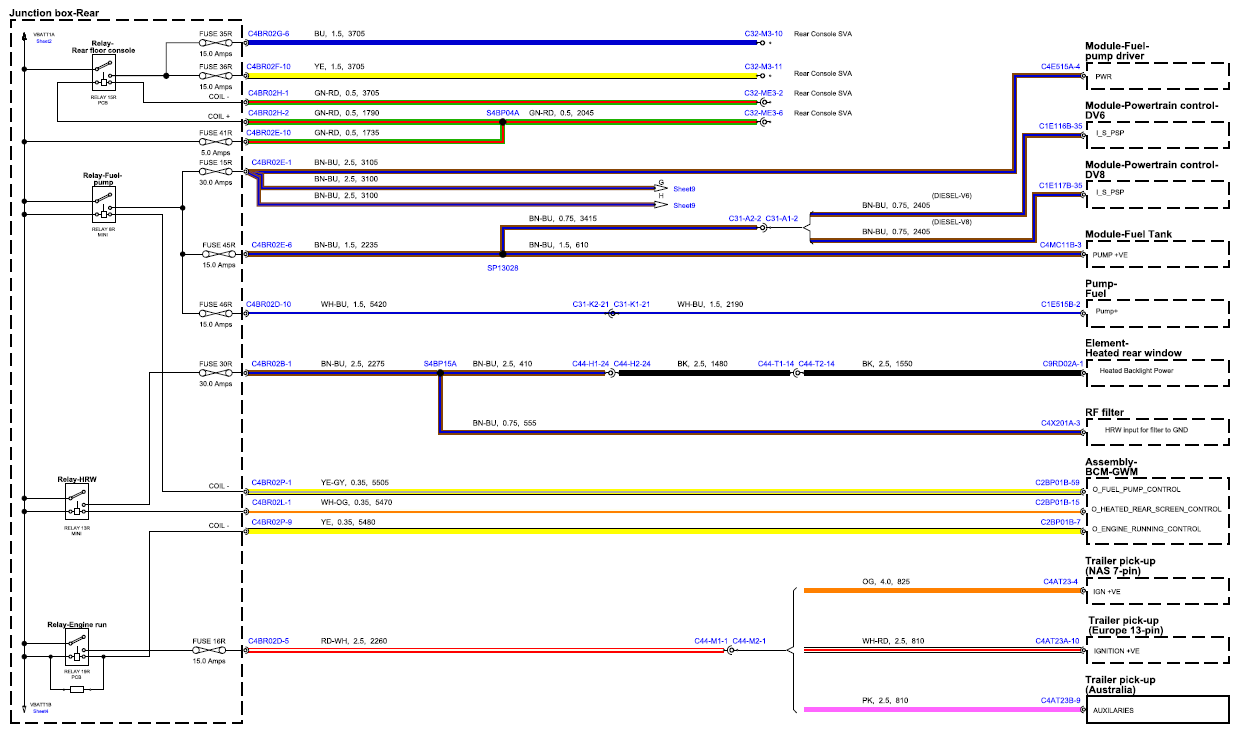

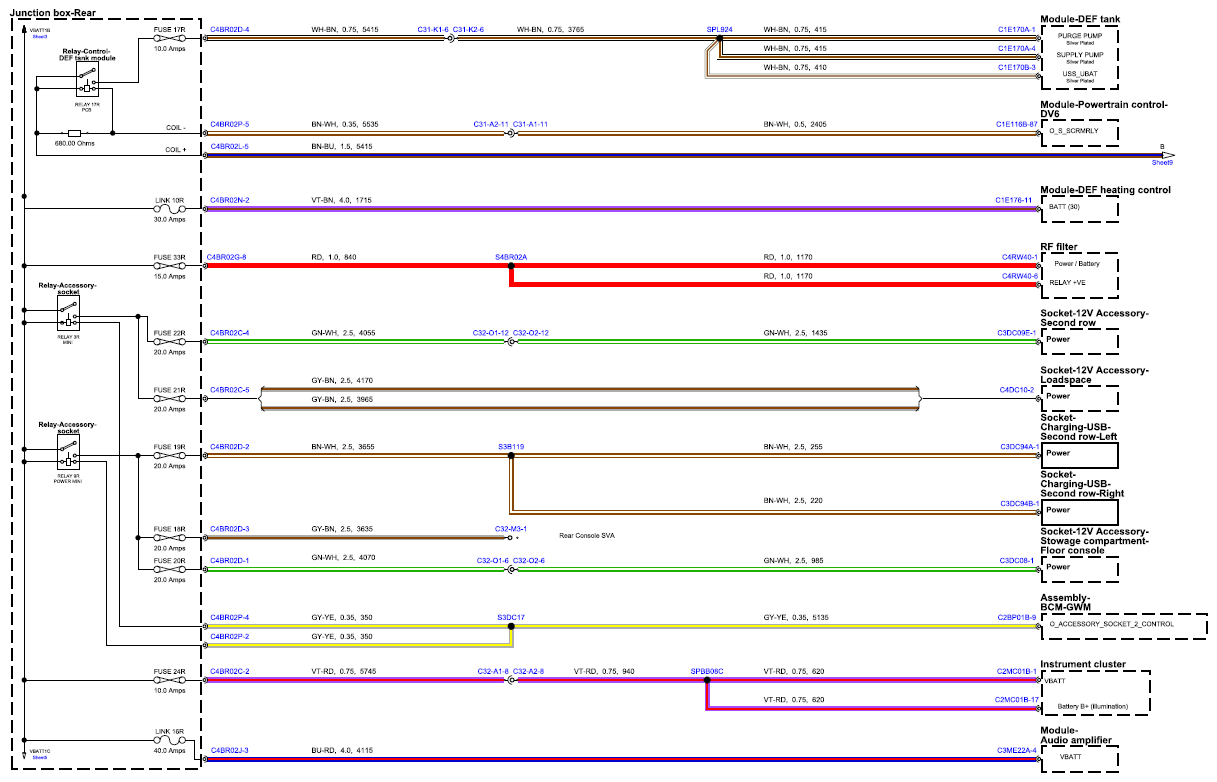

Fig 1: Rear Junction Box Circuit Diagram (Sheet 1)

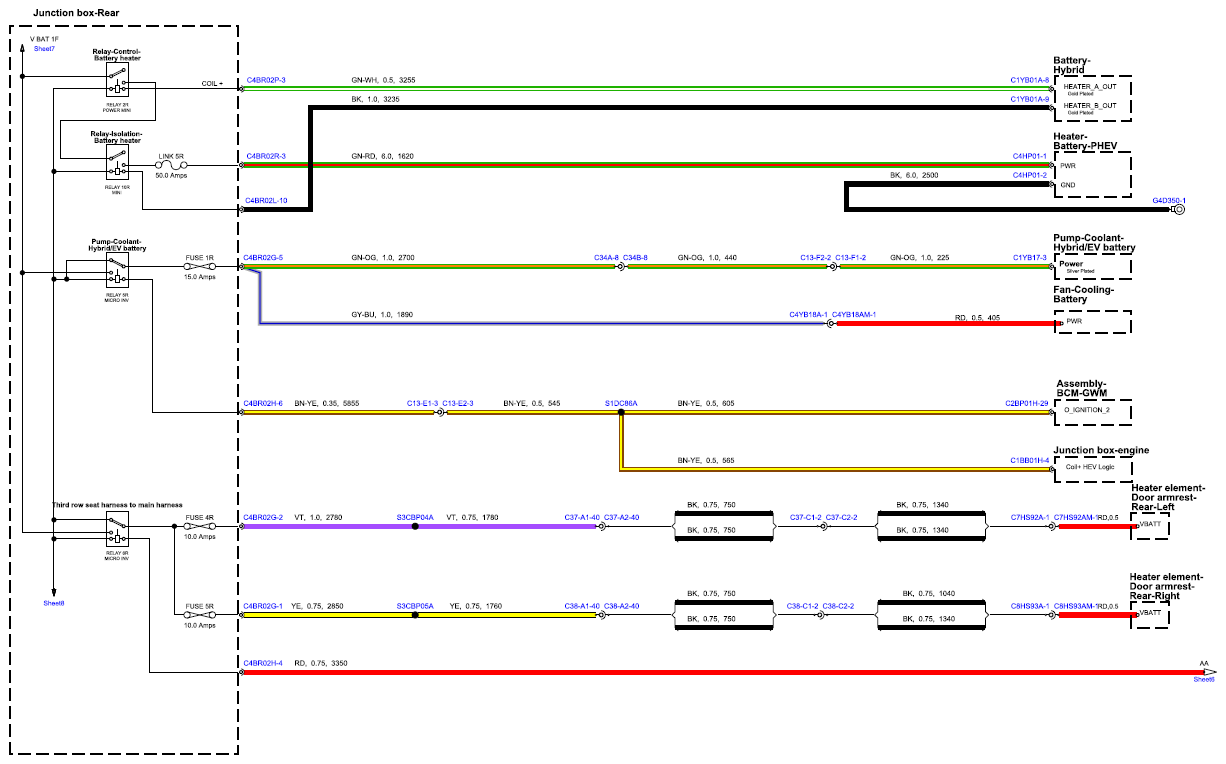

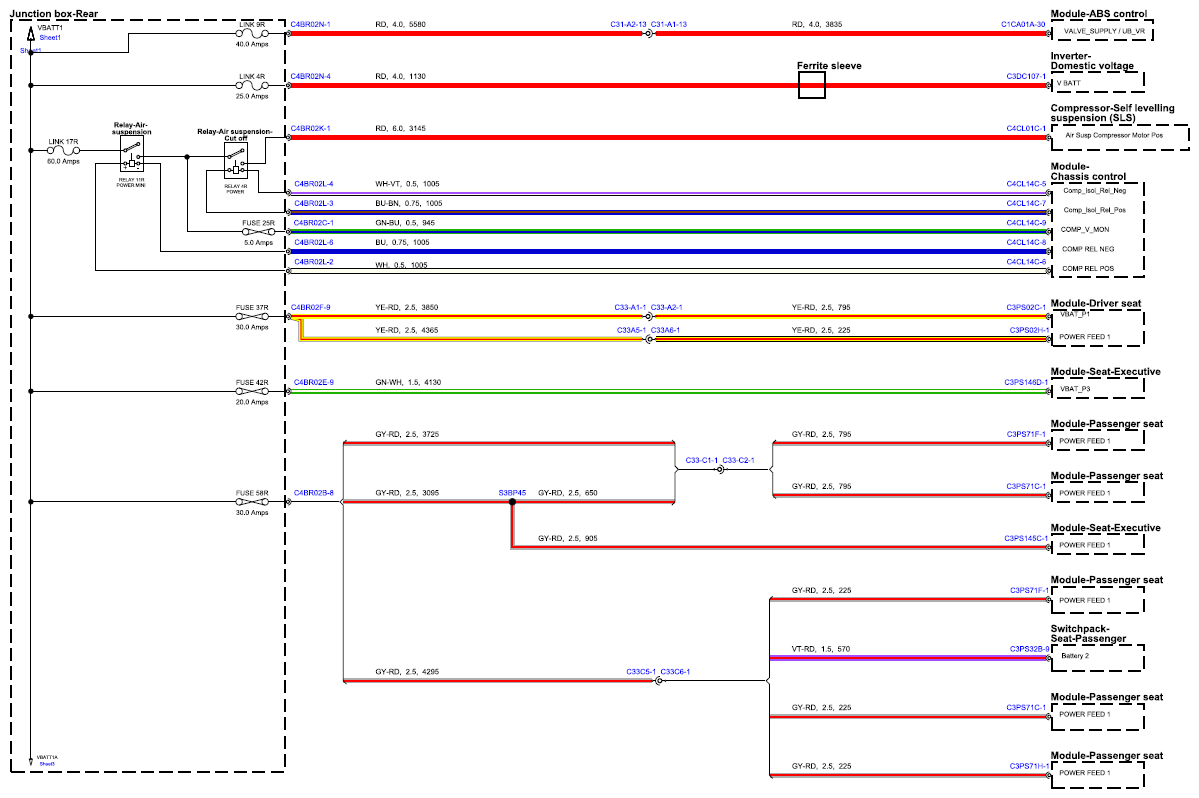

Fig 2: Rear Junction Box Circuit Diagram (Sheet 2)

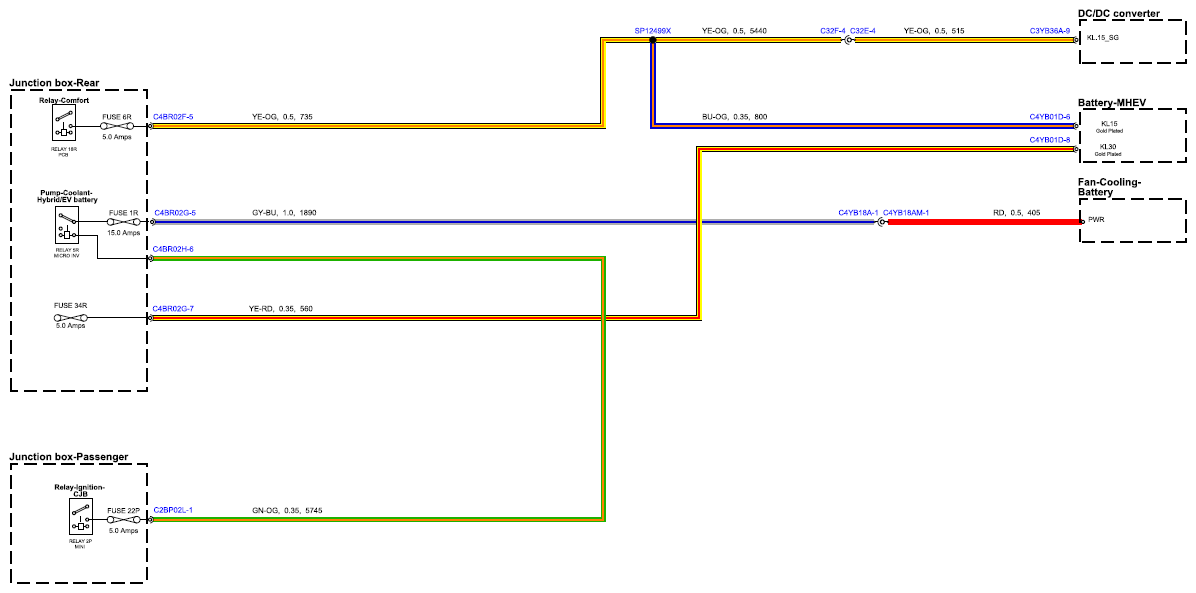

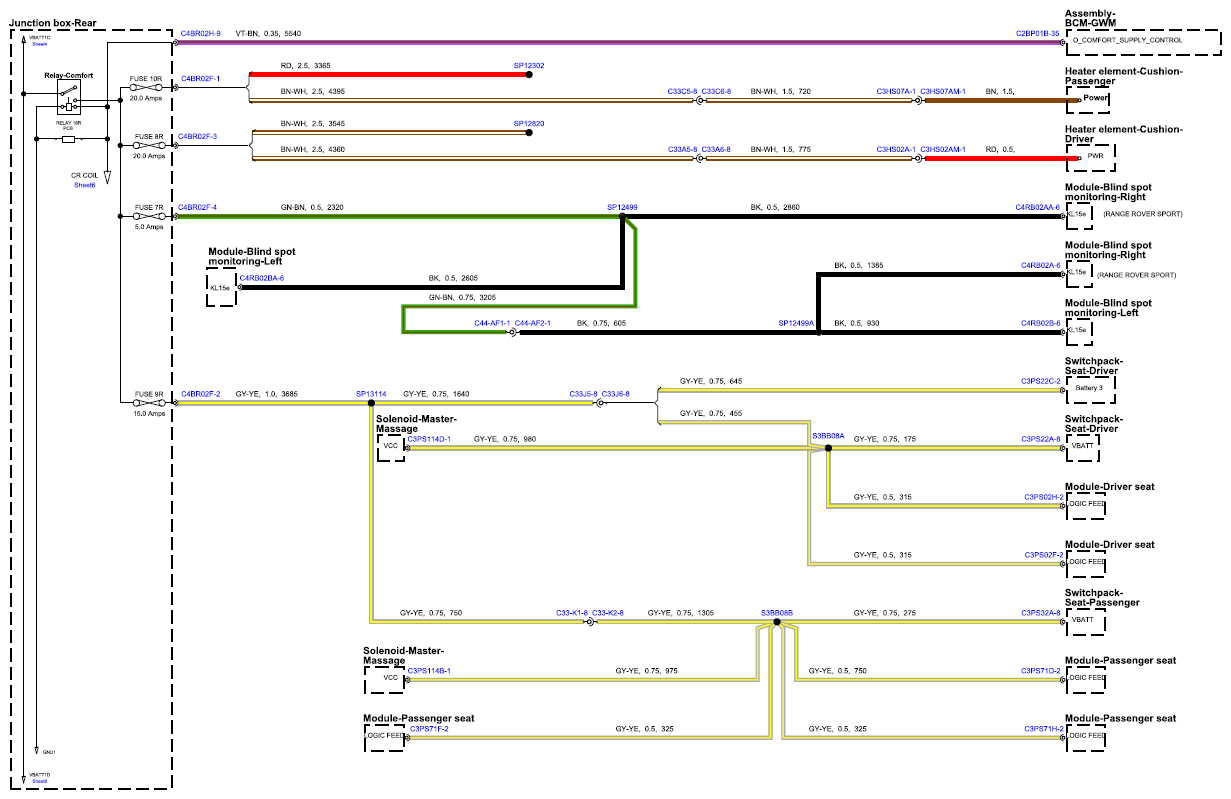

Fig 3: Rear Junction Box Circuit Diagram (Sheet 3)

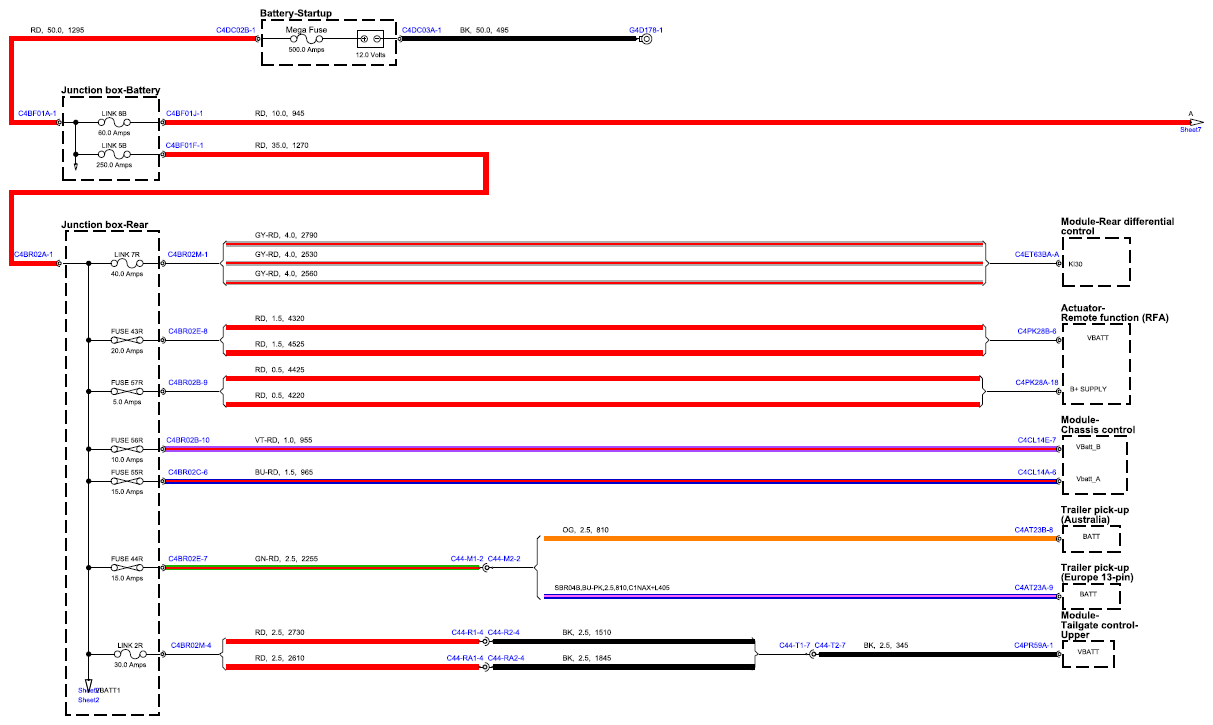

Fig 4: Rear Junction Box Circuit Diagram (Sheet 4)

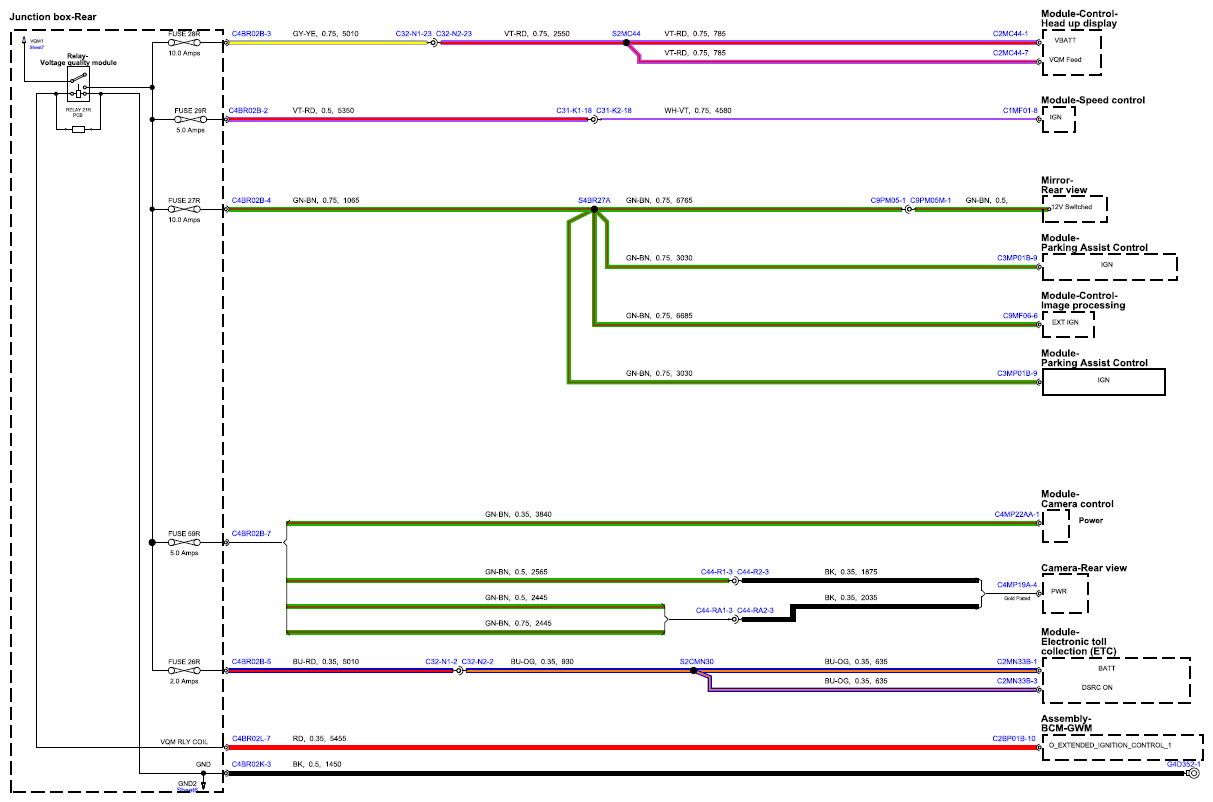

Fig 5: Rear Junction Box Circuit Diagram (Sheet 5)

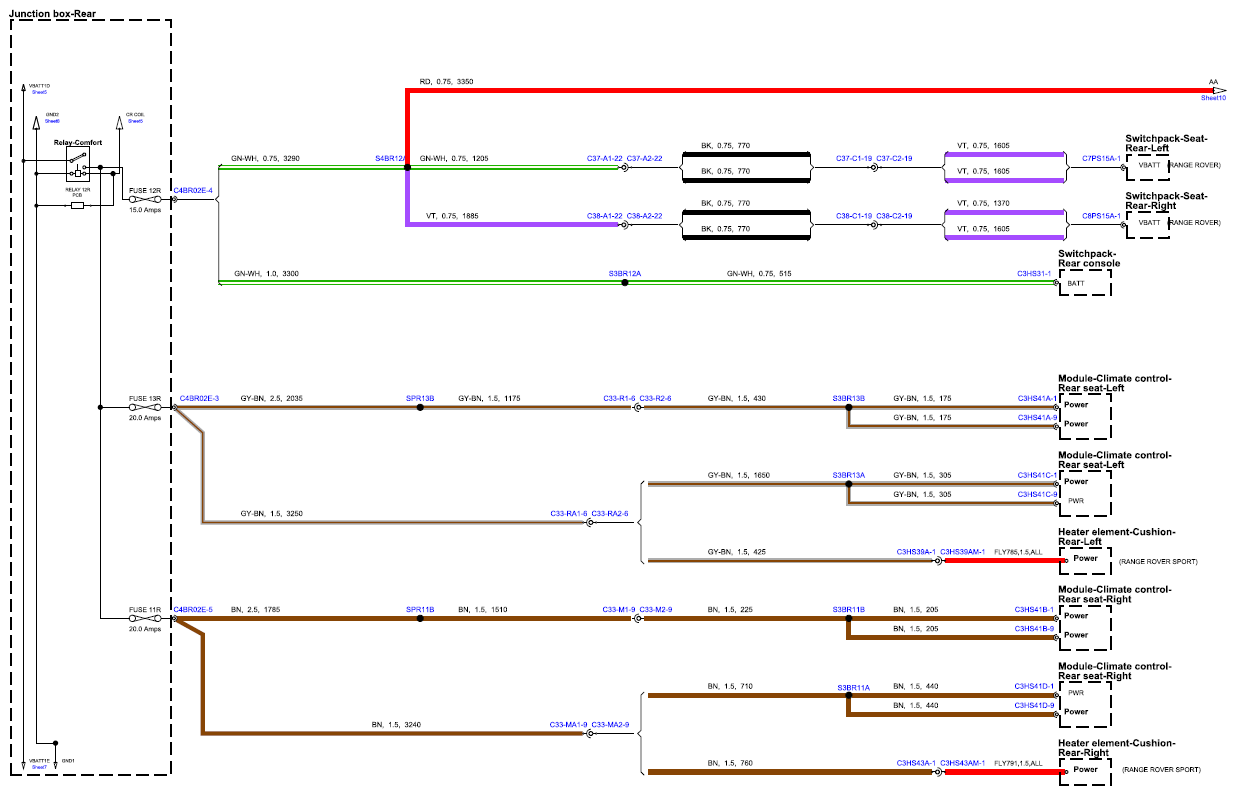

Fig 6: Rear Junction Box Circuit Diagram (Sheet 6)

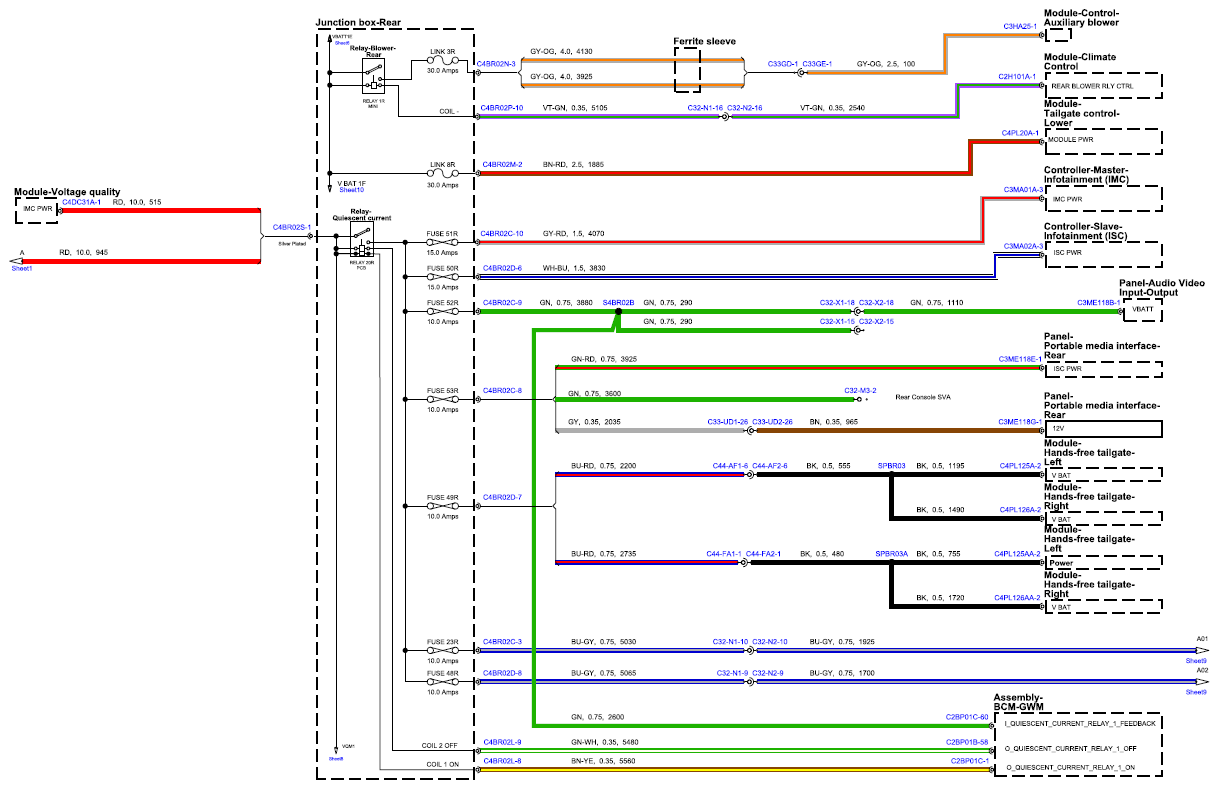

Fig 7: Rear Junction Box Circuit Diagram (Sheet 7)

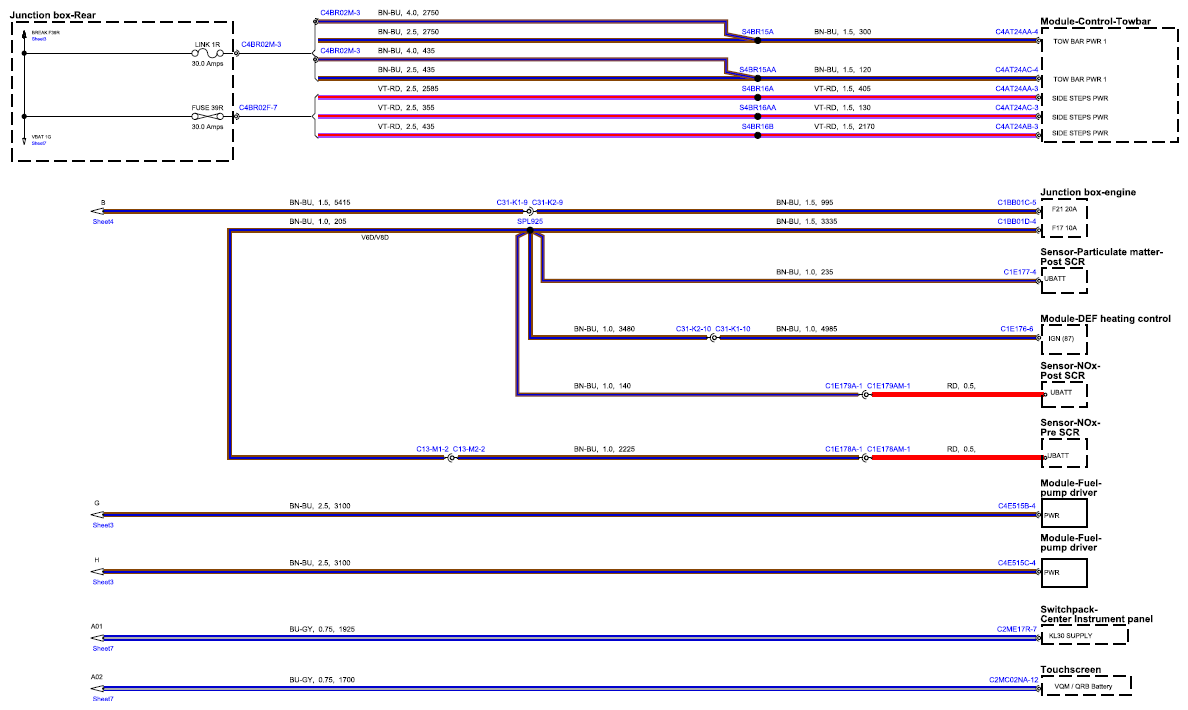

Fig 8: Rear Junction Box Circuit Diagram (Sheet 8)

Fig 9: Rear Junction Box Circuit Diagram (Sheet 9)

Fig 10: Rear Junction Box Circuit Diagram (Sheet 10)

Fig 11: Rear Junction Box Circuit Diagram (Sheet 11)
