Power supply distribution box - DV6 (Cold climate)

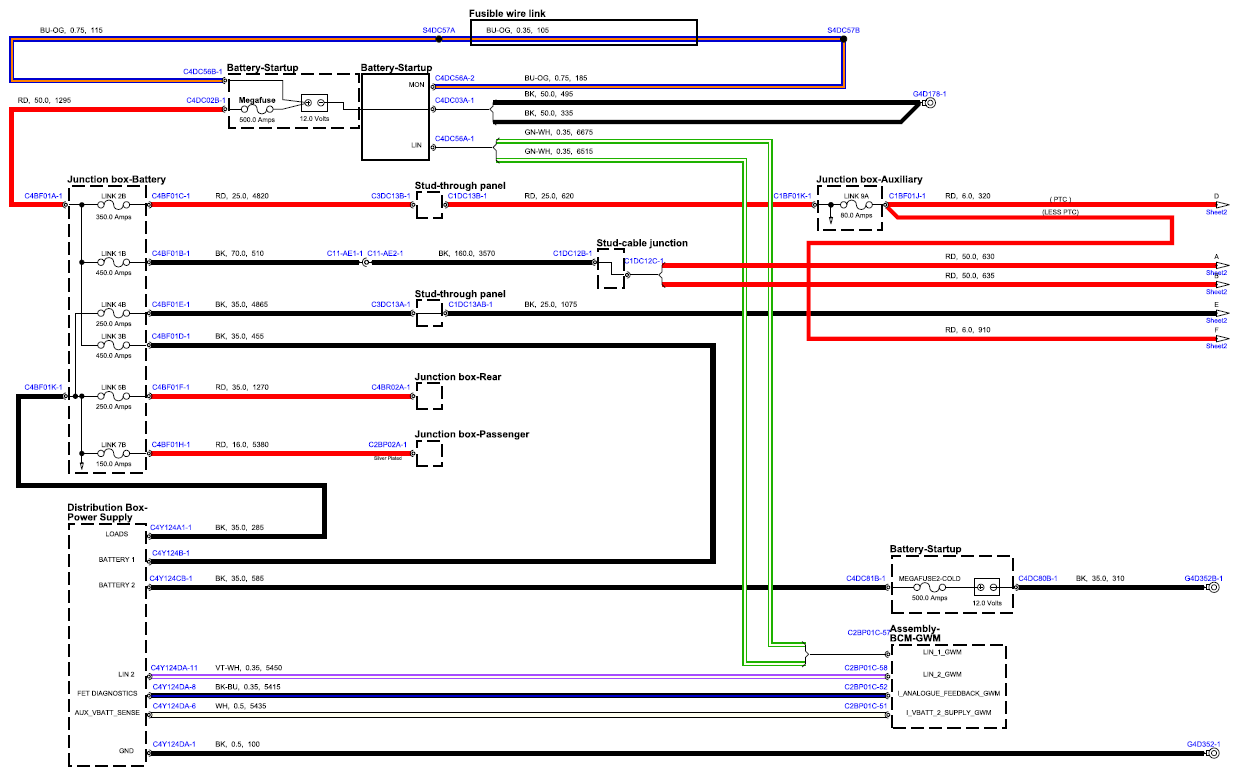

Fig 1: Power Supply Distribution Box - DV6 (Cold Climate) Circuit Diagram (Sheet 1)
G15556531

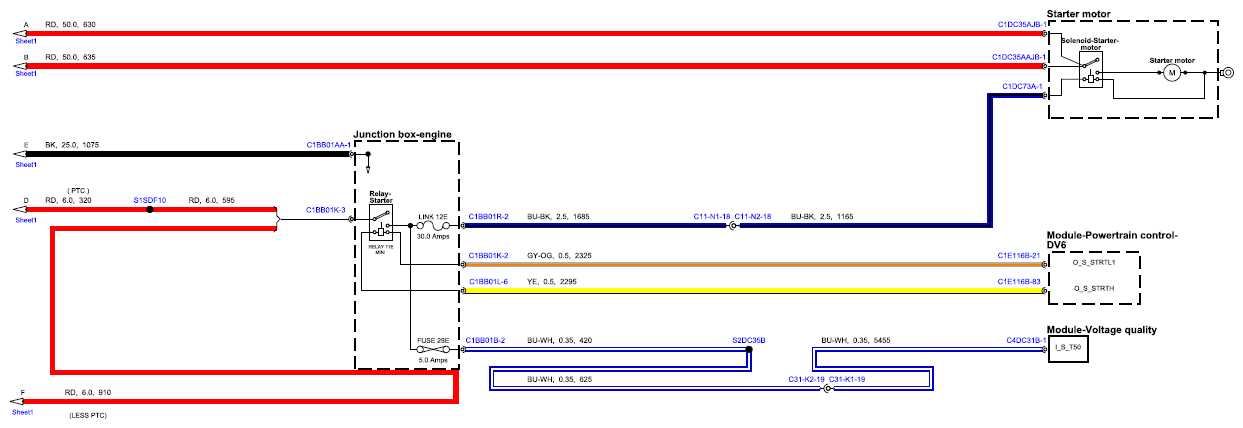

Fig 2: Power Supply Distribution Box - DV6 (Cold Climate) Circuit Diagram (Sheet 2)
G15556532
