Passenger junction box

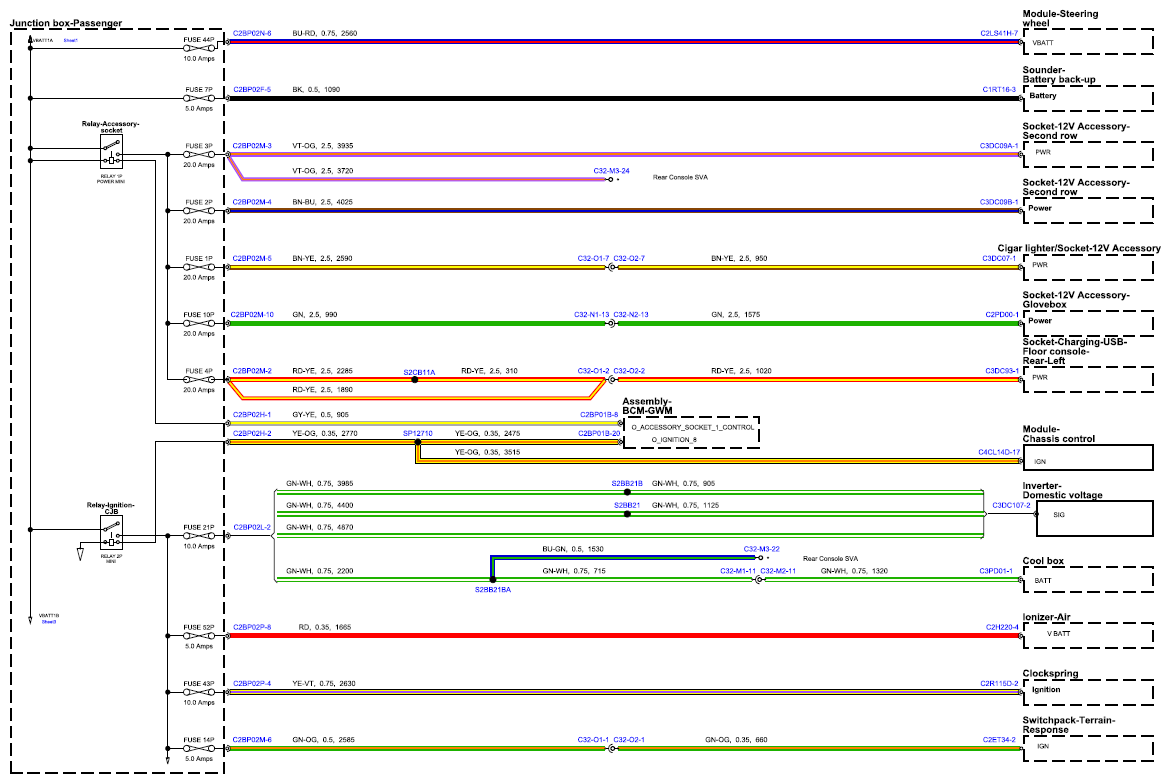

Fig 1: Passenger Junction Box Circuit Diagram (Sheet 1)

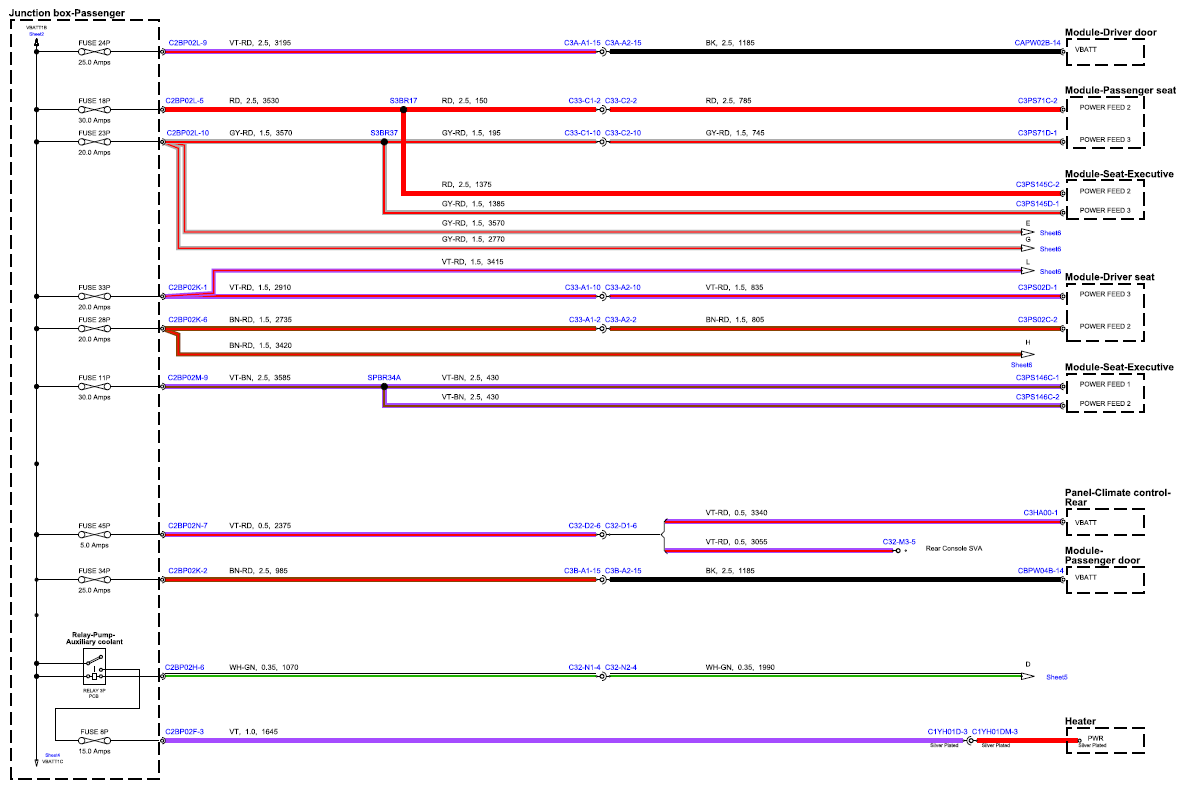

Fig 2: Passenger Junction Box Circuit Diagram (Sheet 2)

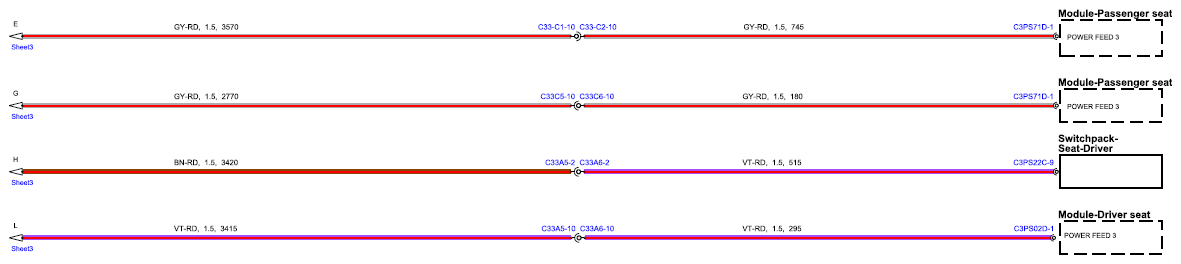

Fig 3: Passenger Junction Box Circuit Diagram (Sheet 3)

Fig 4: Passenger Junction Box Circuit Diagram (Sheet 4)

Fig 5: Passenger Junction Box Circuit Diagram (Sheet 5)

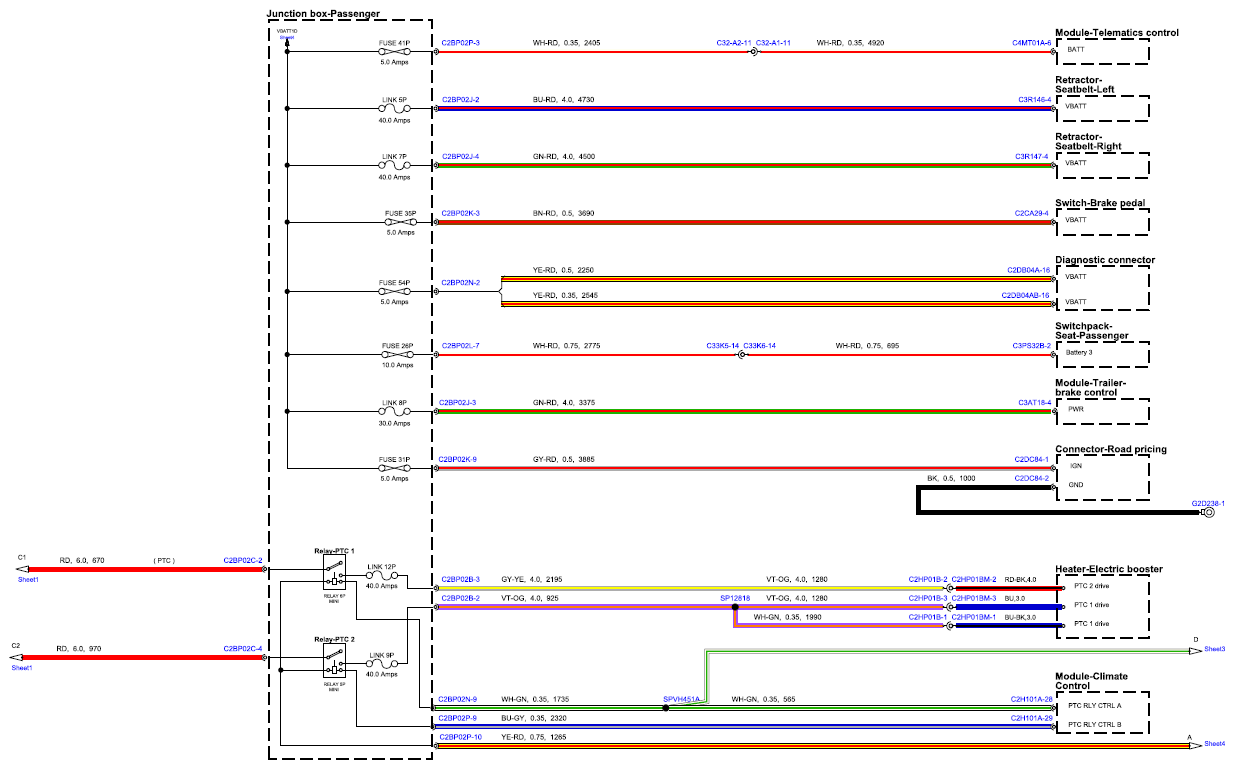

Fig 6: Passenger Junction Box Circuit Diagram (Sheet 6)
