Ground distribution

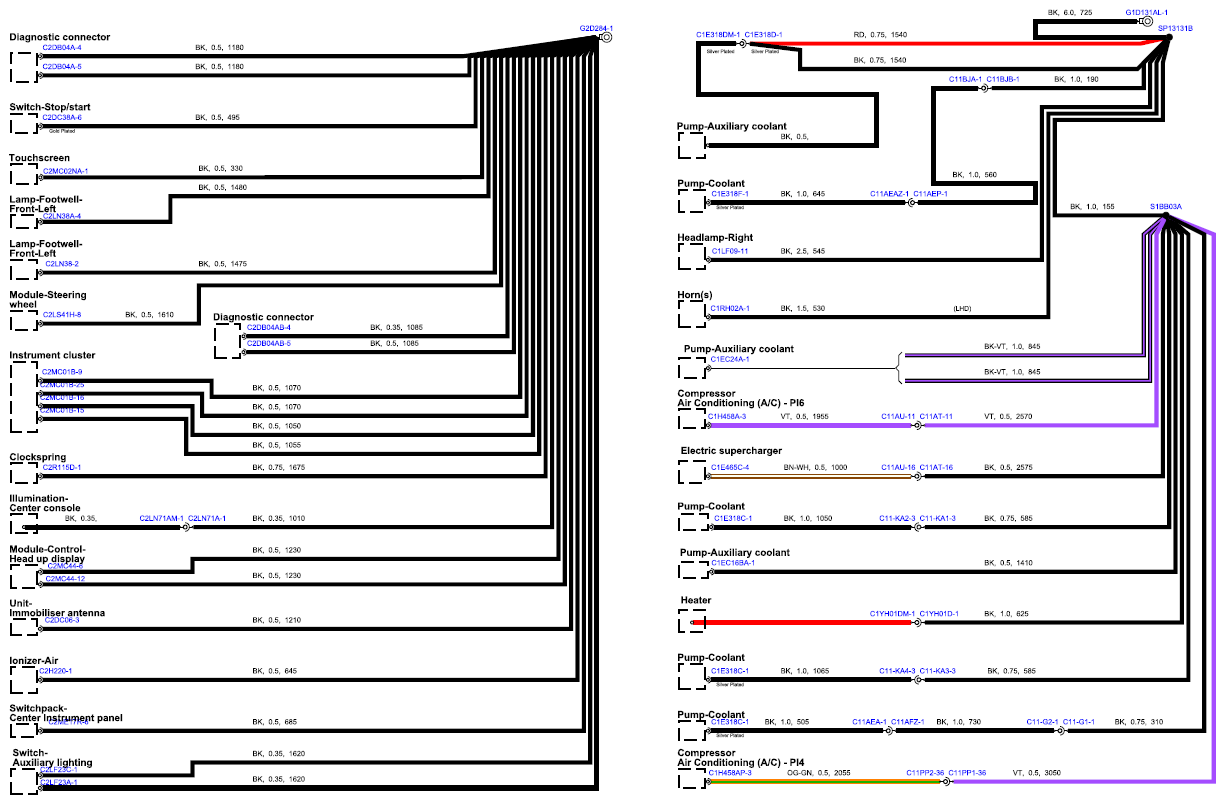

Fig 1: Ground Distribution Circuit Diagram (Sheet 1)

G15556591

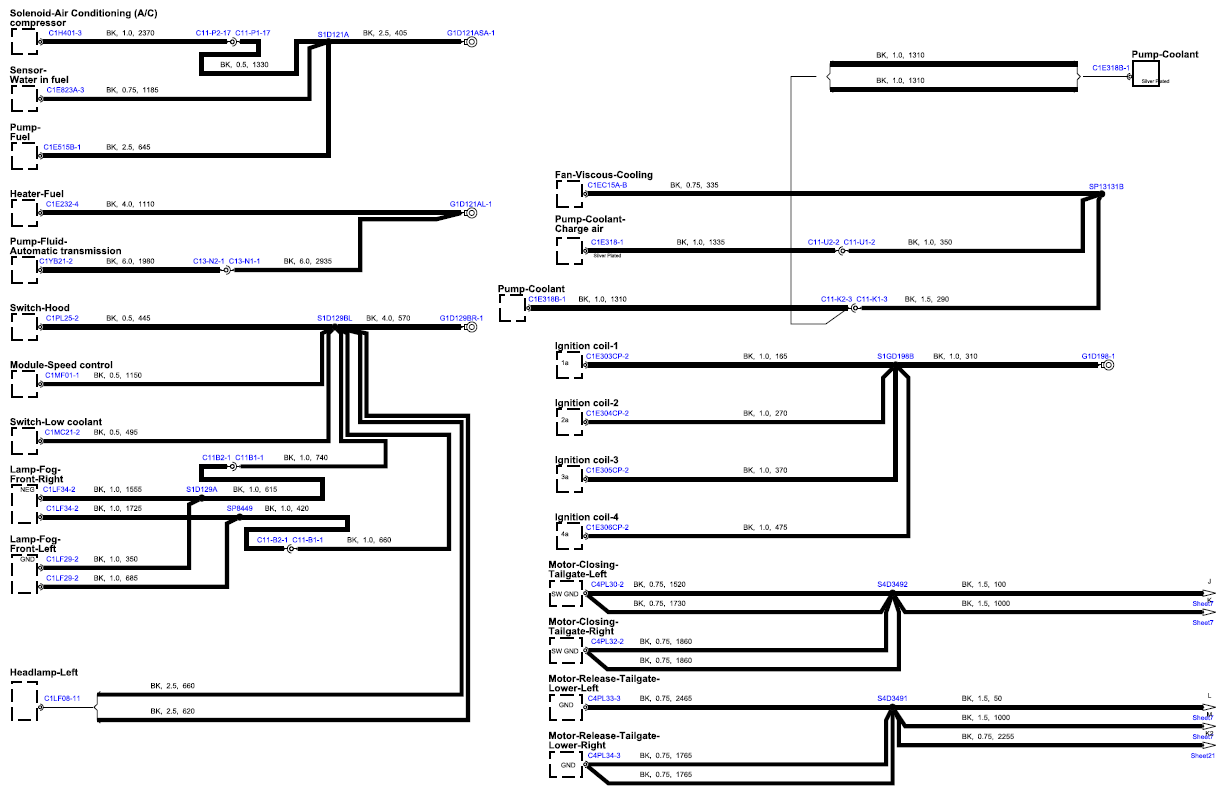

Fig 2: Ground Distribution Circuit Diagram (Sheet 2)

G15556592

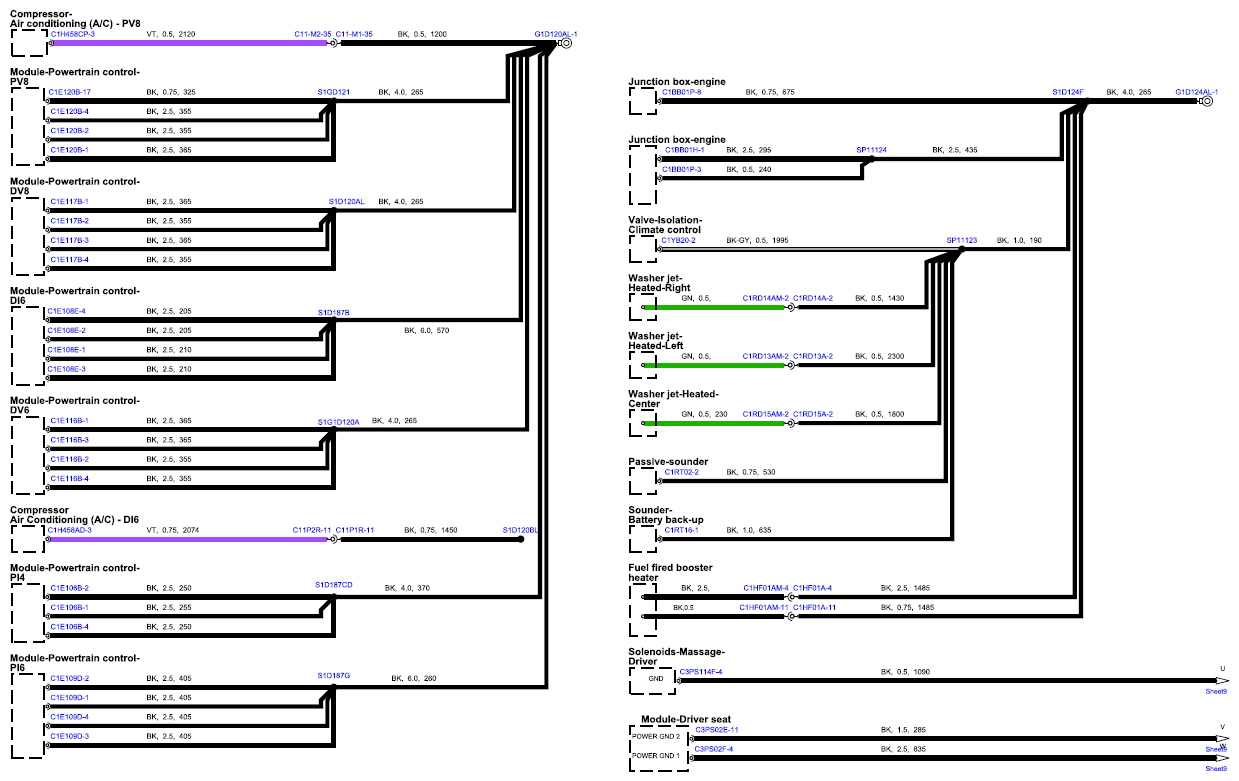

Fig 3: Ground Distribution Circuit Diagram (Sheet 3)

G15556593

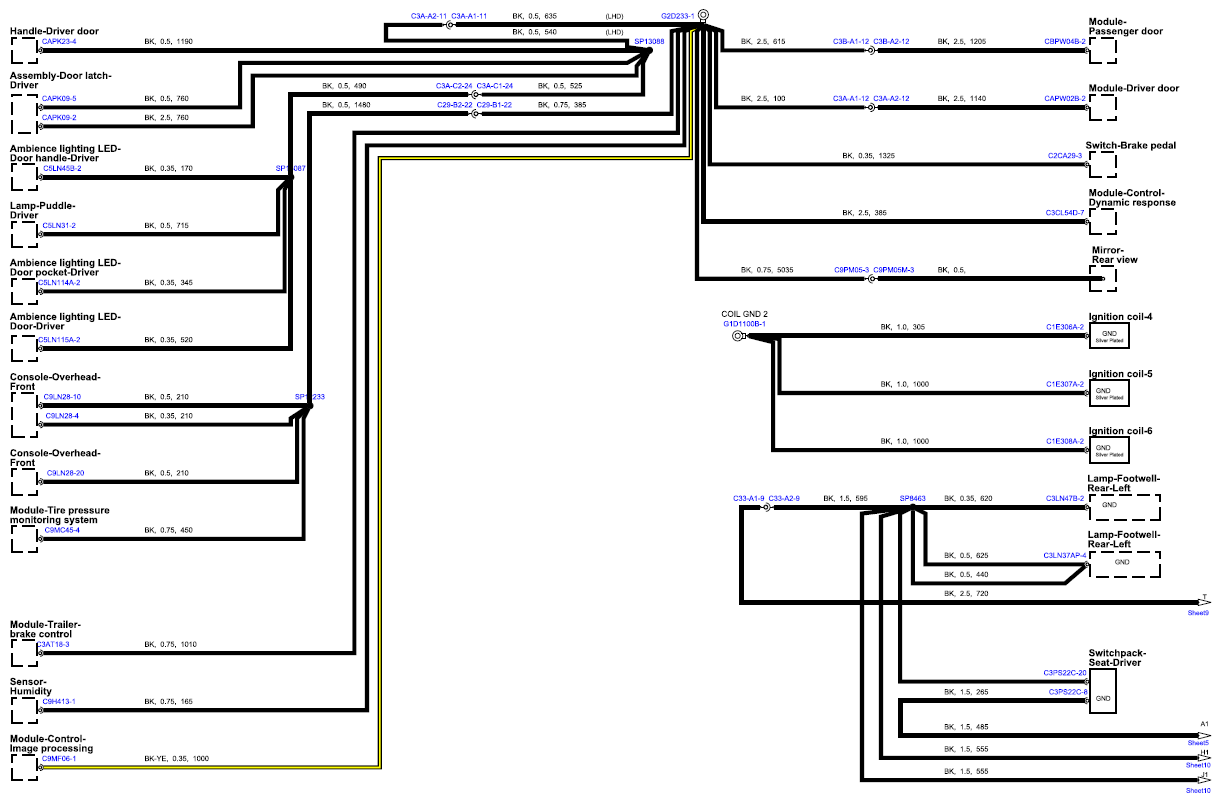

Fig 4: Ground Distribution Circuit Diagram (Sheet 4)

G15556594

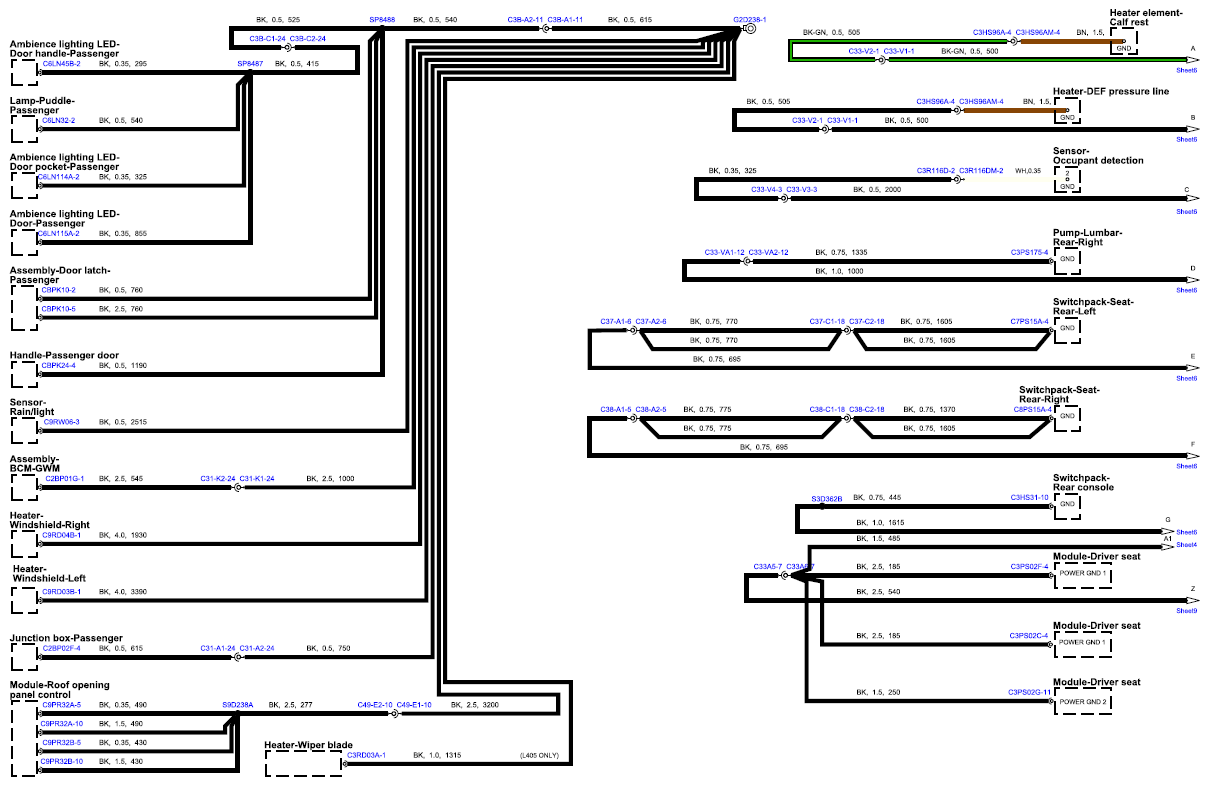

Fig 5: Ground Distribution Circuit Diagram (Sheet 5)

G15556595

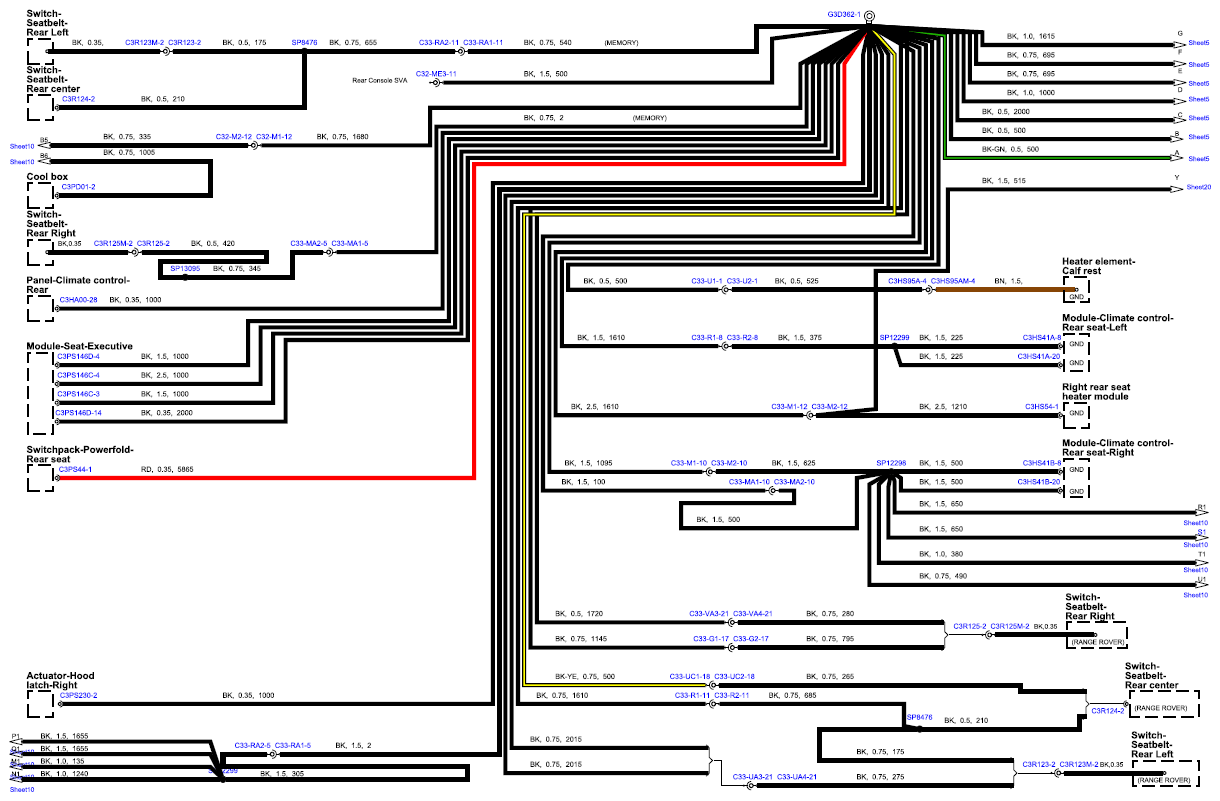

Fig 6: Ground Distribution Circuit Diagram (Sheet 6)

G15556596

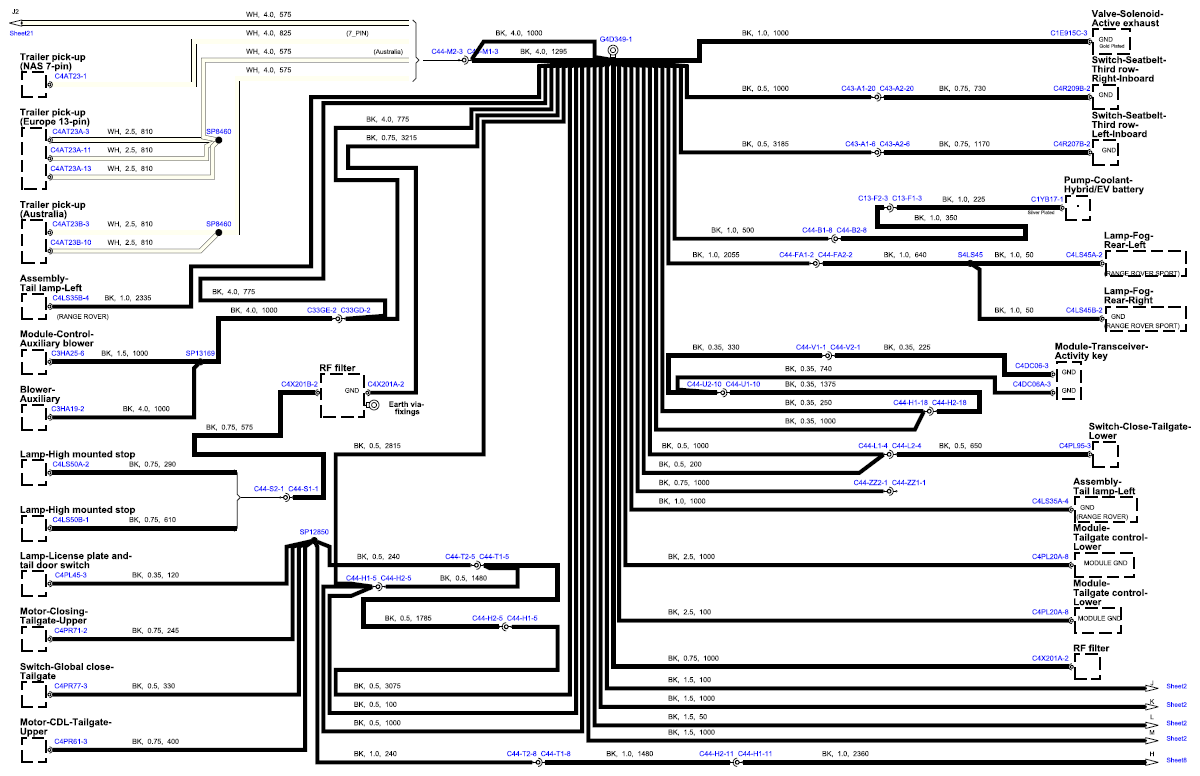

Fig 7: Ground Distribution Circuit Diagram (Sheet 7)

G15556597

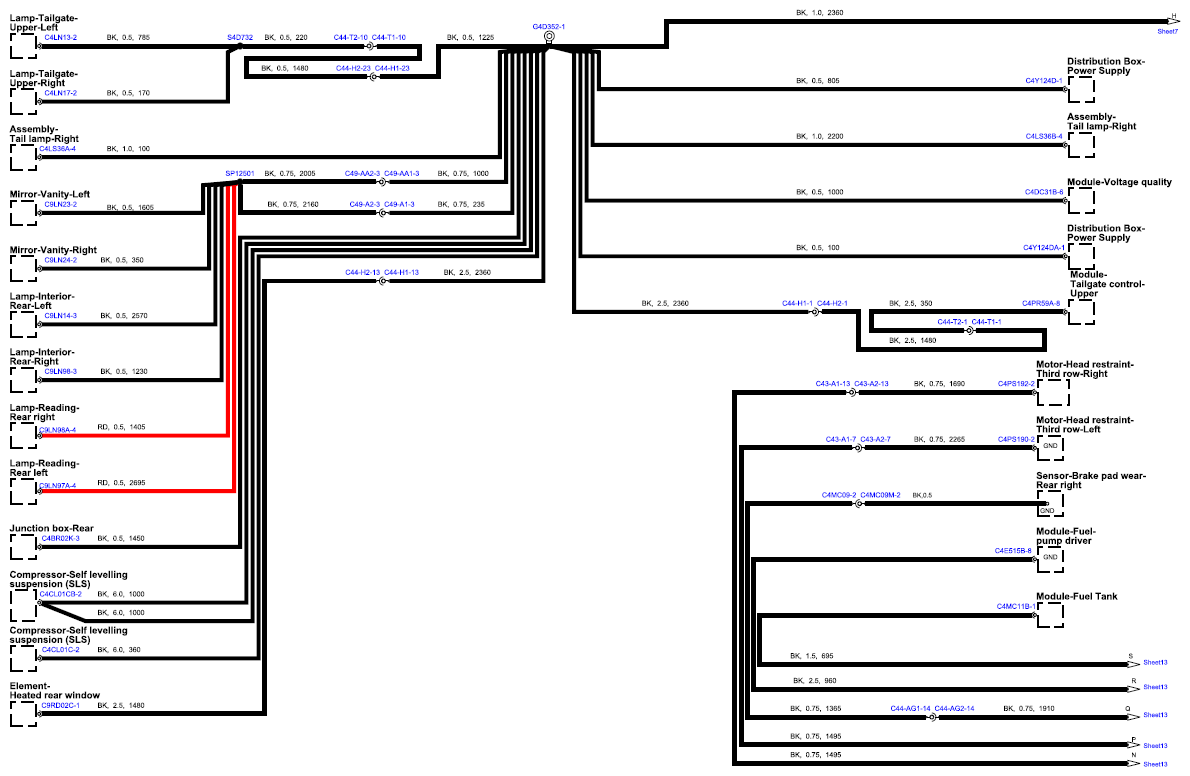

Fig 8: Ground Distribution Circuit Diagram (Sheet 8)

G15556598

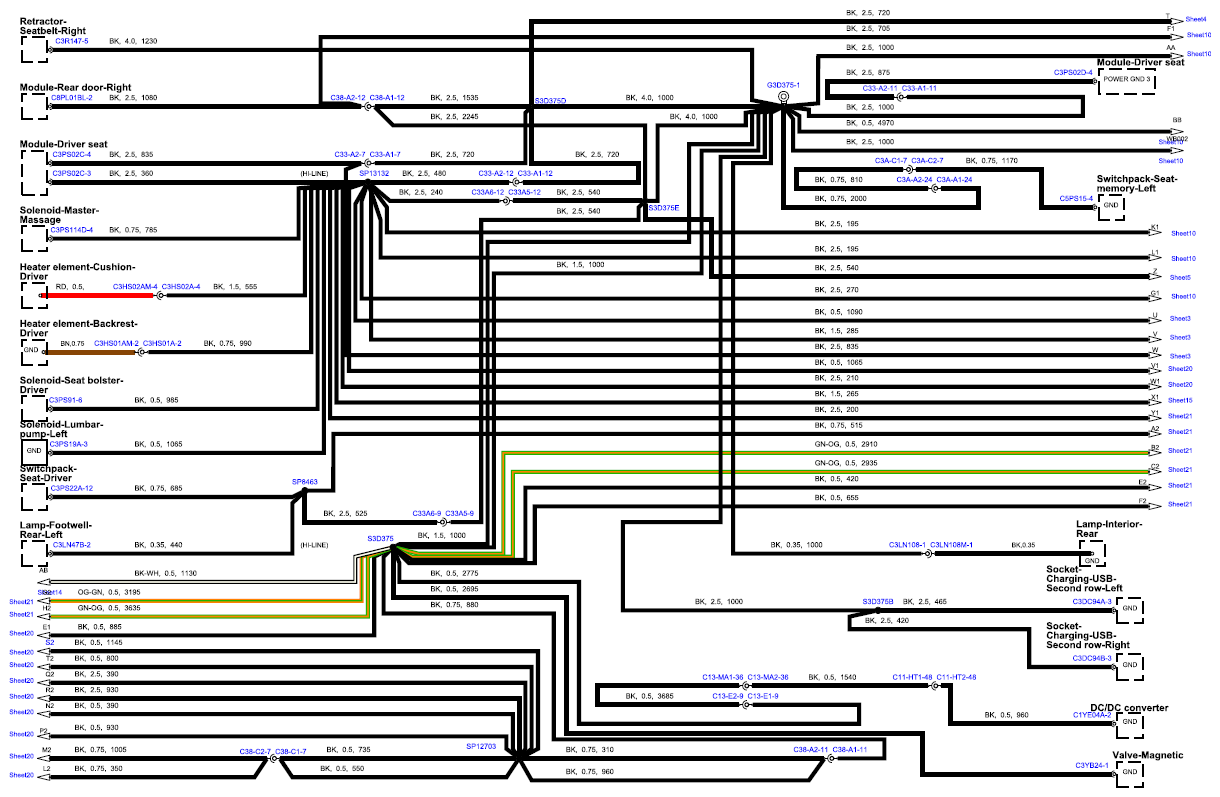

Fig 9: Ground Distribution Circuit Diagram (Sheet 9)

G15556599

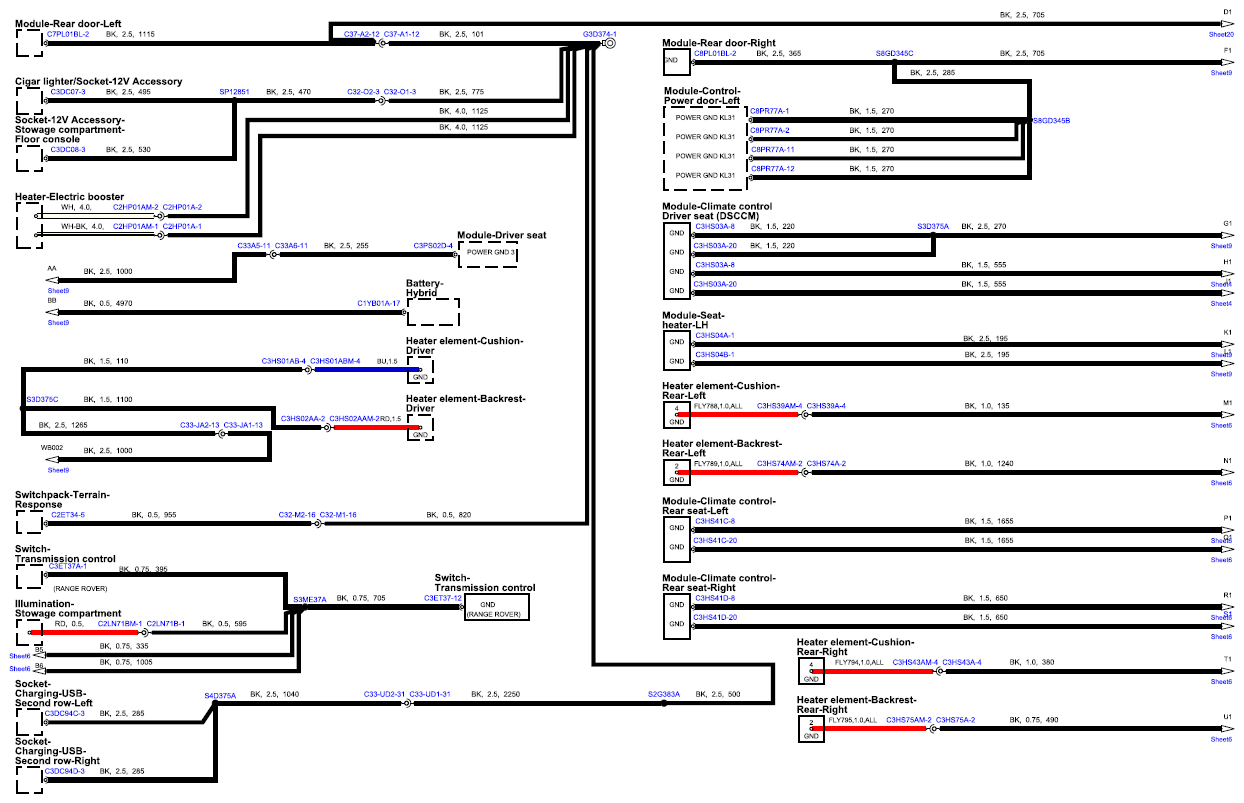

Fig 10: Ground Distribution Circuit Diagram (Sheet 10)

G15556600

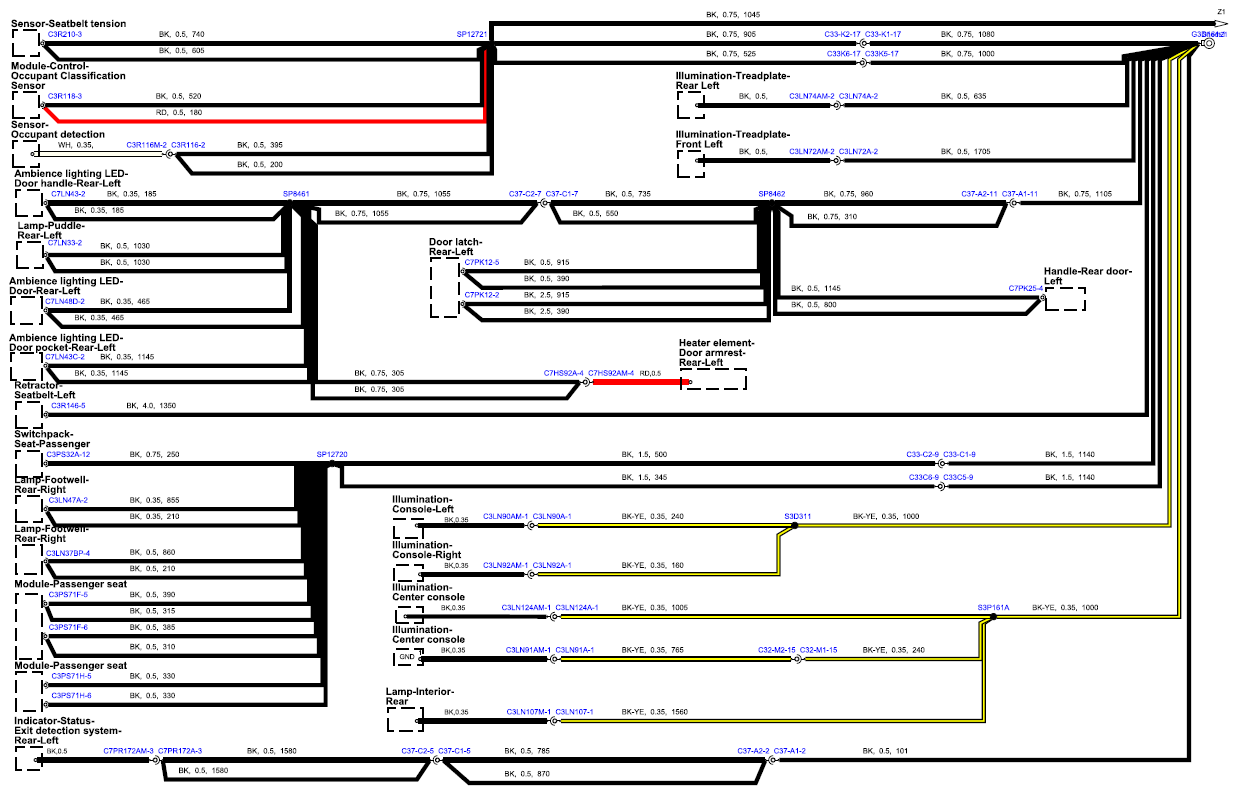

Fig 11: Ground Distribution Circuit Diagram (Sheet 11)

G15556601

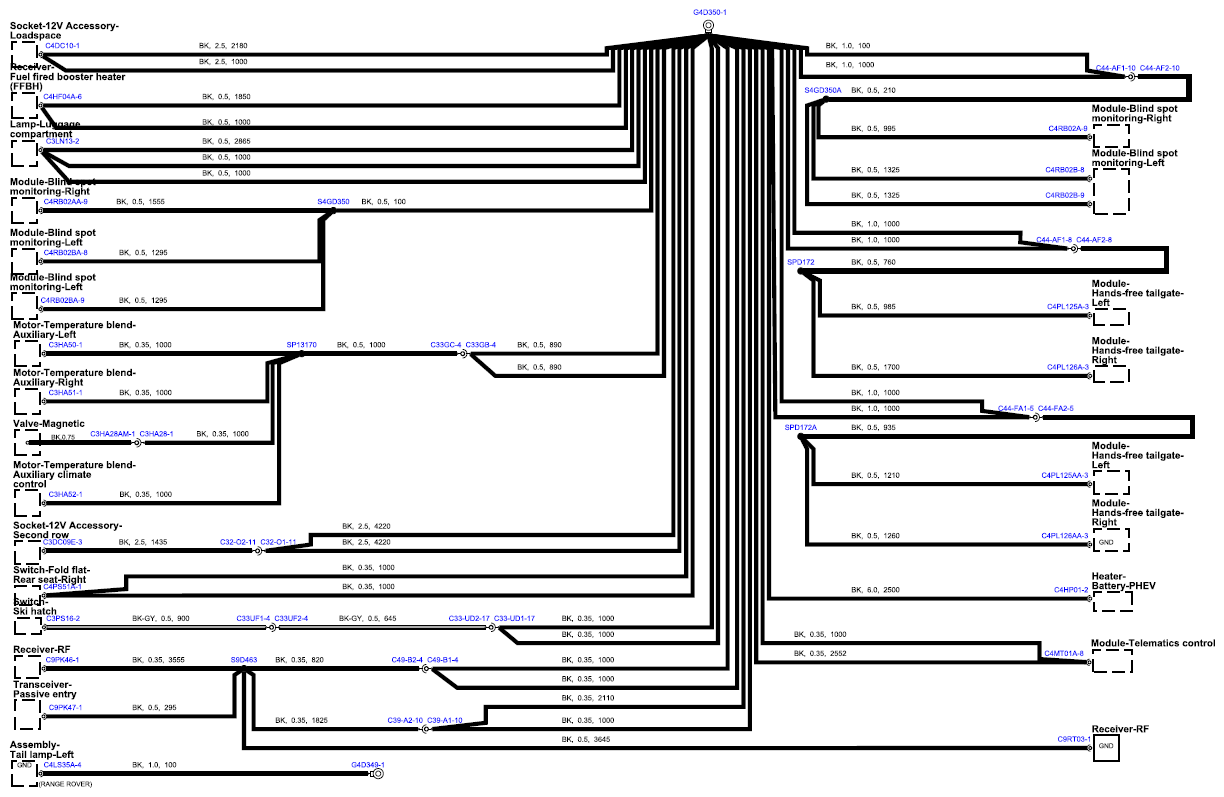

Fig 12: Ground Distribution Circuit Diagram (Sheet 12)

G15556602

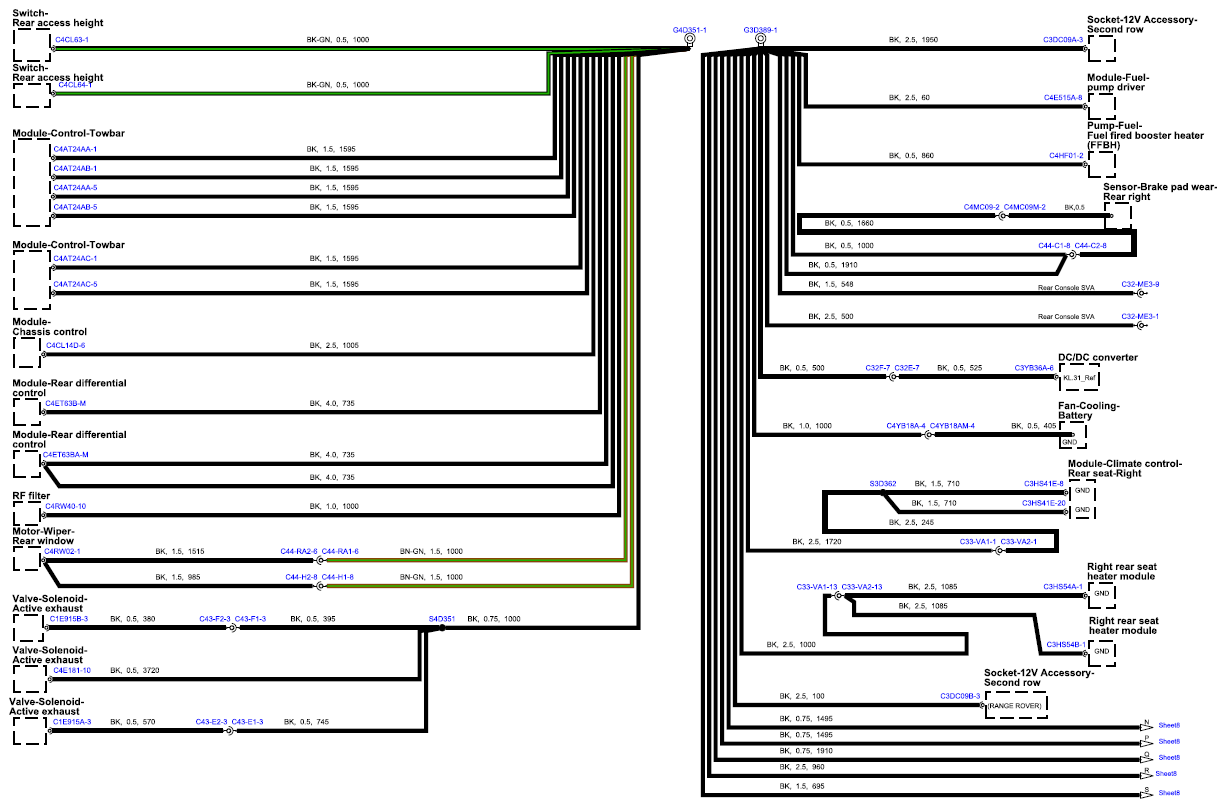

Fig 13: Ground Distribution Circuit Diagram (Sheet 13)

G15556603

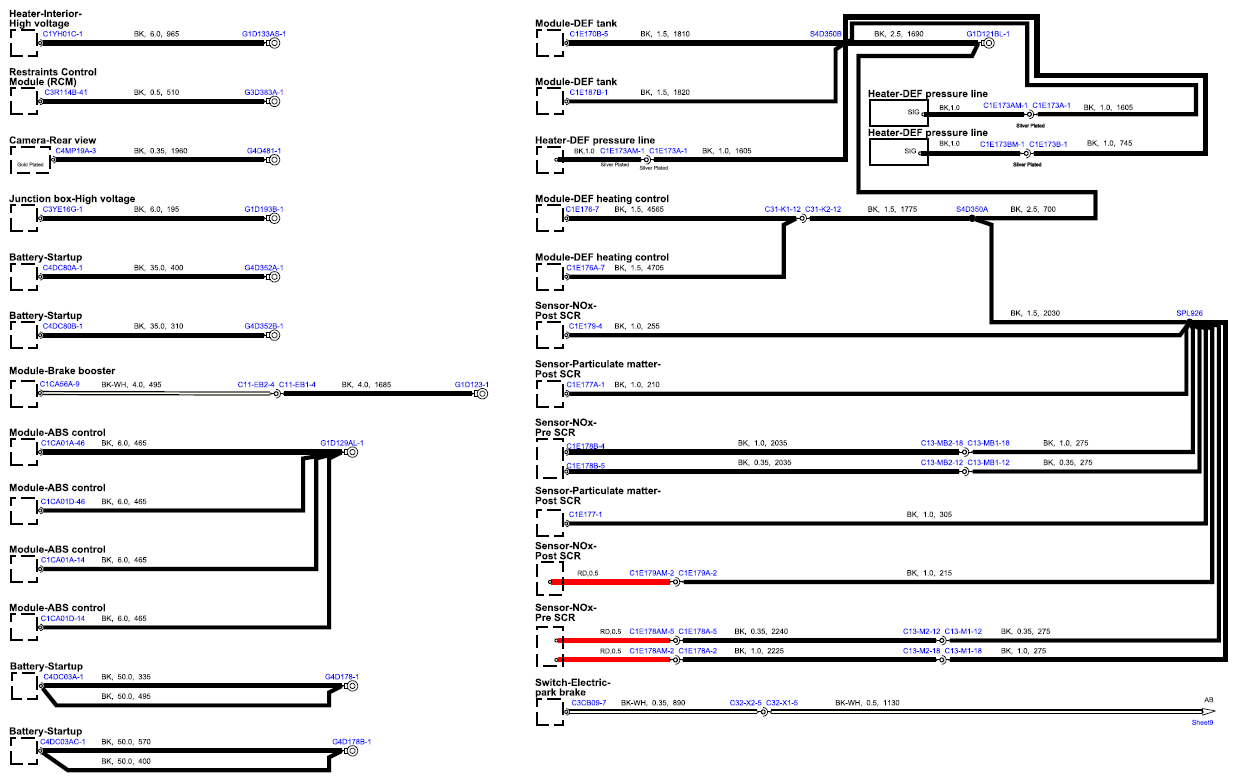

Fig 14: Ground Distribution Circuit Diagram (Sheet 14)

G15556604

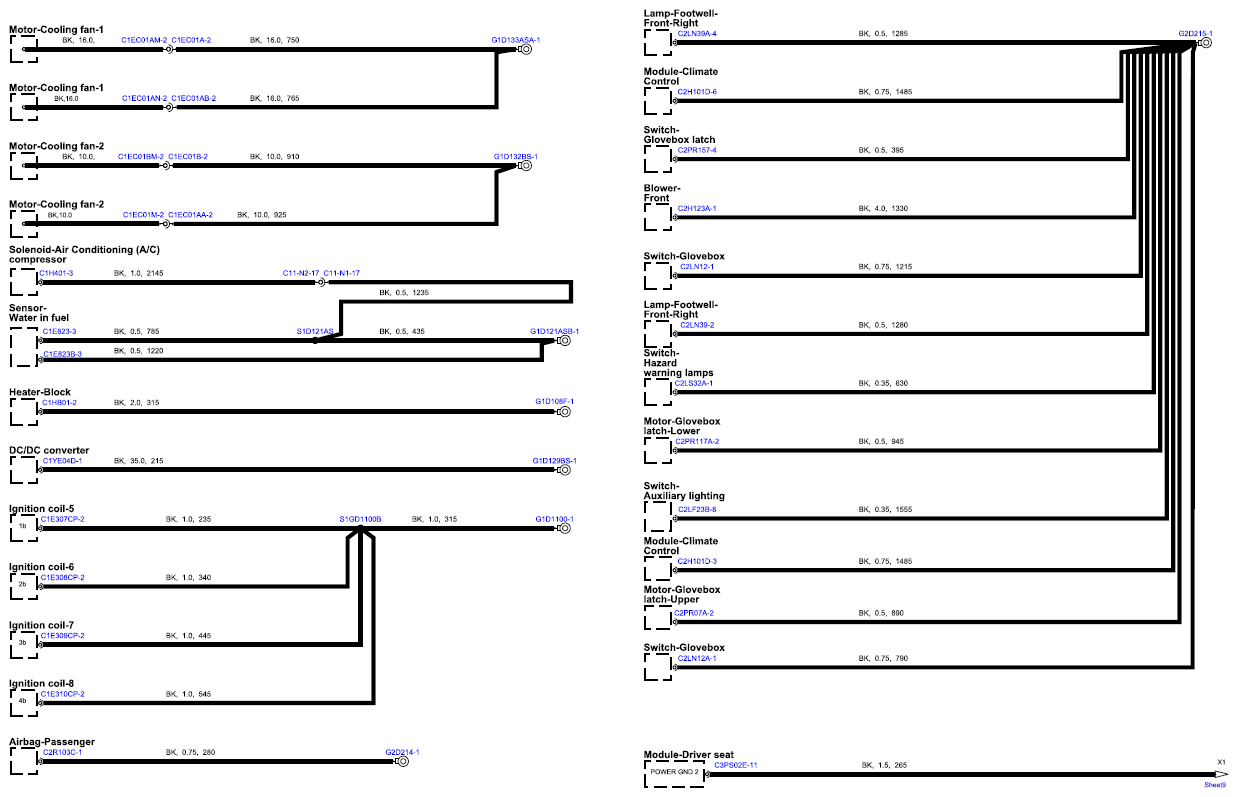

Fig 15: Ground Distribution Circuit Diagram (Sheet 15)

G15556605

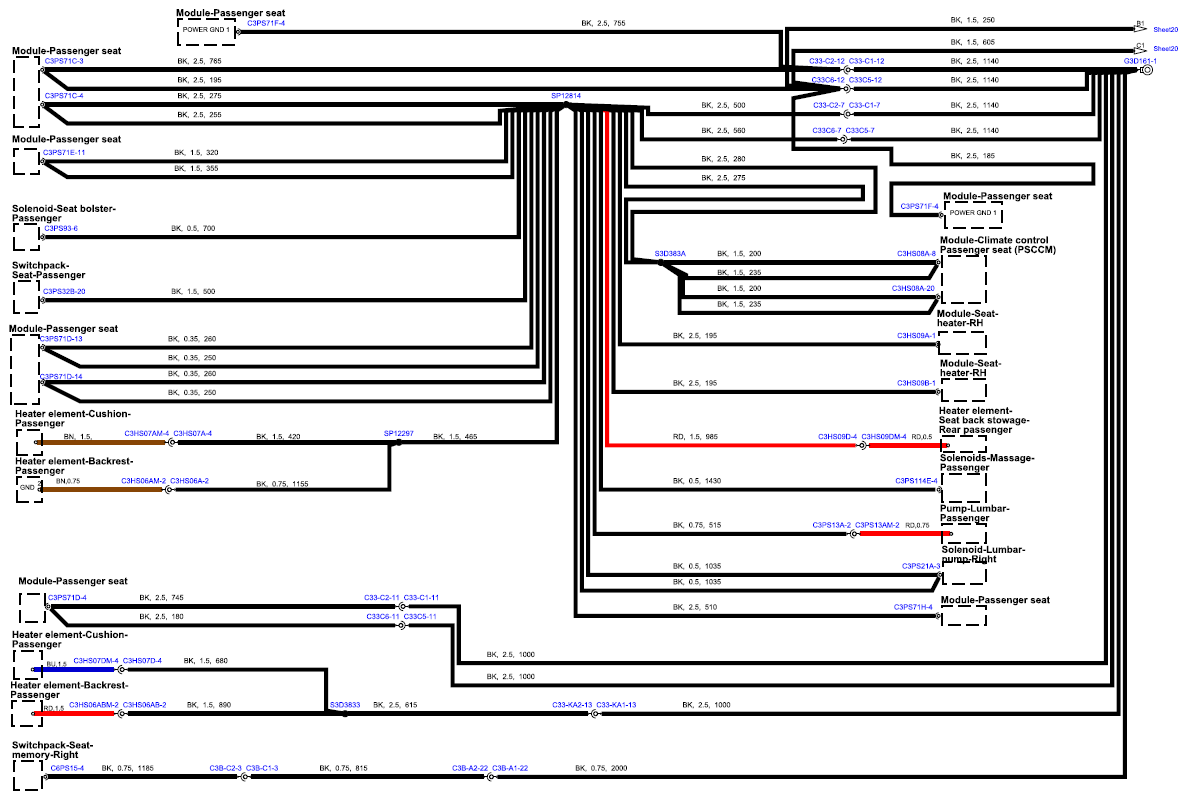

Fig 16: Ground Distribution Circuit Diagram (Sheet 16)

G15556606

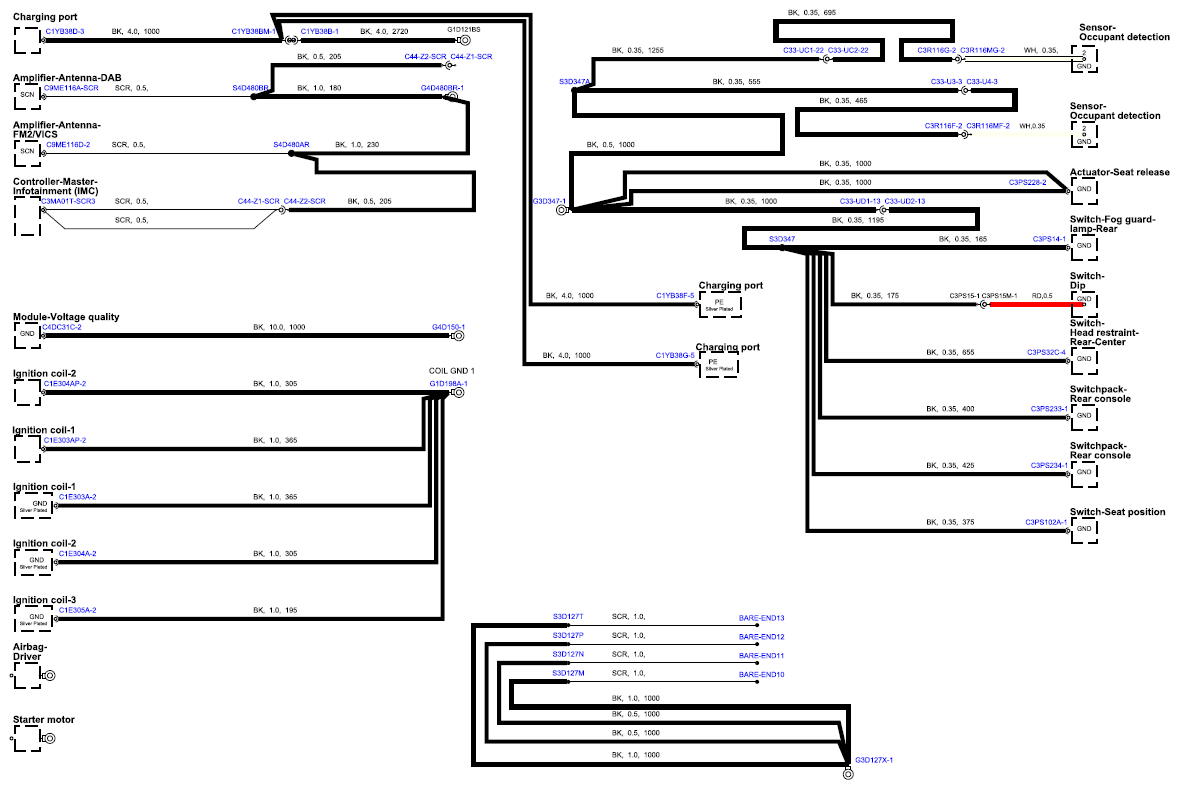

Fig 17: Ground Distribution Circuit Diagram (Sheet 17)

G15556607

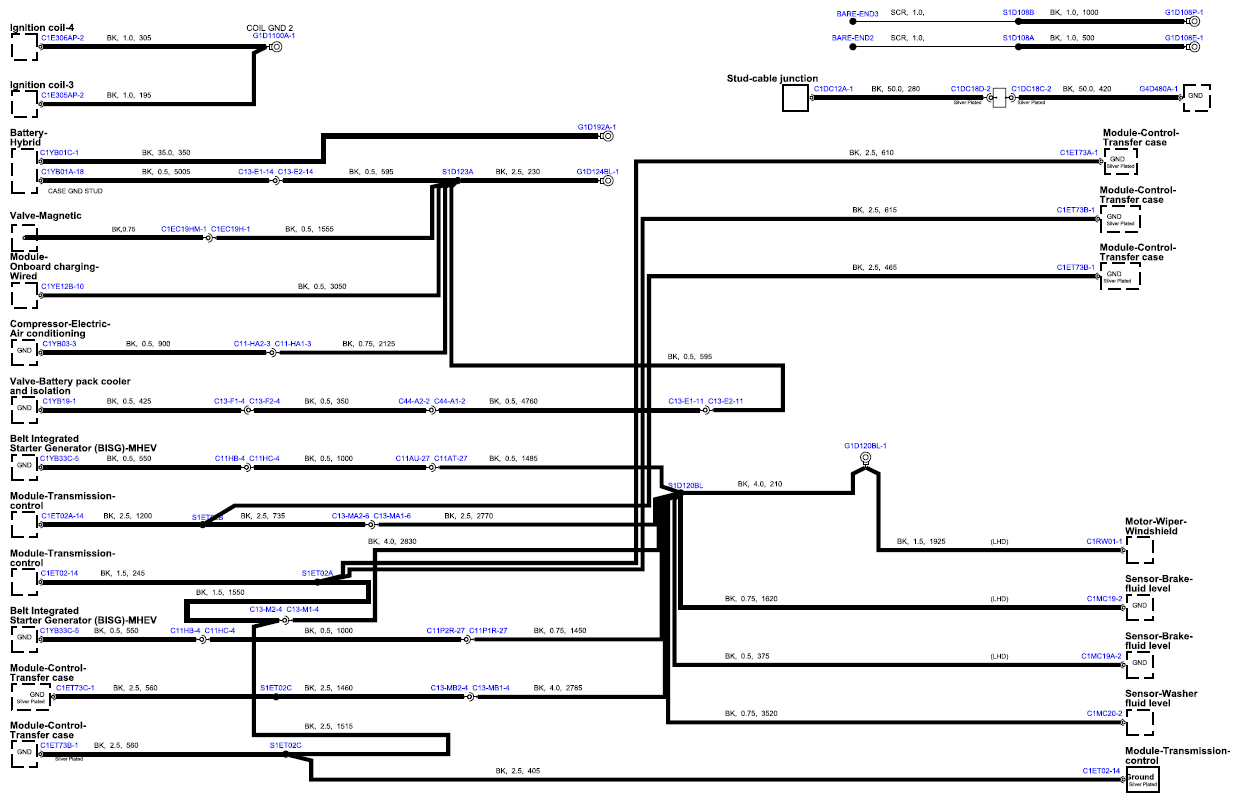

Fig 18: Ground Distribution Circuit Diagram (Sheet 18)

G15556608

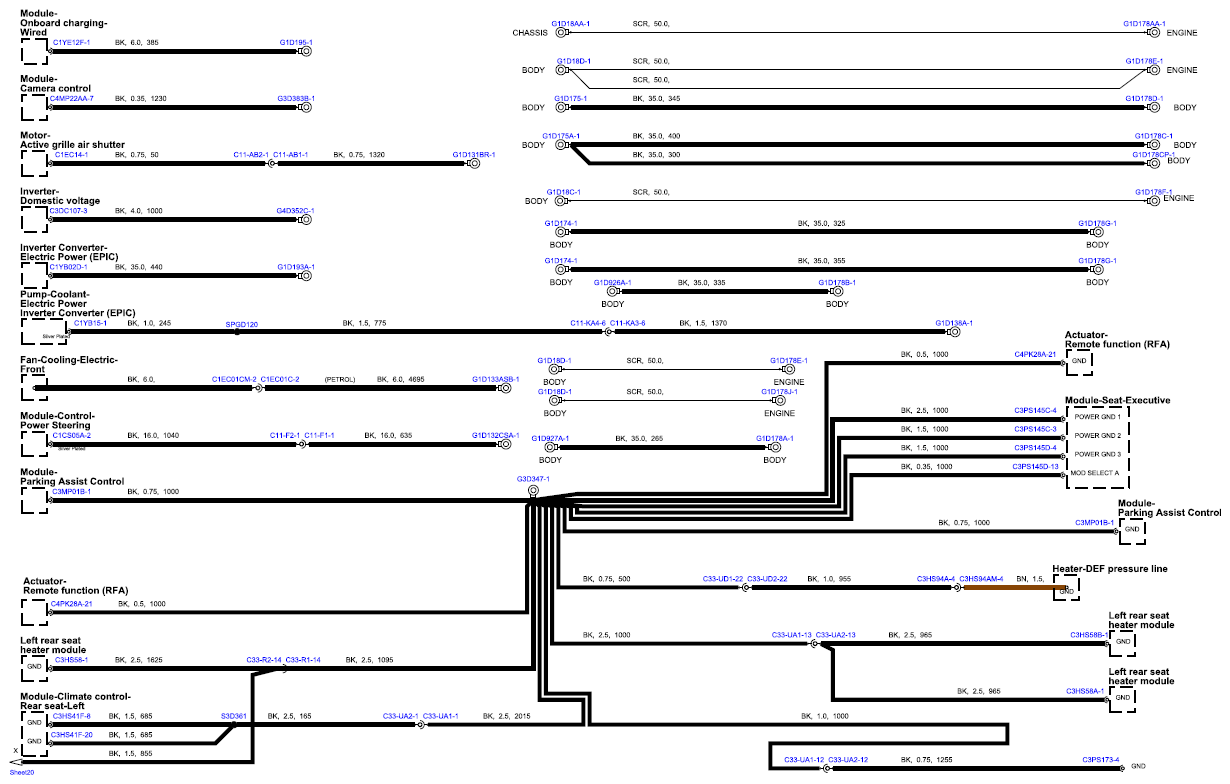

Fig 19: Ground Distribution Circuit Diagram (Sheet 19)

G15556609

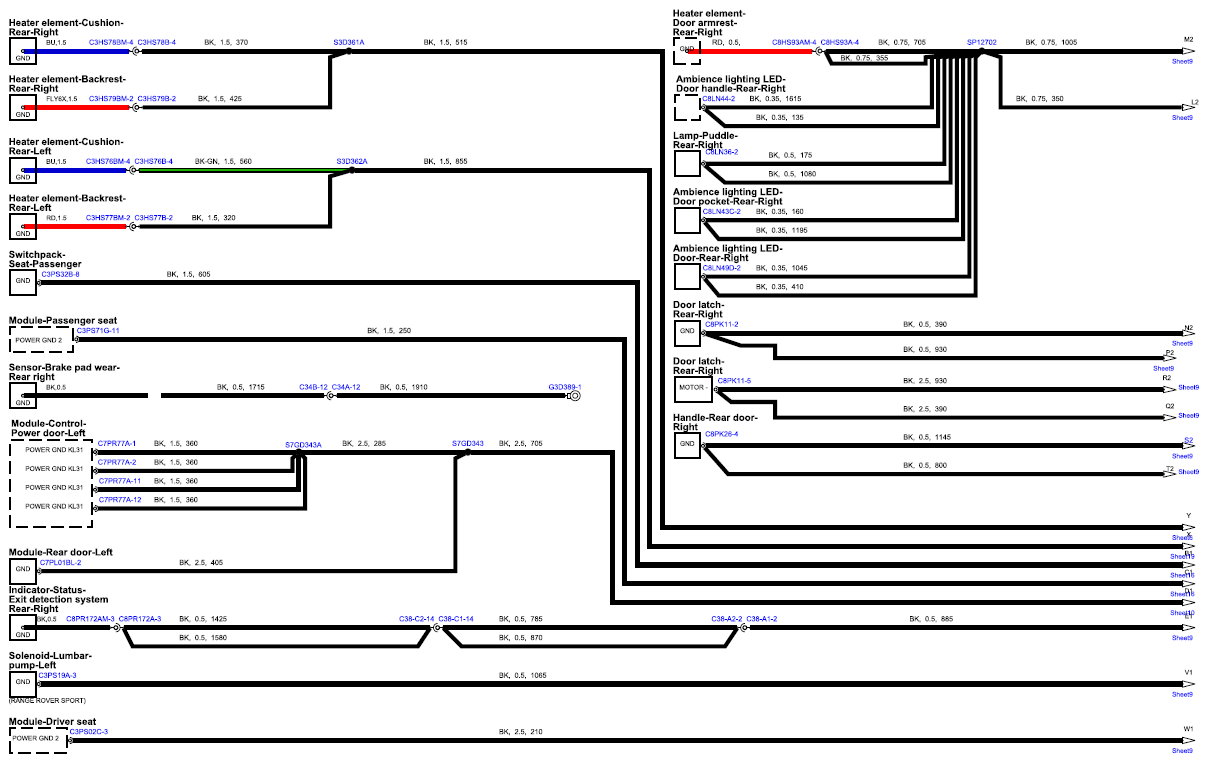

Fig 20: Ground Distribution Circuit Diagram (Sheet 20)

G15556610

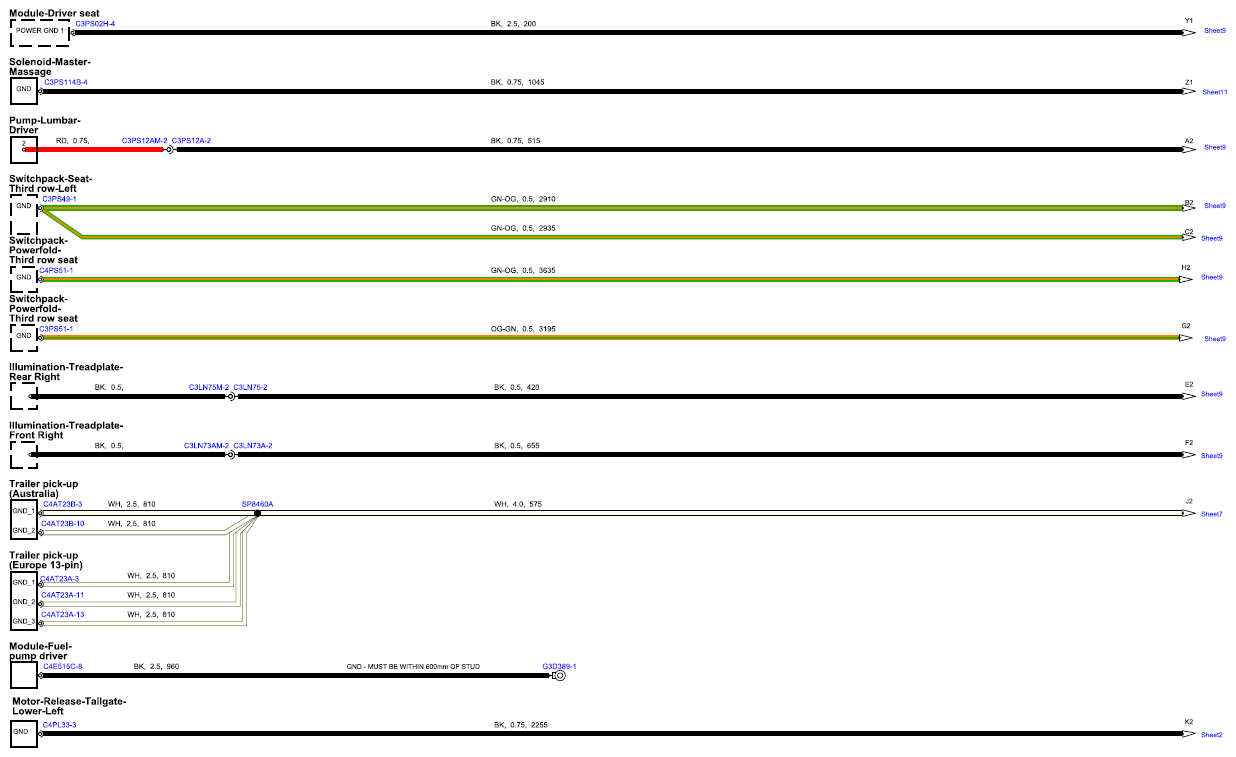

Fig 21: Ground Distribution Circuit Diagram (Sheet 21)

G15556611

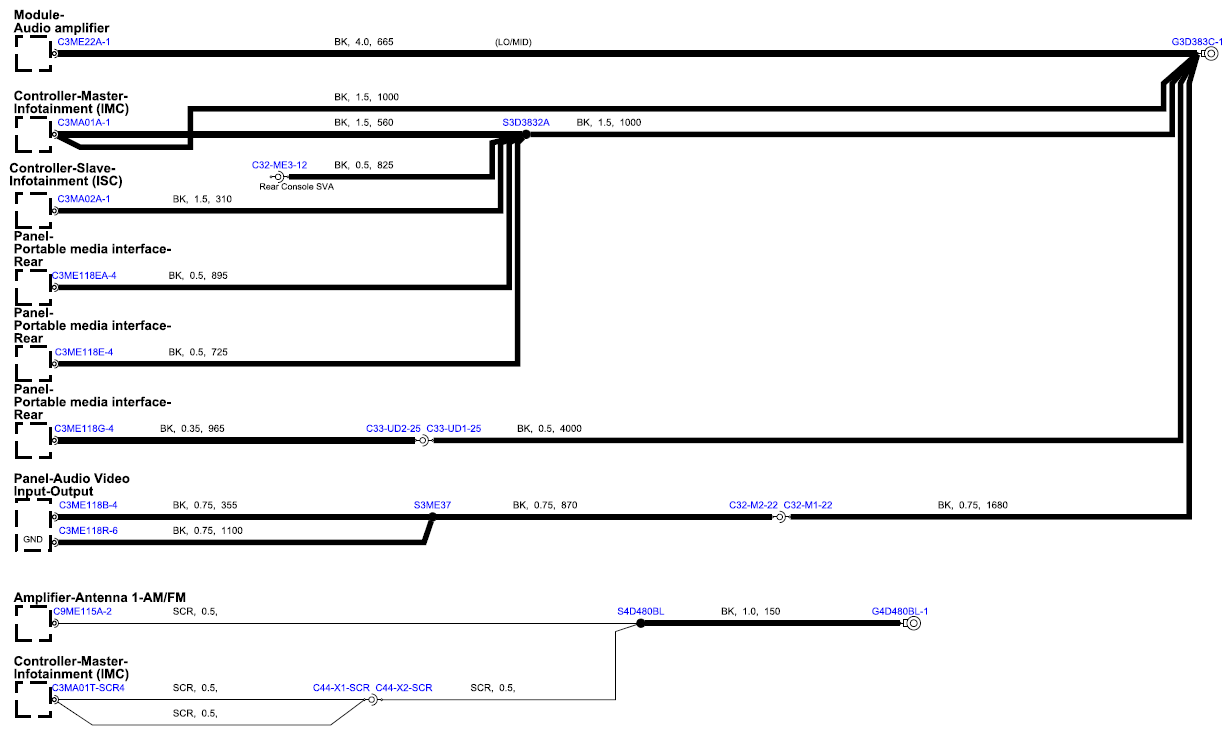

Fig 22: Ground Distribution Circuit Diagram (Sheet 22)

G15556612
