Engine junction box - Diesel

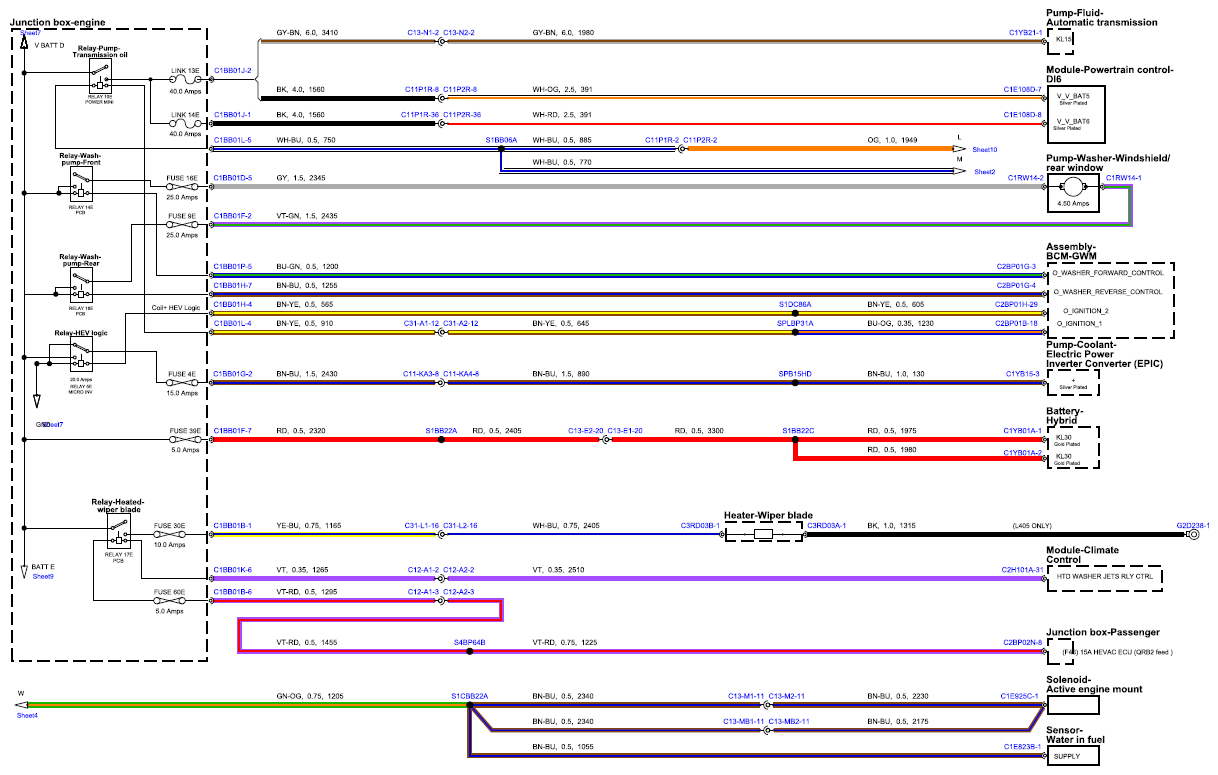

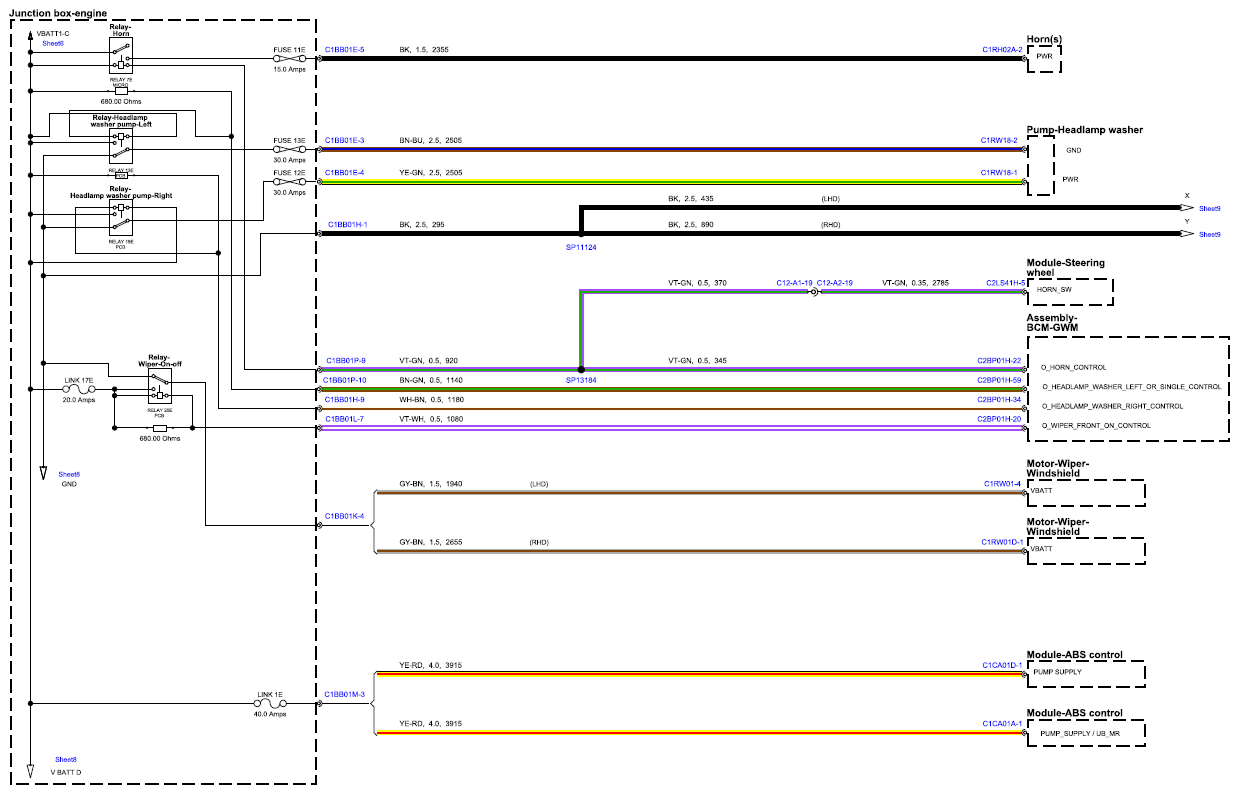

Fig 1: Engine Junction Box - Diesel Circuit Diagram (Sheet 1)

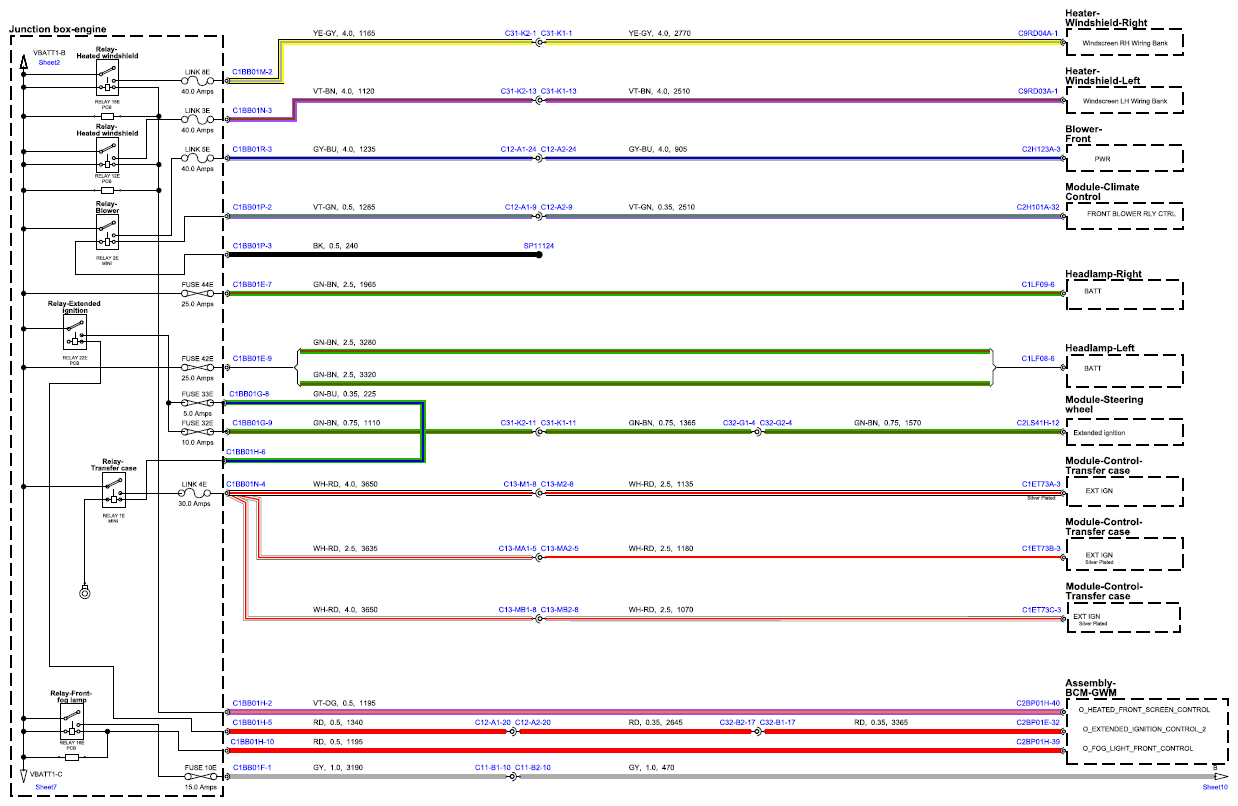

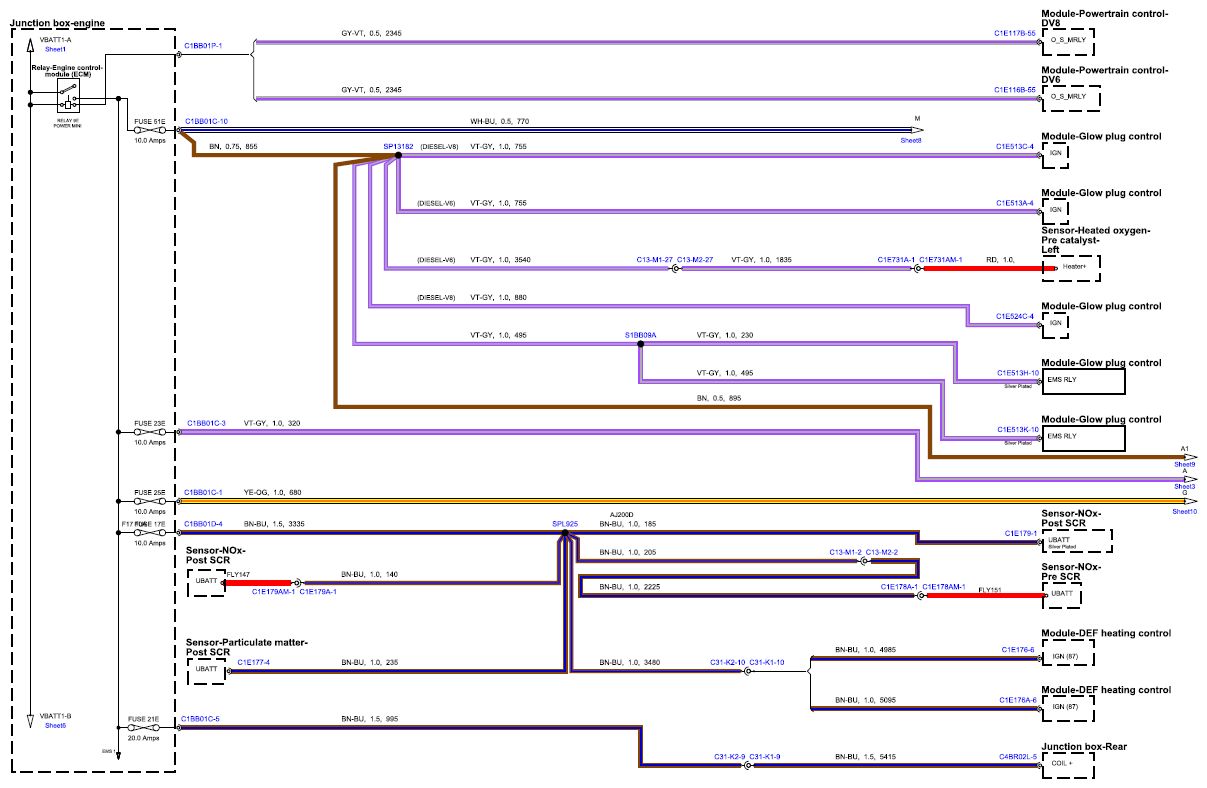

Fig 2: Engine Junction Box - Diesel Circuit Diagram (Sheet 2)

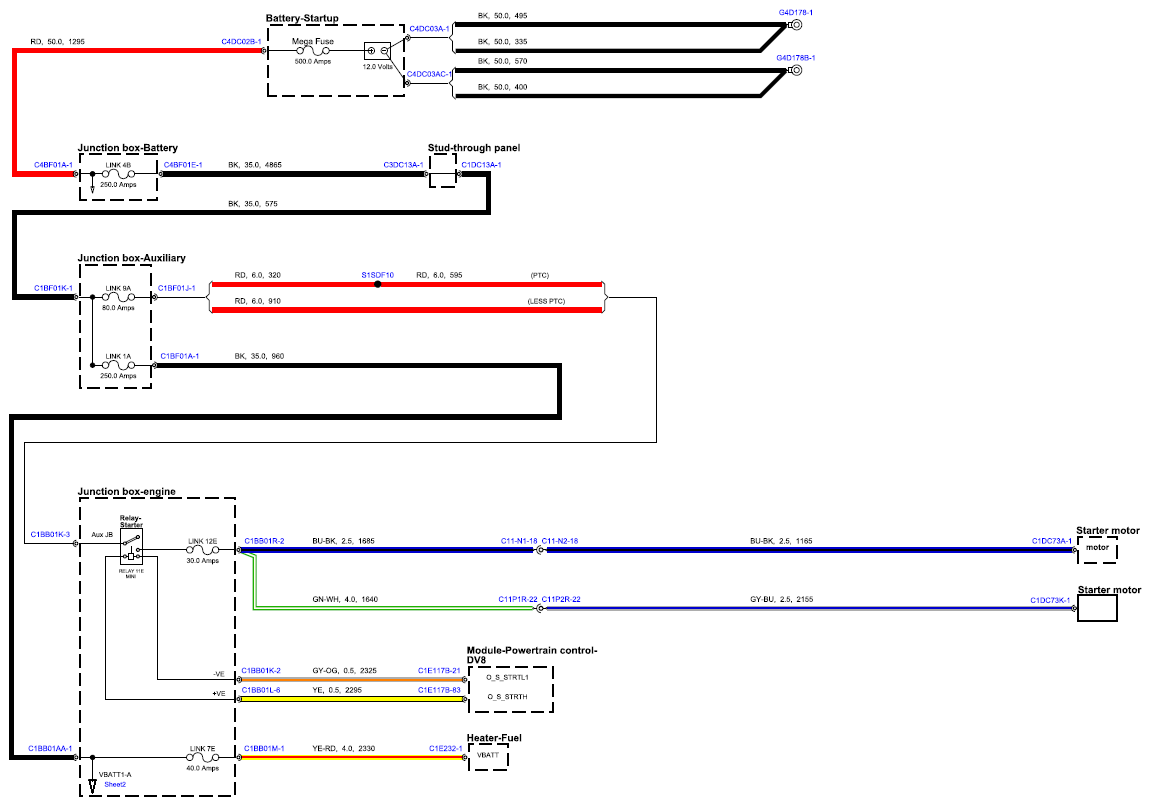

Fig 3: Engine Junction Box - Diesel Circuit Diagram (Sheet 3)

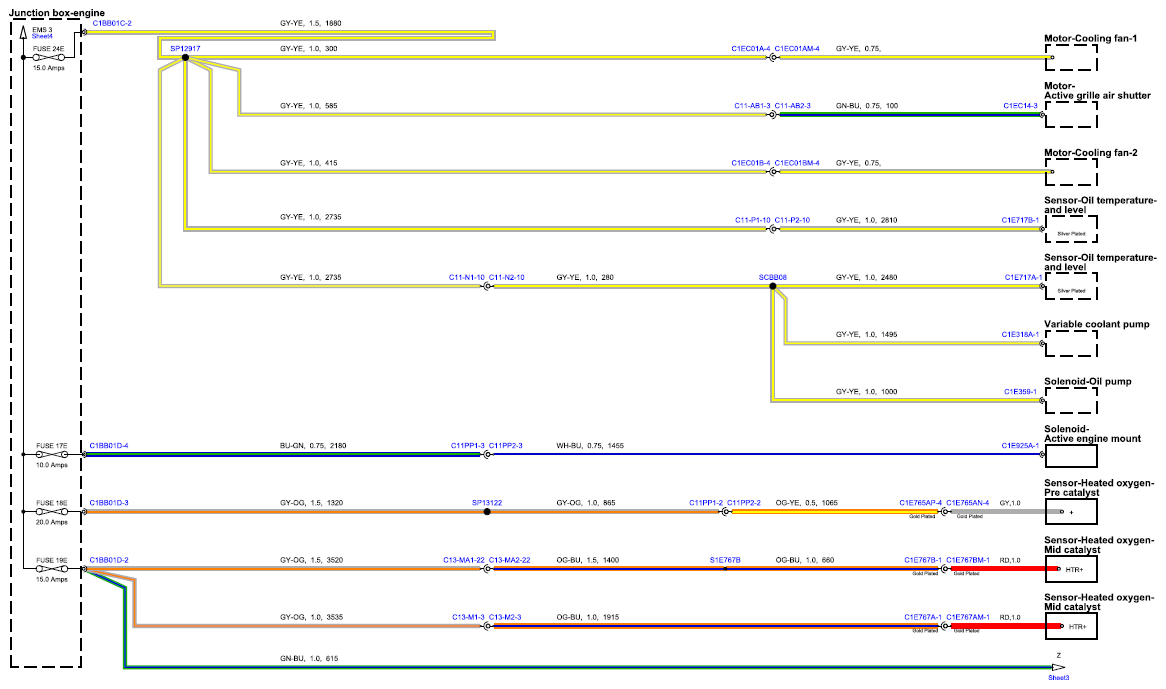

Fig 4: Engine Junction Box - Diesel Circuit Diagram (Sheet 4)

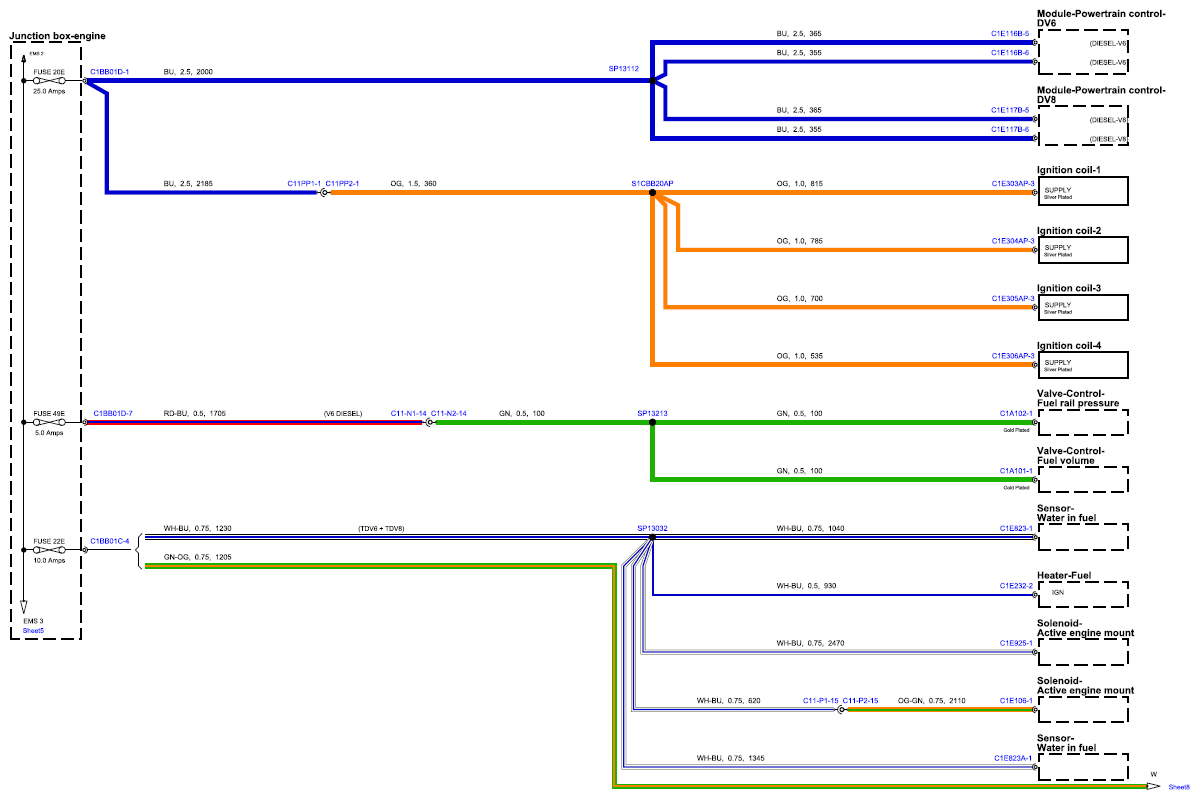

Fig 5: Engine Junction Box - Diesel Circuit Diagram (Sheet 5)

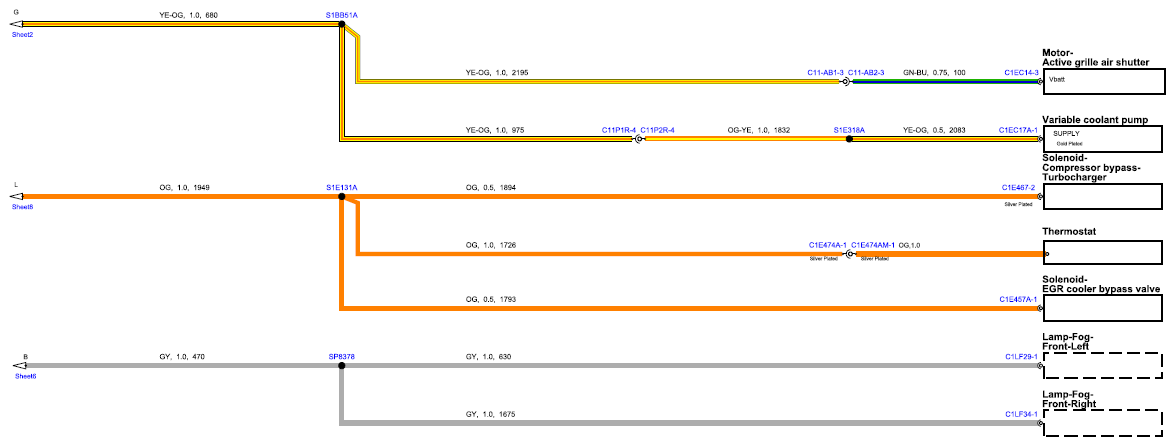

Fig 6: Engine Junction Box - Diesel Circuit Diagram (Sheet 6)

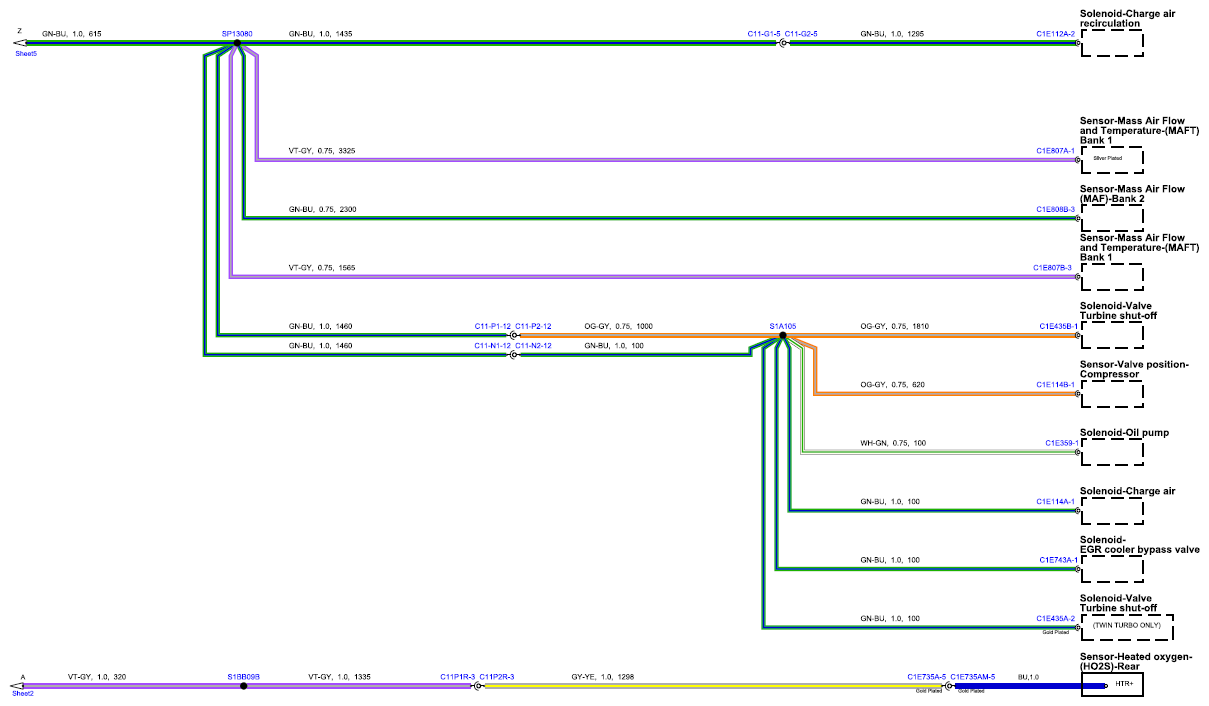

Fig 7: Engine Junction Box - Diesel Circuit Diagram (Sheet 7)

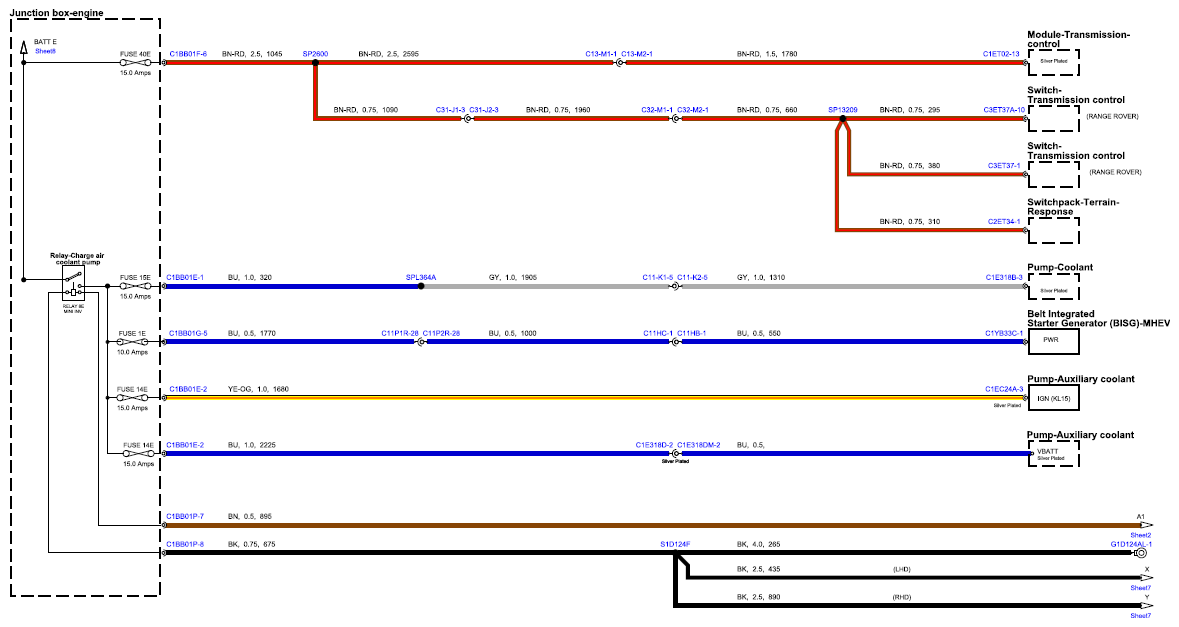

Fig 8: Engine Junction Box - Diesel Circuit Diagram (Sheet 8)

Fig 9: Engine Junction Box - Diesel Circuit Diagram (Sheet 9)

Fig 10: Engine Junction Box - Diesel Circuit Diagram (Sheet 10)
