Battery junction box

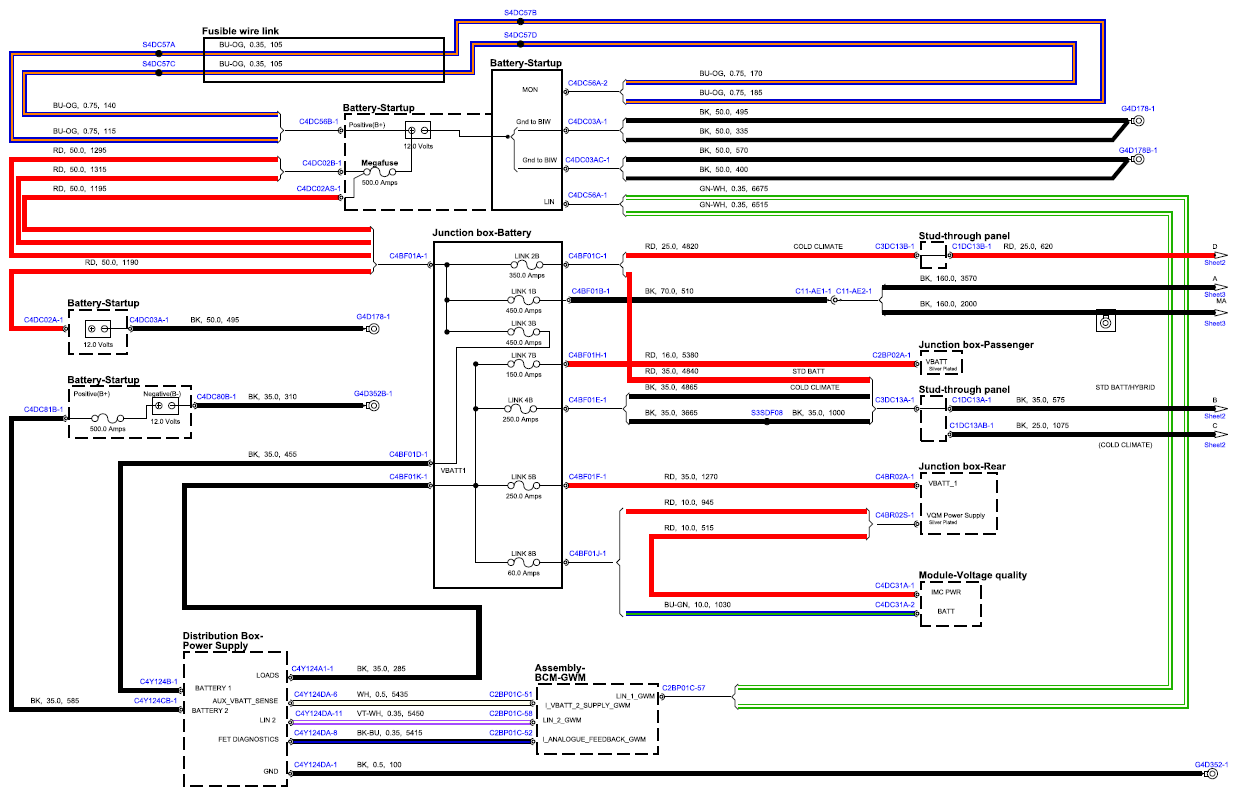

Fig 1: Battery Junction Box Circuit Diagram (Sheet 1)

G15556528

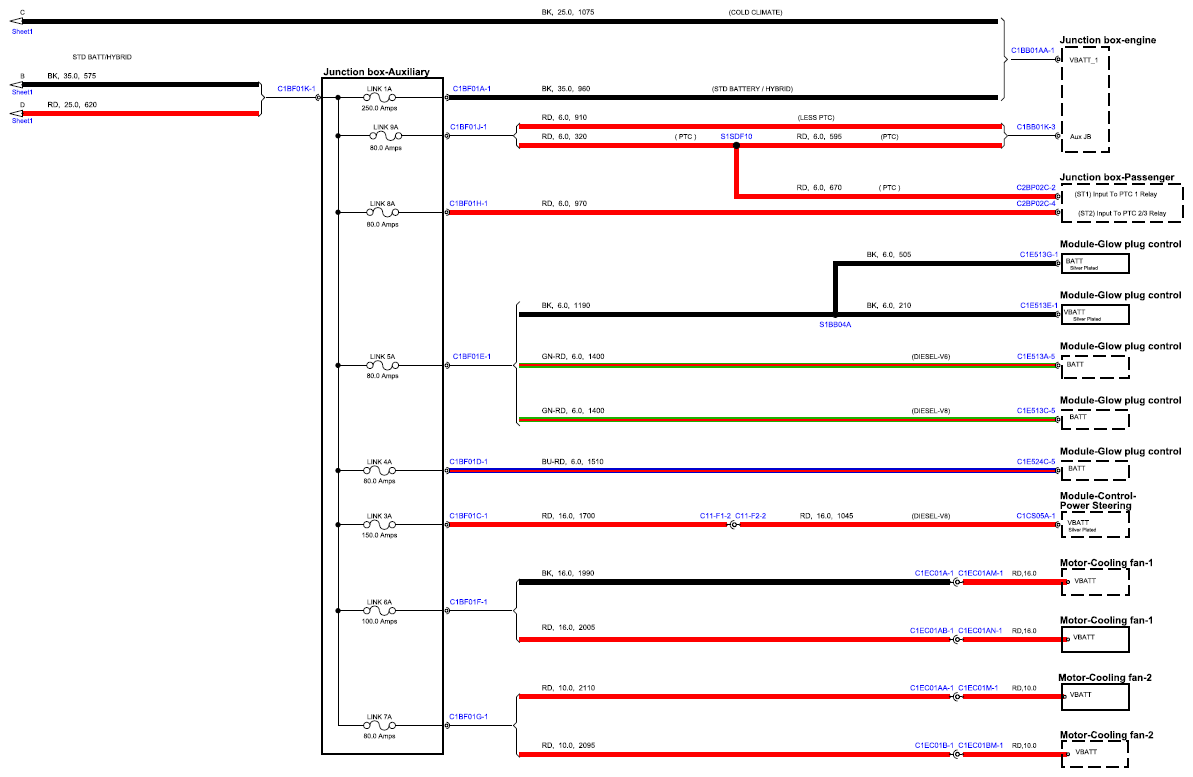

Fig 2: Battery Junction Box Circuit Diagram (Sheet 2)

G15556529

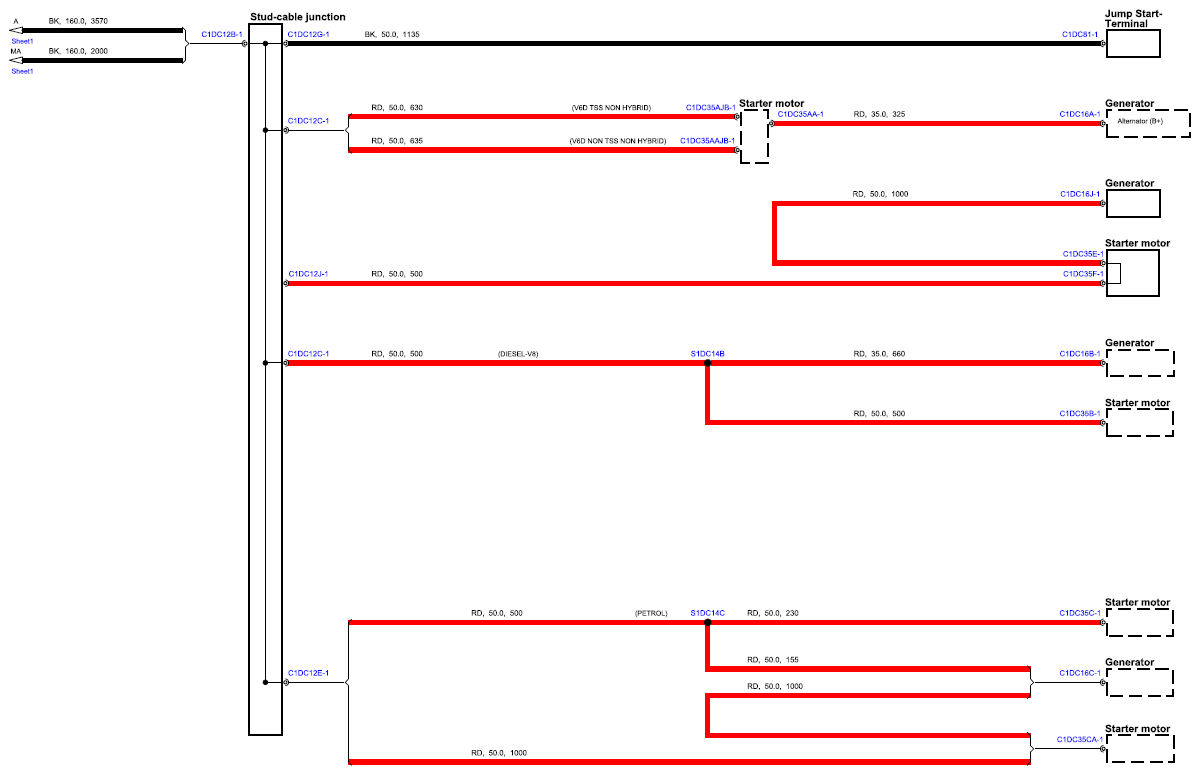

Fig 3: Battery Junction Box Circuit Diagram (Sheet 3)

G15556530
