OEM Wiring Diagrams -- Range Rover Sport L494
>>
413-13 Parking Aid Wiring Diagrams
>>
Proximity camera system (7-Seat vehicles)
Proximity camera system (7-Seat vehicles)

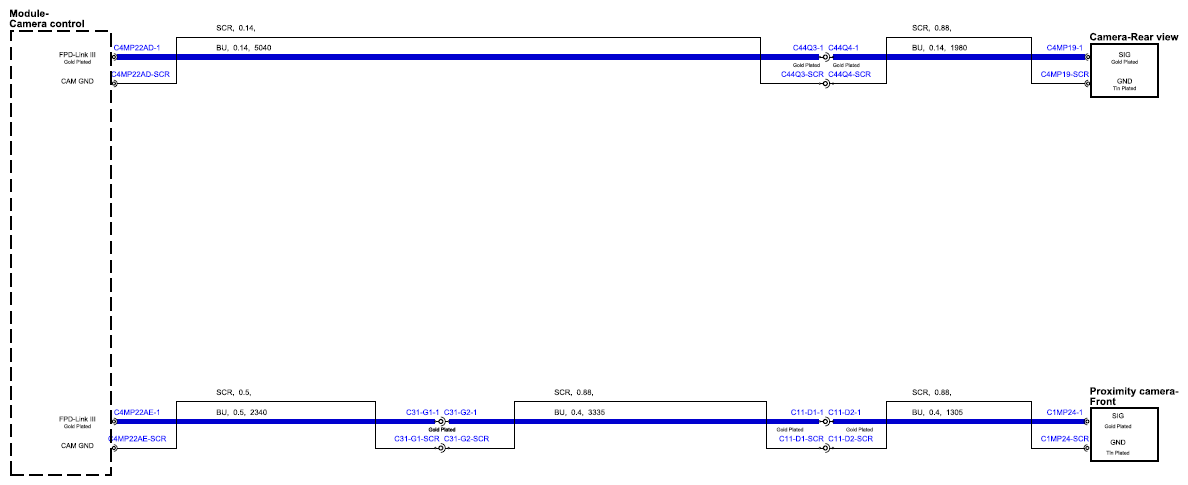

Fig 1: Proximity Camera System (7-Seat Vehicles) Circuit Diagram (Sheet 1)

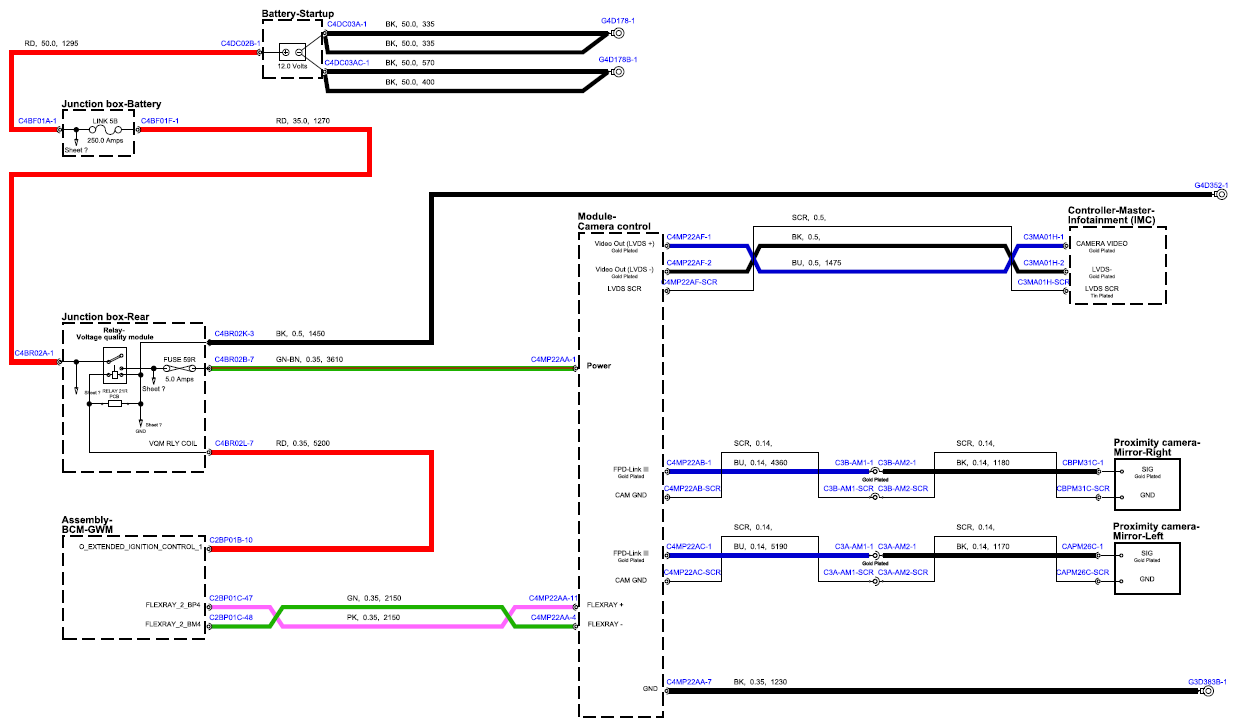

Fig 2: Proximity Camera System (7-Seat Vehicles) Circuit Diagram (Sheet 2)
