413-13 Parking Aid Wiring Diagrams: Notes

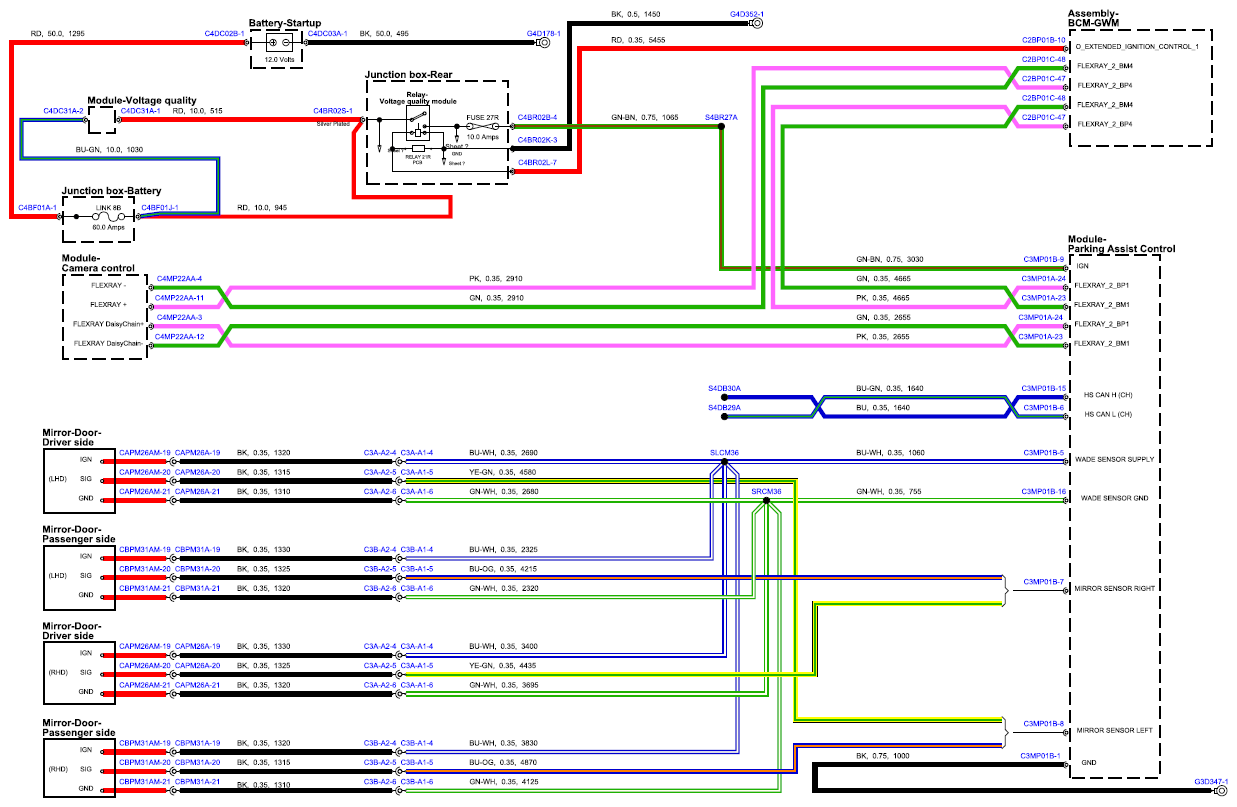

Fig 1: Parking Aid Circuit Diagram (Sheet 1)
G15556512

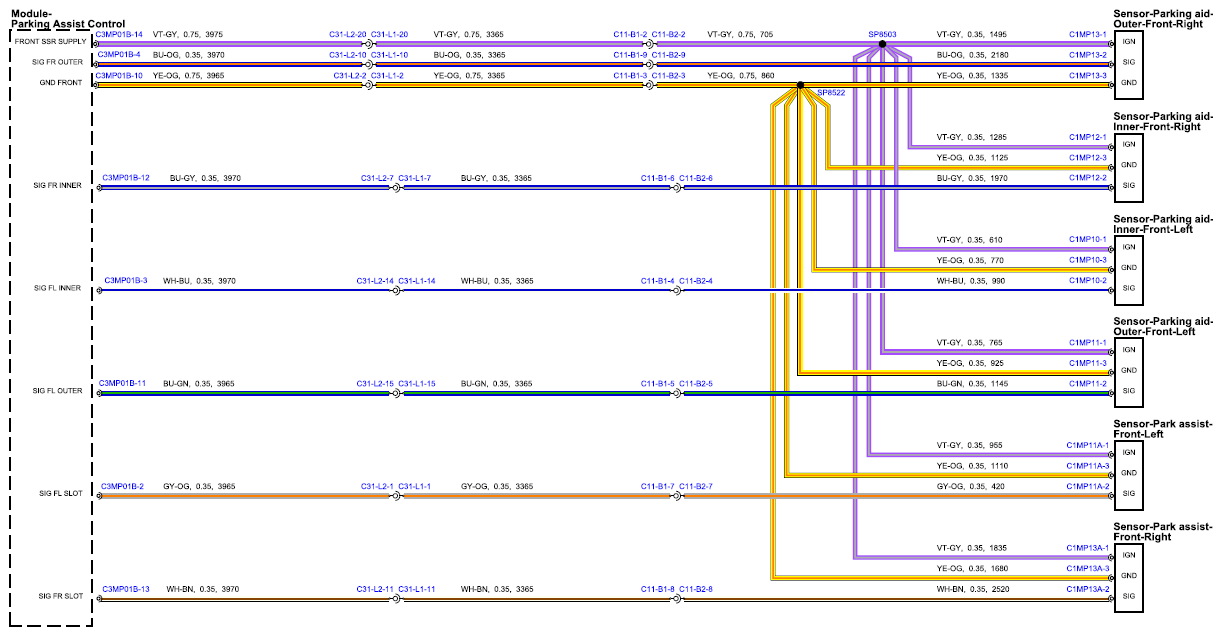

Fig 2: Parking Aid Circuit Diagram (Sheet 2)
G15556513

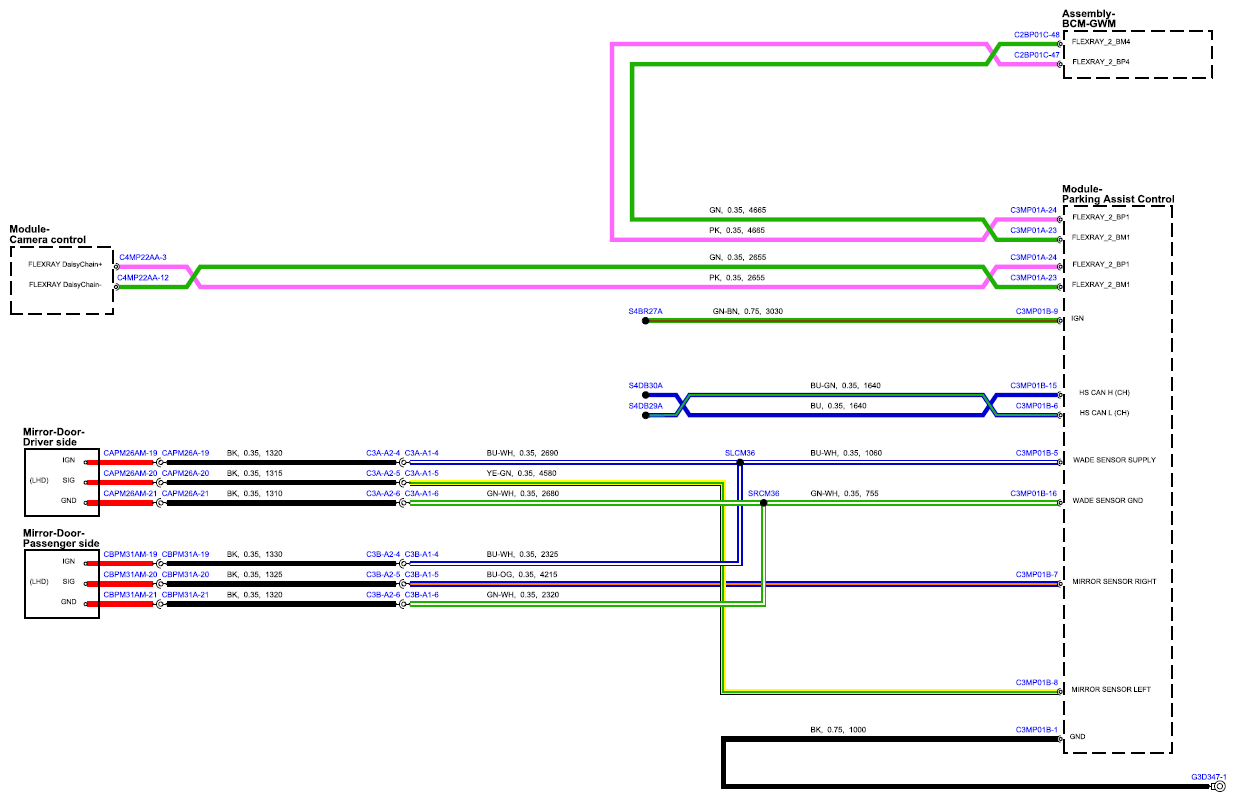

Fig 3: Parking Aid Circuit Diagram (Sheet 3)
G15556514

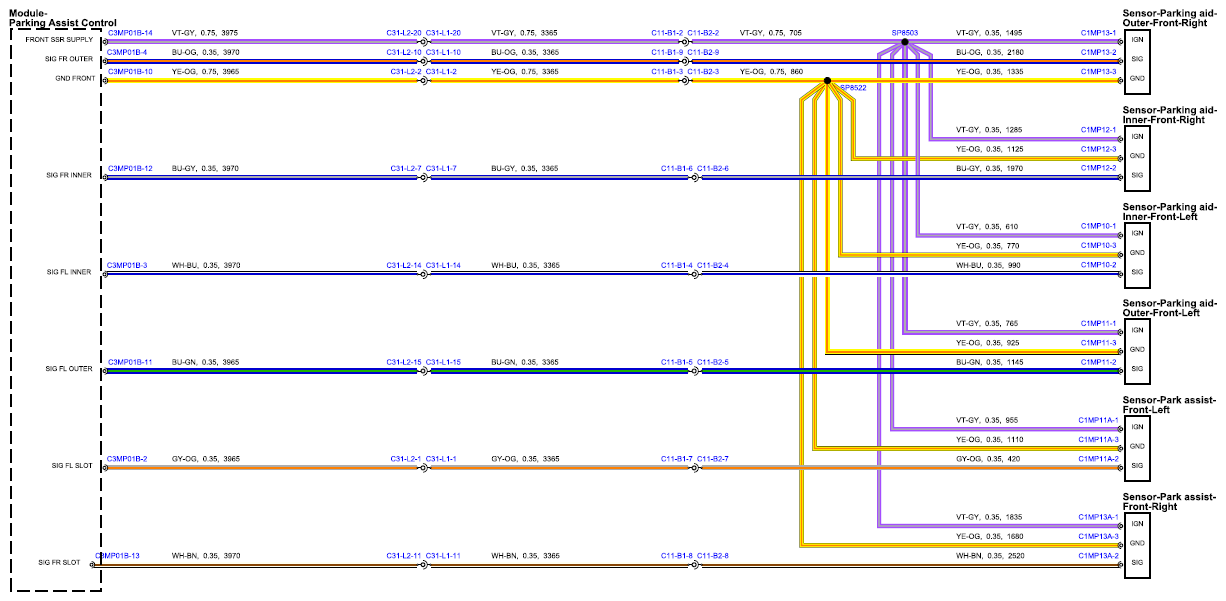

Fig 4: Parking Aid Circuit Diagram (Sheet 4)
G15556515

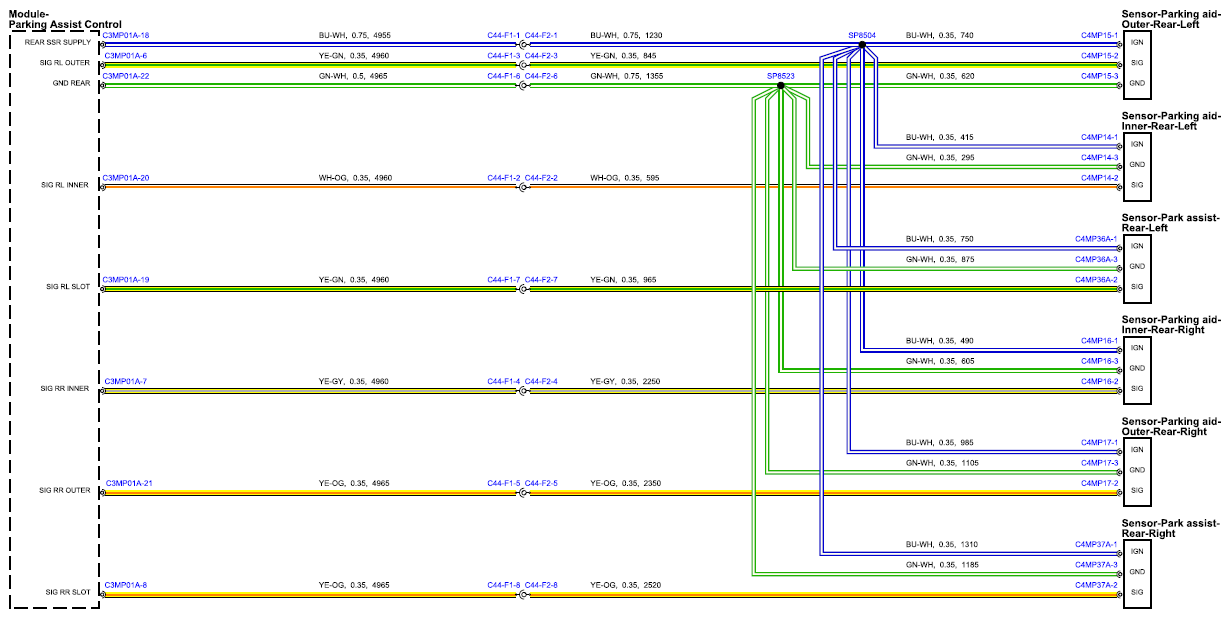

Fig 5: Parking Aid Circuit Diagram (Sheet 5)
G15556516

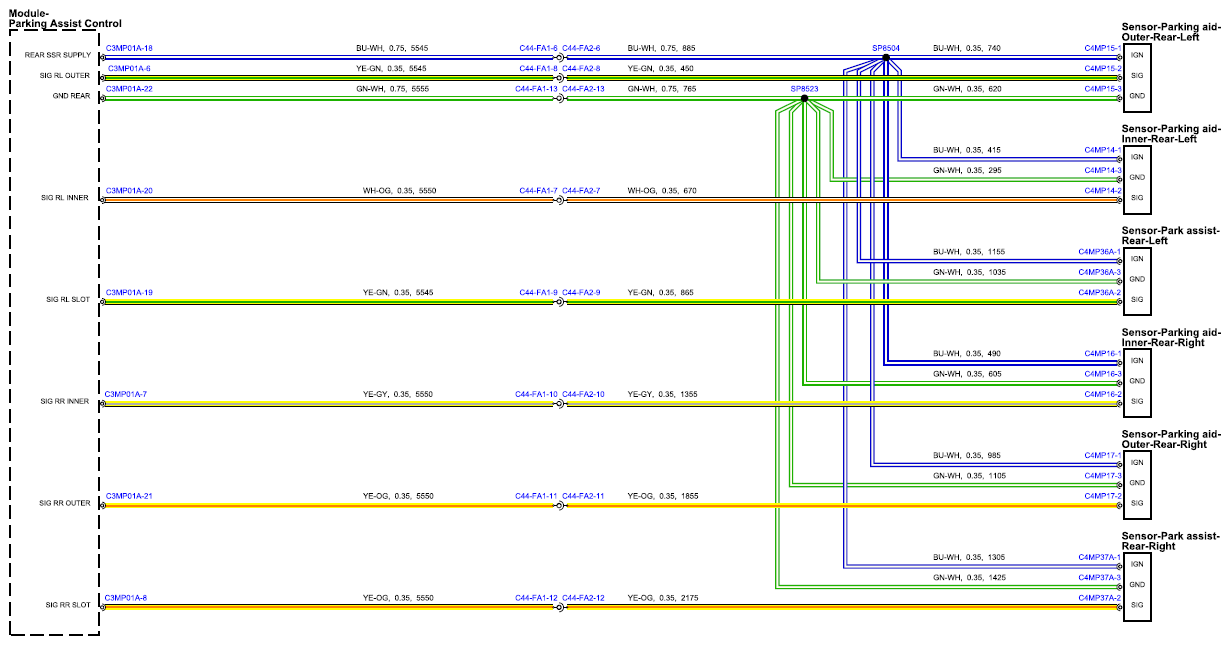

Fig 6: Parking Aid Circuit Diagram (Sheet 6)
G15556517

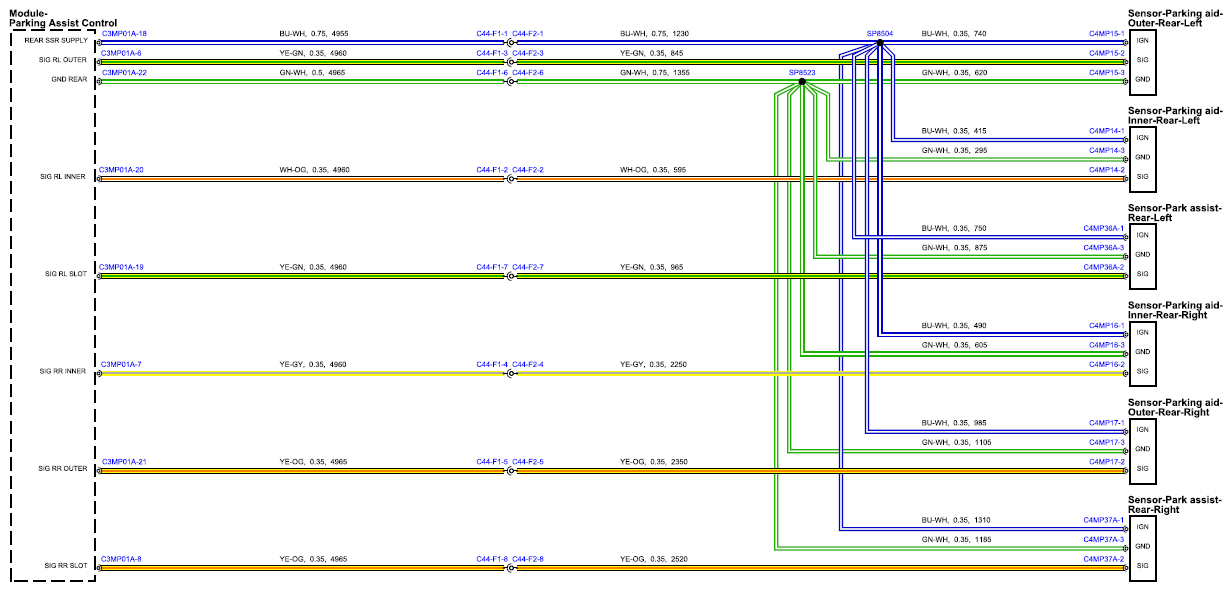

Fig 7: Parking Aid Circuit Diagram (Sheet 7)
G15556518

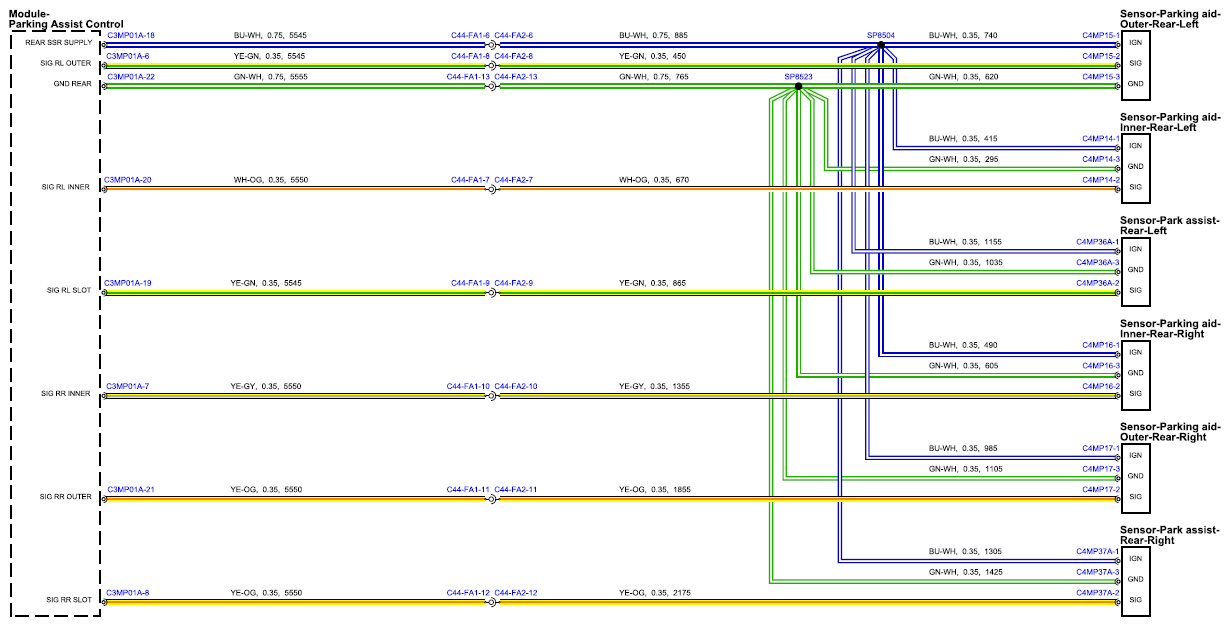

Fig 8: Parking Aid Circuit Diagram (Sheet 8)
G15556519
