7-Seat vehicles without spare wheel carrier

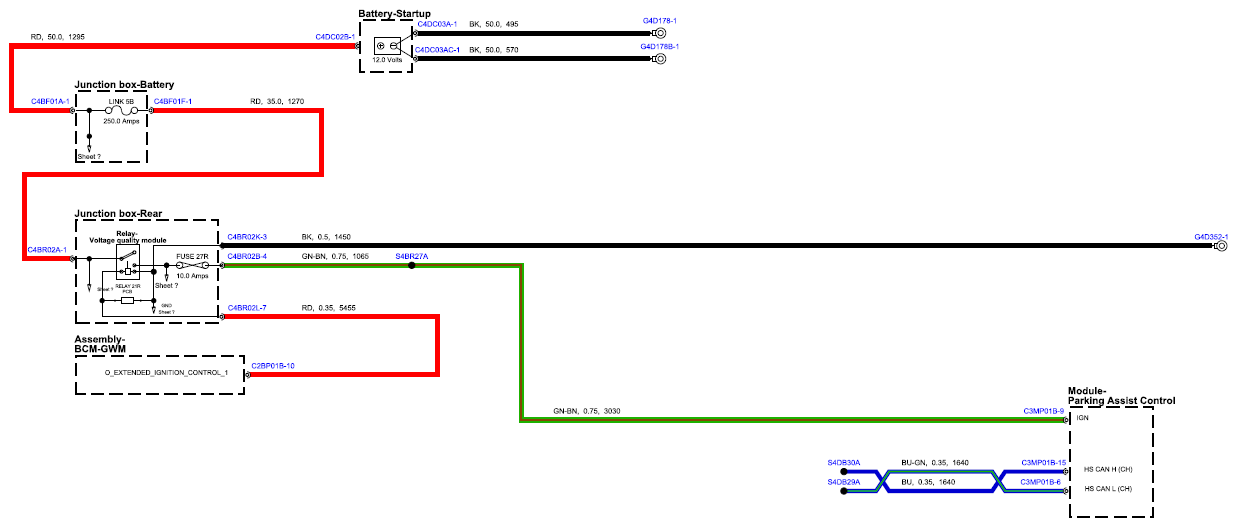

Fig 1: 7-Seat Vehicles Without Spare Wheel Carrier Circuit Diagram (Sheet 1)
G15556523

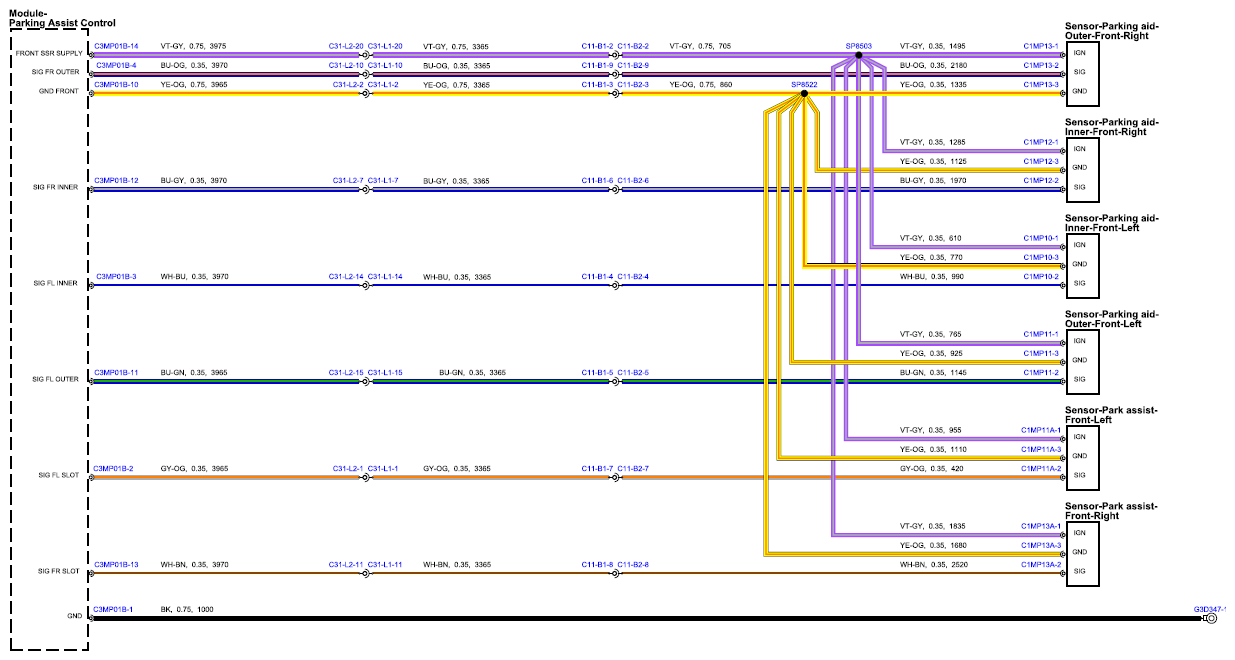

Fig 2: 7-Seat Vehicles Without Spare Wheel Carrier Circuit Diagram (Sheet 2)
G15556524

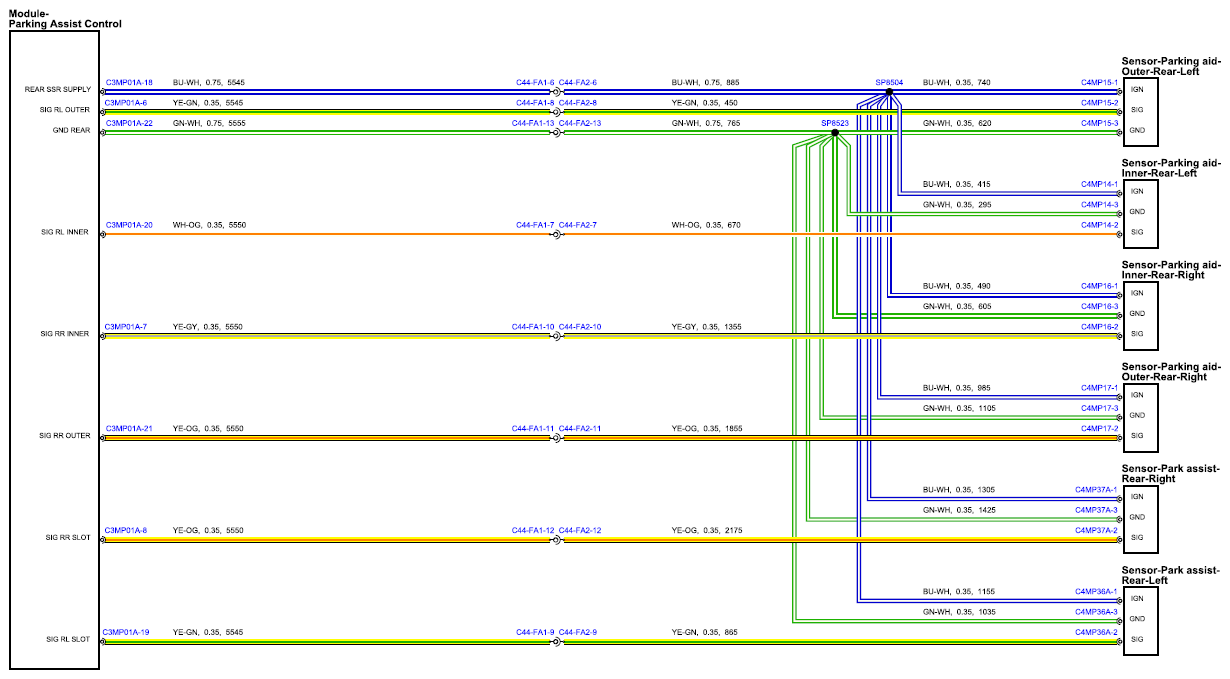

Fig 3: 7-Seat Vehicles Without Spare Wheel Carrier Circuit Diagram (Sheet 3)
G15556525

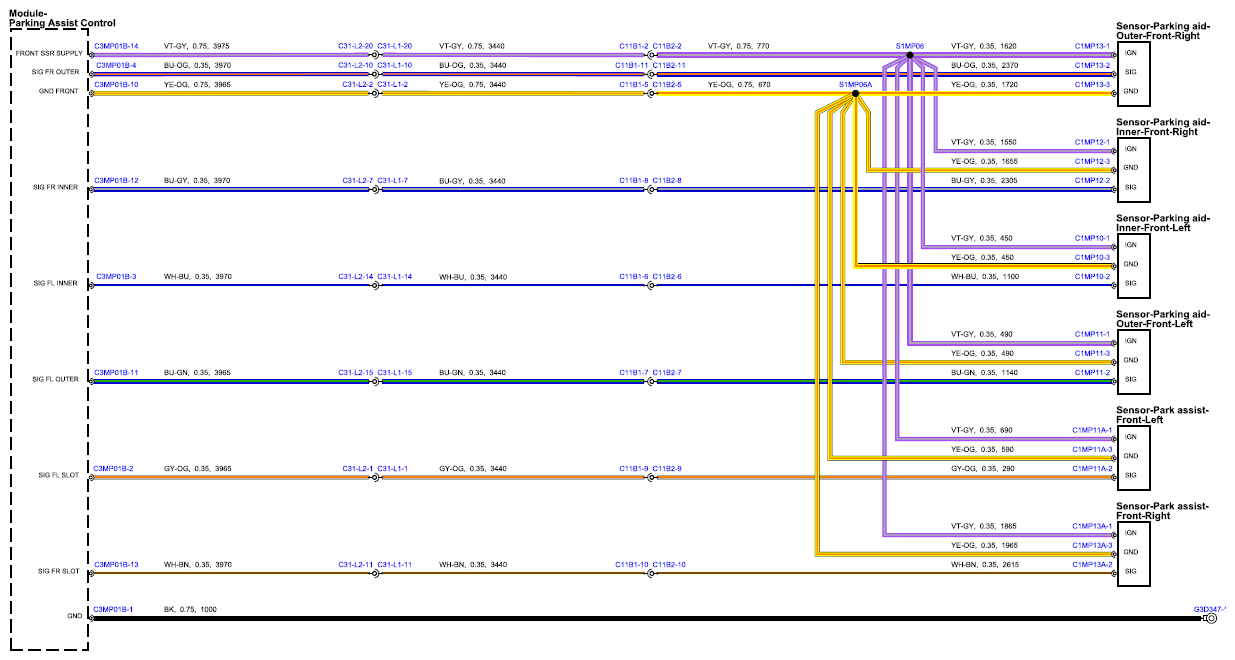

Fig 4: 7-Seat Vehicles Without Spare Wheel Carrier Circuit Diagram (Sheet 4)
G15556526
