Blind spot monitoring system (Range Rover Sport)

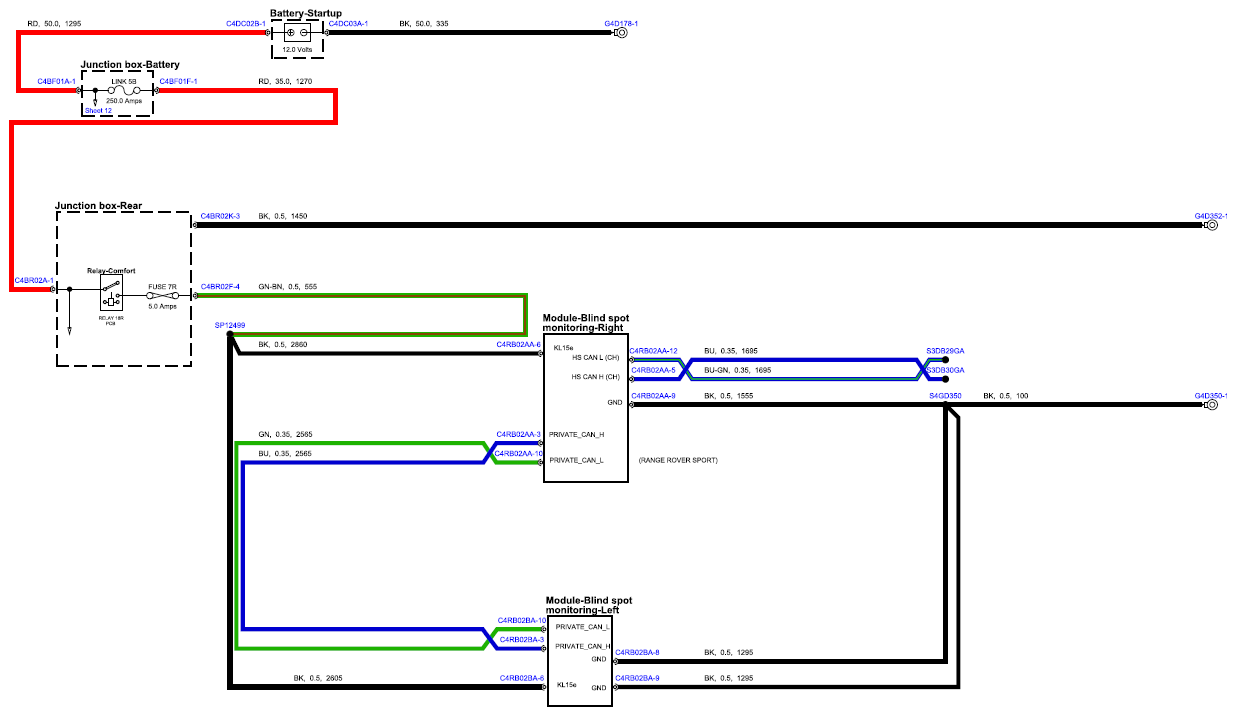

Fig 1: Blind Spot Monitoring System Circuit Diagram - Range Rover Sport (Sheet 1)
G15556510

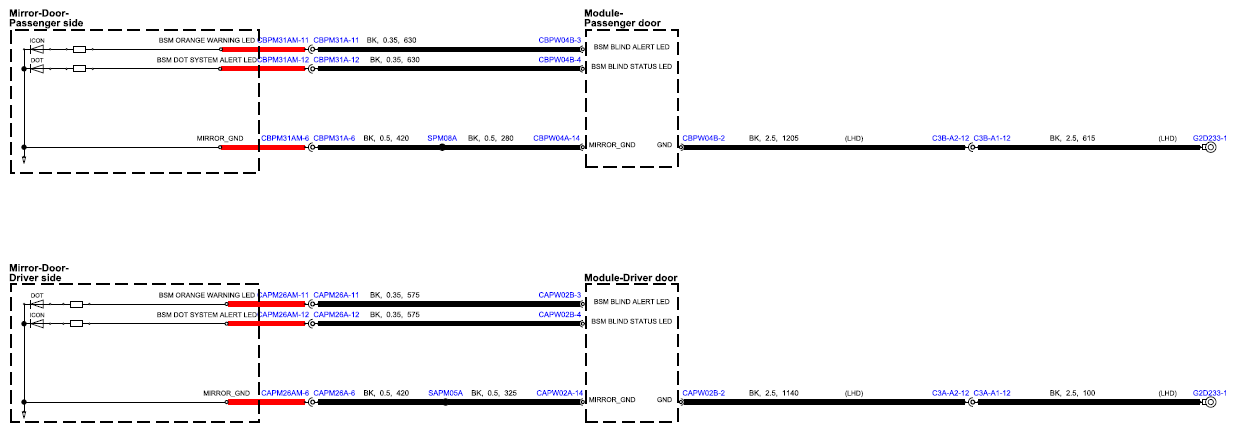

Fig 2: Blind Spot Monitoring System Circuit Diagram - Range Rover Sport (Sheet 2)
G15556511
