413-00 Instrument Cluster And Panel Illumination Wiring Diagrams

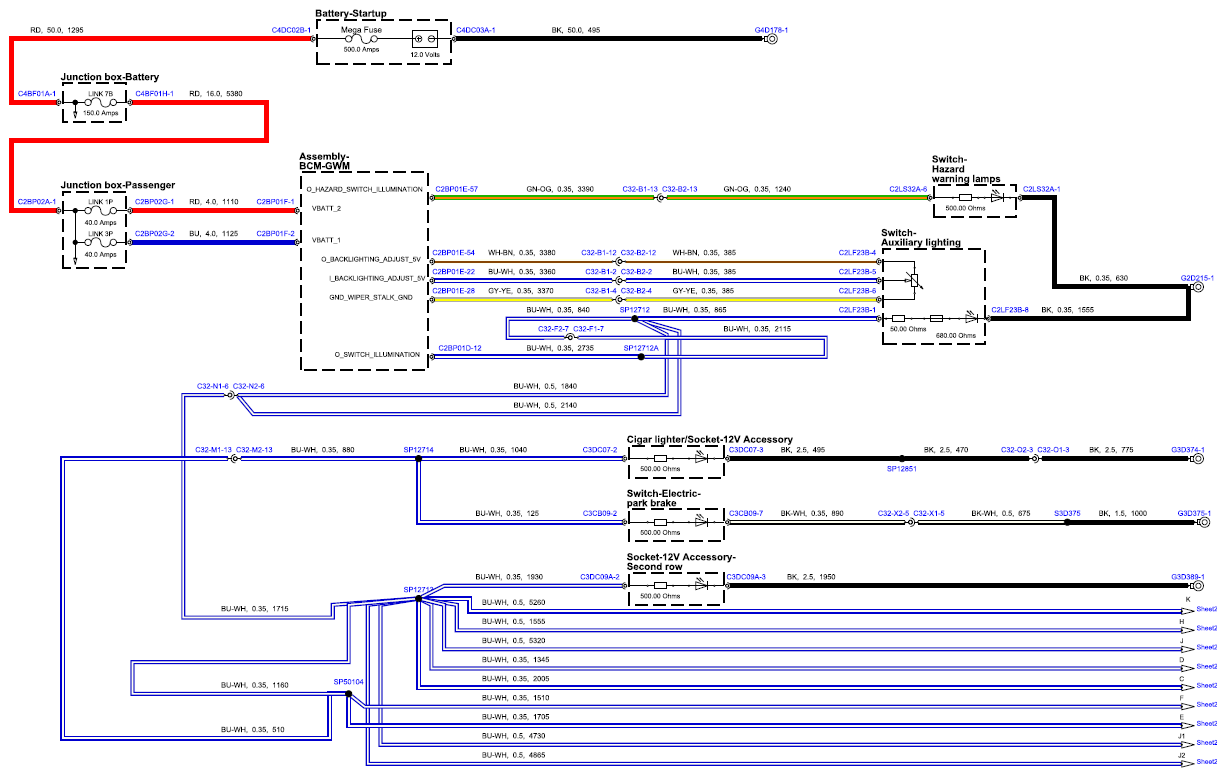

Fig 1: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 1)
G15556500
Fig 2: Instrument Cluster And Panel Illumination Circuit Diagram (Sheet 2)
G15556501
