412-01 Climate Control Wiring Diagrams: Notes

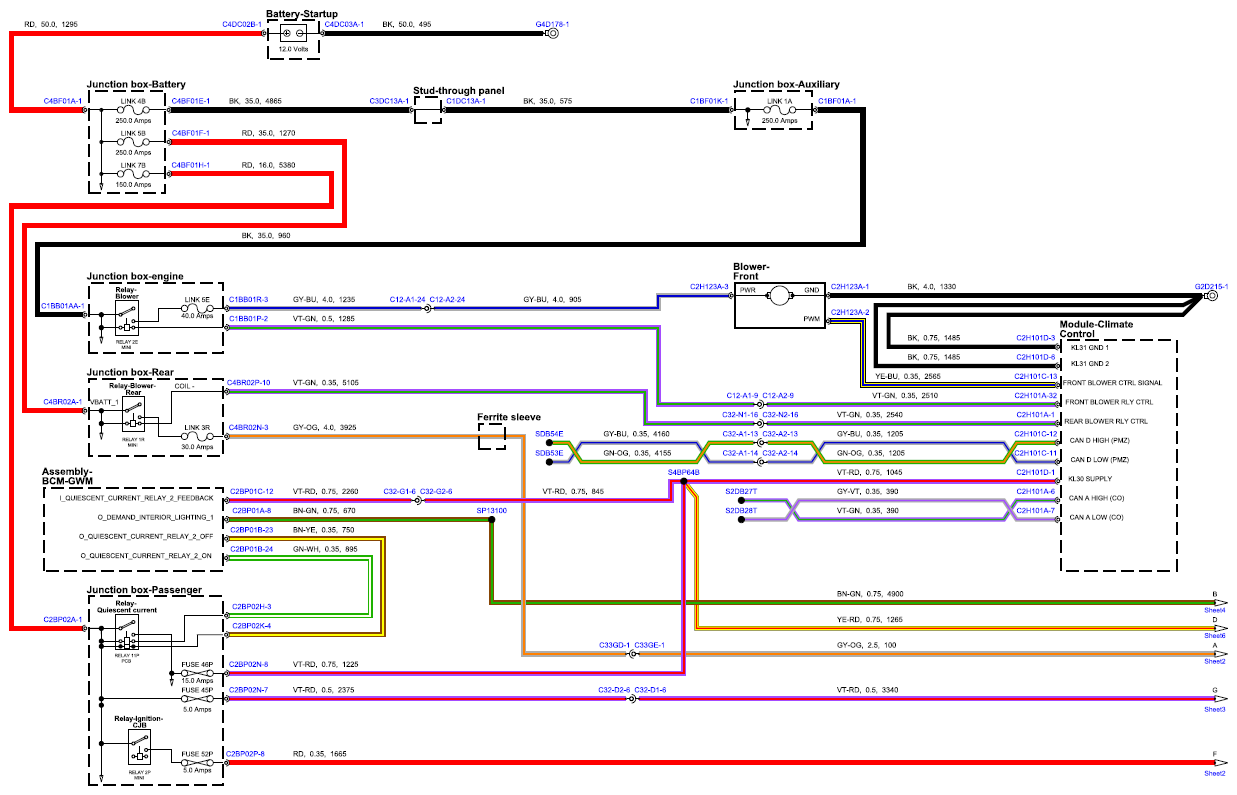

Fig 1: Climate Control Circuit Diagram (Sheet 1)
G15556482

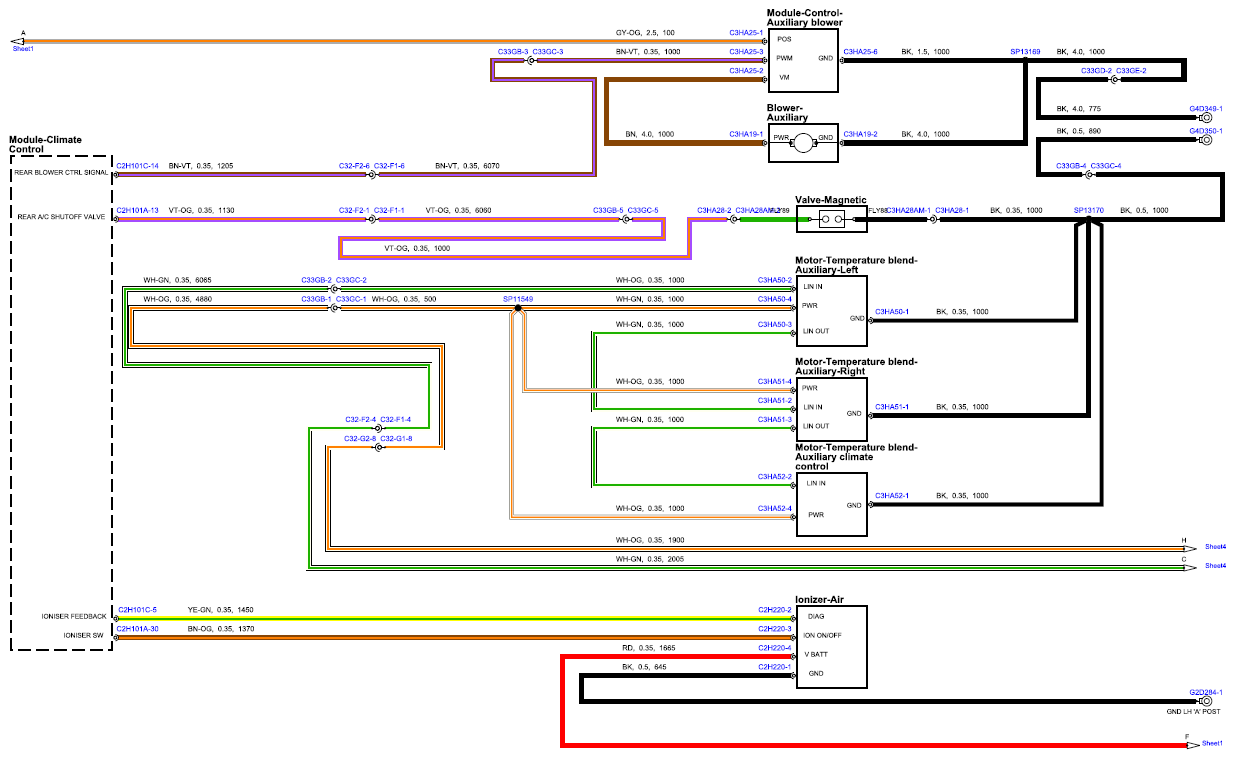

Fig 2: Climate Control Circuit Diagram (Sheet 2)
G15556483

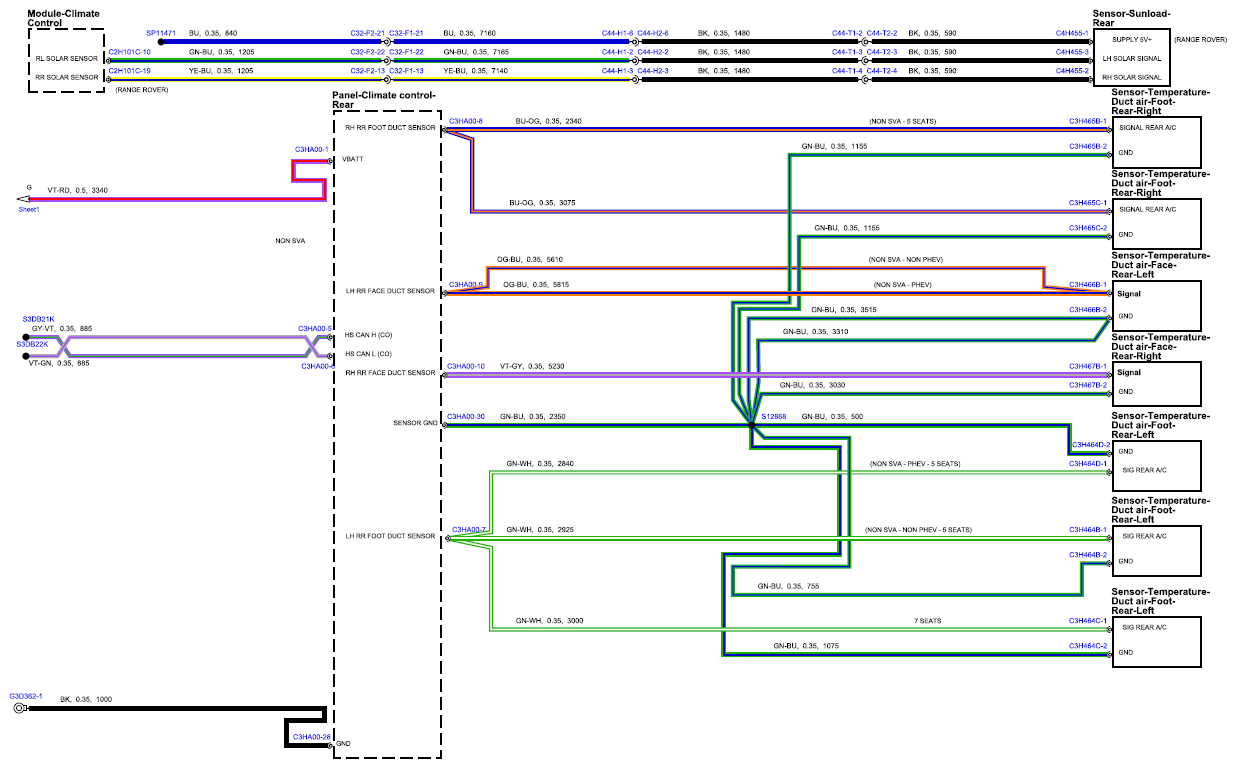

Fig 3: Climate Control Circuit Diagram (Sheet 3)
G15556484

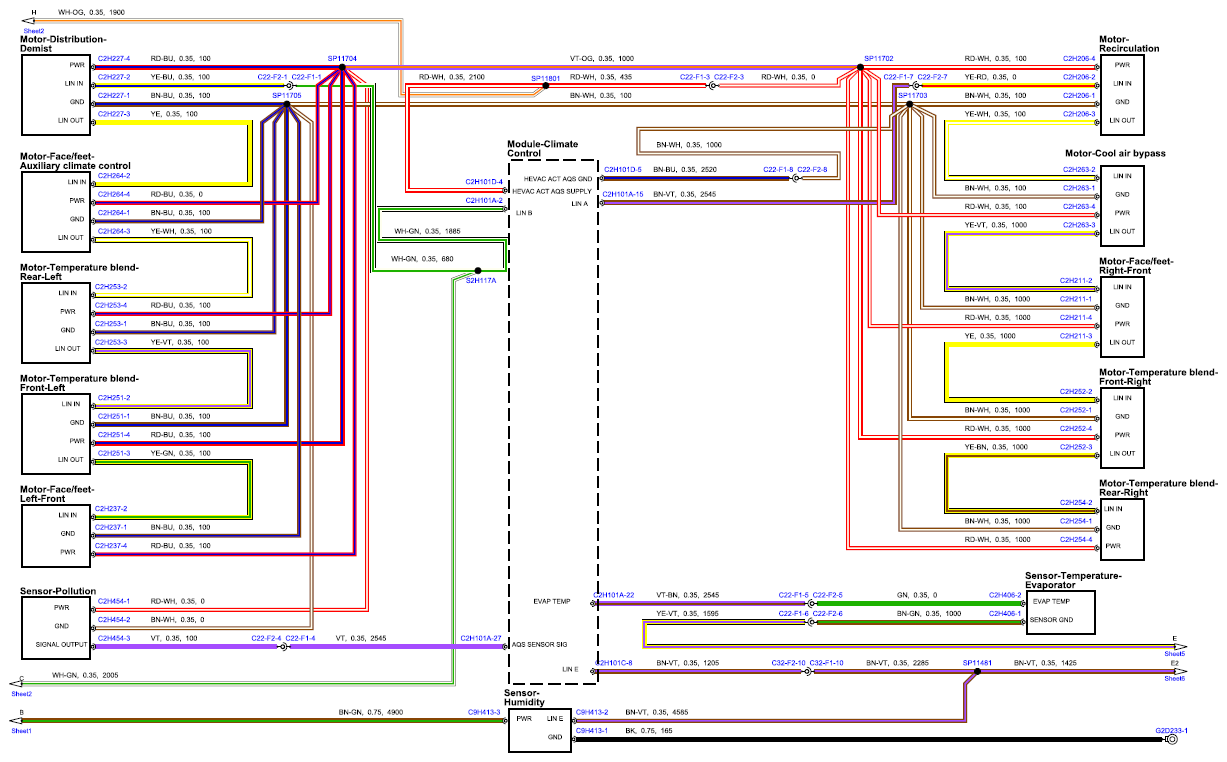

Fig 4: Climate Control Circuit Diagram (Sheet 4)
G15556485

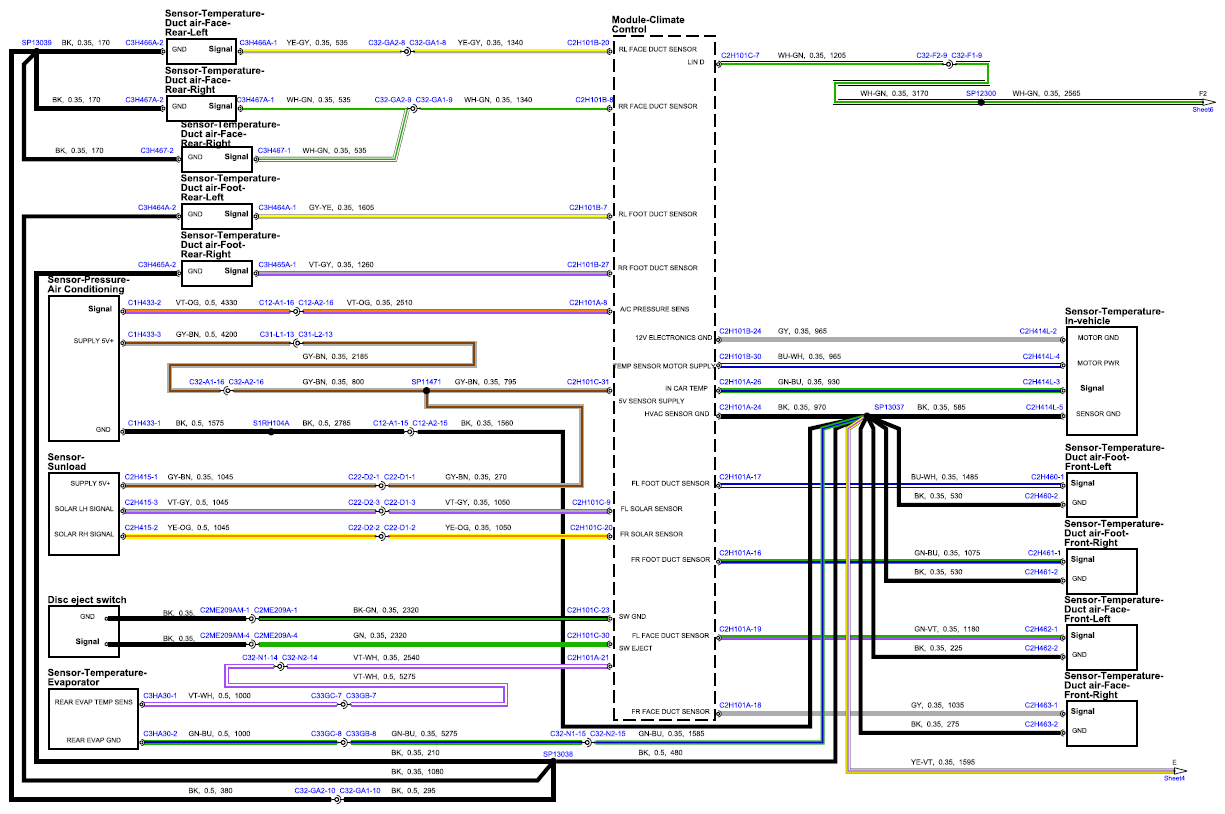

Fig 5: Climate Control Circuit Diagram (Sheet 5)
G15556486

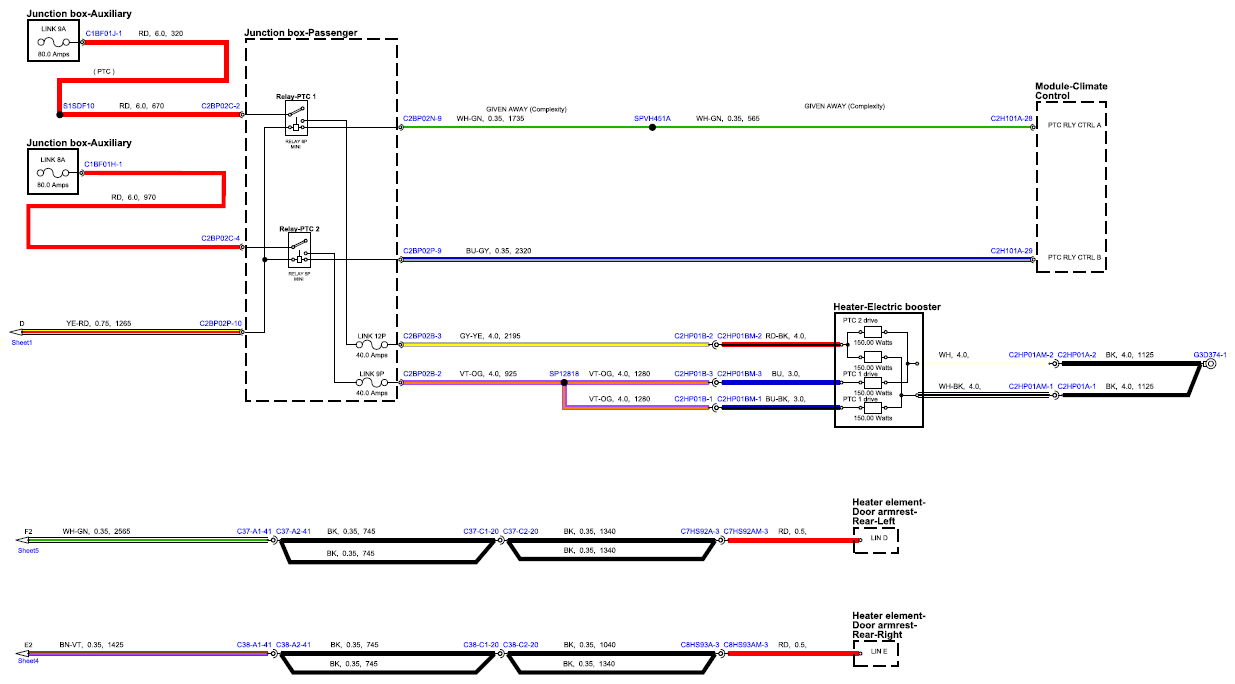

Fig 6: Climate Control Circuit Diagram (Sheet 6)
G15556487

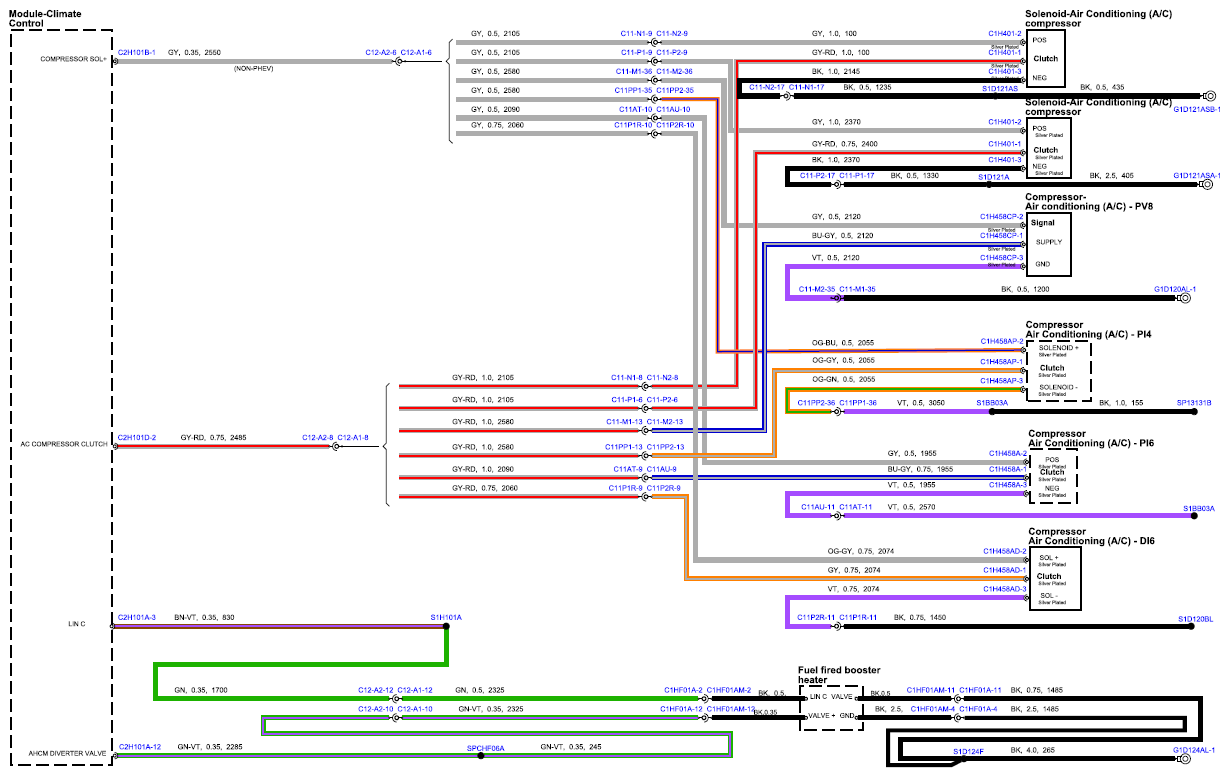

Fig 7: Climate Control Circuit Diagram (Sheet 7)
G15556488
