Hybrid Electric Vehicle

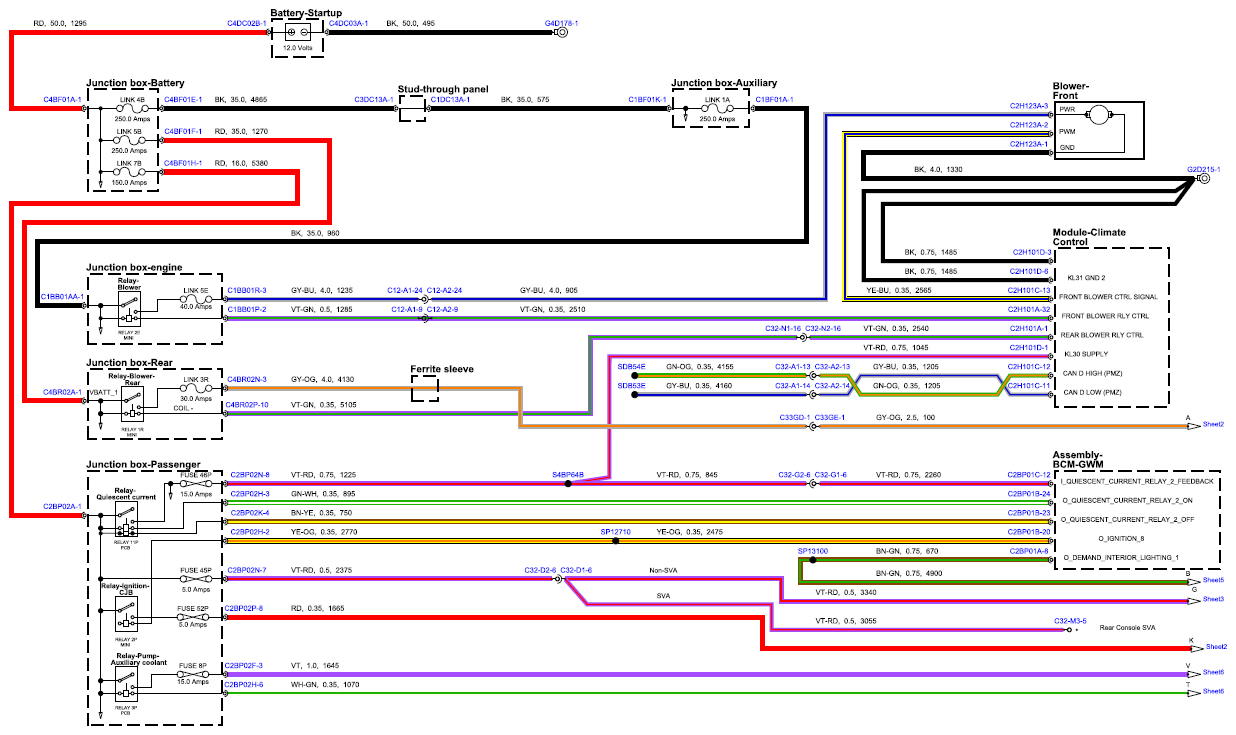

Fig 1: Hybrid Electric Vehicle Circuit Diagram (Sheet 1)
G15556489

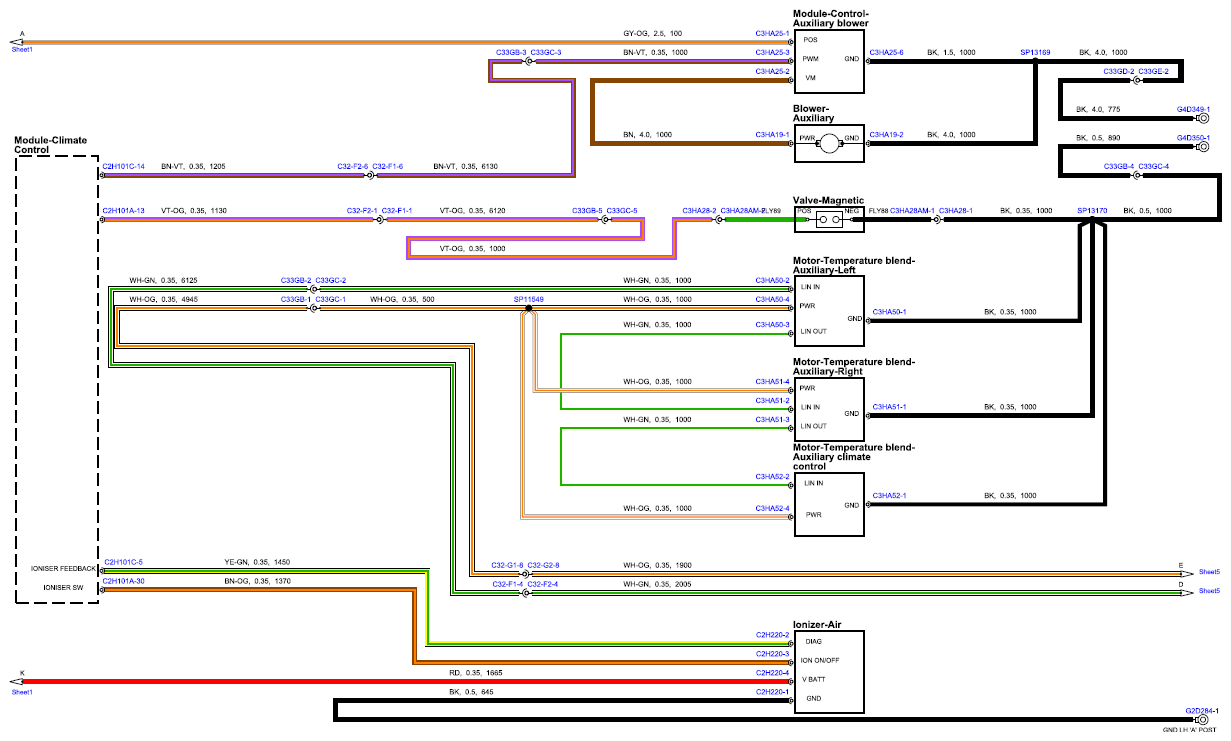

Fig 2: Hybrid Electric Vehicle Circuit Diagram (Sheet 2)
G15556490

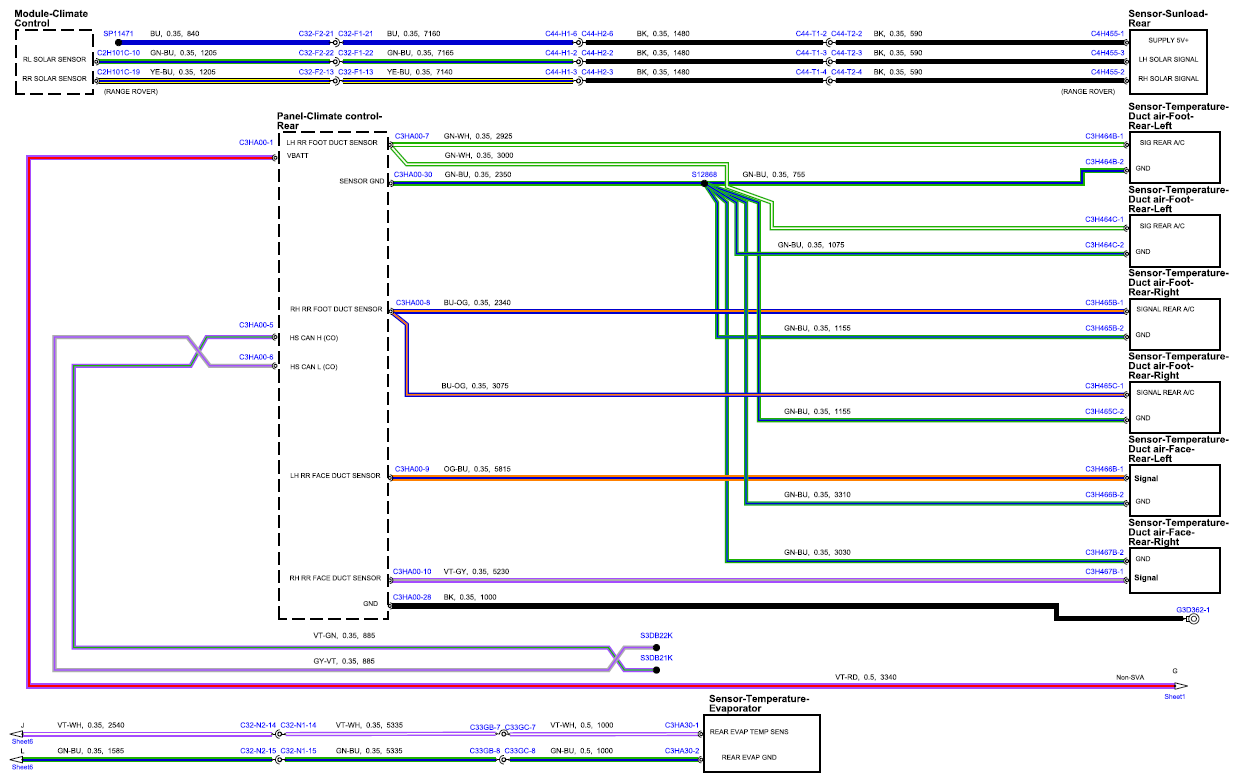

Fig 3: Hybrid Electric Vehicle Circuit Diagram (Sheet 3)
G15556491

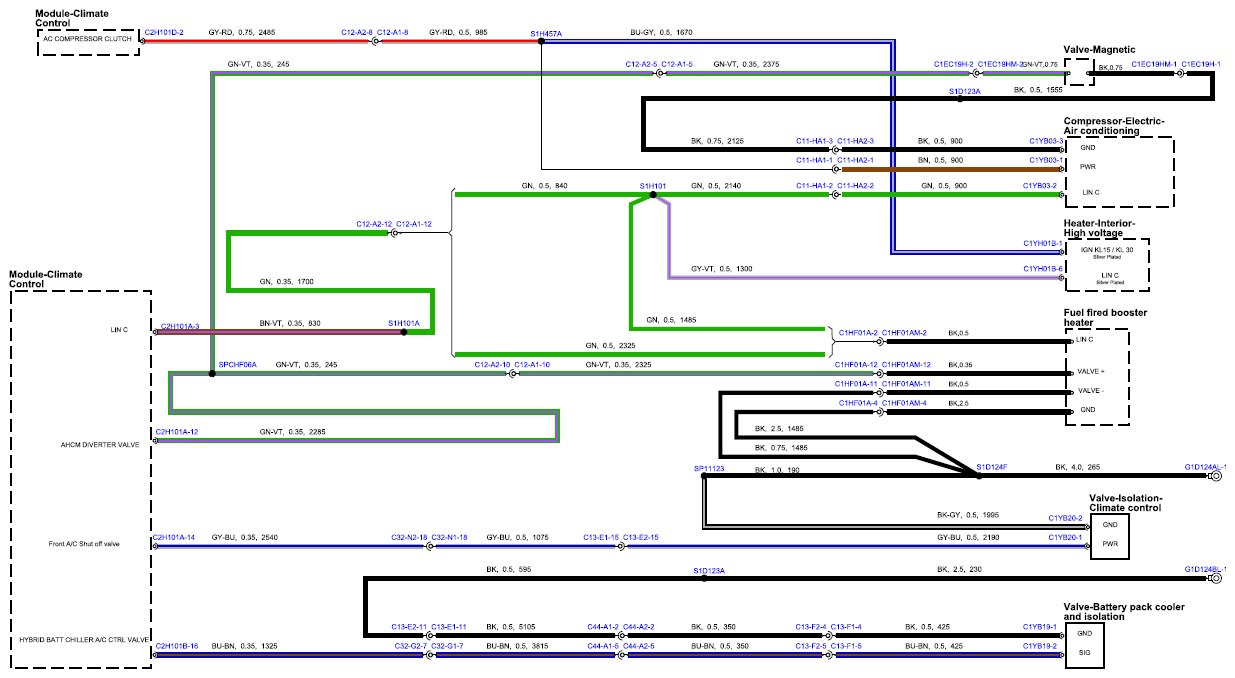

Fig 4: Hybrid Electric Vehicle Circuit Diagram (Sheet 4)
G15556492

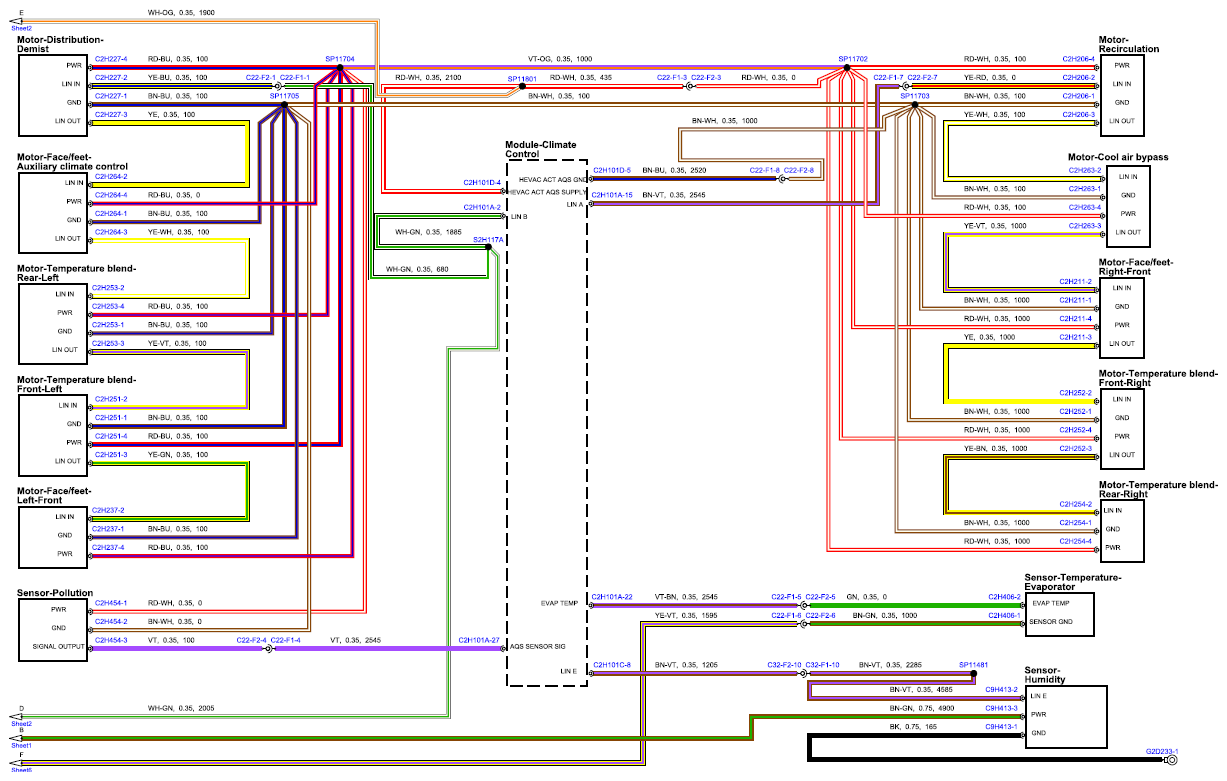

Fig 5: Hybrid Electric Vehicle Circuit Diagram (Sheet 5)
G15556493

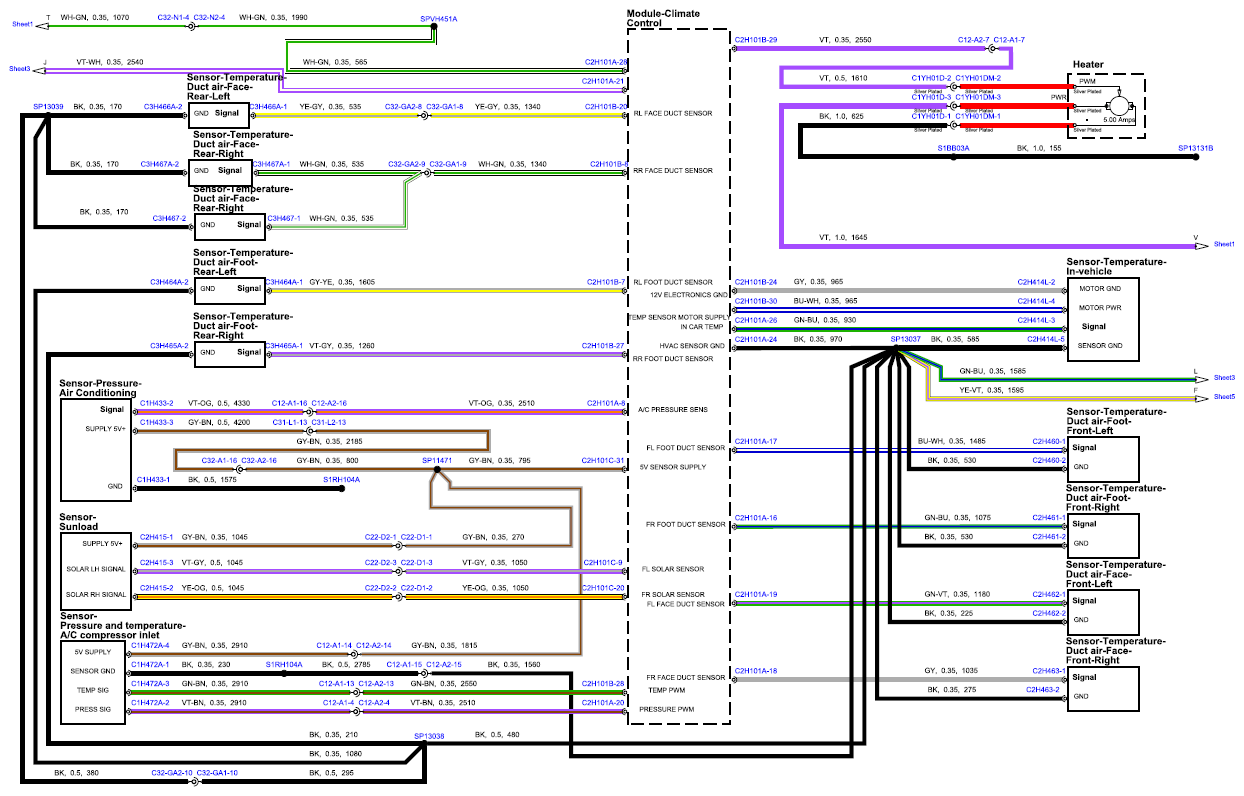

Fig 6: Hybrid Electric Vehicle Circuit Diagram (Sheet 6)
G15556494
