310-01E Fuel Tank And Fuel Lines - Di6 Wiring Diagrams
310-01E Fuel Tank And Fuel Lines - Di6 Wiring Diagrams

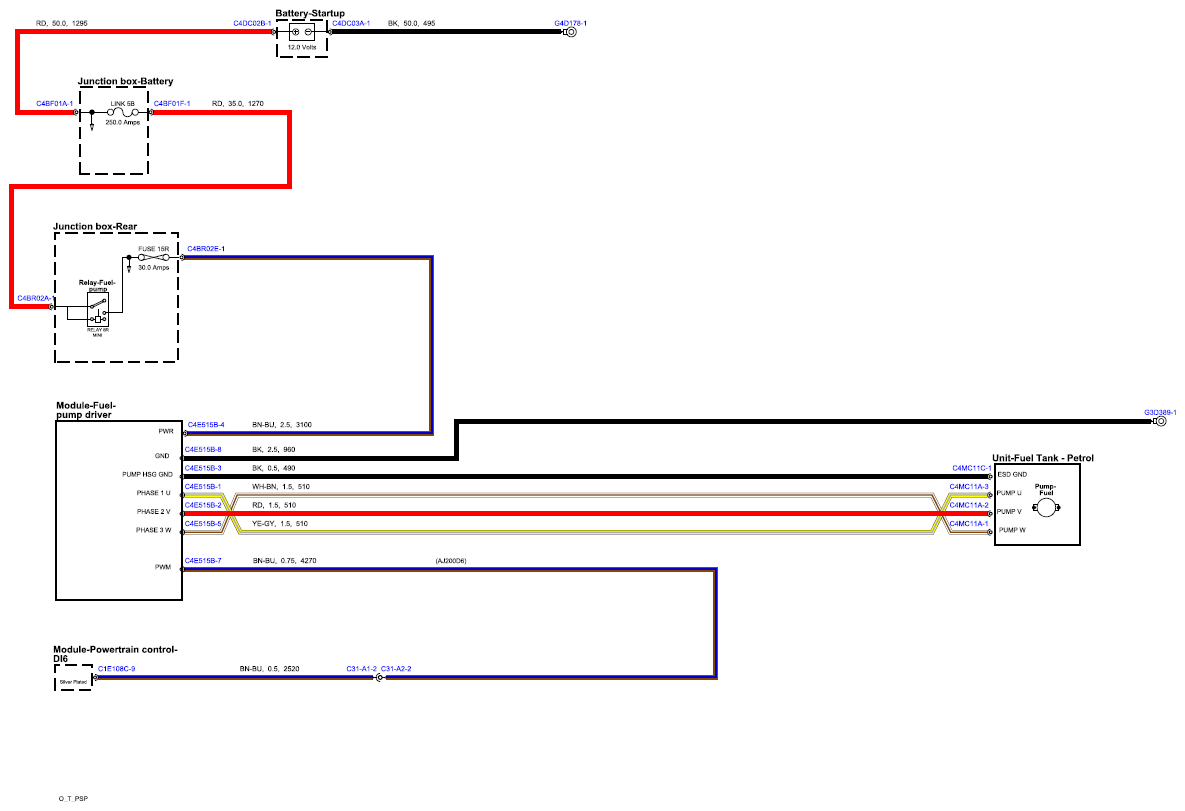

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - DI6 (Sheet 1)
