310-01D Fuel Tank And Fuel Lines - Pi6 Wiring Diagrams

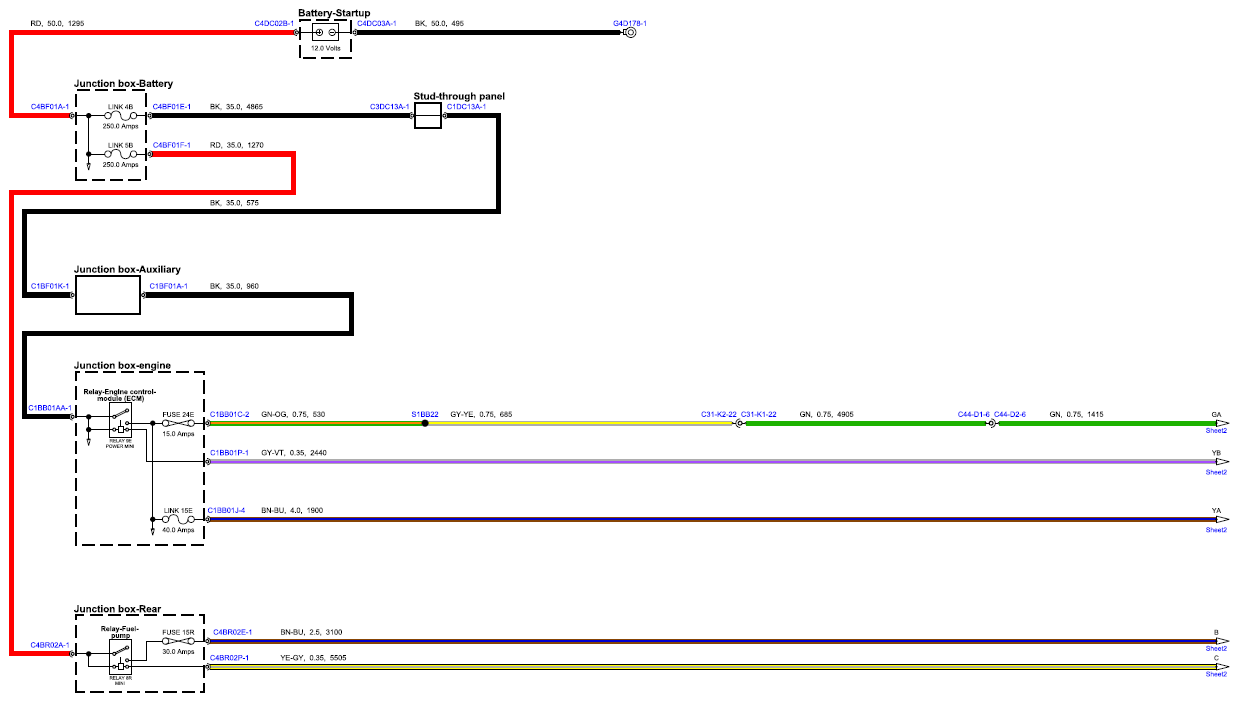

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - PV6 (Sheet 1)

G15556478

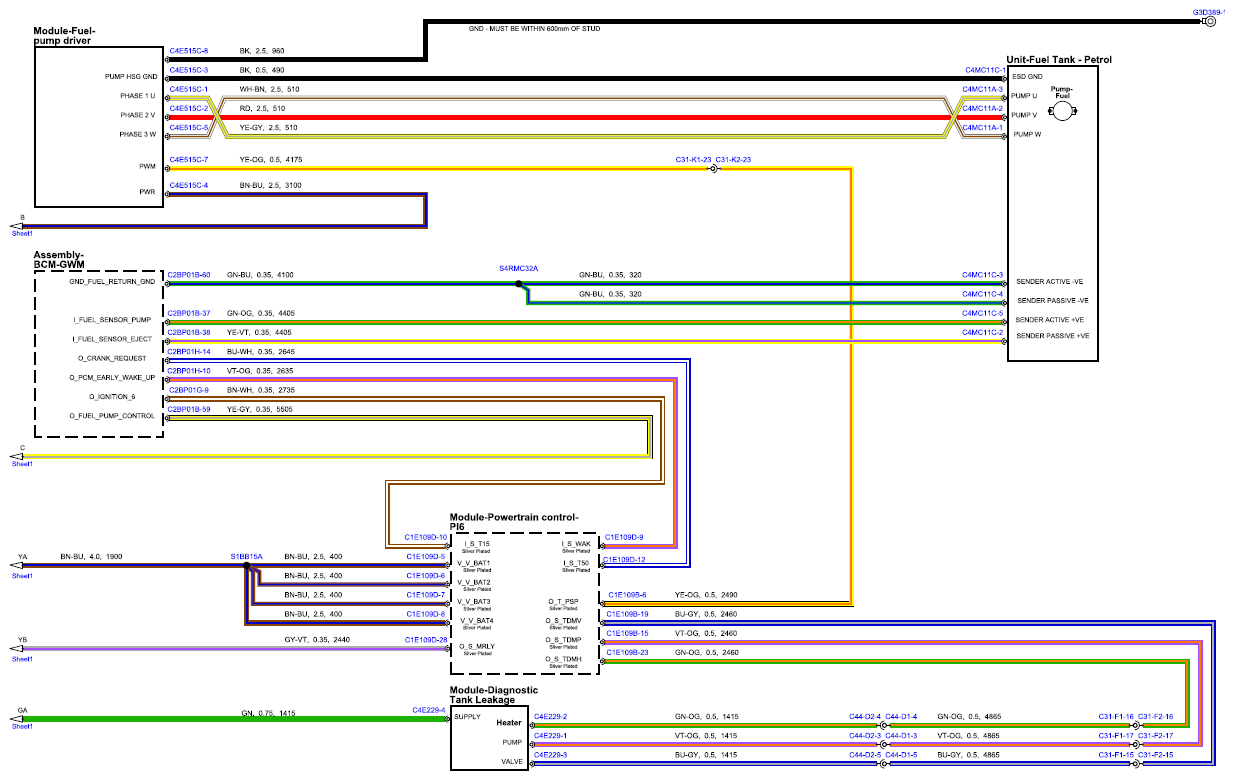

Fig 2: Fuel Tank And Fuel Lines Circuit Diagram - PV6 (Sheet 2)

G15556479
