310-01C Fuel Tank And Fuel Lines - PV8 Wiring Diagrams

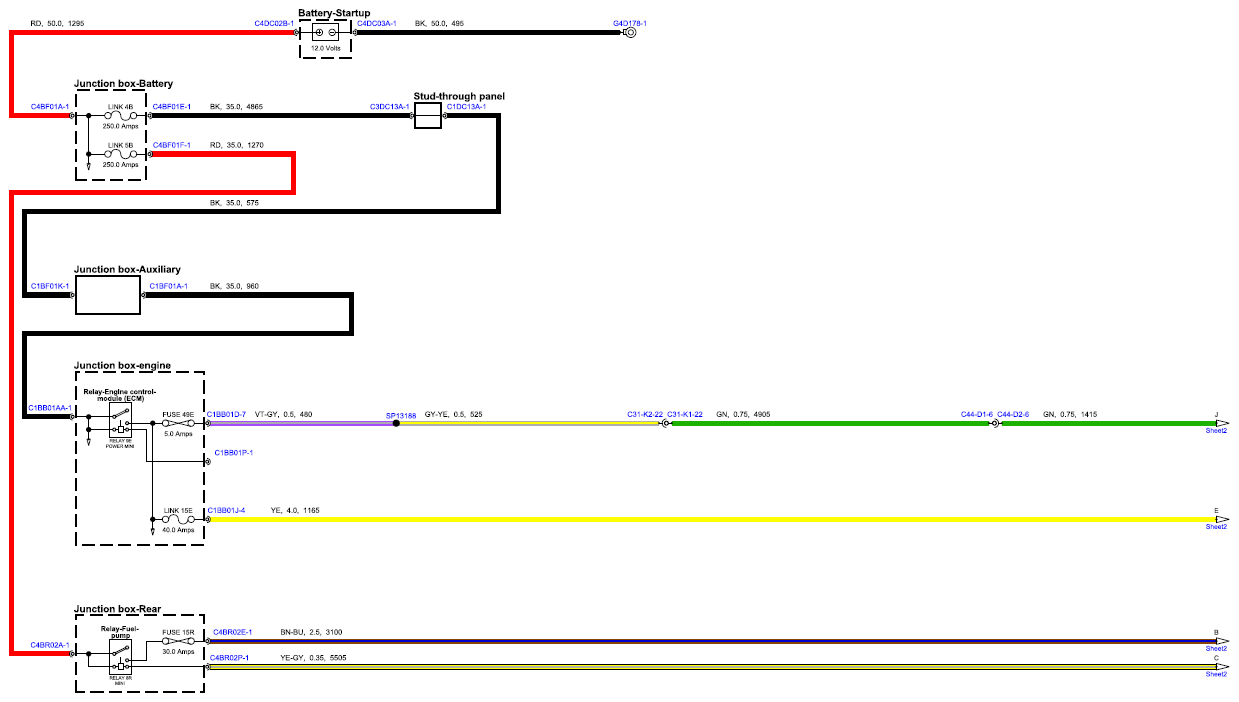

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - PV8 (Sheet 1)

G15556476

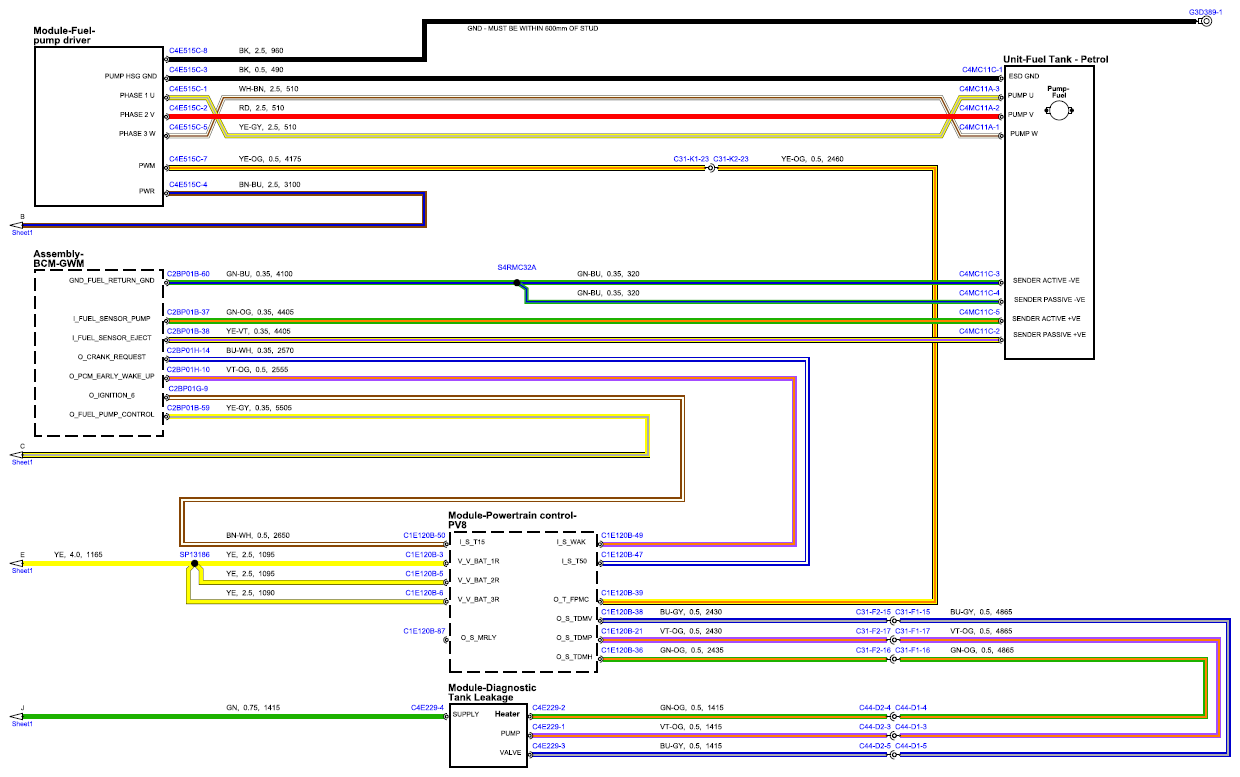

Fig 2: Fuel Tank And Fuel Lines Circuit Diagram - PV8 (Sheet 2)

G15556477
