OEM Wiring Diagrams -- Range Rover Sport L494
>>
310-01C Fuel Tank And Fuel Lines - DV8 Wiring Diagrams
310-01C Fuel Tank And Fuel Lines - DV8 Wiring Diagrams

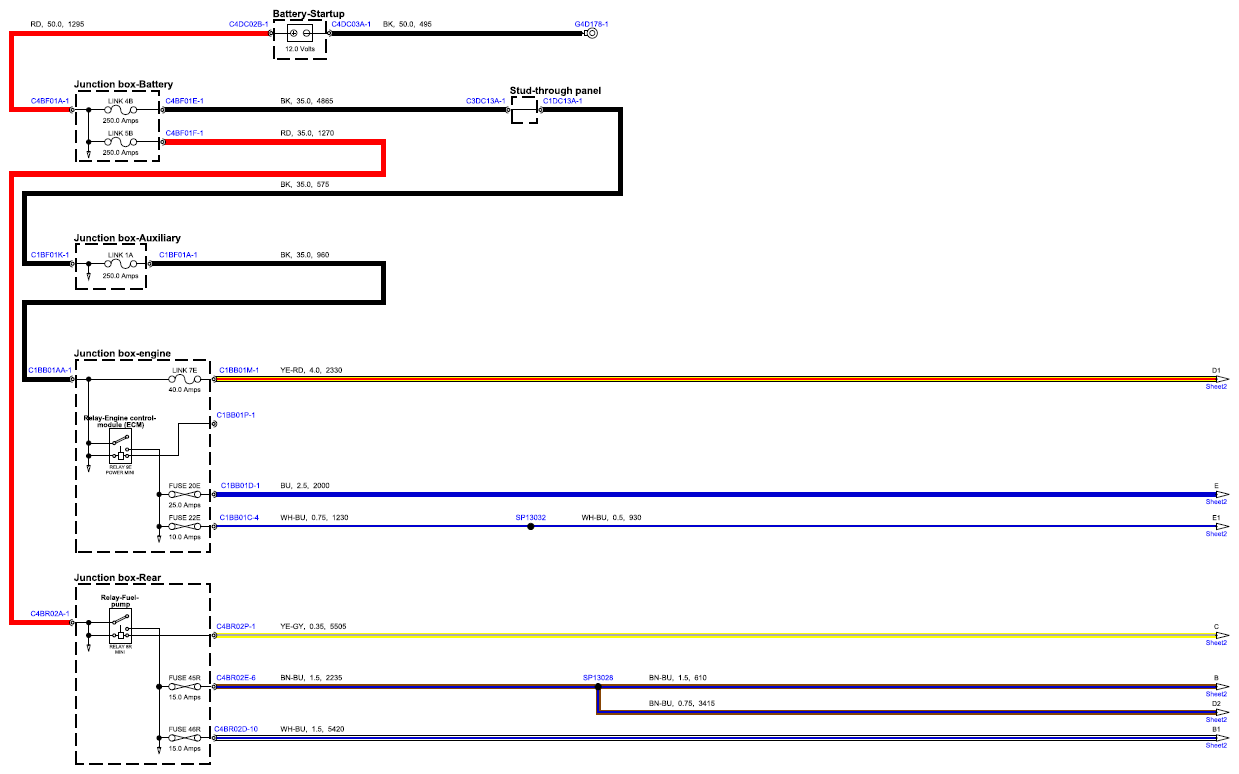

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - DV8 (Sheet 1)

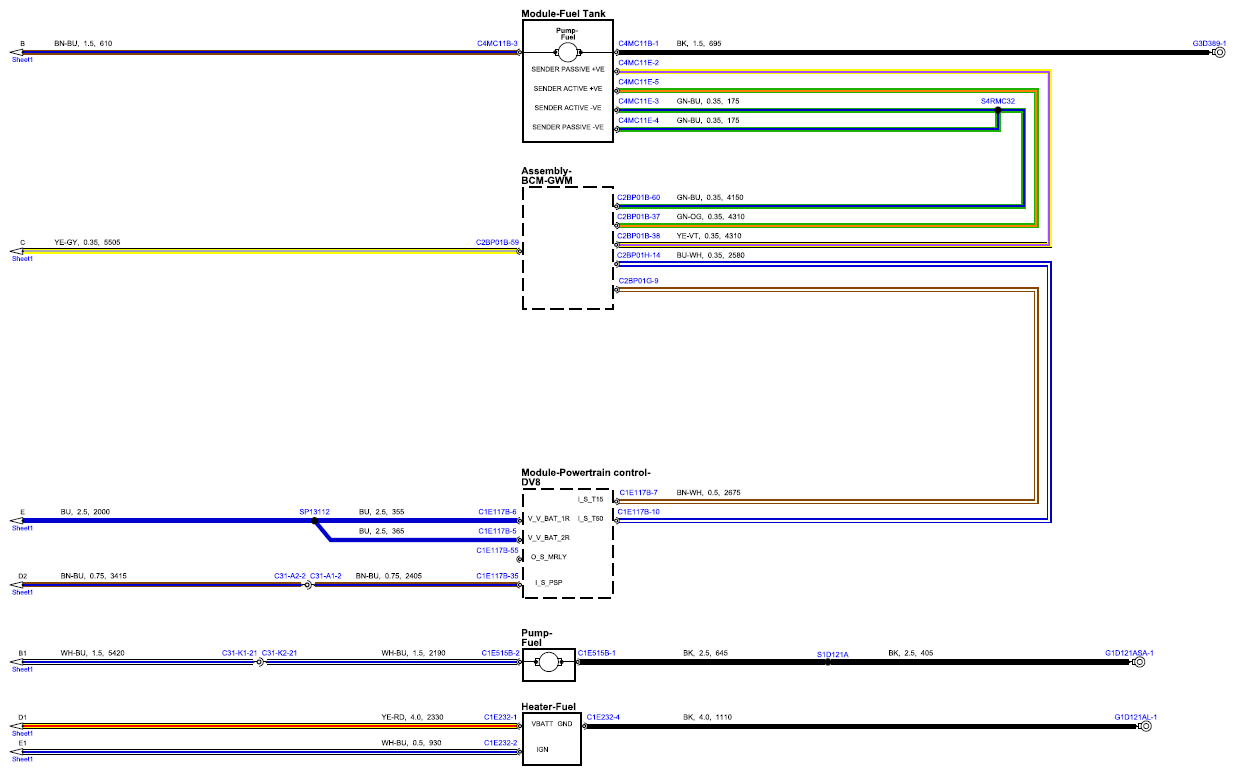

Fig 2: Fuel Tank And Fuel Lines Circuit Diagram - DV8 (Sheet 2)
