310-01B Fuel Tank And Fuel Lines - Pi4 Wiring Diagrams

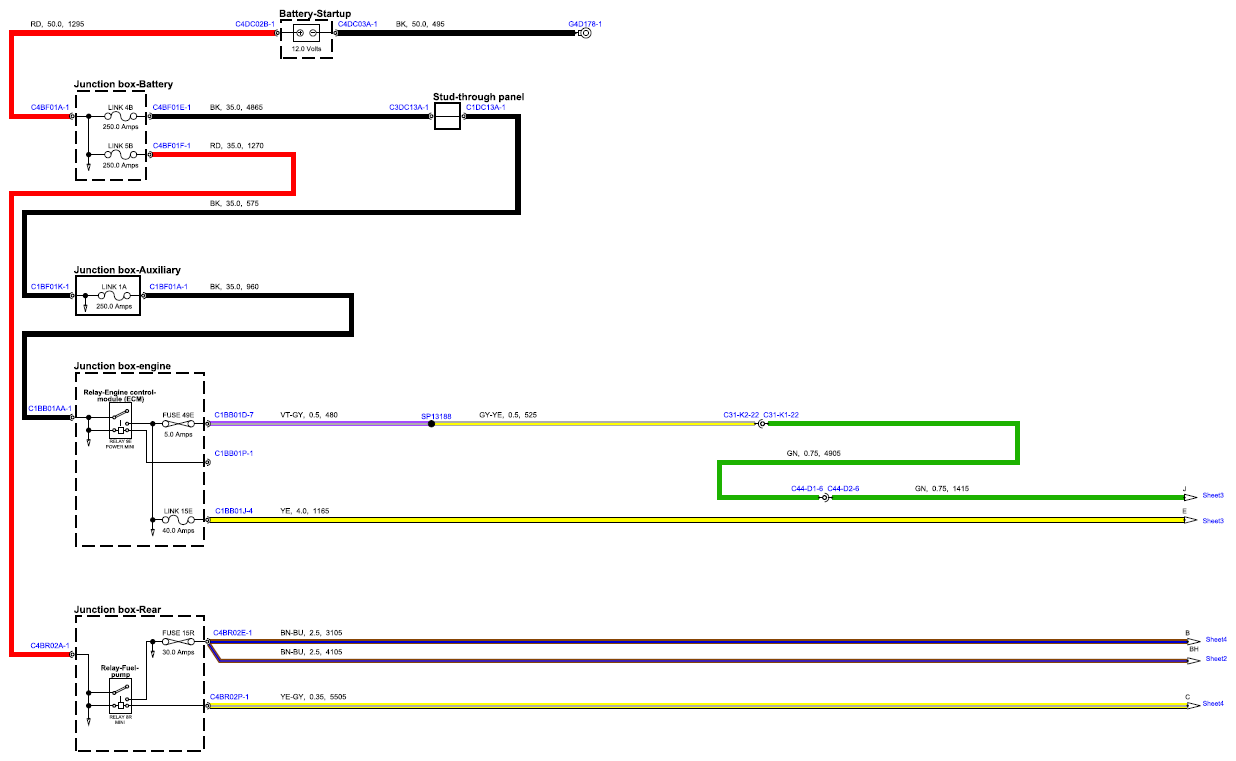

Fig 1: Fuel Tank And Fuel Lines Circuit Diagram - PI4 (Sheet 1)
G15556470

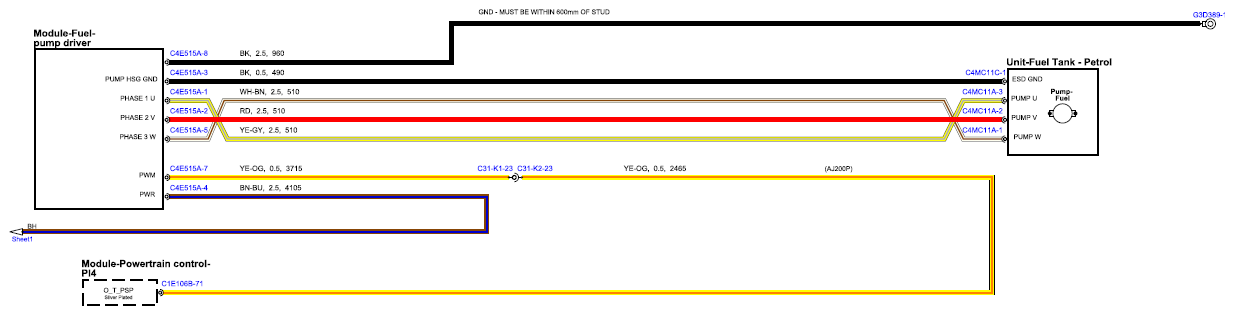

Fig 2: Fuel Tank And Fuel Lines Circuit Diagram - PI4 (Sheet 2)
G15556471

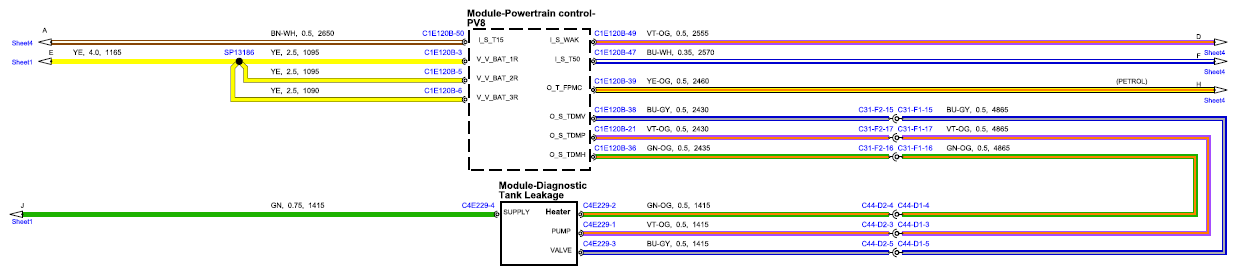

Fig 3: Fuel Tank And Fuel Lines Circuit Diagram - PI4 (Sheet 3)
G15556472

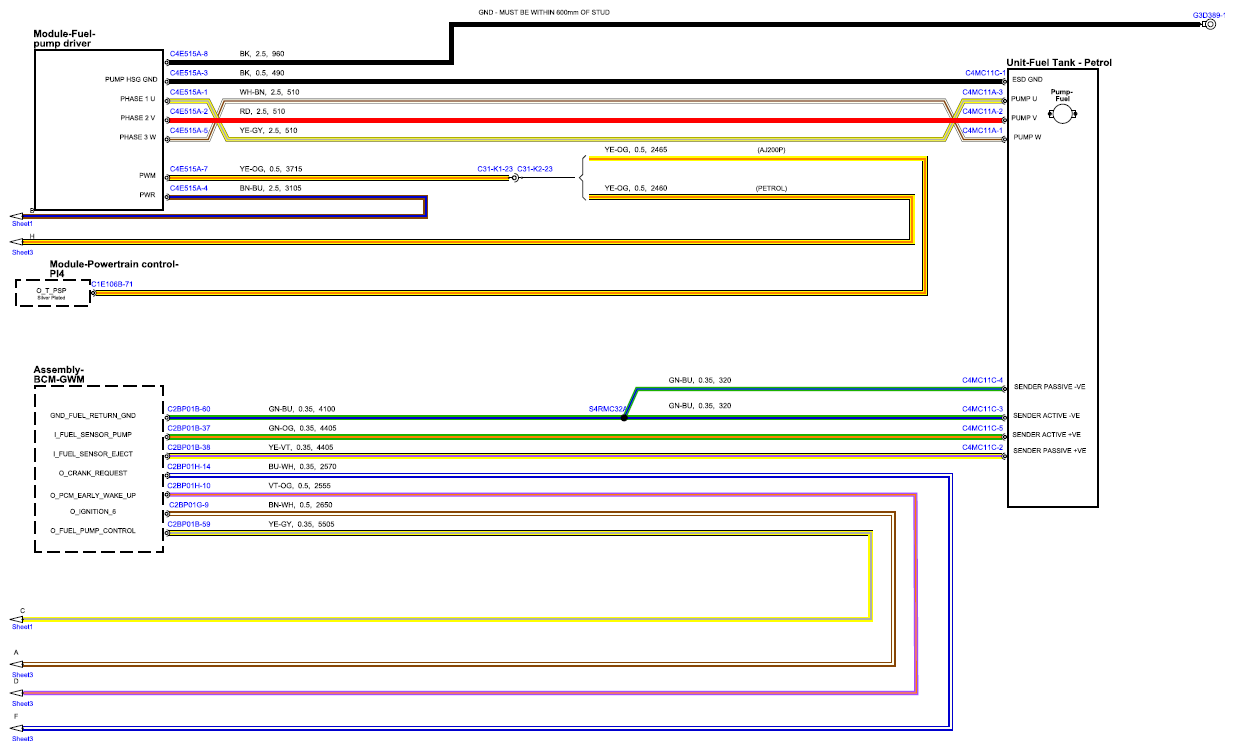

Fig 4: Fuel Tank And Fuel Lines Circuit Diagram - PI4 (Sheet 4)
G15556473
