303-14F Electronic Engine Controls - Pi6 Wiring Diagrams

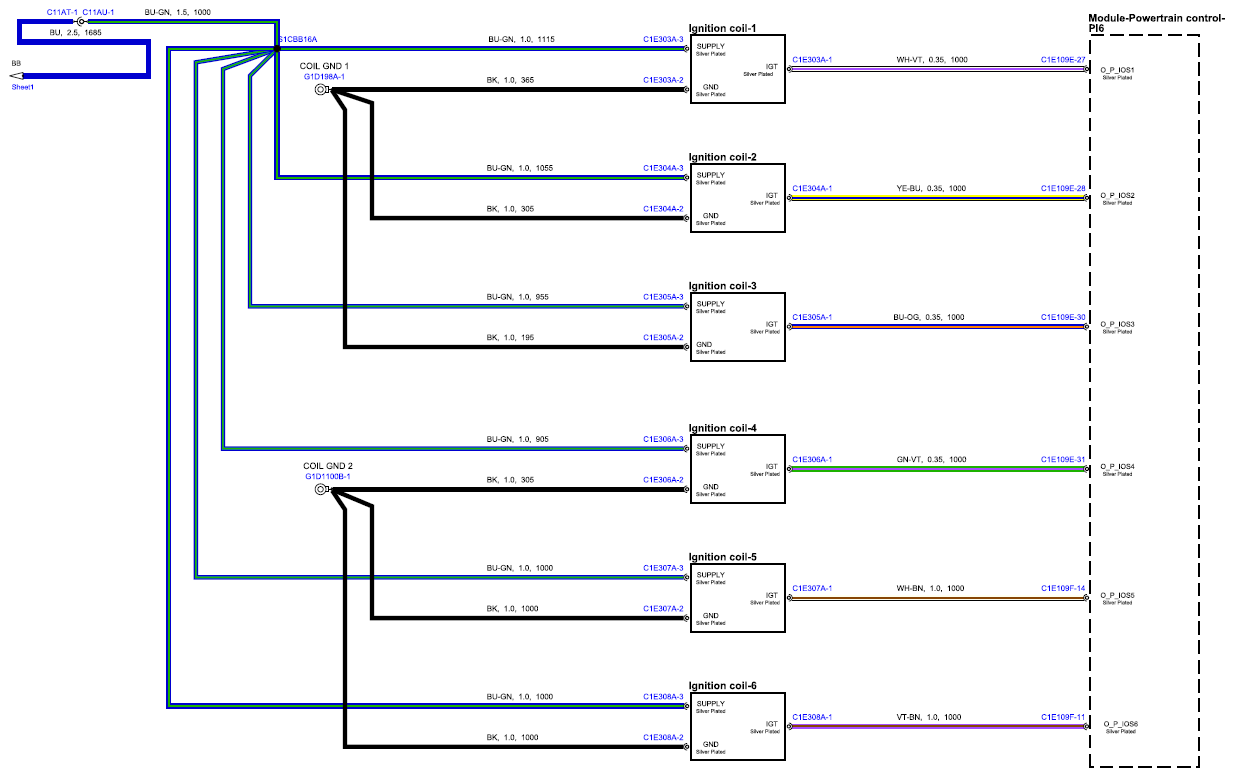

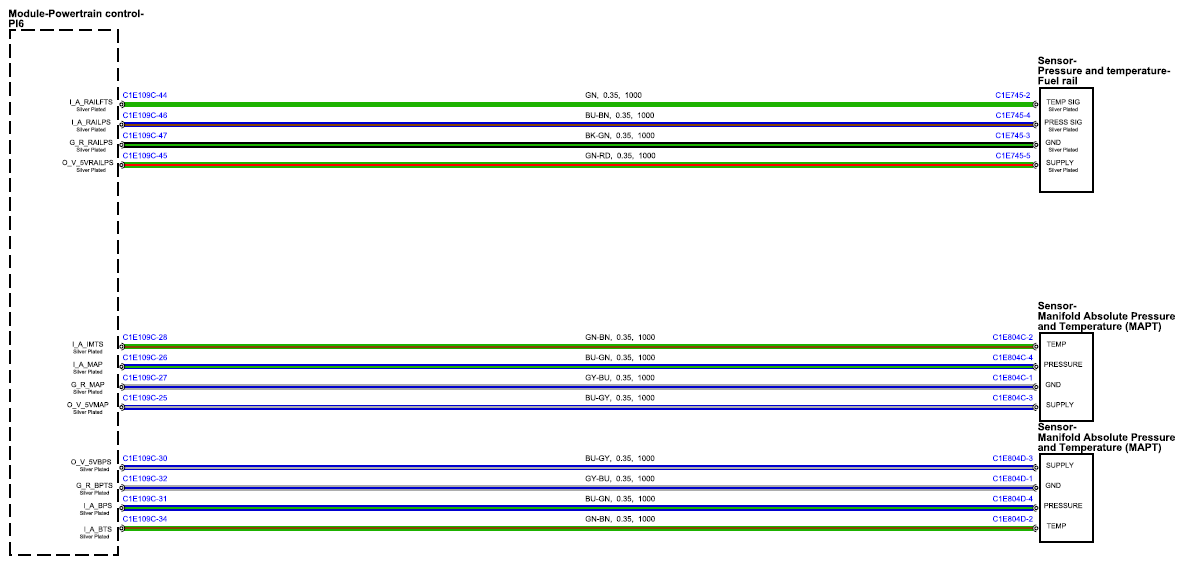

Fig 1: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 1)

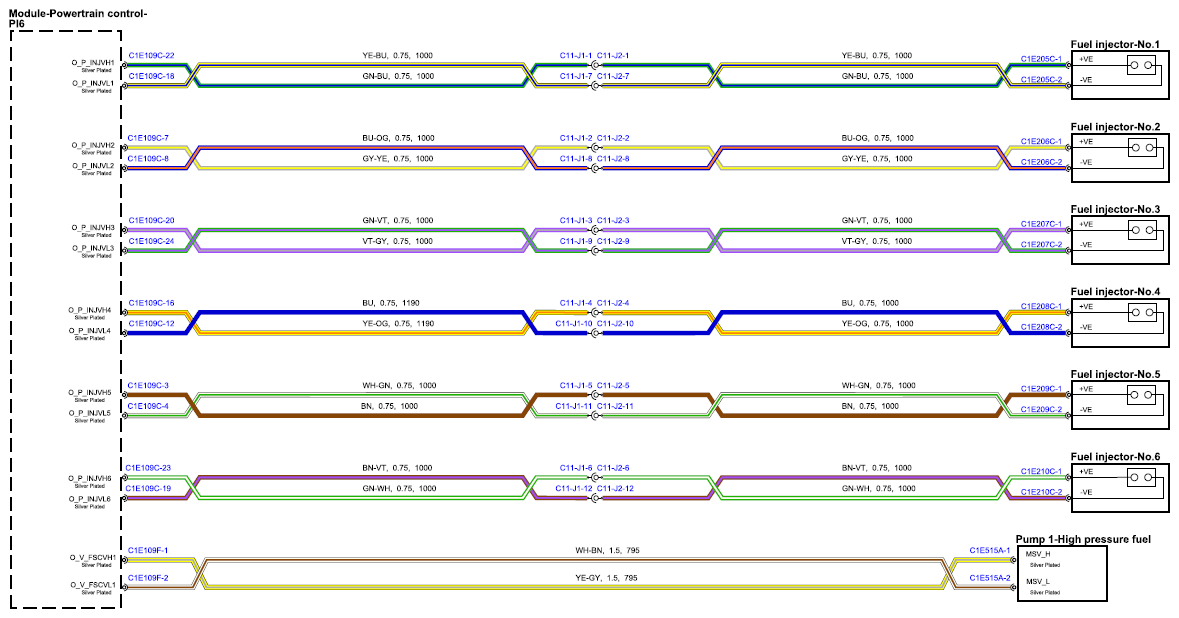

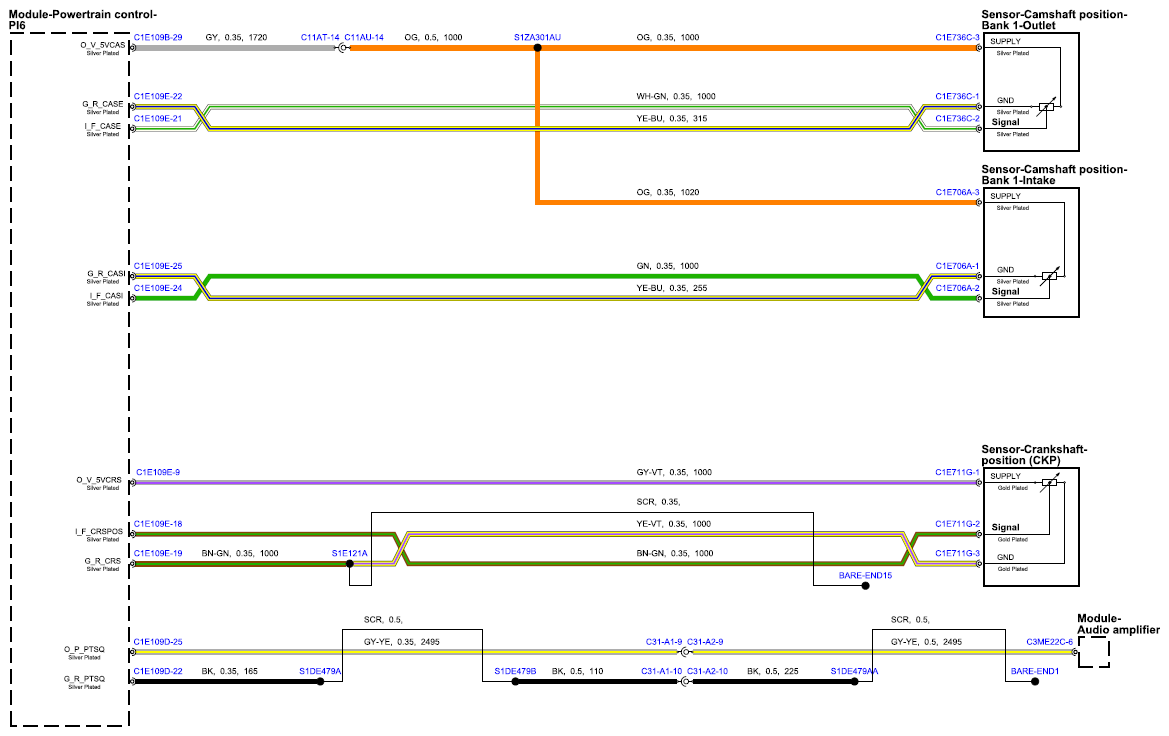

Fig 2: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 2)

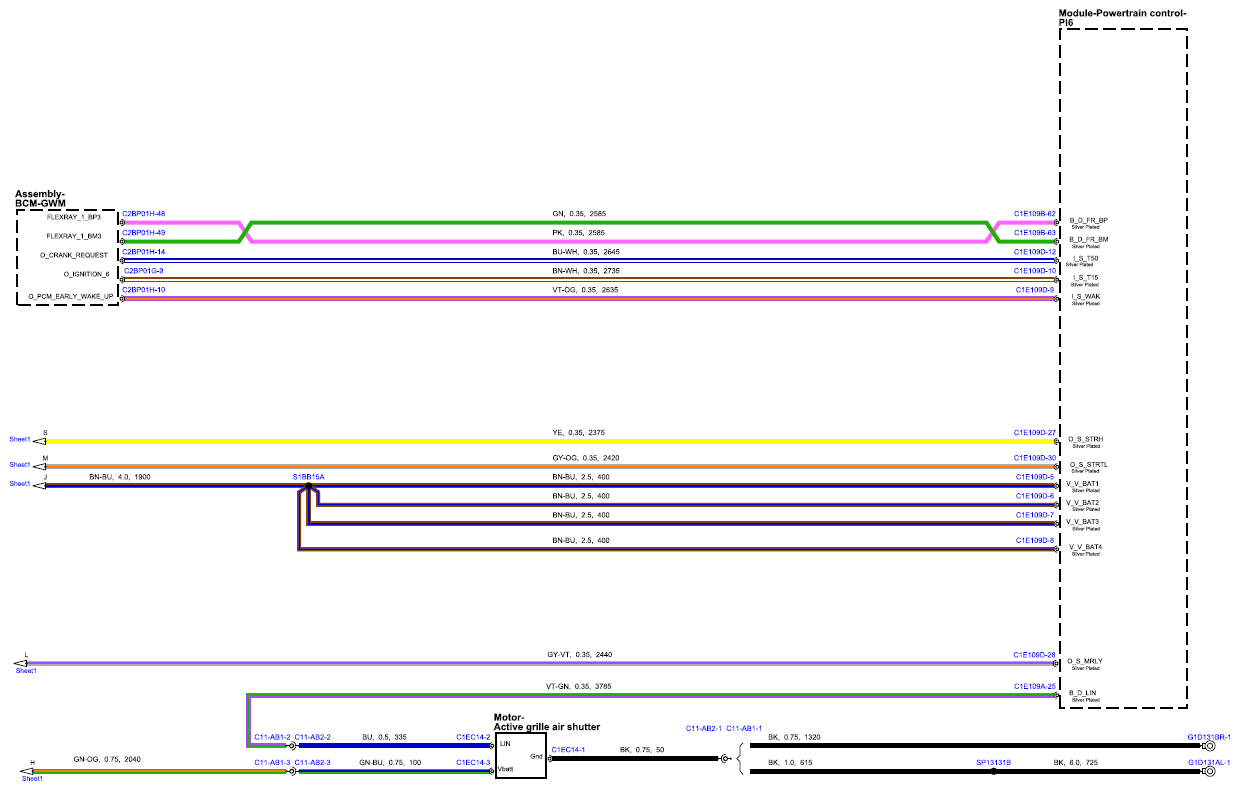

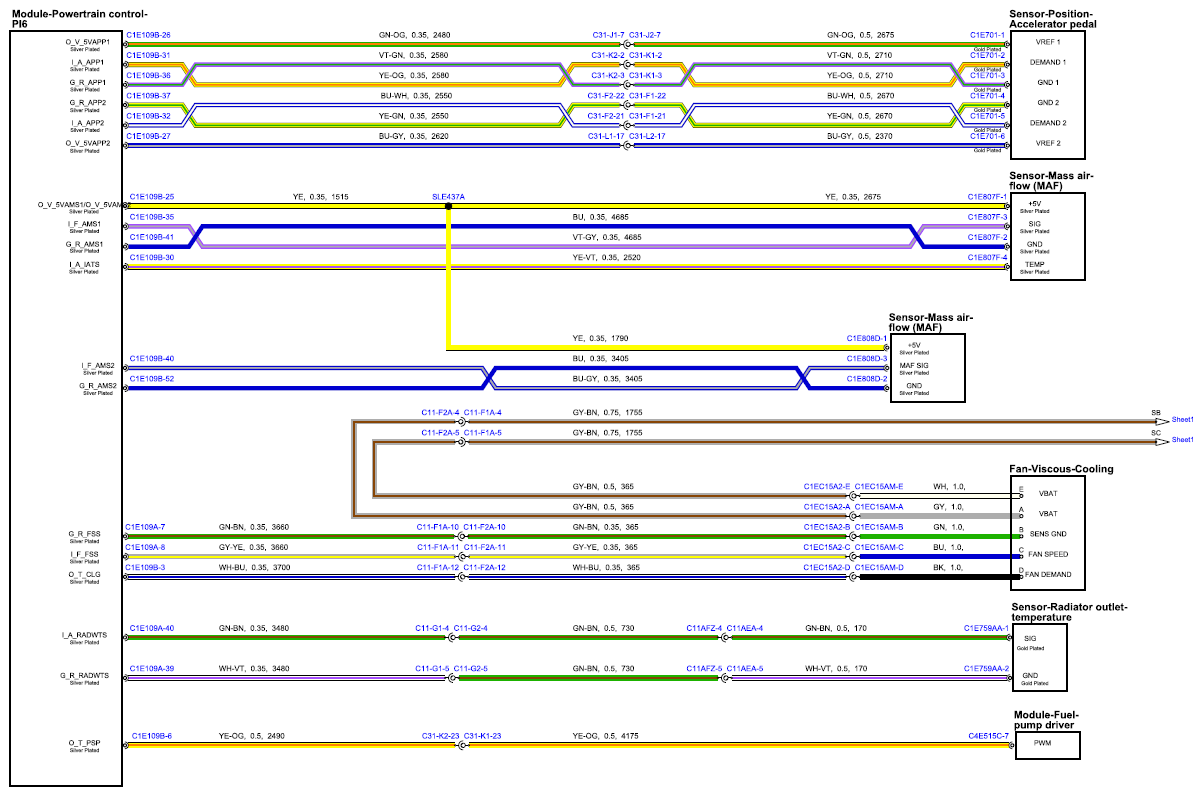

Fig 3: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 3)

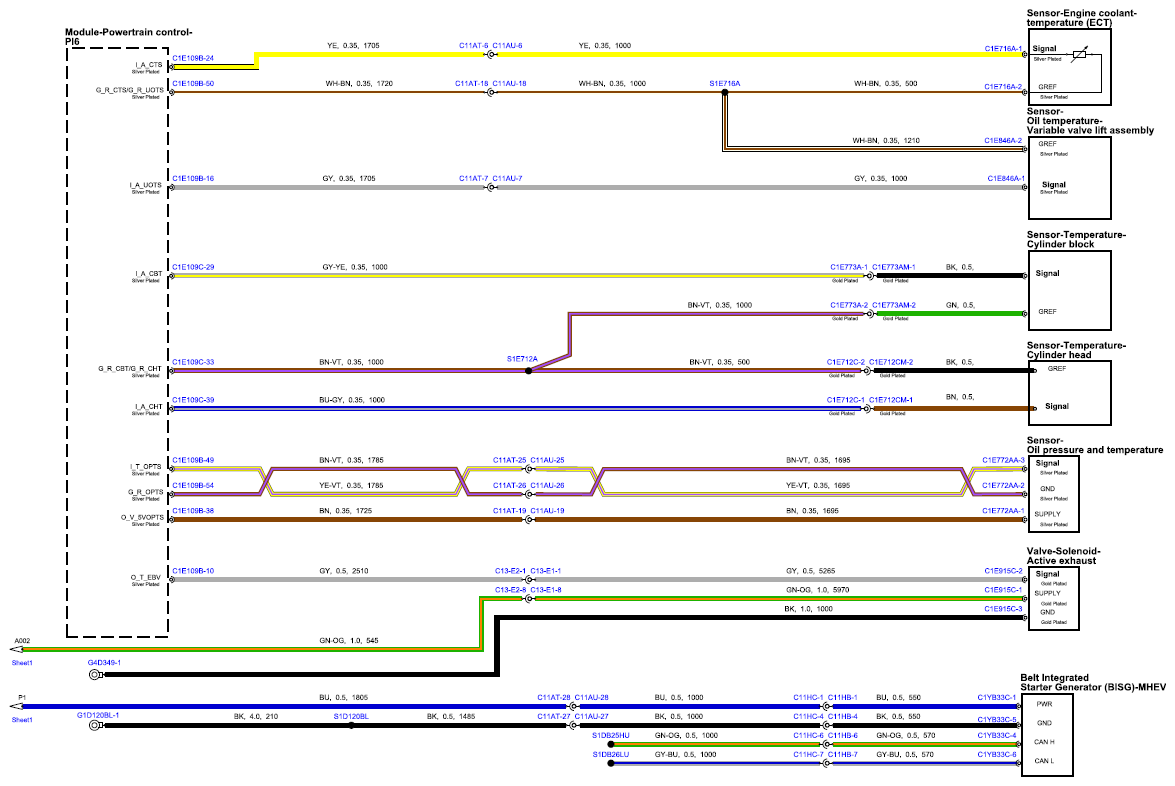

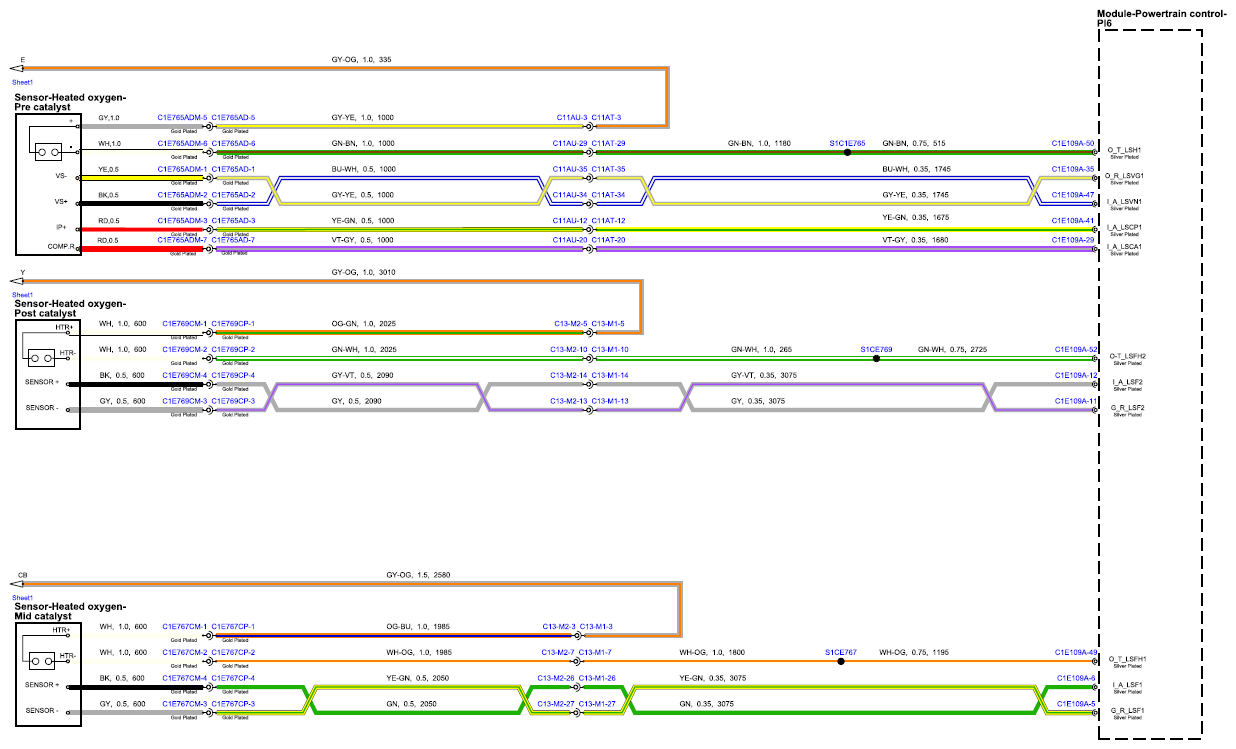

Fig 4: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 4)

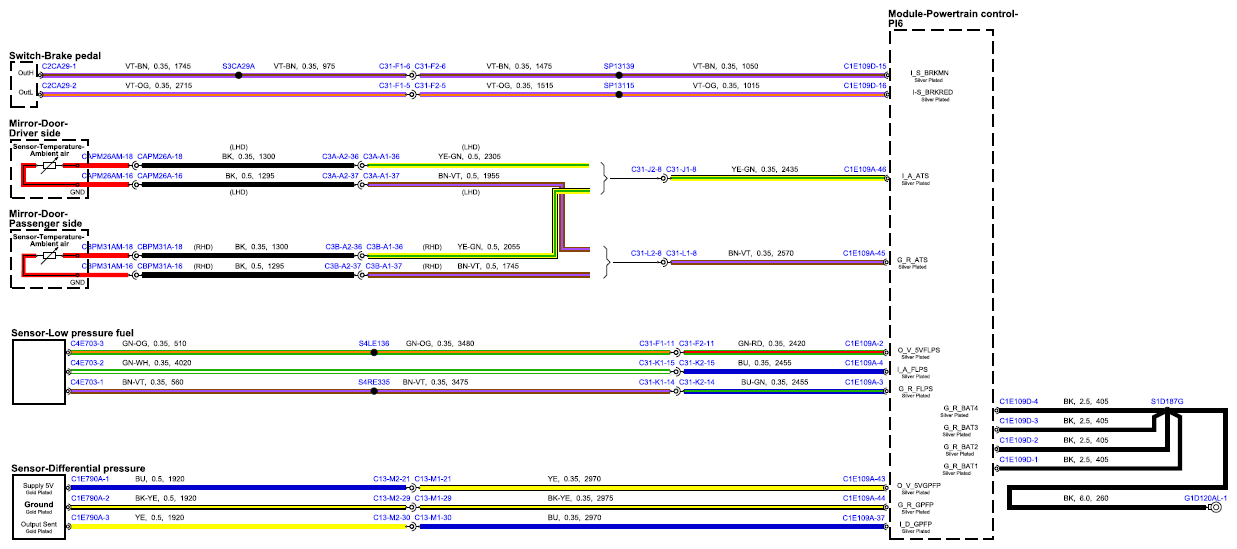

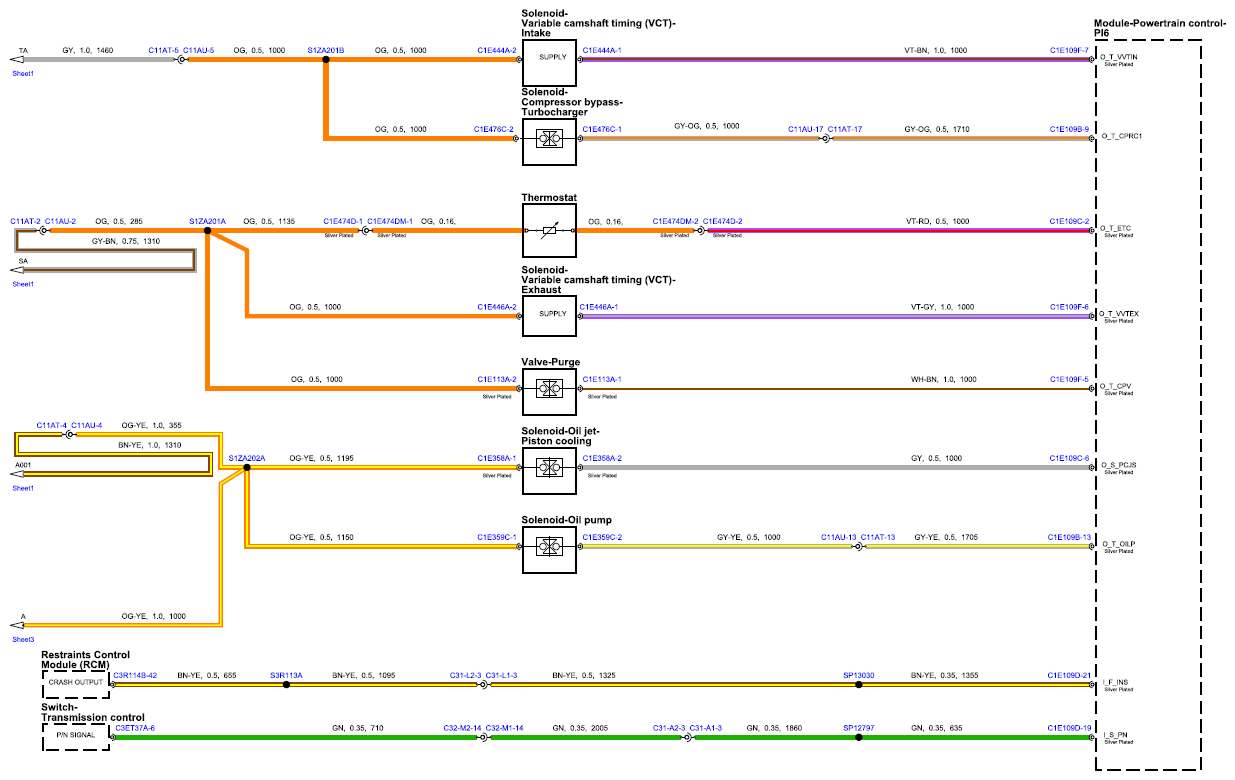

Fig 5: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 5)

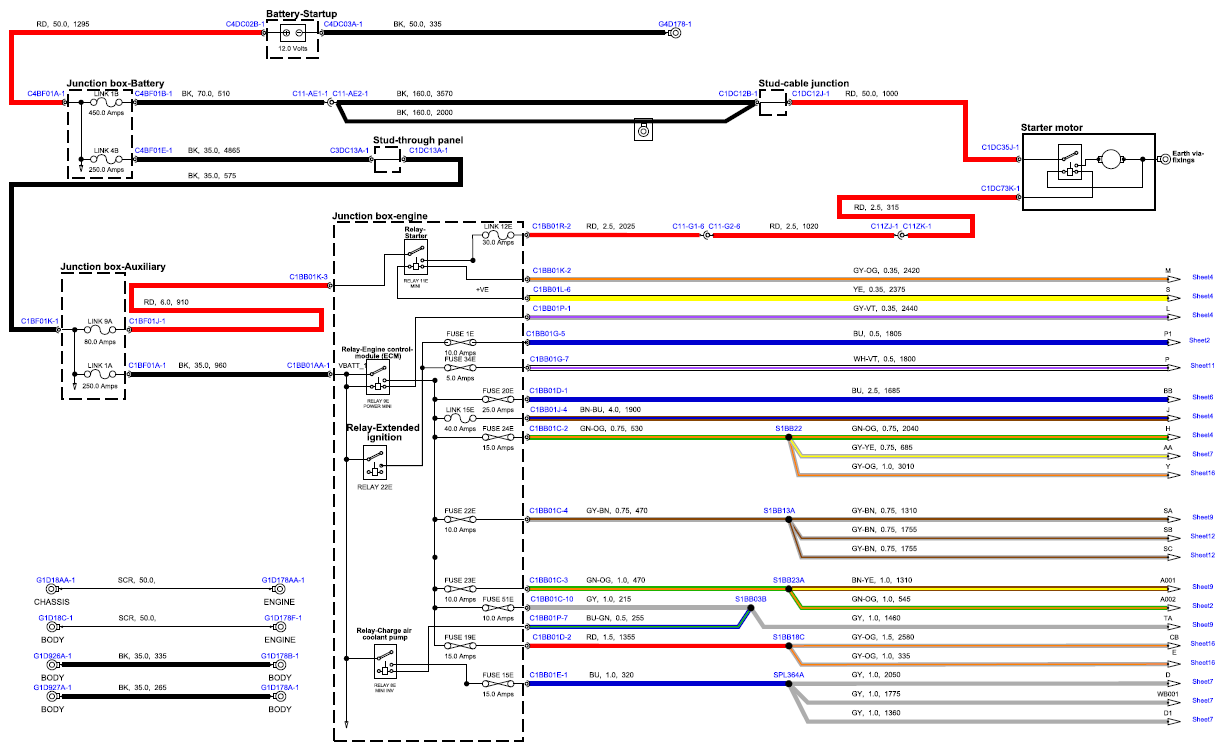

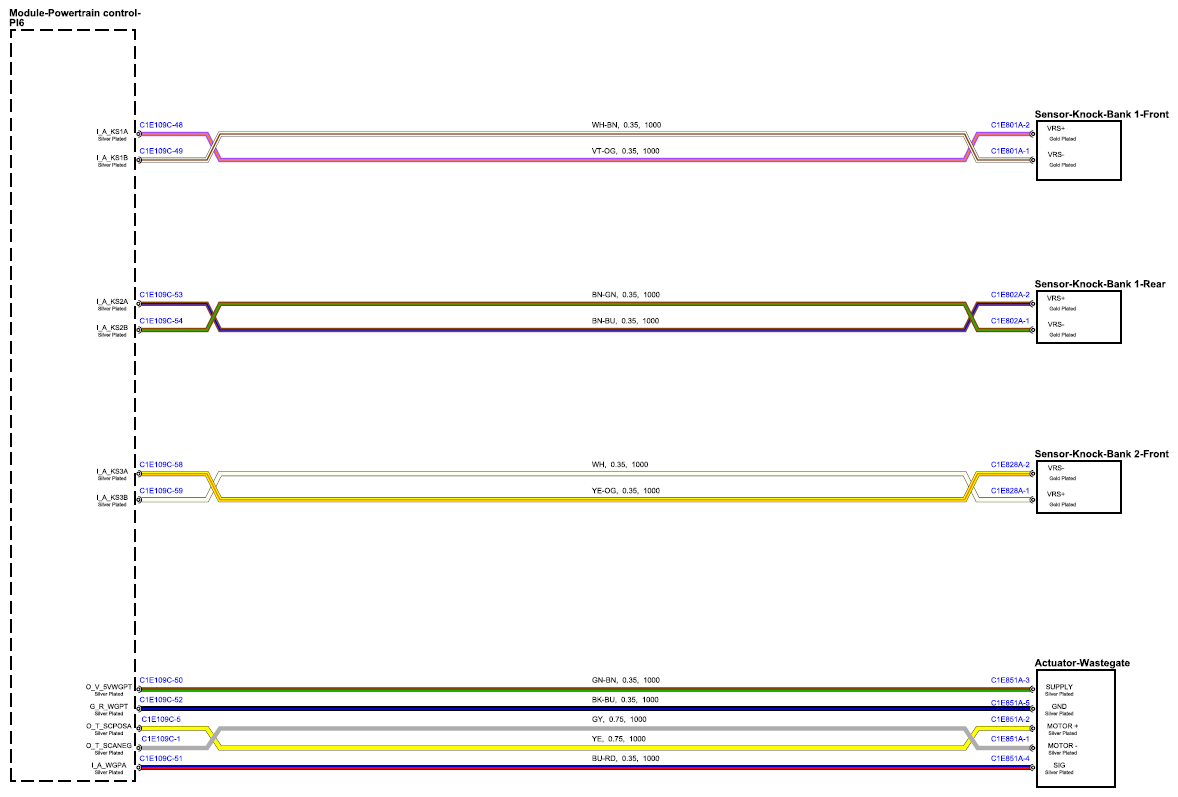

Fig 6: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 6)

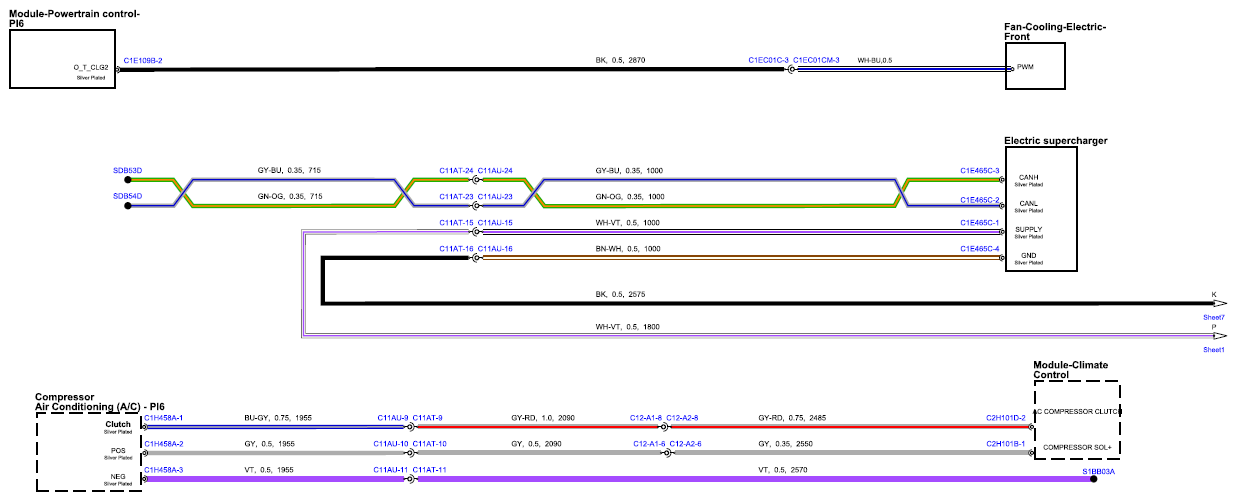

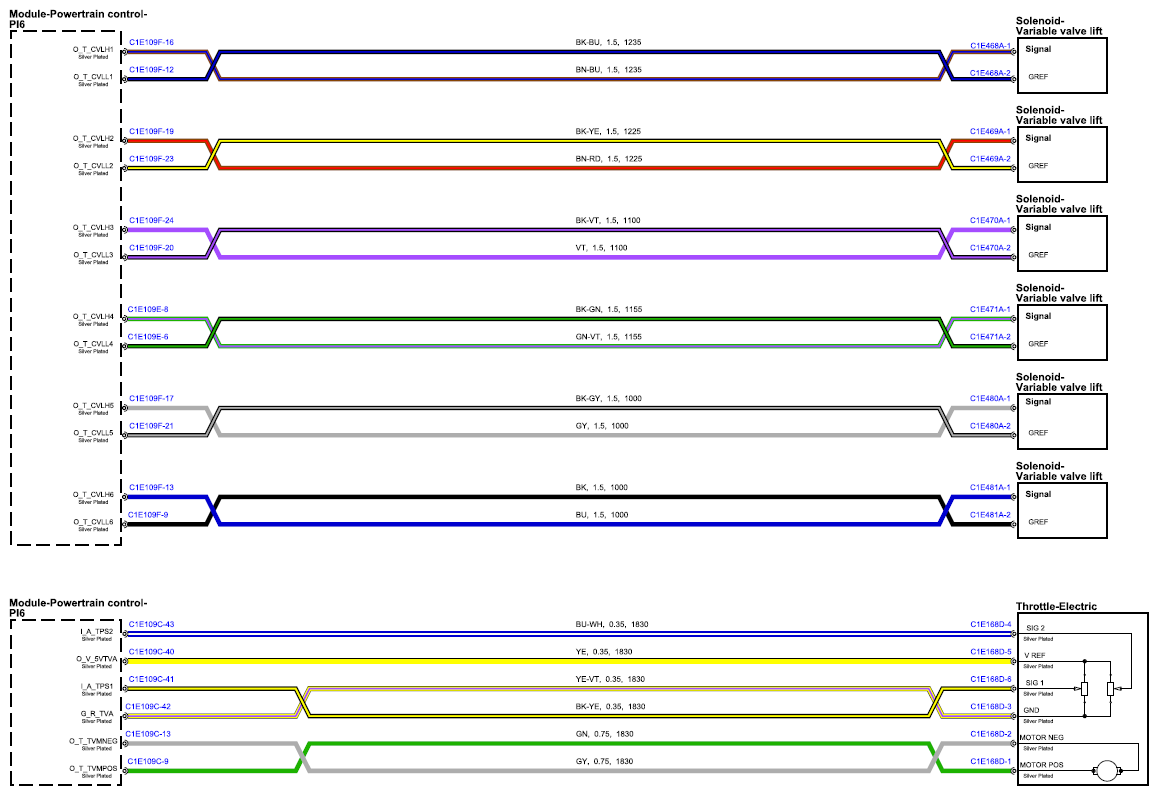

Fig 7: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 7)

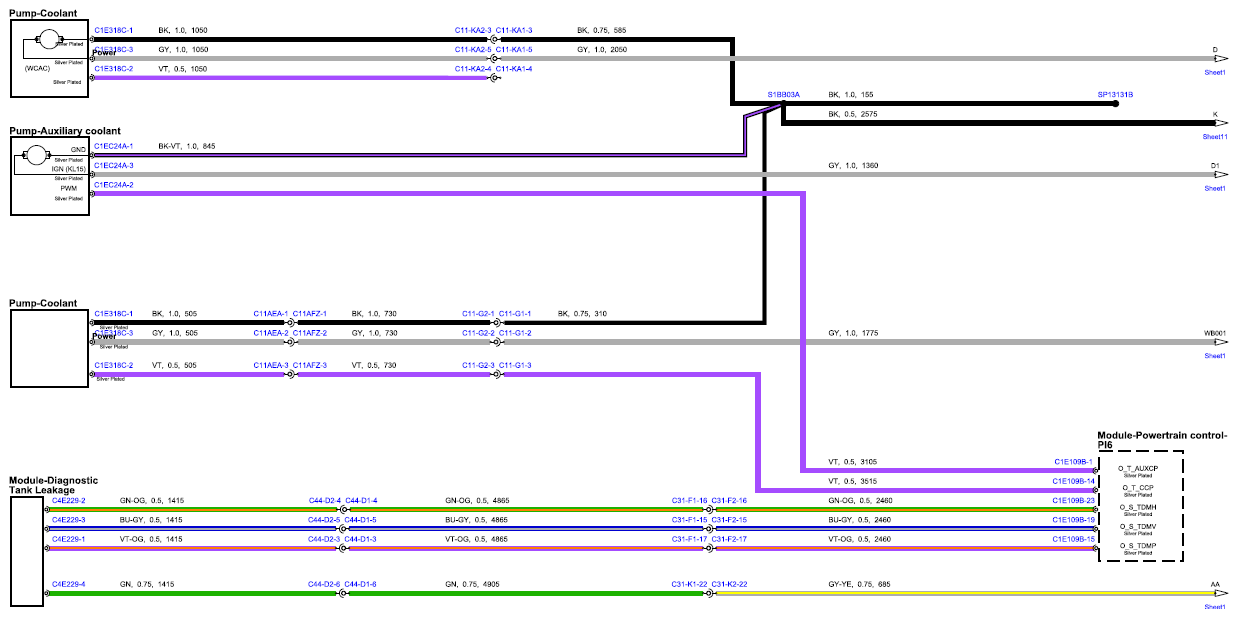

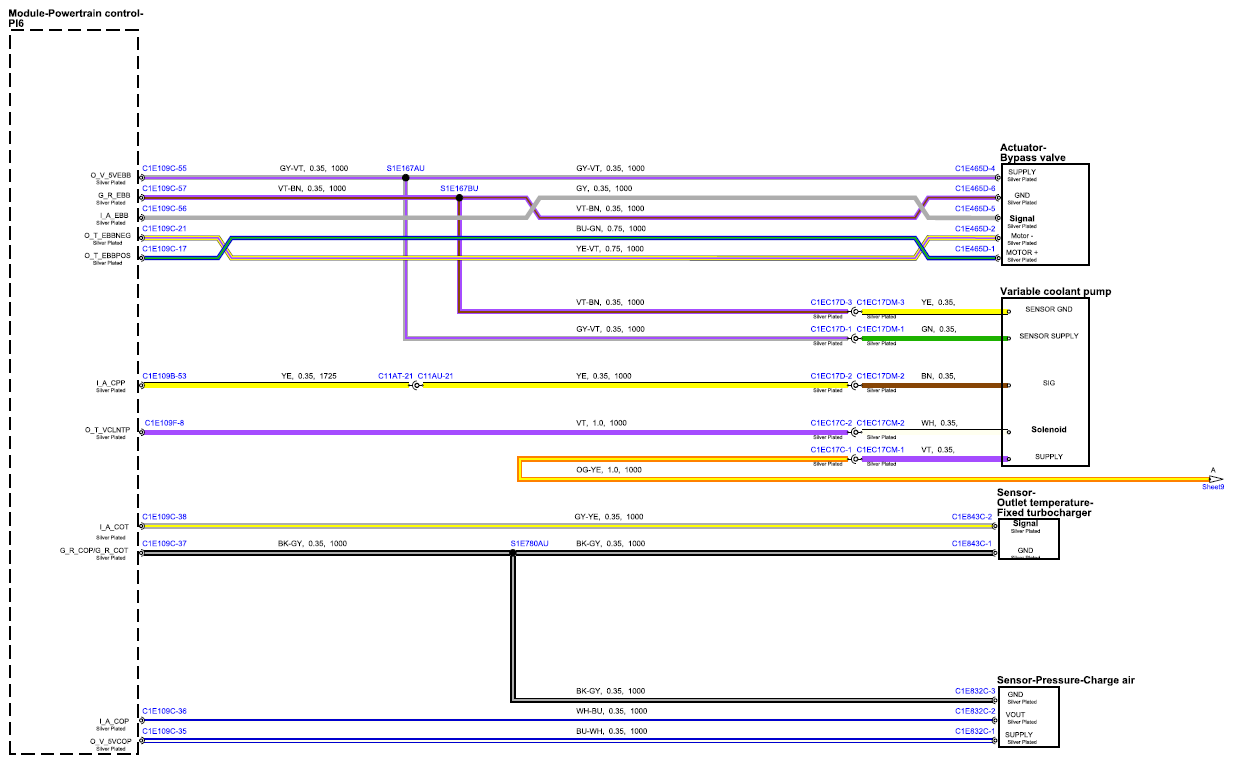

Fig 8: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 8)

Fig 9: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 9)

Fig 10: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 10)

Fig 11: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 11)

Fig 12: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 12)

Fig 13: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 13)

Fig 14: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 14)

Fig 15: Electronic Engine Controls Circuit Diagram - PI6 (Sheet 15)
