303-14A Electronic Engine Controls - DV6 Wiring Diagrams

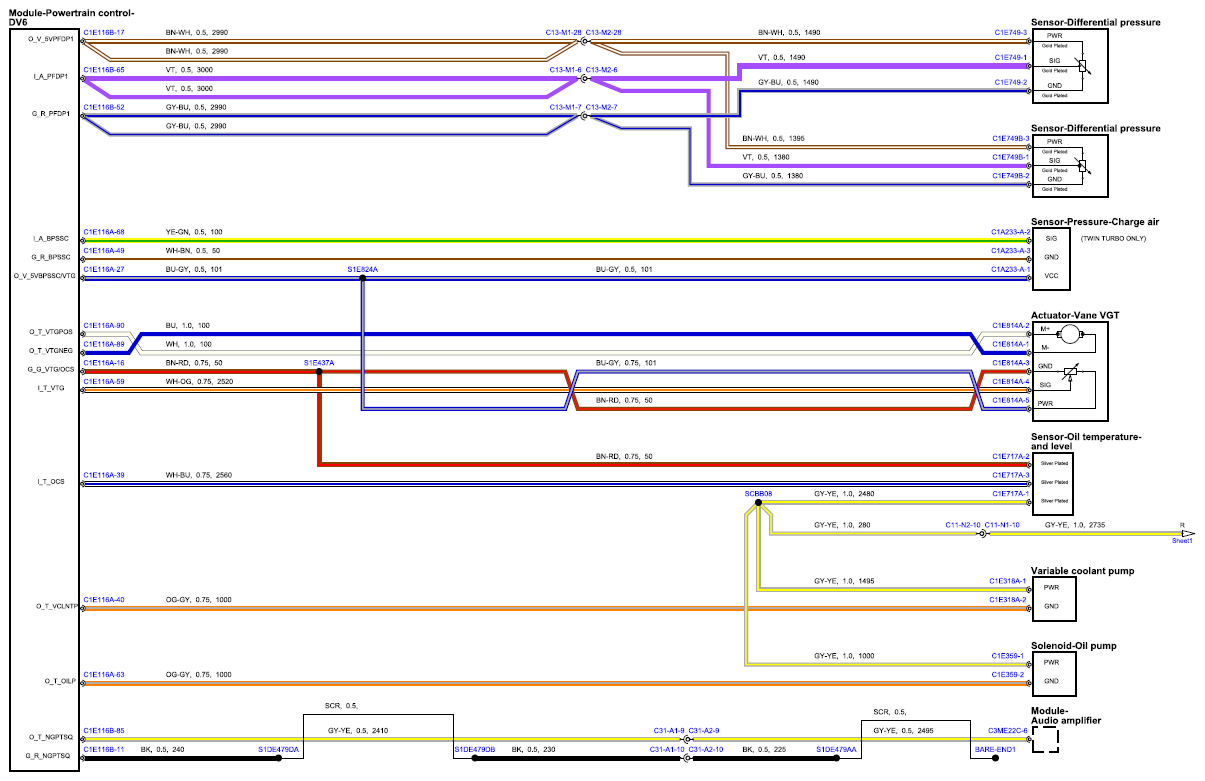

Fig 1: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 1)

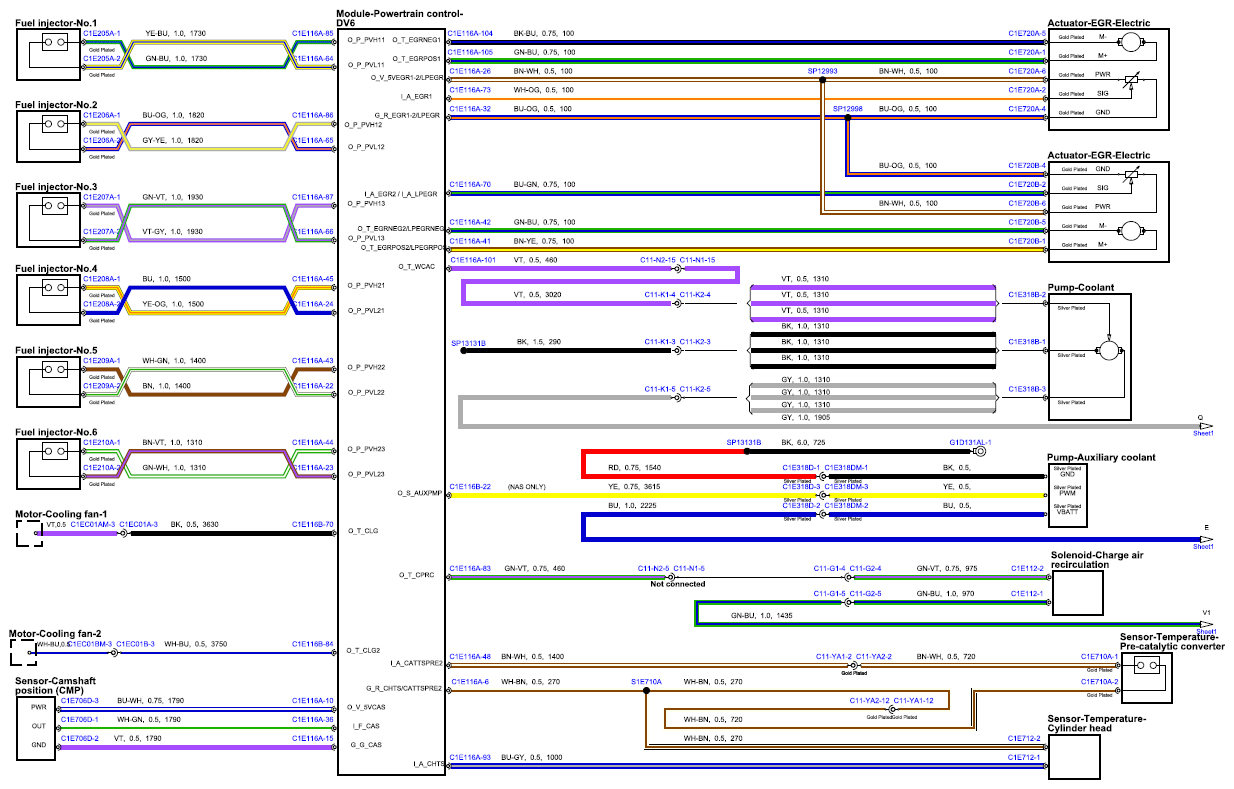

Fig 2: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 2)

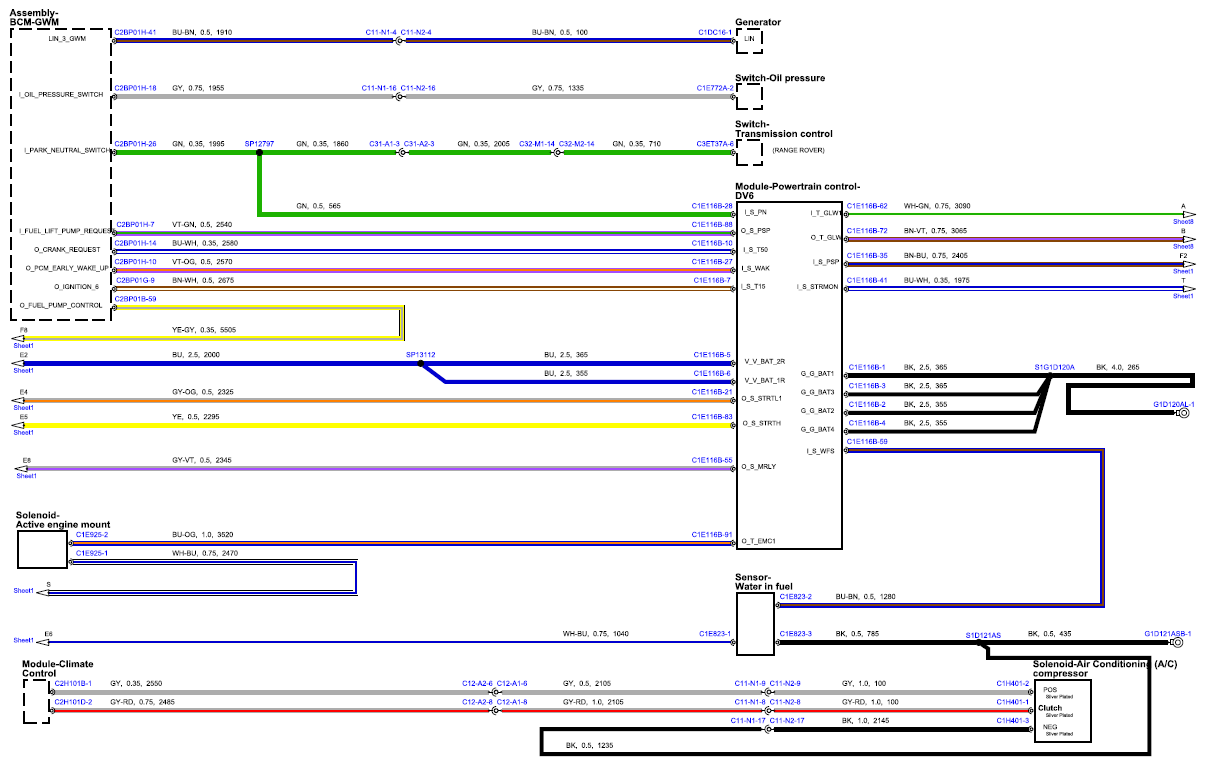

Fig 3: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 3)

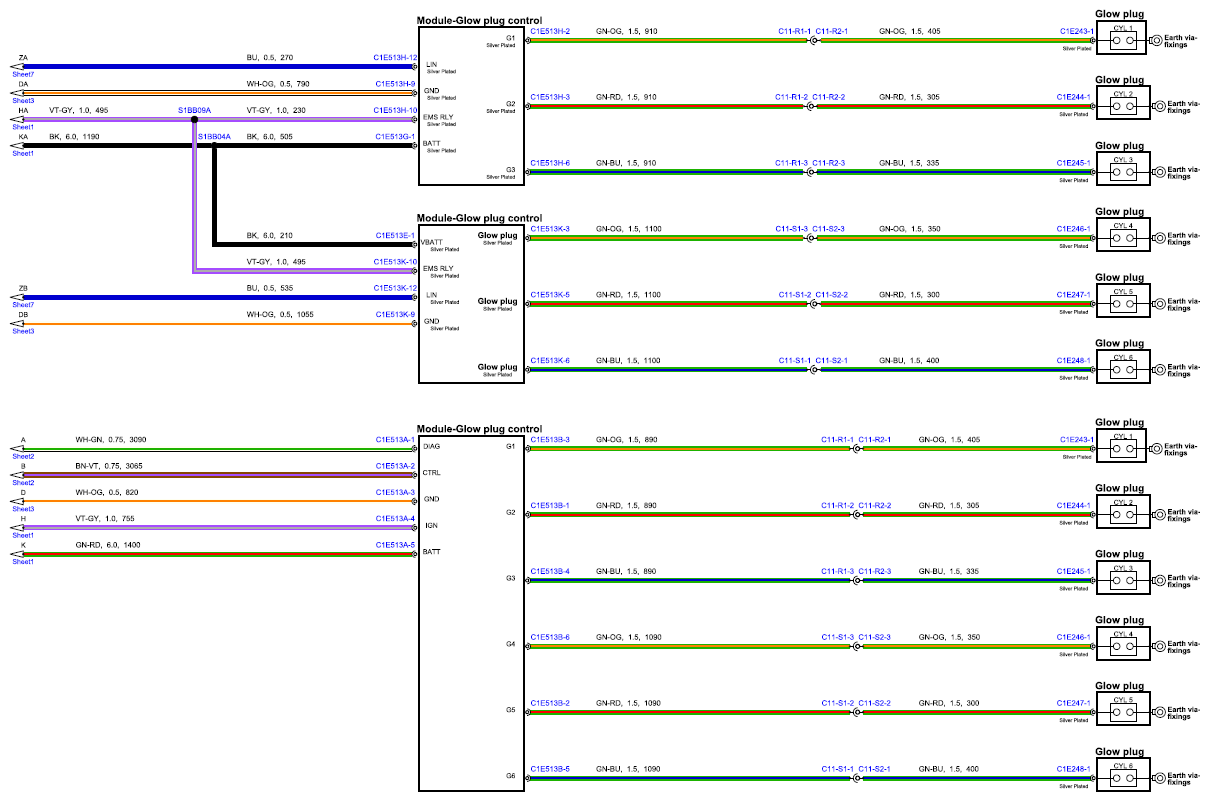

Fig 4: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 4)

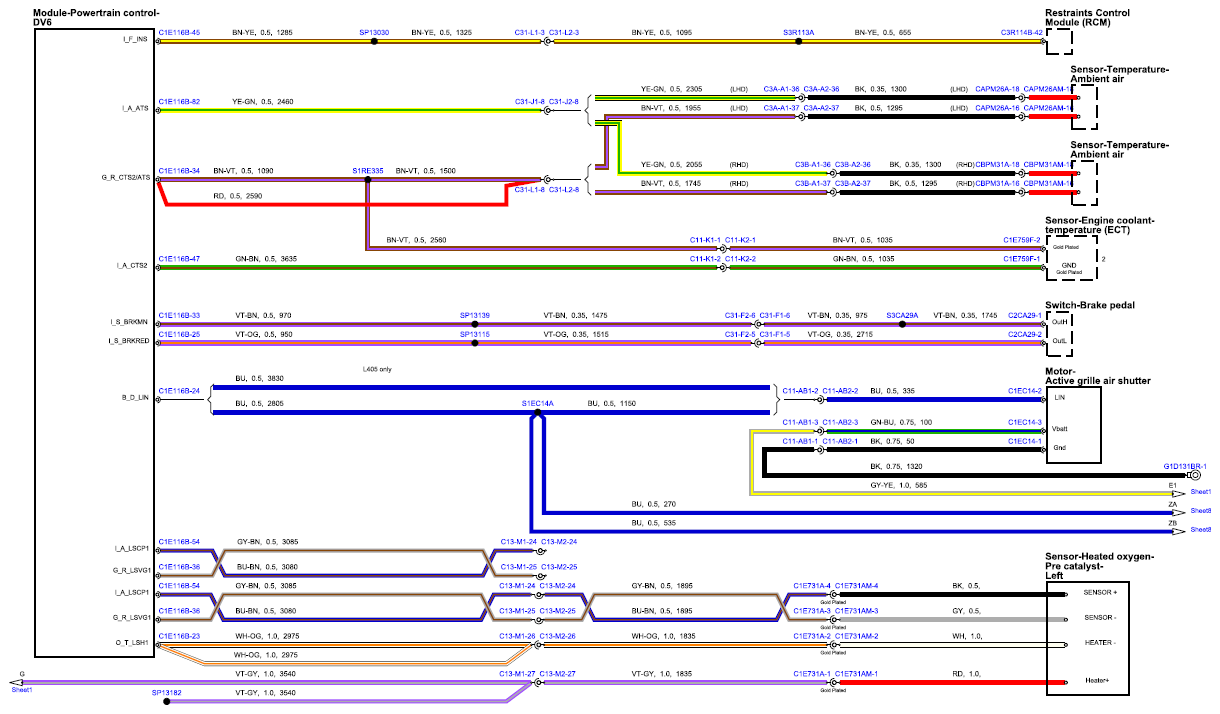

Fig 5: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 5)

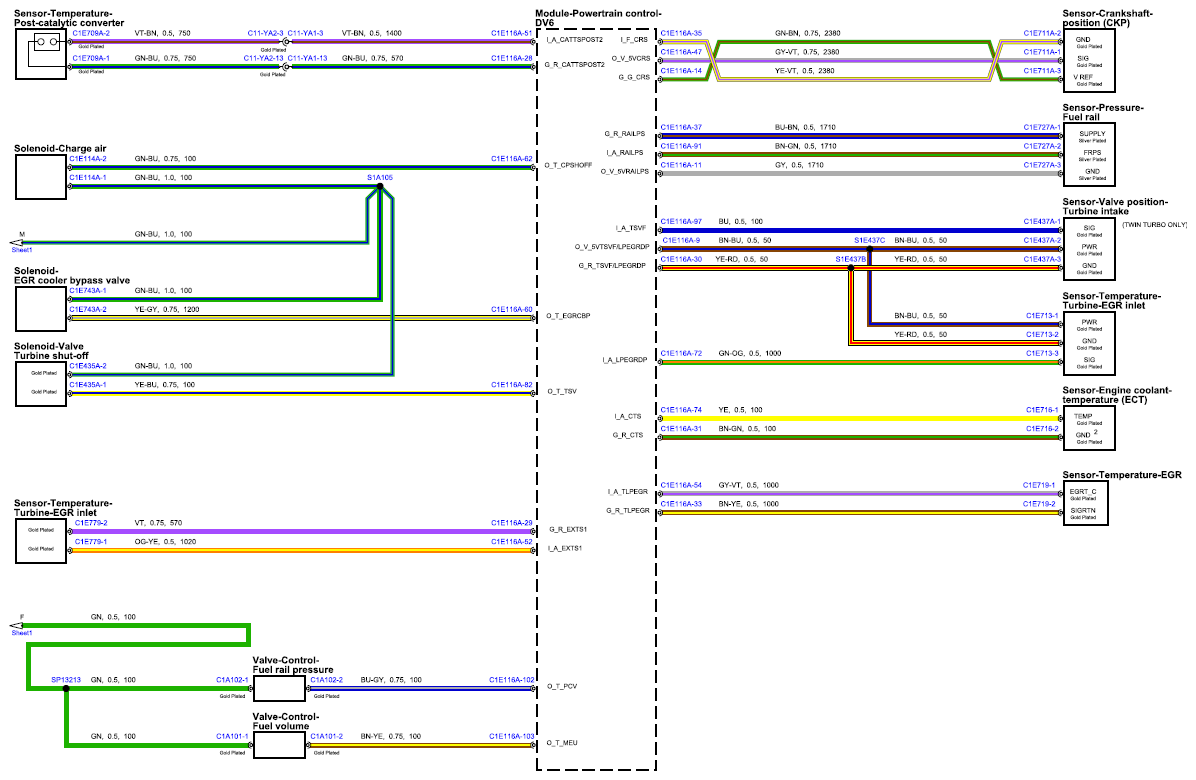

Fig 6: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 6)

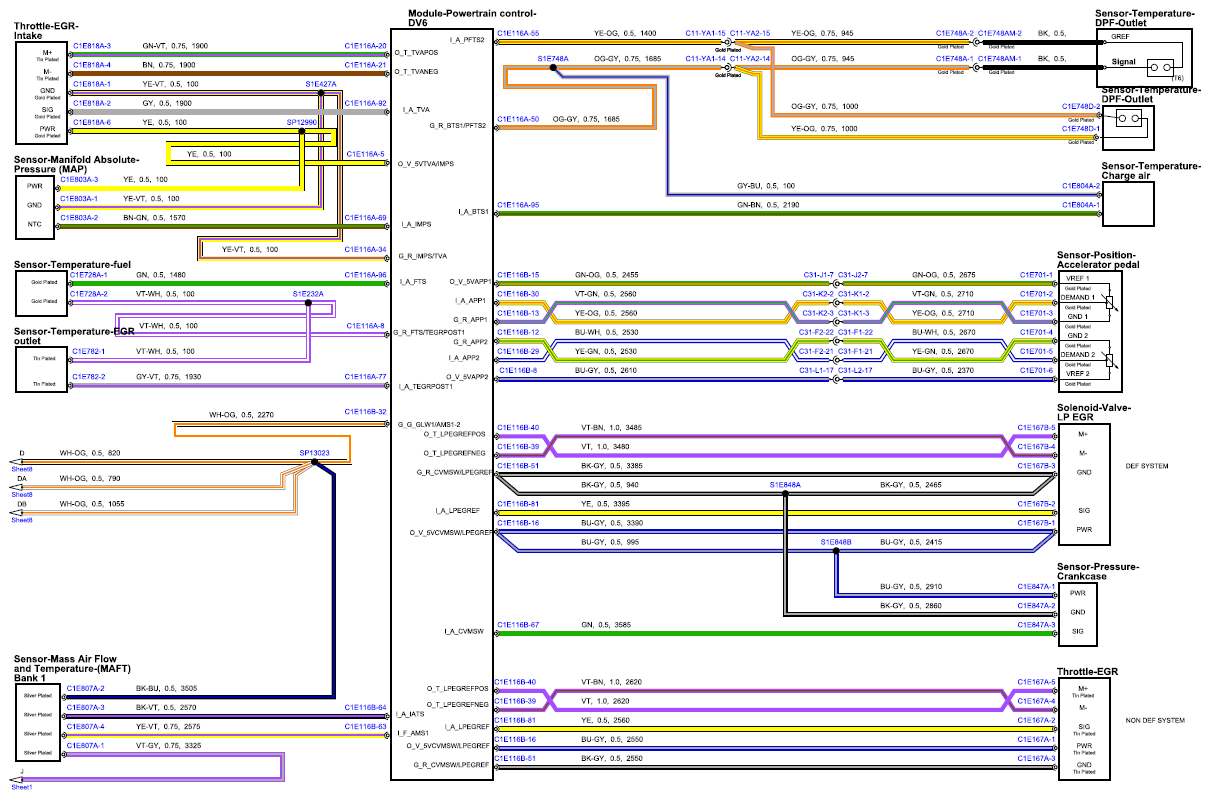

Fig 7: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 7)

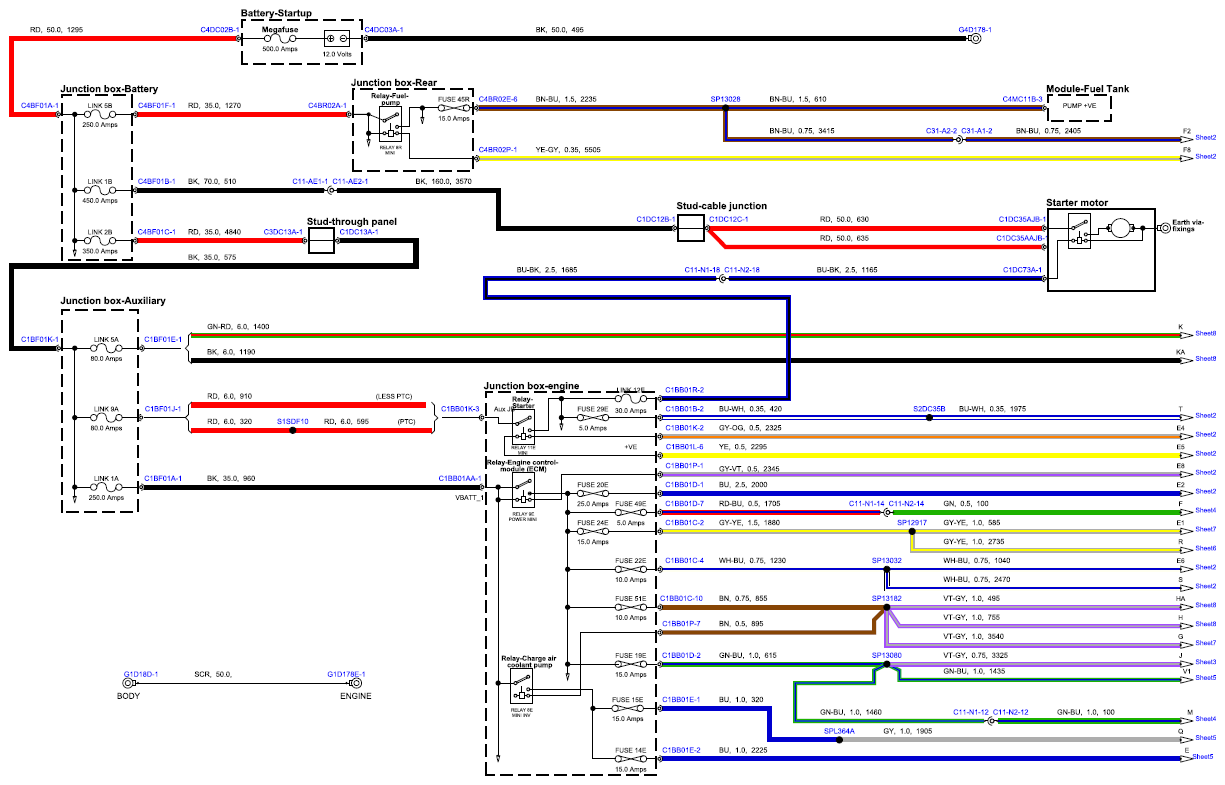

Fig 8: Electronic Engine Controls Circuit Diagram - DV6 (Sheet 8)
