Selective Catalytic Reduction (SCR) System

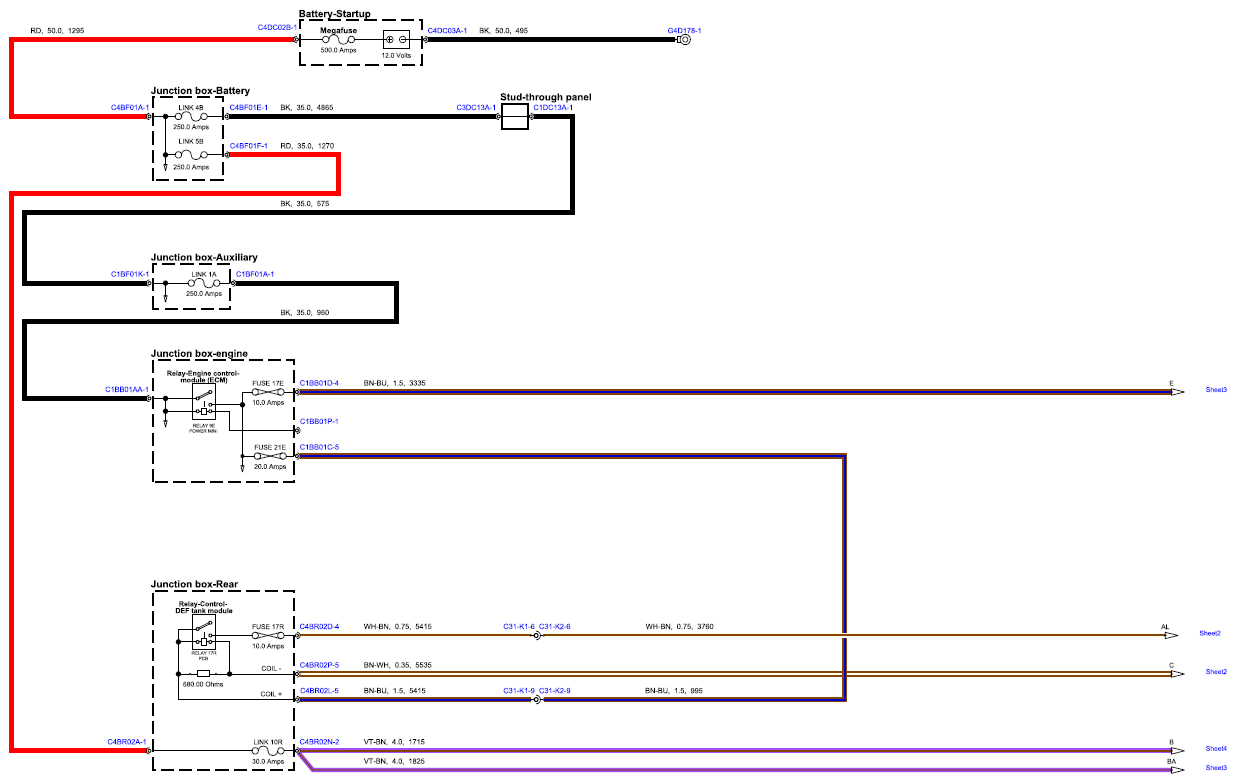

Fig 1: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 1)

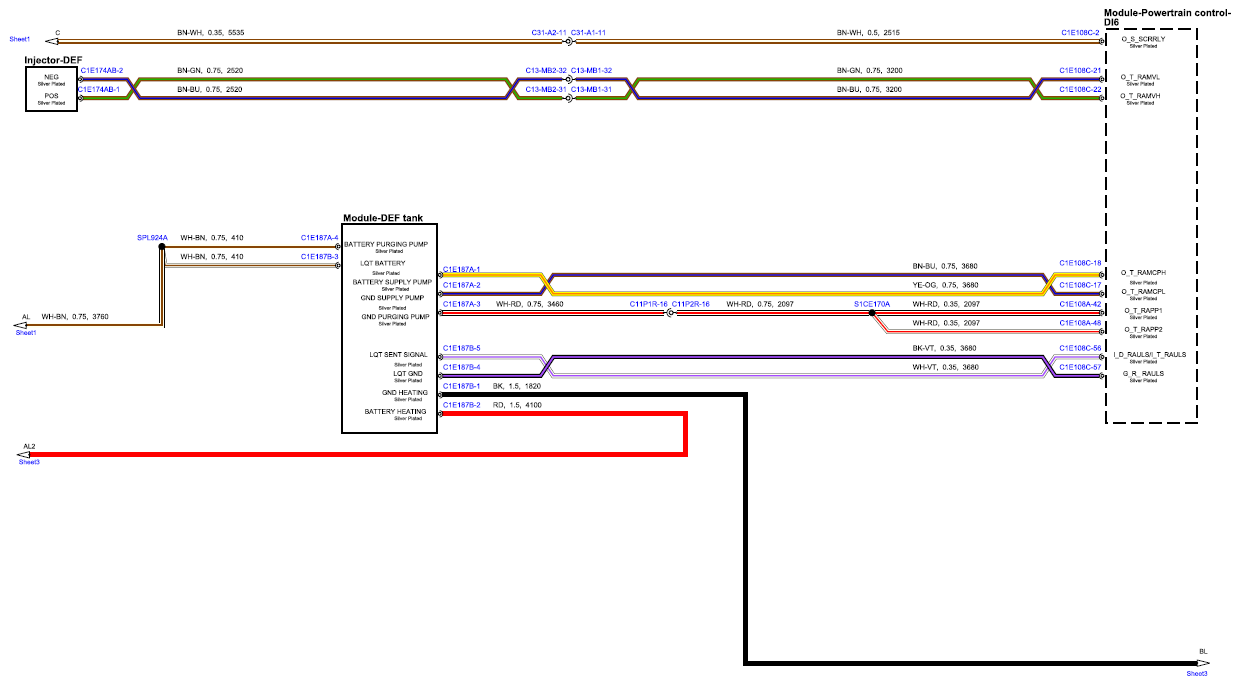

Fig 2: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 2)

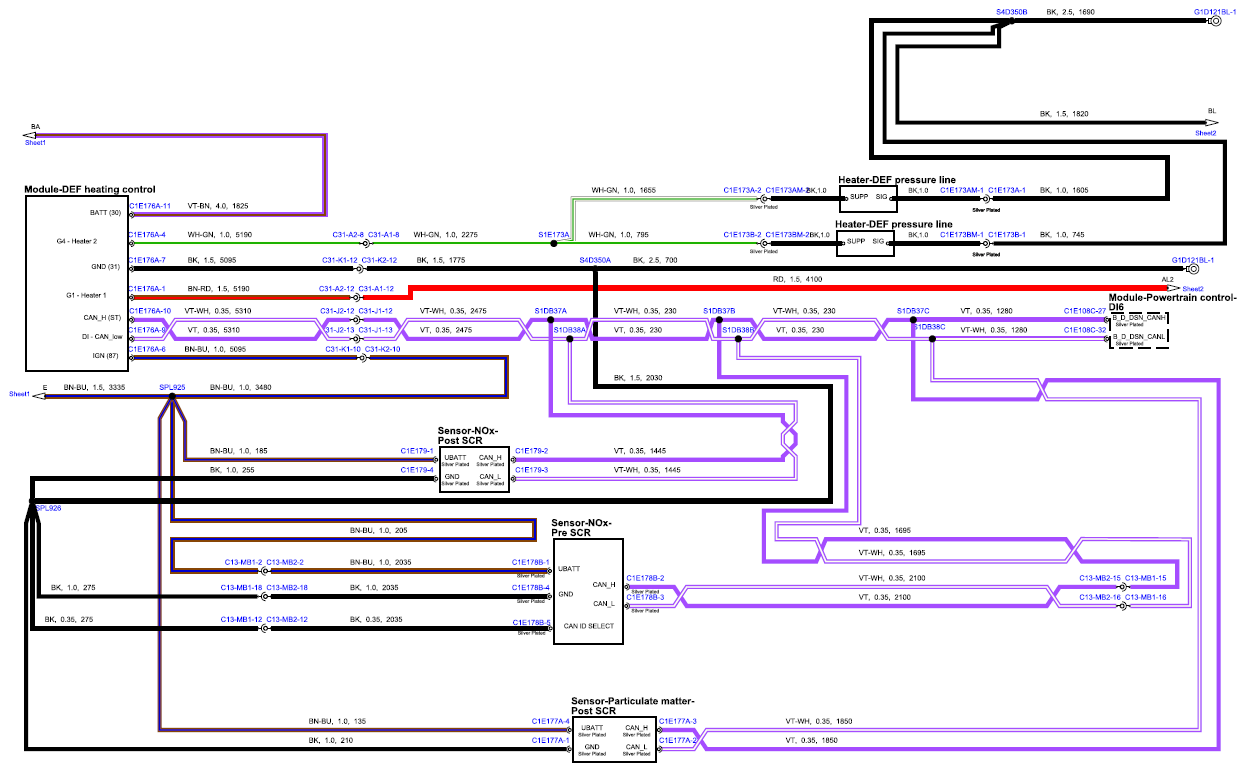

Fig 3: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 3)

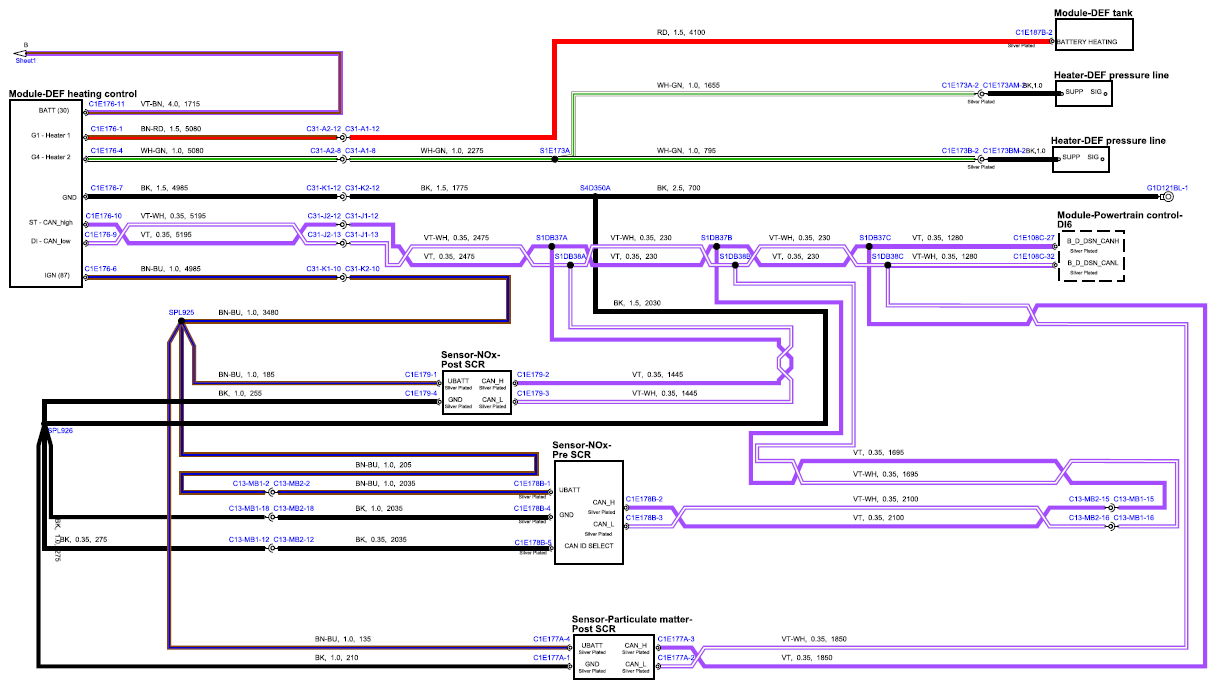

Fig 4: Selective Catalytic Reduction (SCR) System Circuit Diagram (Sheet 4)
