303-06F Starting System - Pi6 Wiring Diagrams

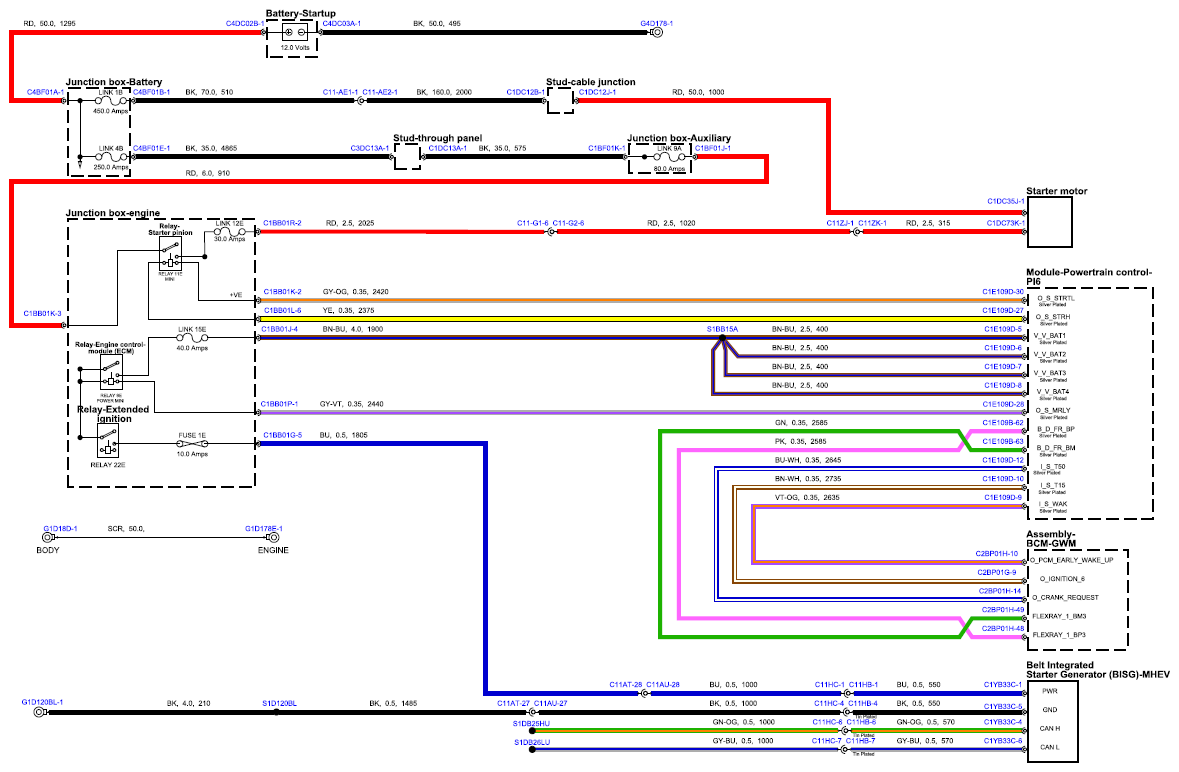

Fig 1: Starting System Circuit Diagram - PI6

G15556374
