303-06E Starting System - Pi4 Wiring Diagrams

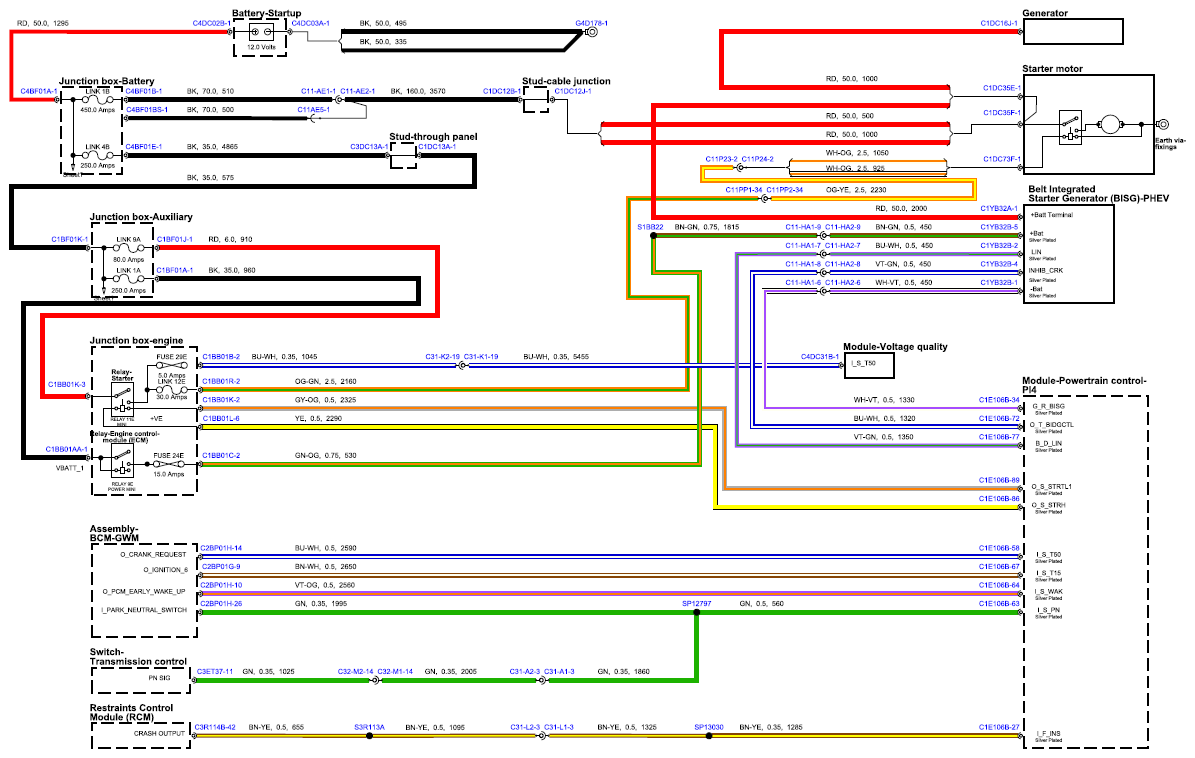

Fig 1: Starting System Circuit Diagram - PI4

G15556373
