303-06E Starting System - Di6 Wiring Diagrams

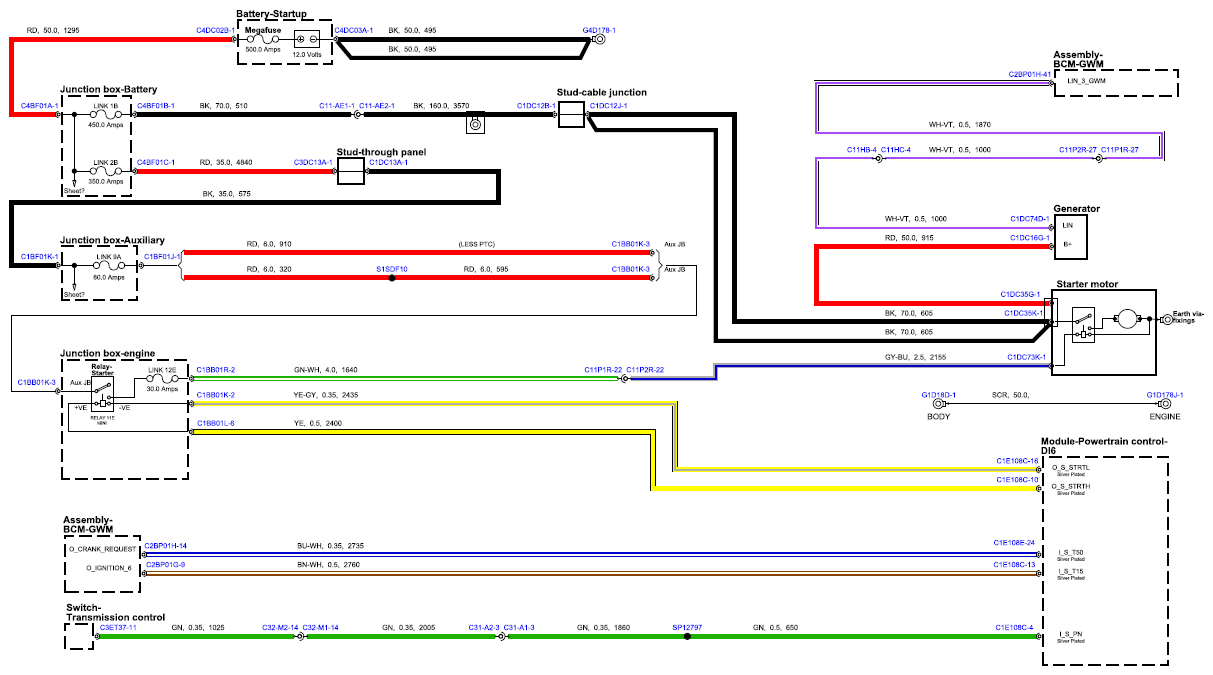

Fig 1: Starting System Circuit Diagram - DI6

G15556372
