303-06D Starting System - DV8 Wiring Diagrams

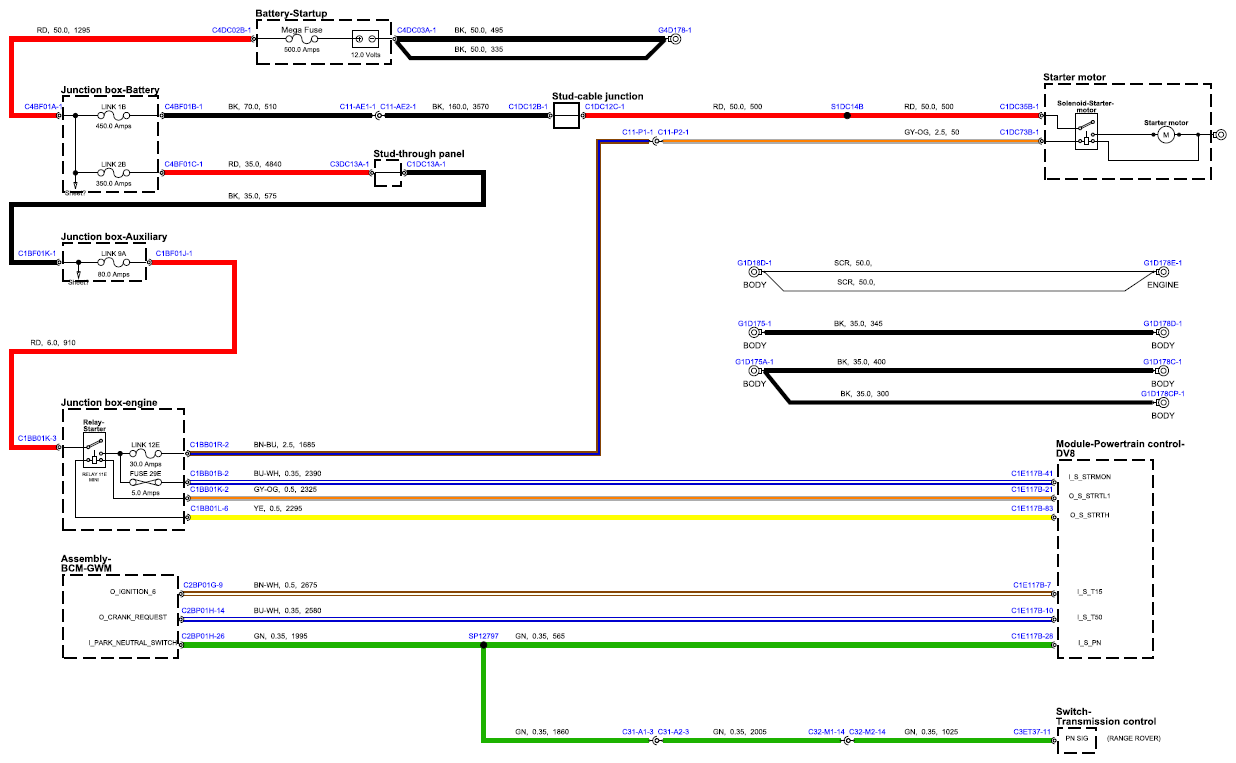

Fig 1: Starting System Circuit Diagram - DV8

G15556371
