303-06B Starting System - PV8 Wiring Diagrams

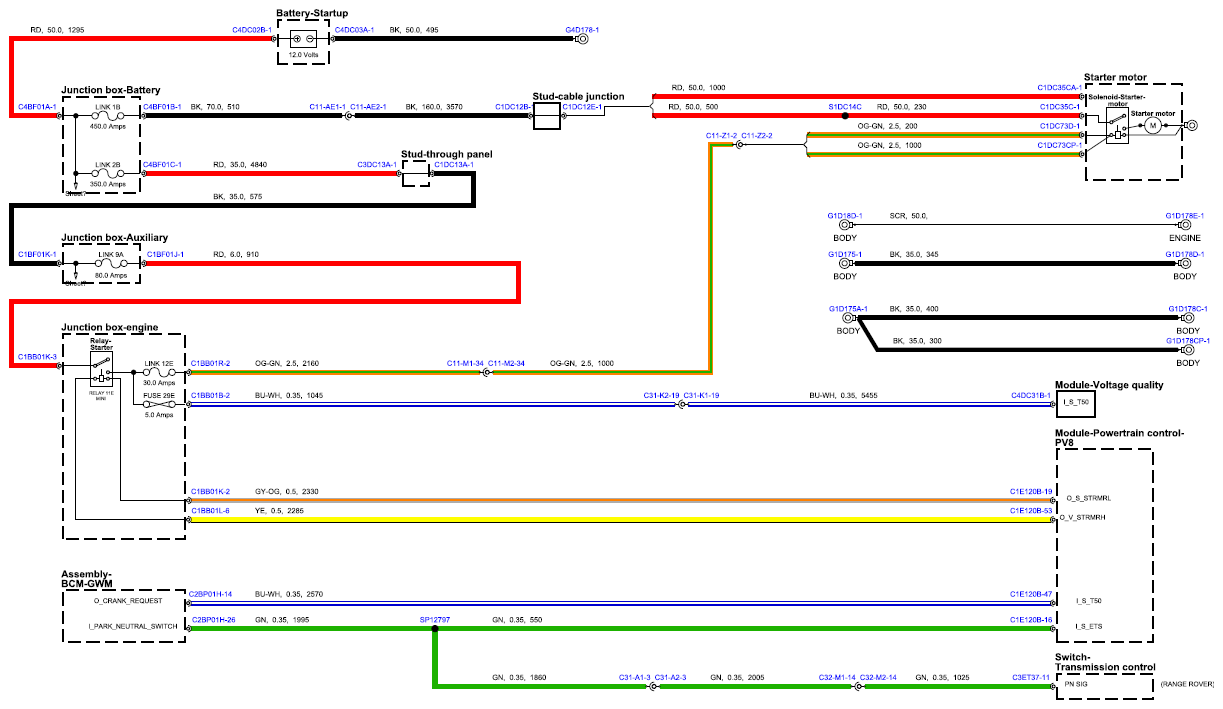

Fig 1: Starting System Circuit Diagram - PV8

G15556370
