Clock spring

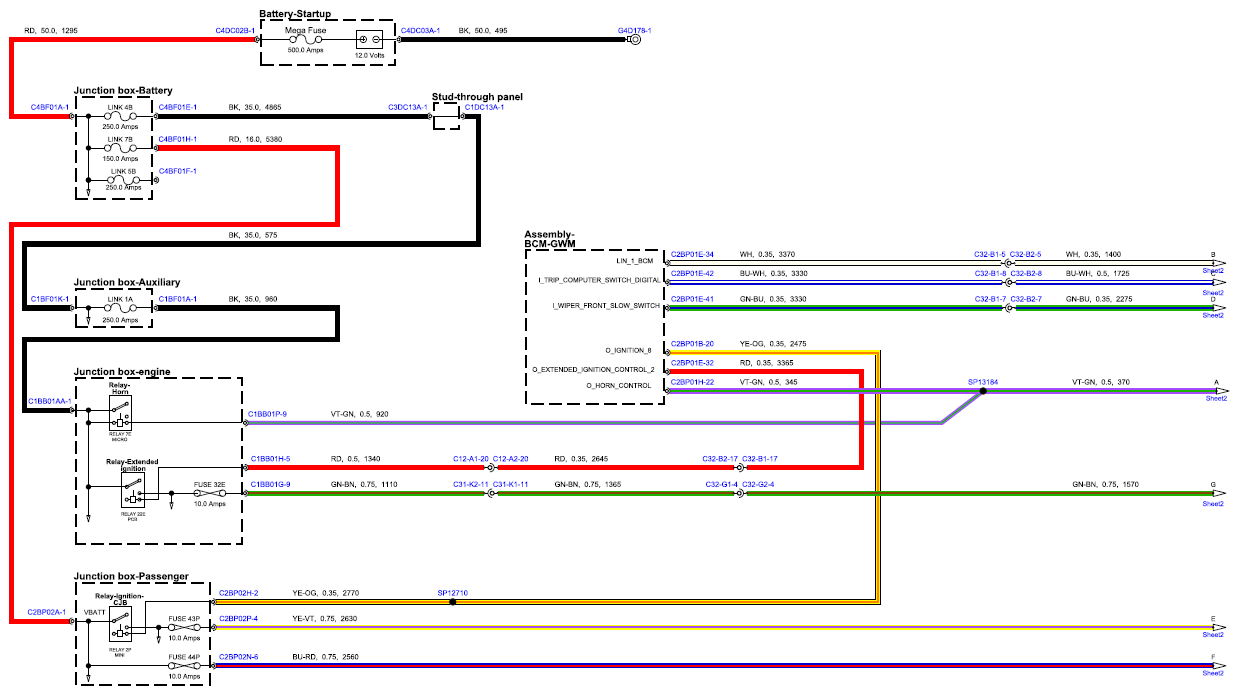

Fig 1: Clock Spring Circuit Diagram (Sheet 1)

G15556358

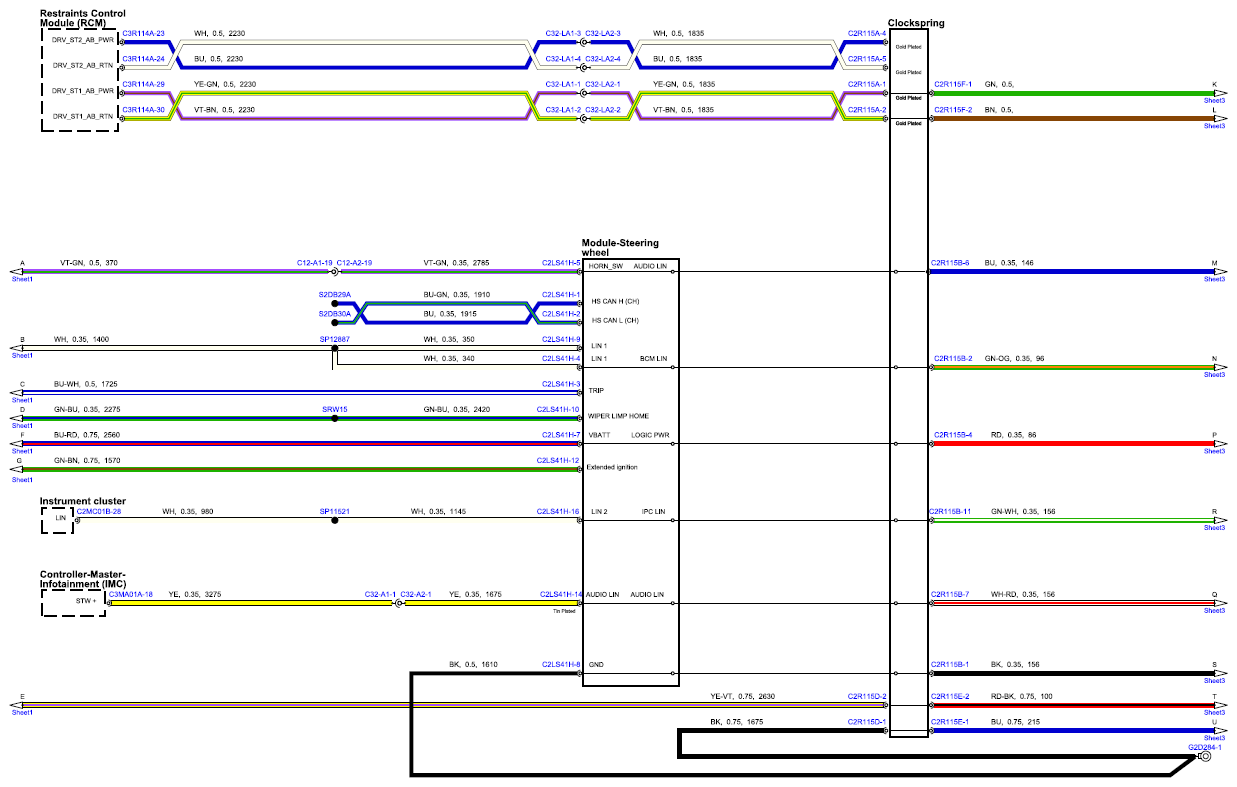

Fig 2: Clock Spring Circuit Diagram (Sheet 2)

G15556359

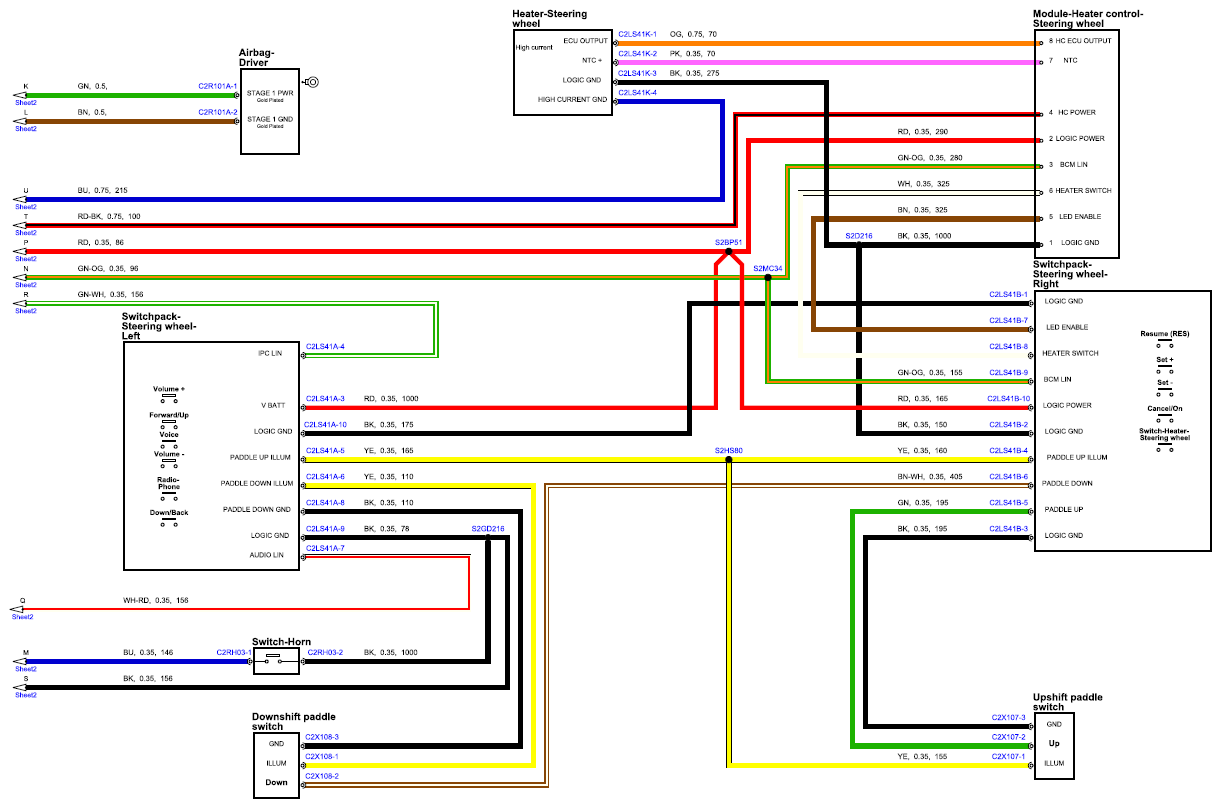

Fig 3: Clock Spring Circuit Diagram (Sheet 3)

G15556360
