206-09 Anti-Lock Control Wiring Diagrams: Notes

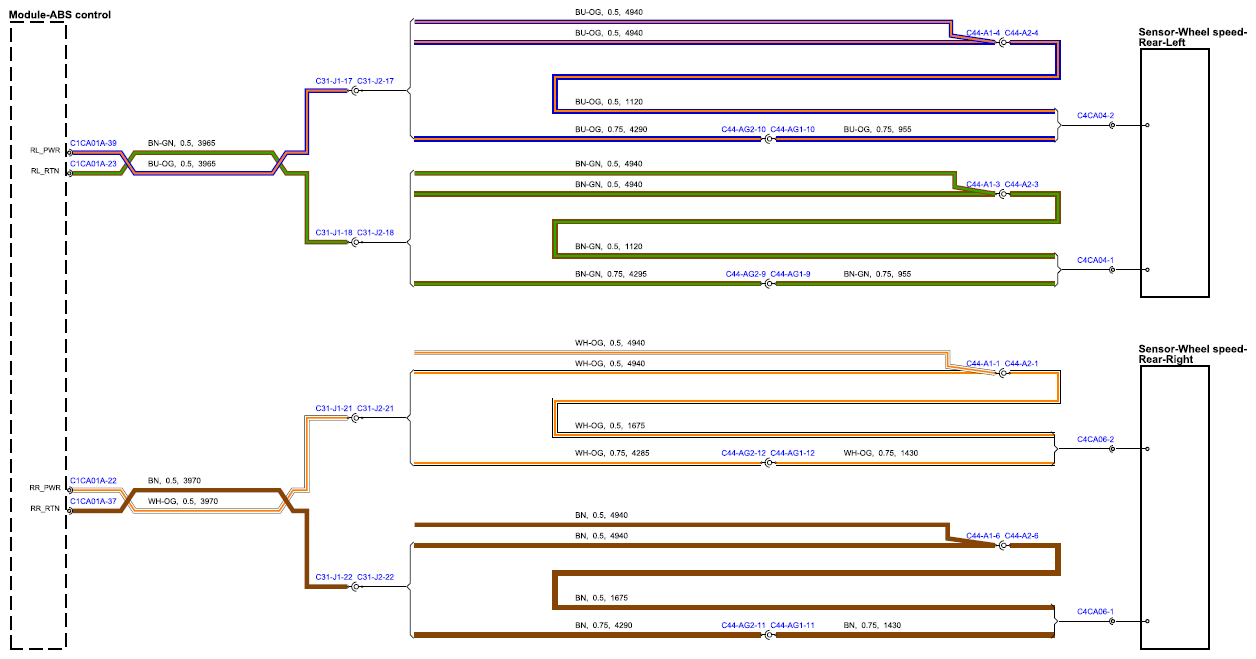

Fig 1: Anti-Lock Control Circuit Diagram (Sheet 1)

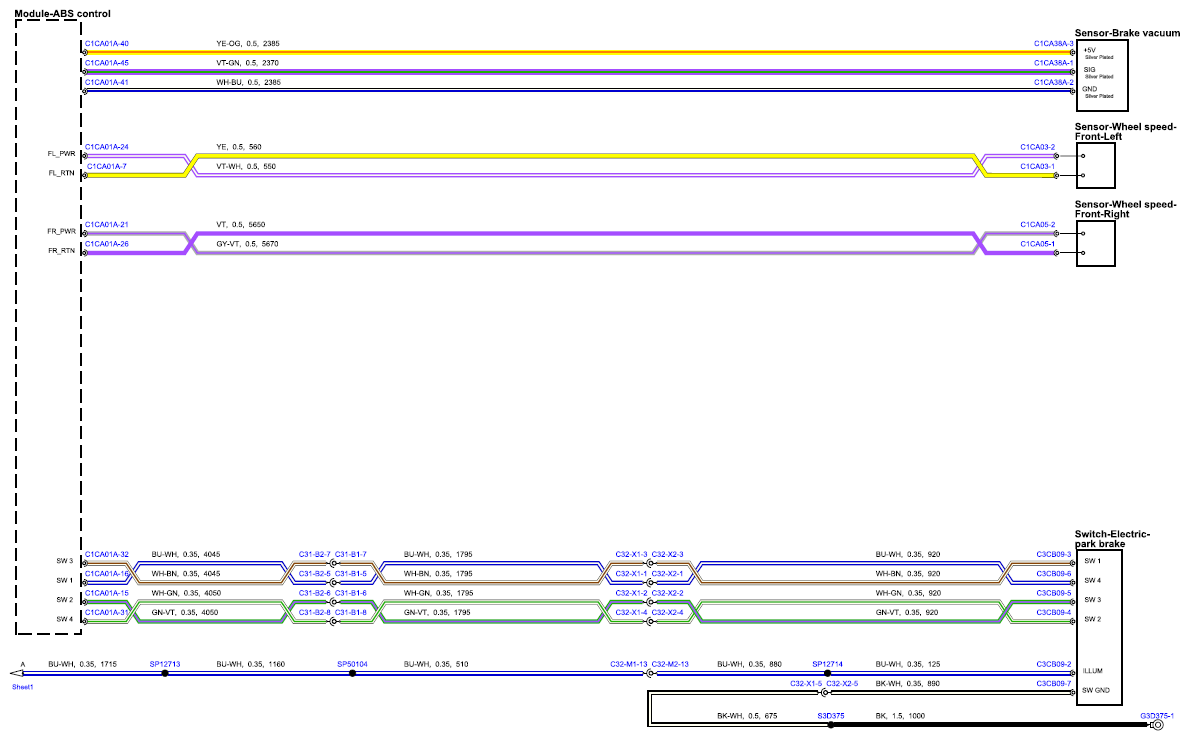

Fig 2: Anti-Lock Control Circuit Diagram (Sheet 2)

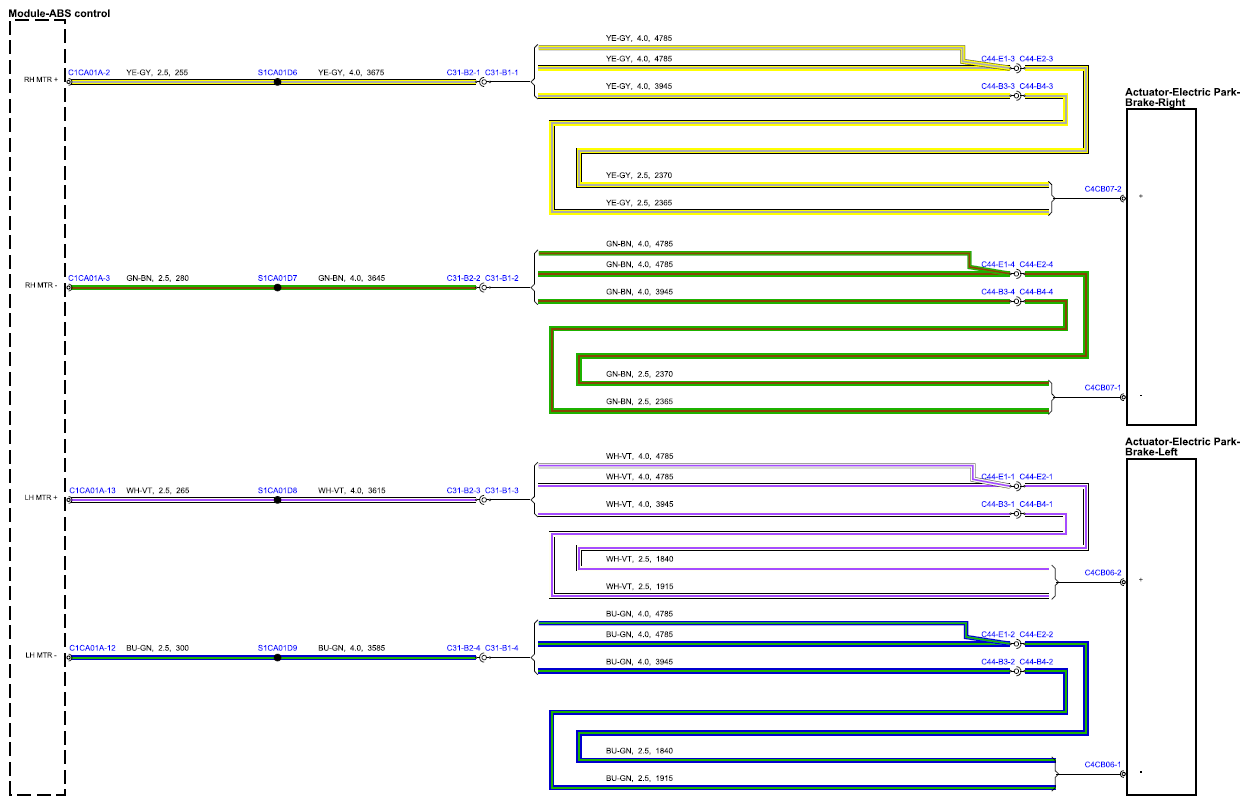

Fig 3: Anti-Lock Control Circuit Diagram (Sheet 3)

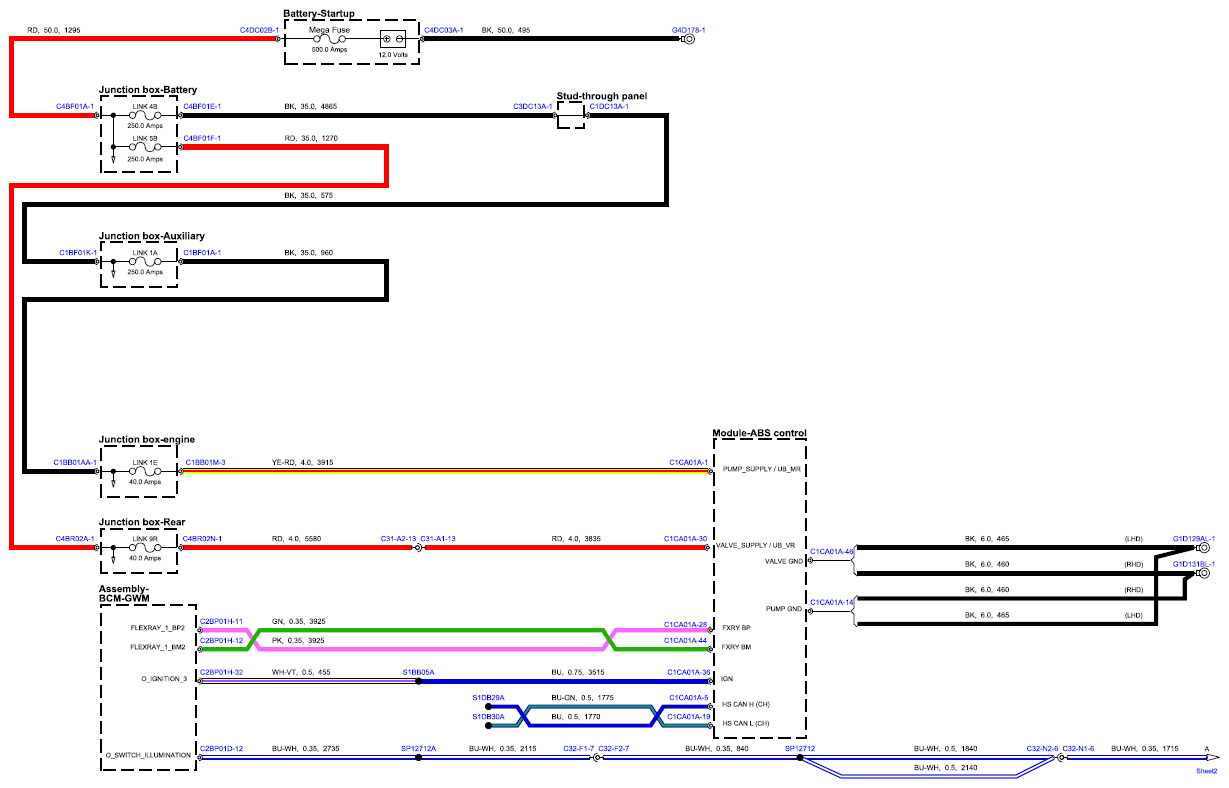

Fig 4: Anti-Lock Control Circuit Diagram (Sheet 4)
