Hybrid Electric Vehicle

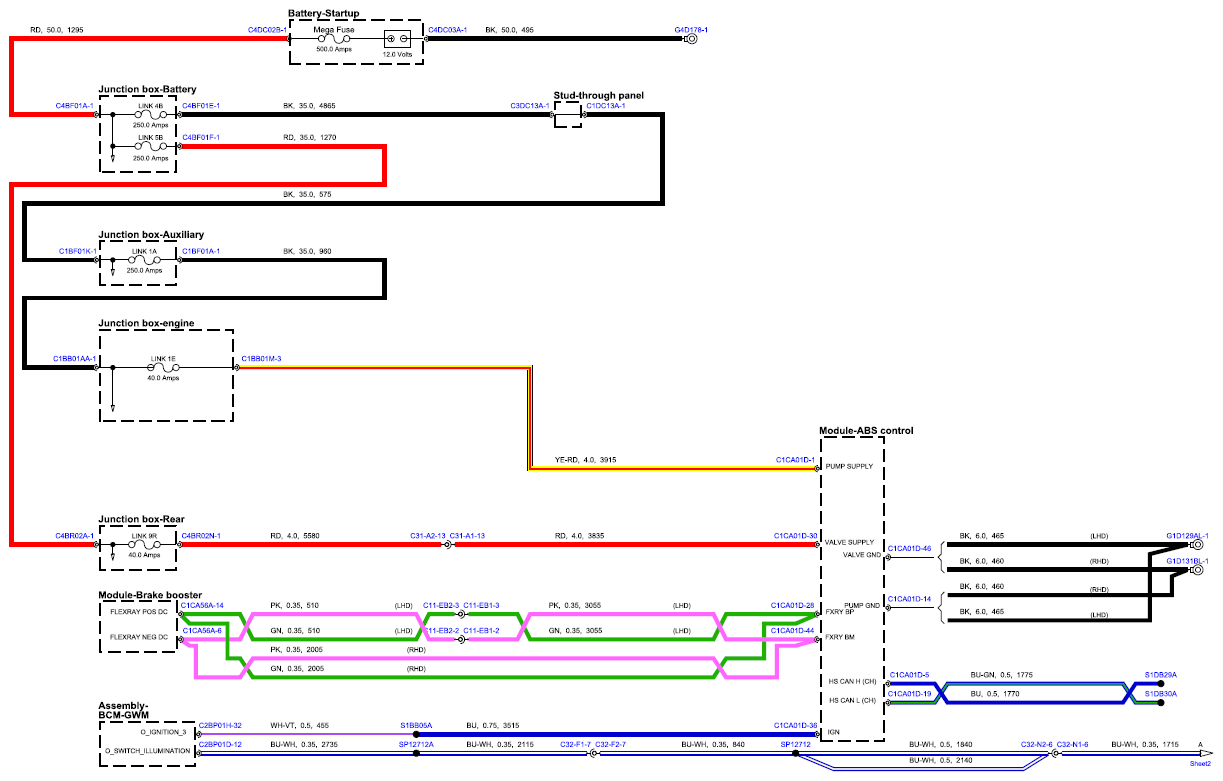

Fig 1: Hybrid Electric Vehicle Circuit Diagram (Sheet 1)
G15556353

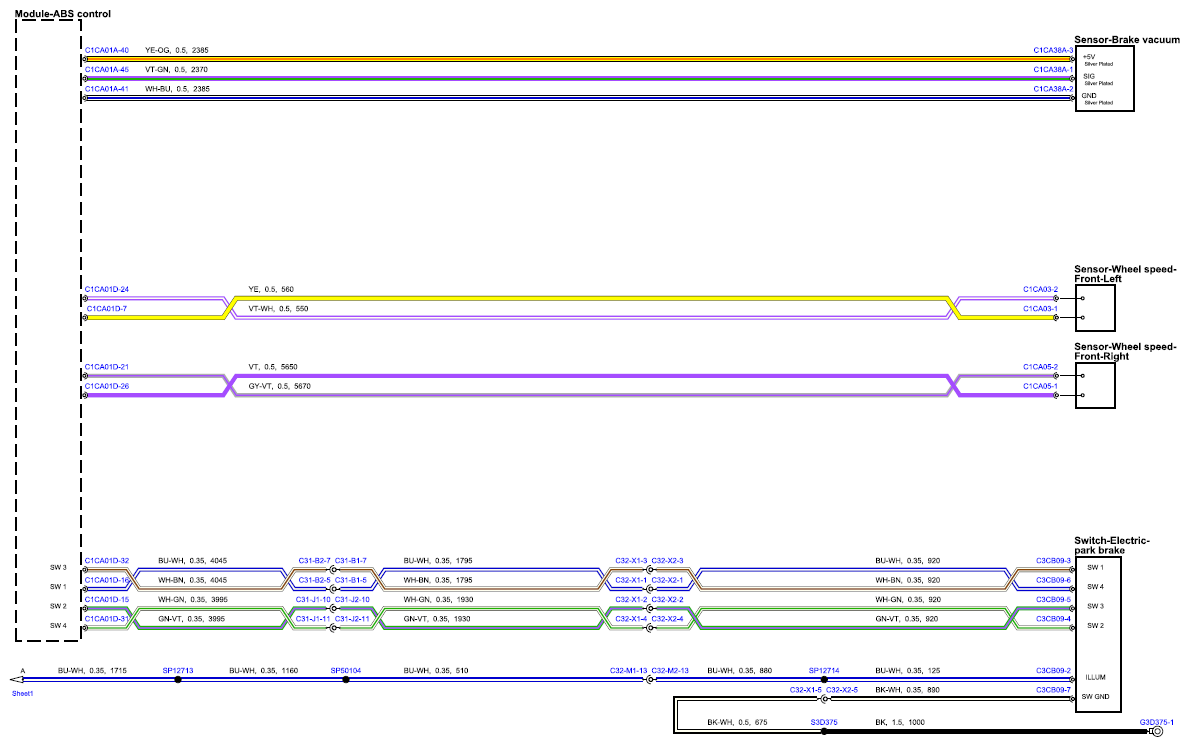

Fig 2: Hybrid Electric Vehicle Circuit Diagram (Sheet 2)
G15556354

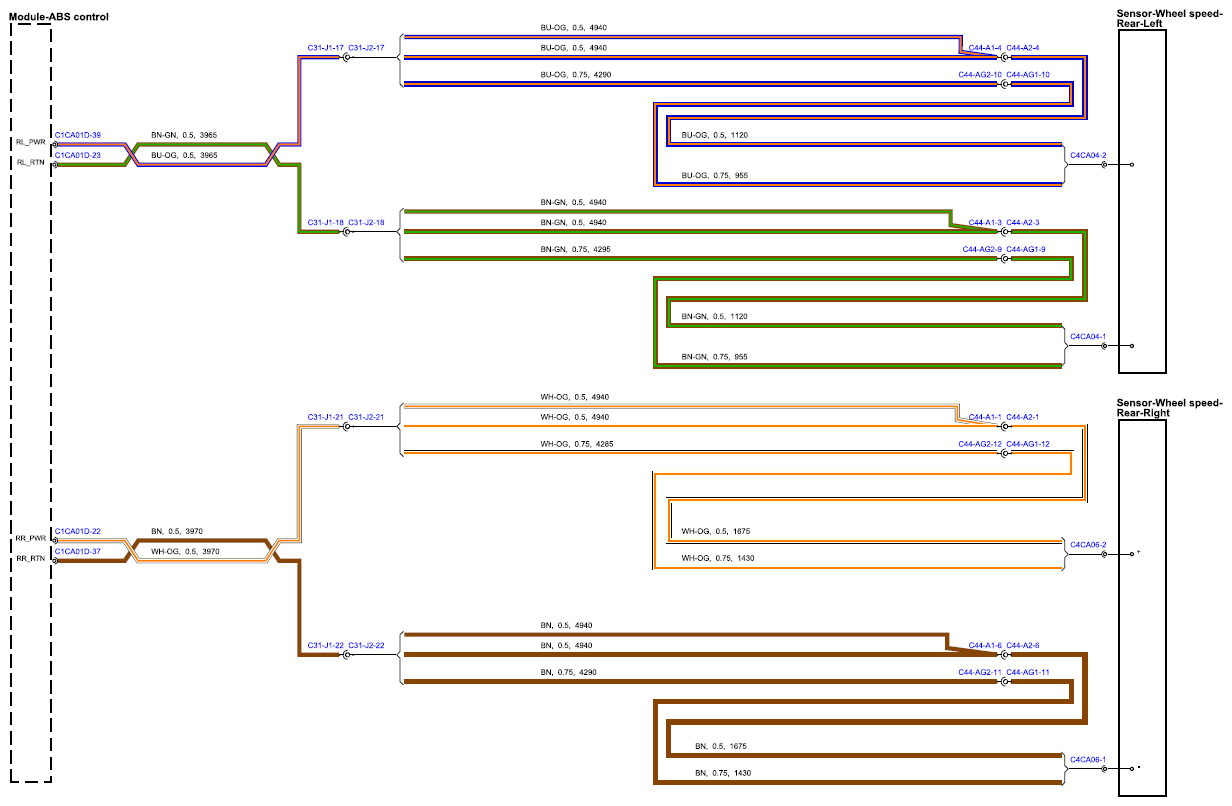

Fig 3: Hybrid Electric Vehicle Circuit Diagram (Sheet 3)
G15556355

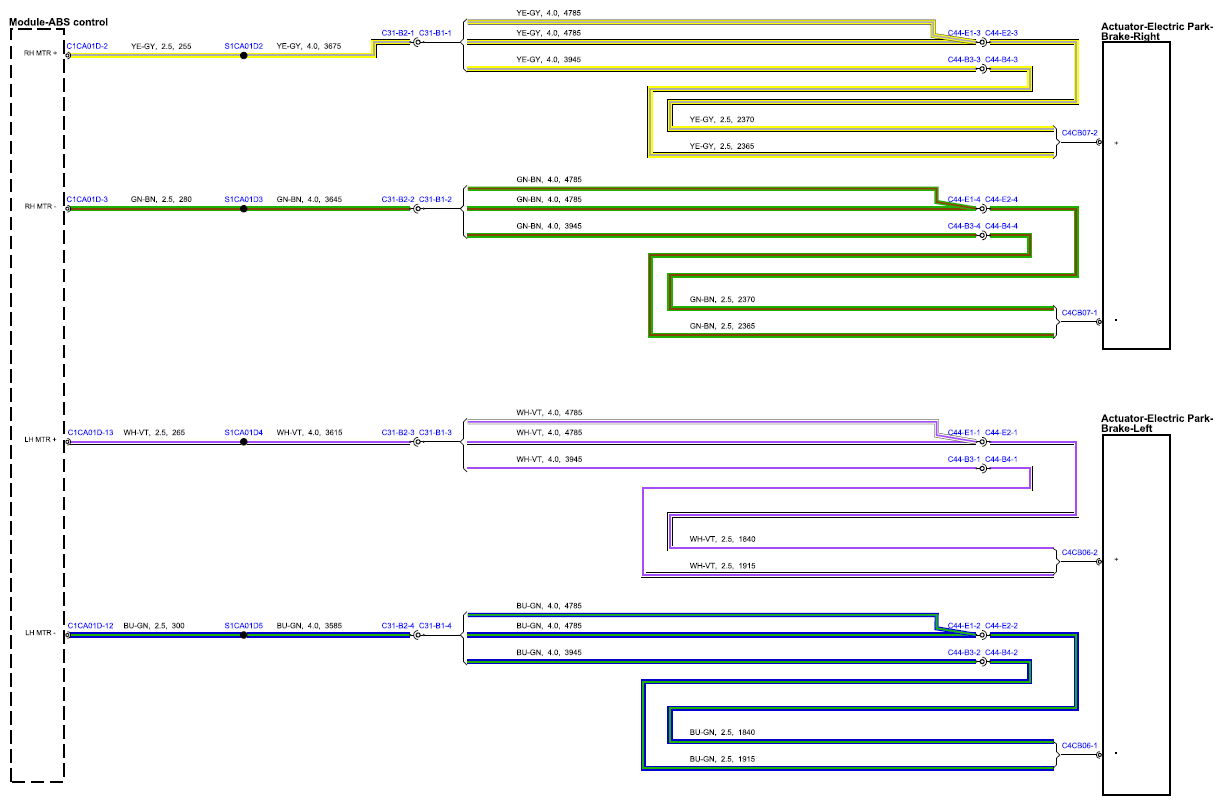

Fig 4: Hybrid Electric Vehicle Circuit Diagram (Sheet 4)
G15556356
