Range Rover Sport

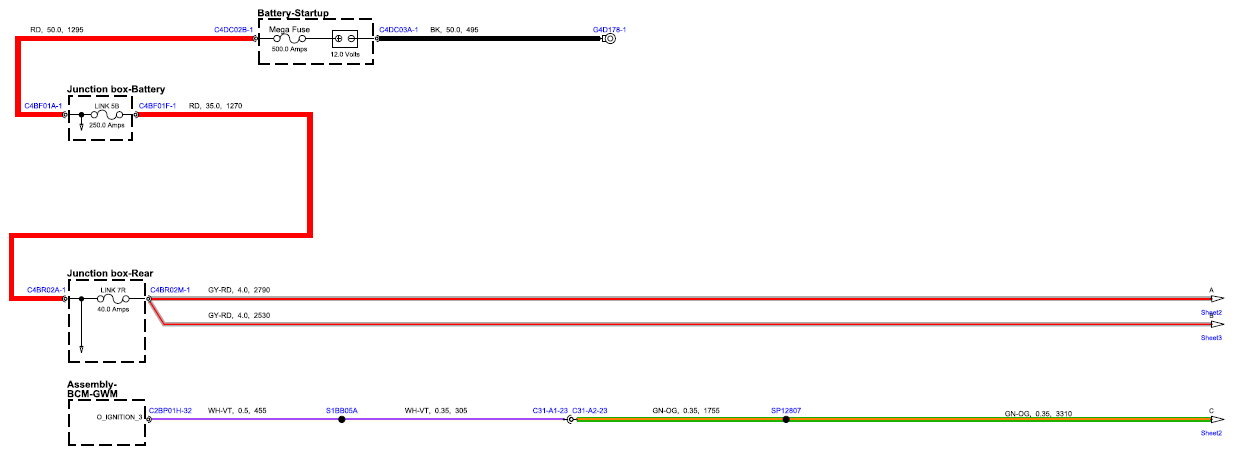

Fig 1: Rear Drive Axle And Differential Circuit Diagram - Range Rover Sport (Sheet 1)
G15556346

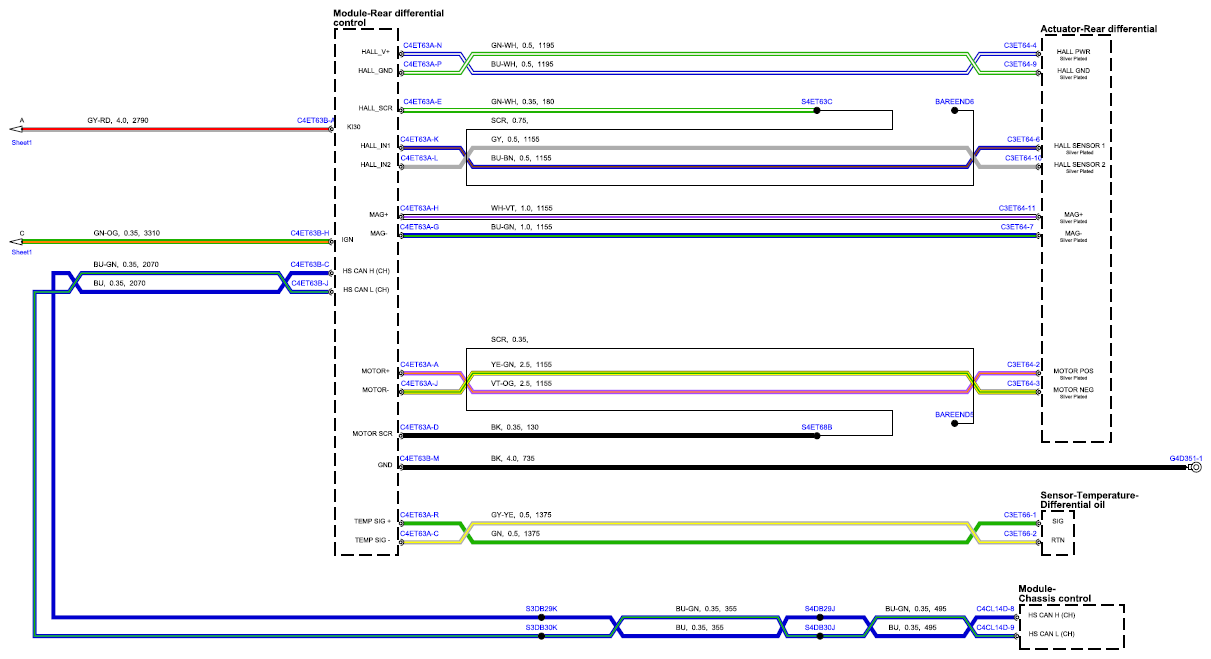

Fig 2: Rear Drive Axle And Differential Circuit Diagram - Range Rover Sport (Sheet 2)
G15556347

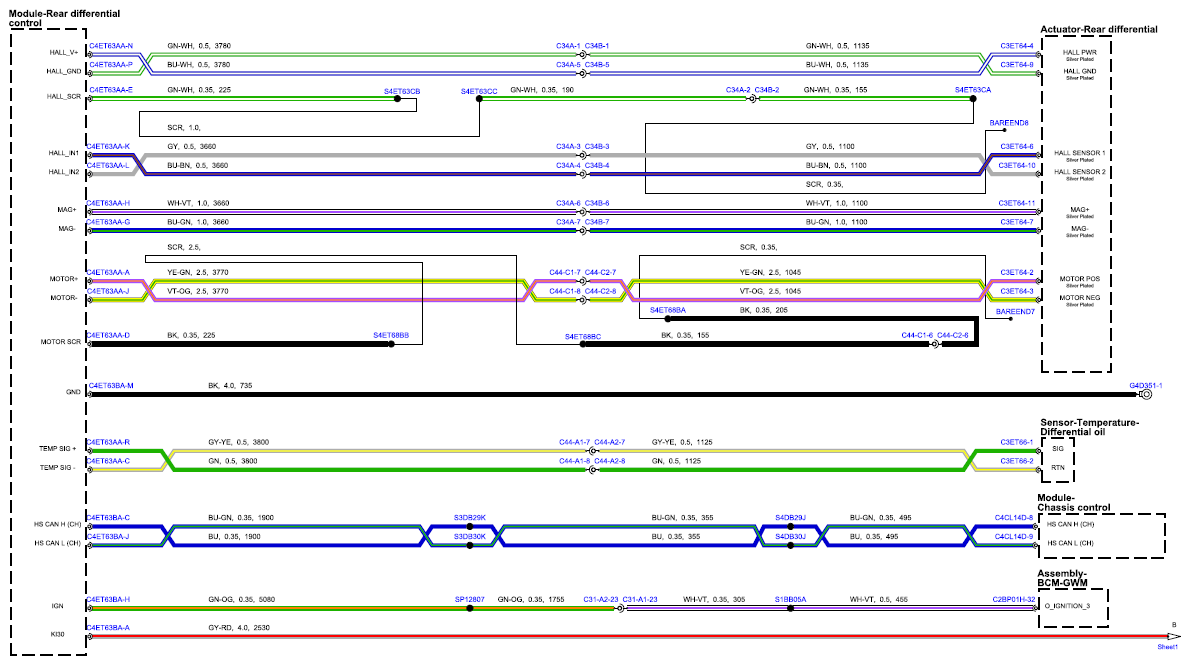

Fig 3: Rear Drive Axle And Differential Circuit Diagram - Range Rover Sport (Sheet 3)
G15556348
