Dynamic Response

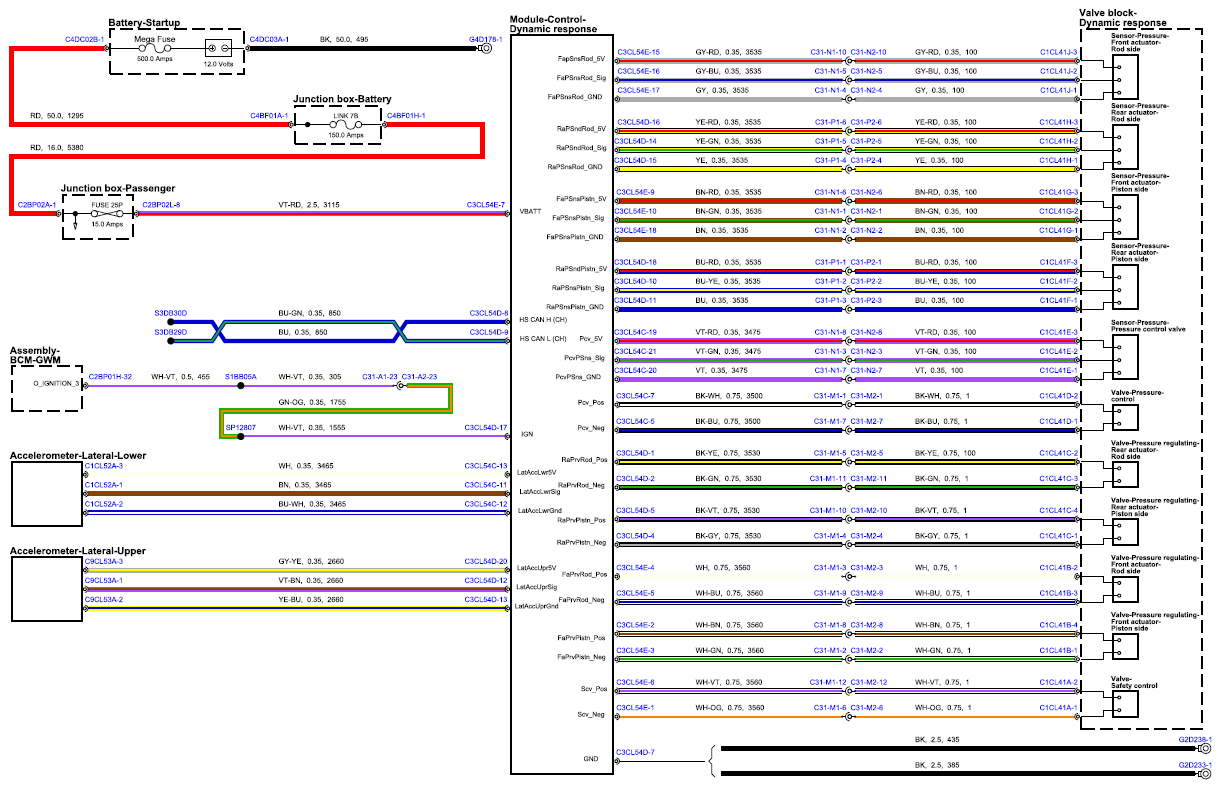

Fig 1: Ride And Handling Optimization Circuit Diagram (Dynamic Response)

G15556340
