204-05 Vehicle Dynamic Suspension Wiring Diagrams

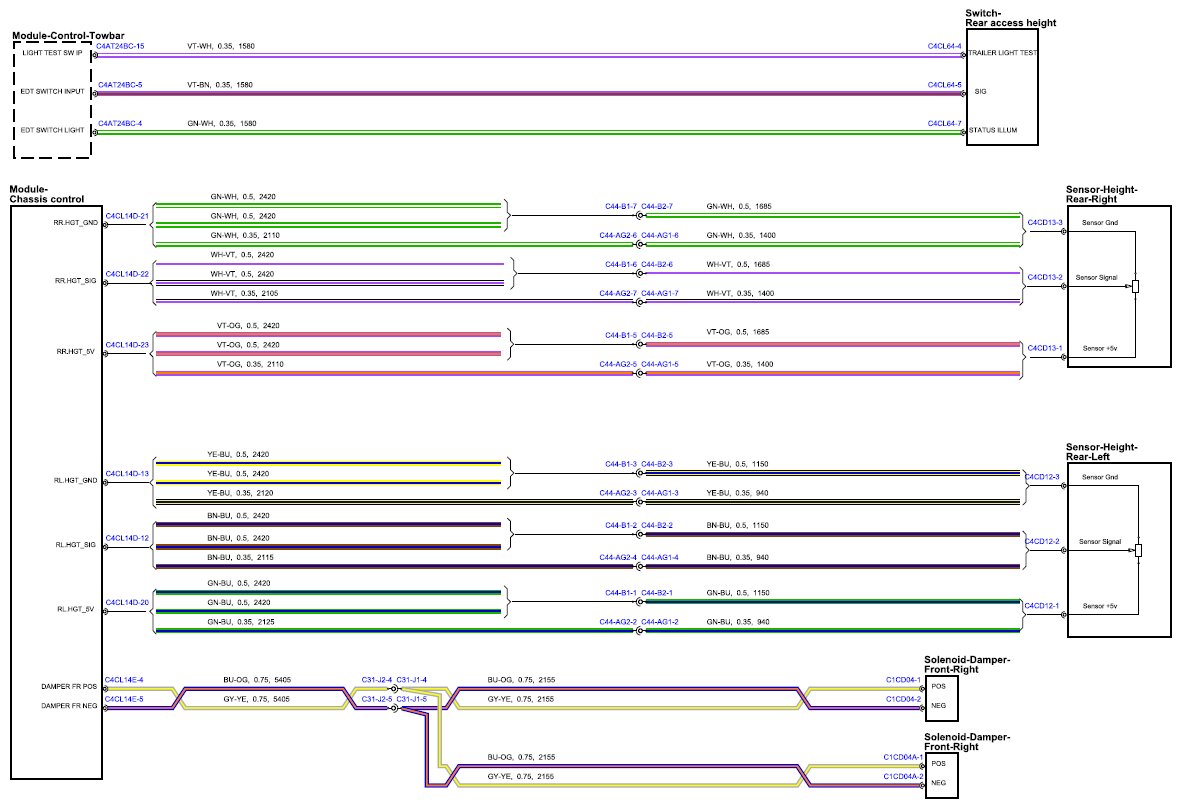

Fig 1: Vehicle Dynamic Suspension Circuit Diagram (Sheet 1)

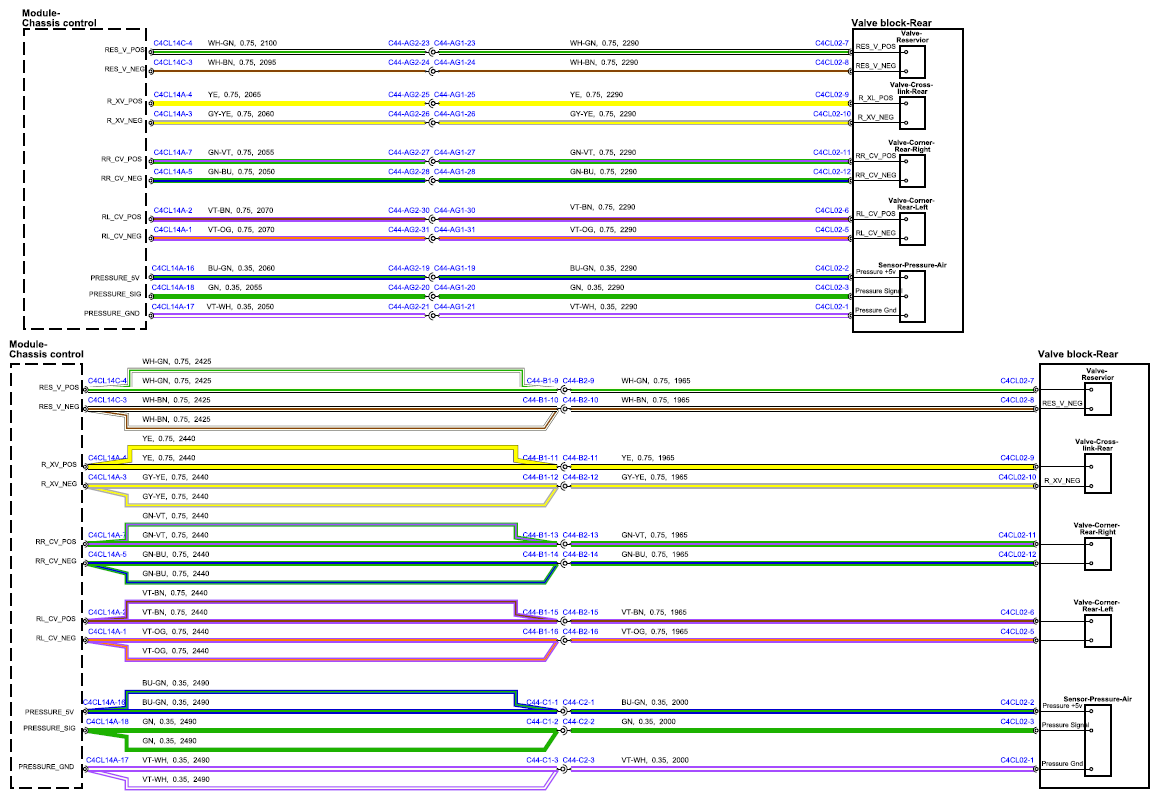

Fig 2: Vehicle Dynamic Suspension Circuit Diagram (Sheet 2)

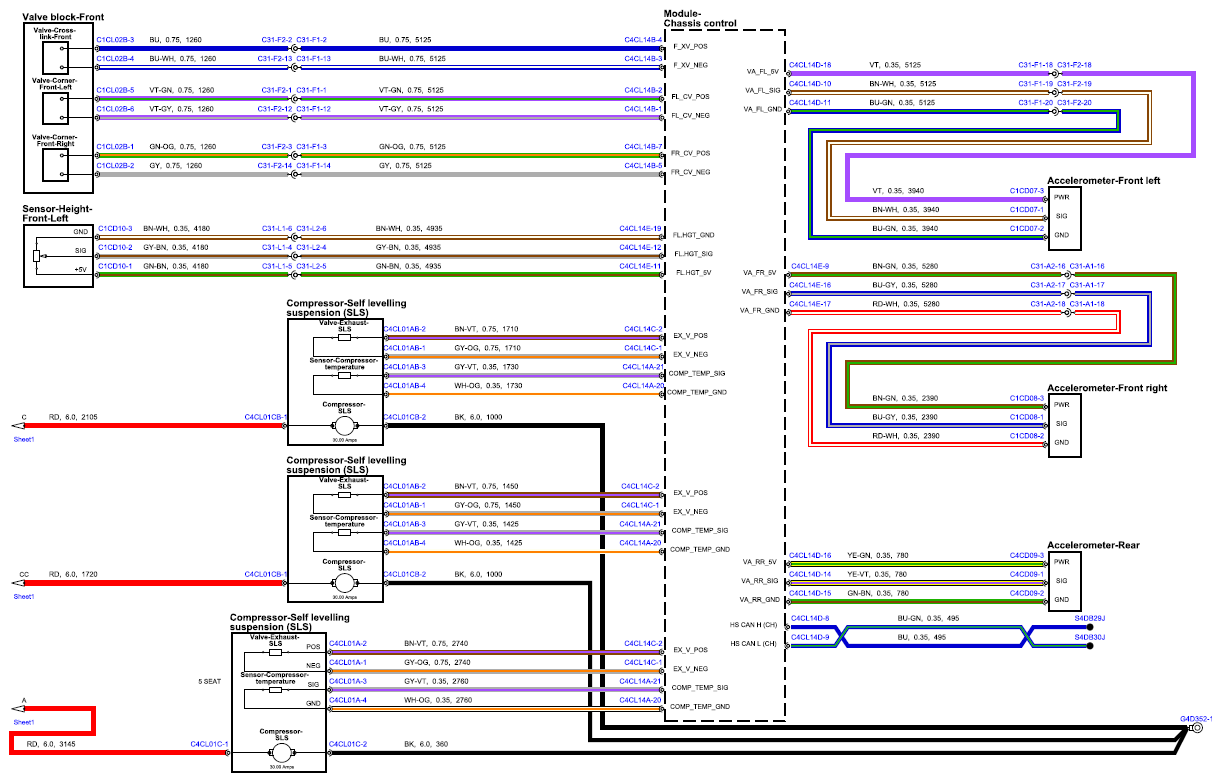

Fig 3: Vehicle Dynamic Suspension Circuit Diagram (Sheet 3)

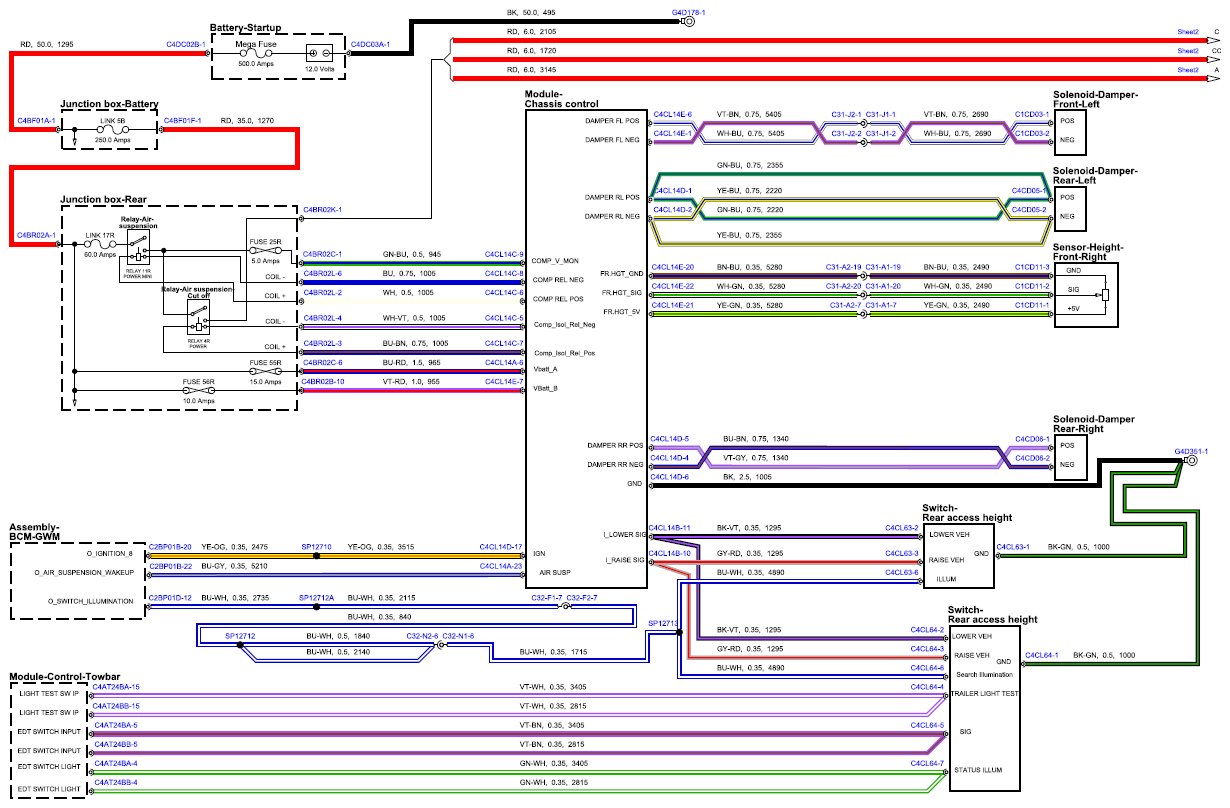

Fig 4: Vehicle Dynamic Suspension Circuit Diagram (Sheet 4)
