Deployable Side Step (7-seat vehicles)

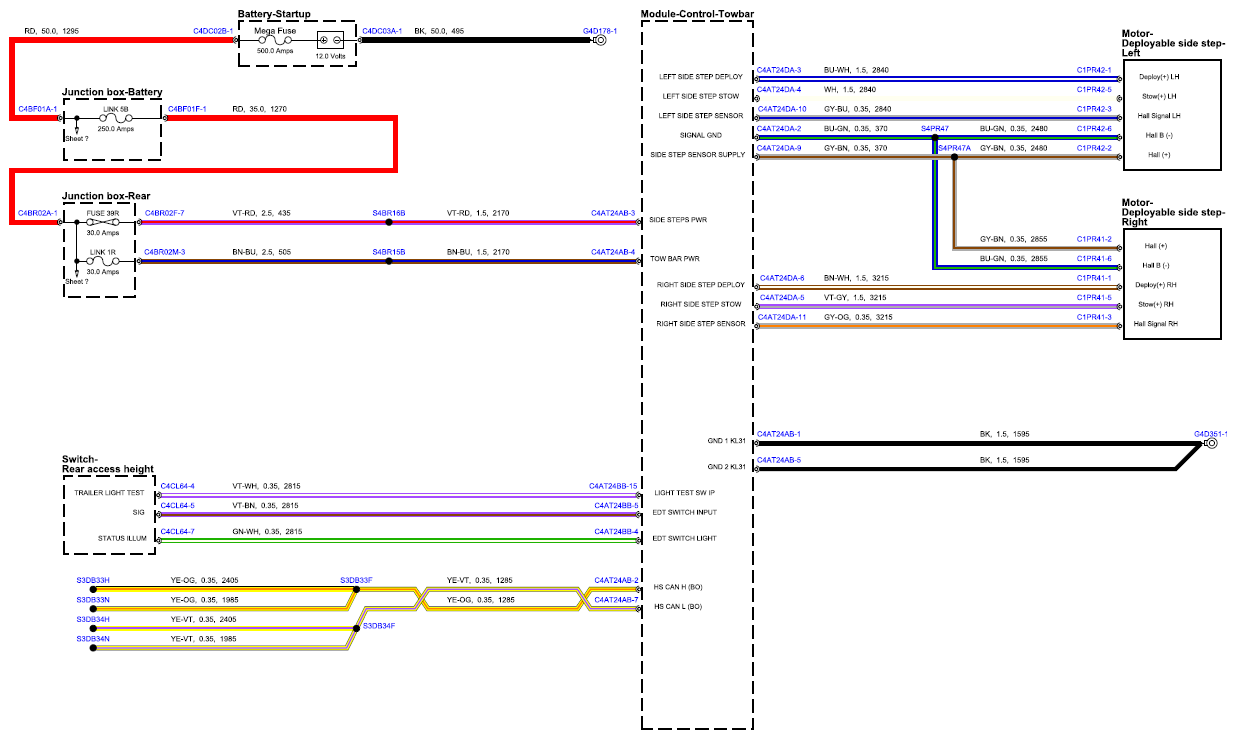

Fig 1: Deployable Side Step (7-Seat Vehicles) Circuit Diagram

G15556334
