OEM Wiring Diagrams -- Range Rover Sport L494
>>
102-03 Accessory Information - Exterior
>>
Deployable Side Step (5-seat vehicles)
Deployable Side Step (5-seat vehicles)

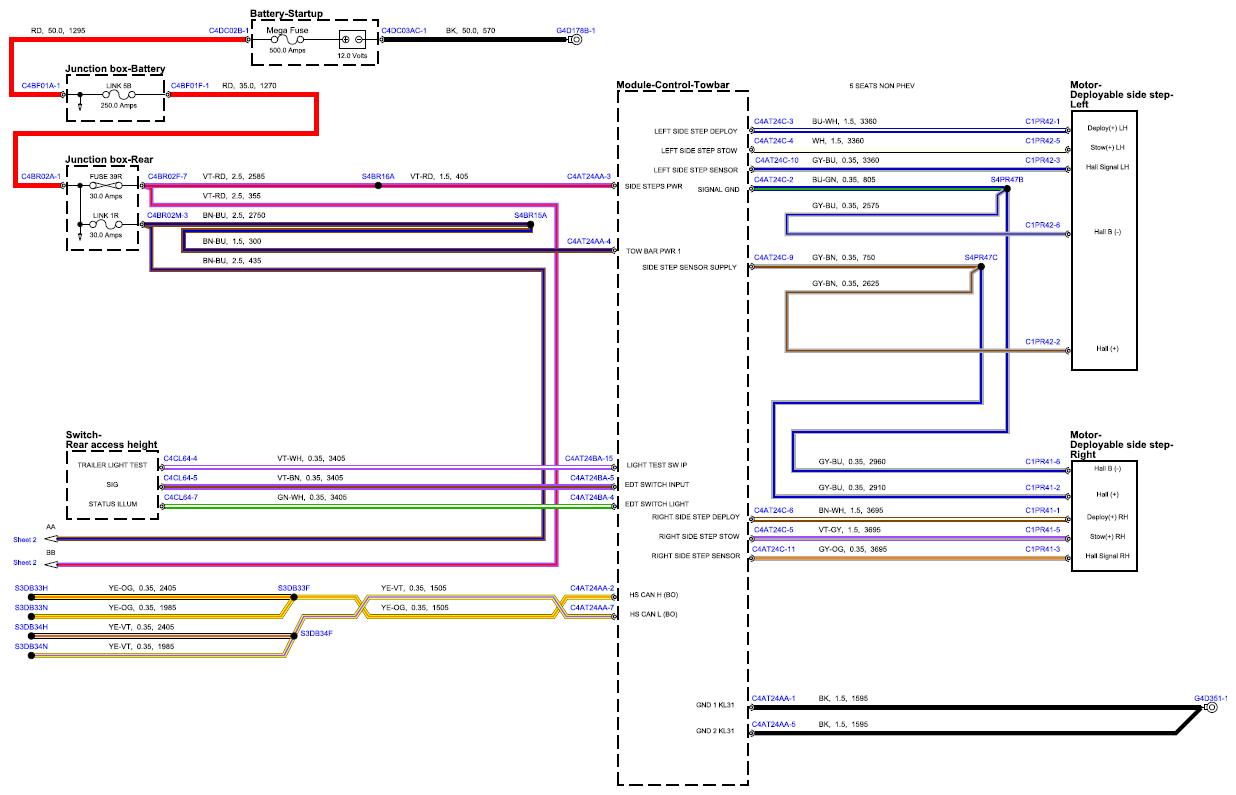

Fig 1: Deployable Side Step (5-Seat Vehicles) Circuit Diagram (Sheet 1)

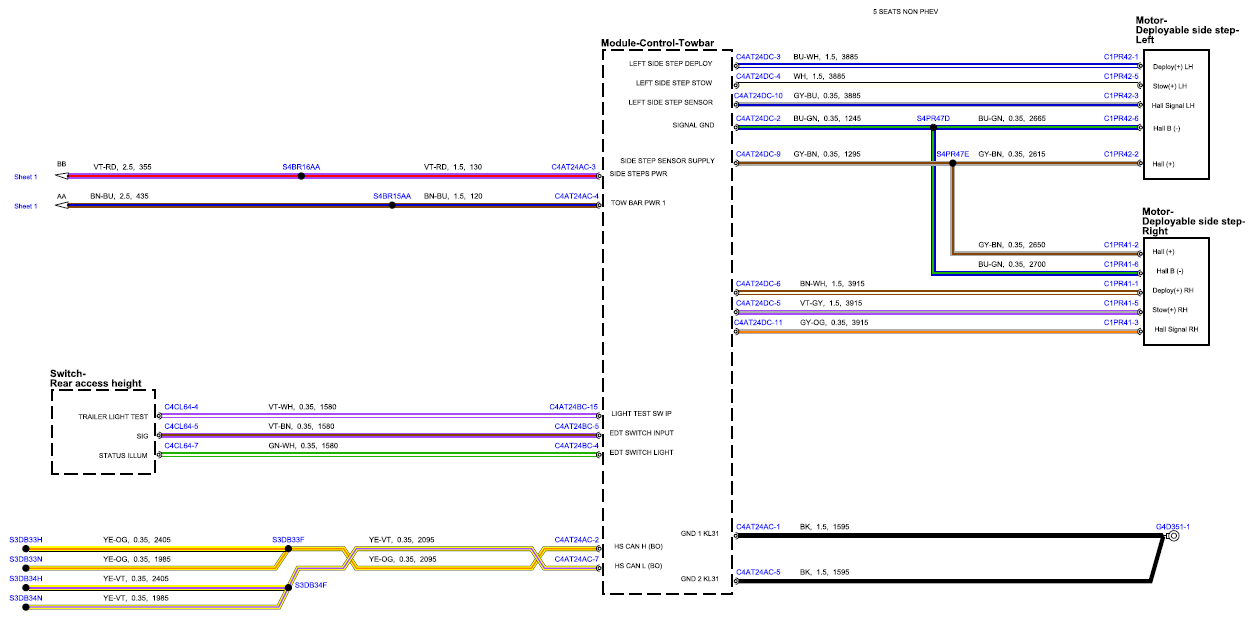

Fig 2: Deployable Side Step (5-Seat Vehicles) Circuit Diagram (Sheet 2)
